Baldor EHM9149T Product Information Sheet

Download
Product Information Packet
EHM9149T
40HP,1770RPM,3PH,60HZ,324T,1254M,TEFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: EHM9149T - 40HP,1770RPM,3PH,60HZ,324T,1254M,TEFC,F1
Part Detail
Revision: F Status: INA/A Change #: Proprietary: No Type: AC Elec. Spec: 12WGX356 CD Diagram: CD0180 Mfg Plant: Mech. Spec: 12T083 Layout: 12LYT083 Poles: 04 Created Date: Base: RG Eff. Date: 08-24-2010 Leads: 9#8
Specs
Catalog Number: EHM9149T Enclosure: TEFC Frame: 324T Frame Material: Iron Output @ Frequency: 40.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 230.0 V @ 60 HZ
460.0 V @ 60 HZ XP Division: Not Applicable Agency Approvals: UR
CSA Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None Current @ Voltage: 46.000 A @ 460.0 V
Insulation Class: F Inverter Code: Not Inverter KVA Code: G Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 8 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 1254M Mounting Arrangement: F1 Power Factor: 87 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: Standard Pulley Shaft Indicator: Standard Rodent Screen: None Shaft Extension Location: Pulley End
92.000 A @ 230.0 V
Shaft Ground Indicator: No Shaft Grounding
Product Information Packet: EHM9149T - 40HP,1770RPM,3PH,60HZ,324T,1254M,TEFC,F1
Design Code: B Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater
Shaft Rotation: Reversible Shaft Slinger Indicator: Shaft Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor
Product Information Packet: EHM9149T - 40HP,1770RPM,3PH,60HZ,324T,1254M,TEFC,F1
Nameplate NP1371
CAT.NO. EHM9149T
SPEC. 12T083X356G1
HP 40
VOLTS 230/460
AMP 92/46 RPM 1770
FRAME 324T HZ 60 PH 3
SER.F. 1.15 CODE G DES B CLASS F
NEMA-NOM-EFF 93.6 PF 87
RATING 40C AMB-CONT
CC 010A USABLE AT 208V DE 6312 ODE 6311
ENCL TEFC SN
Product Information Packet: EHM9149T - 40HP,1770RPM,3PH,60HZ,324T,1254M,TEFC,F1
Parts List
Part Number Description Quantity SA071115 SA 12T083X356G1 1.000 EA RA064977 RA 12T083X356G1 1.000 EA 10CB3001 CONDUIT BOX CAST W/2.500 LEAD HOLE 1.000 EA 12GS1000 GASKET 1.000 EA 10XN3118K12 5/16-18 X .75 GRADE 5, ZINC PLATED 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA WD1000B16 T&B CX70TN OR L70P TERMINAL LUG 1.000 EA 51XF2520A08 SCREW, HEX SER SLT HD, ZN 1/4-20 X .50 L 1.000 EA 12EP1107A51 FREP MACH, NO RET HOLES 1.000 EA HA3400A13 STUD, 1/2-13 X 7" WELKER 4.000 EA HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 4.000 EA 12FH1002SP FAN COVER, CAST 1.000 EA HW5100A13 W4627-047 WVY WSHER 1.000 EA 12EP1106A34 PUEP MACH, W/O RET RING HOLES 1.000 EA 10XN5013K28 1/2-13 X 1.75 HEX HEAD MACH SCREW,GRAD 4.000 EA HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 4.000 EA HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 4.000 EA XY5013A12 NUT,1/2-13,HEX,STEEL,ZINCPLATED 4.000 EA 10CB3500SP CONDUIT BOX LID, CAST 1.000 EA 10GS1000SP GASKET, CONDUIT BOX LID 1.000 EA 51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 4.000 EA HA1005A06 SLINGER, OD 3.62, ID 2.15 1.000 EA HW2501H33 KEY, 1/2 SQ X 3.875 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
Product Information Packet: EHM9149T - 40HP,1770RPM,3PH,60HZ,324T,1254M,TEFC,F1
Parts List (continued)
Part Number Description Quantity HW4500A35 1/8 NPT STEEL .50 HEX CAP 1.000 EA HA4017A01 1/8 X 4 GREASE EXT (F/S) 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4001A01SP DRAIN PLUG, PLASTIC (MICRO PLAS) 1.000 EA HA4001A01SP DRAIN PLUG, PLASTIC (MICRO PLAS) 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.200 LB HW4500A20 1/8NPT SL PIPE PLUG 2.000 EA 85XU0407A04 #4-7 X 1/4 DRIVE PIN 2.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA S/P111-000-001 S/P111-000-001 CORONA TEST 1.000 EA 09FN5001B03 EXT FAN ASS'Y W/09FN3001B03 1.000 EA MG1000G59 PAINT, 689.959 WILKO SILVER 0.080 GA LB1119N WARNING LABEL 1.000 EA LB1125C04 STD-E (STOCK CTN LABEL STD-E WITH FLAG) 4.000 EA LC0181 CONNECTION LABEL 1.000 EA NP1371 ALUM, HVAC, PREM EFF, UL CSA, W/O 1.000 EA 12PA1000 PACKAGING GROUP PRINT PK1024A06 1.000 EA LB1417 LABEL CARTON 6X4 PERFORATED BLANK ROLLS 1.000 EA
Product Information Packet: EHM9149T - 40HP,1770RPM,3PH,60HZ,324T,1254M,TEFC,F1
Accessories
Part Number Description Multiplier 12-1105 C FACE KIT A8 12EP1501A03SP D-FLANGE KIT A8
Product Information Packet: EHM9149T - 40HP,1770RPM,3PH,60HZ,324T,1254M,TEFC,F1
AC Induction Motor Performance Data
Record # 3475 - Typical performance - not guaranteed values
Winding: 12WGX356-R001 Type: 1254M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection Rated Output (HP) 40 Full Load Torque 118 LB-FT Volts 230/460 Start Configuration direct on line Full Load Amps 92/46 Breakdown Torque 323 LB-FT R.P.M. 1770 Pull-up Torque 135 LB-FT Hz 60 Phase 3 Locked-rotor Torque 183 LB-FT NEMA Design Code B KVA Code G Starting Current 289 A Service Factor (S.F.) 1.15 No-load Current 15.04 A NEMA Nom. Eff. 93.6 Power Factor 87 LinelineRes.@25ºC 0.152Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 56°C S.F. Amps Temp. Rise @ S.F. Load 74°C
Locked-rotor Power Factor 26
Rotor inertia 7.19 LB-FT2
Load Characteristics 460 V, 60 Hz, 40 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 56 77 84 87 87 87 87 Efficiency 89.3 92.9 93.7 93.7 93.3 92.6 93.5 Speed 1794 1788 1781 1774 1766 1757 1769 Line amperes 18.66 26.28 35.9 46.2 57.4 69.7 52.9
Product Information Packet: EHM9149T - 40HP,1770RPM,3PH,60HZ,324T,1254M,TEFC,F1

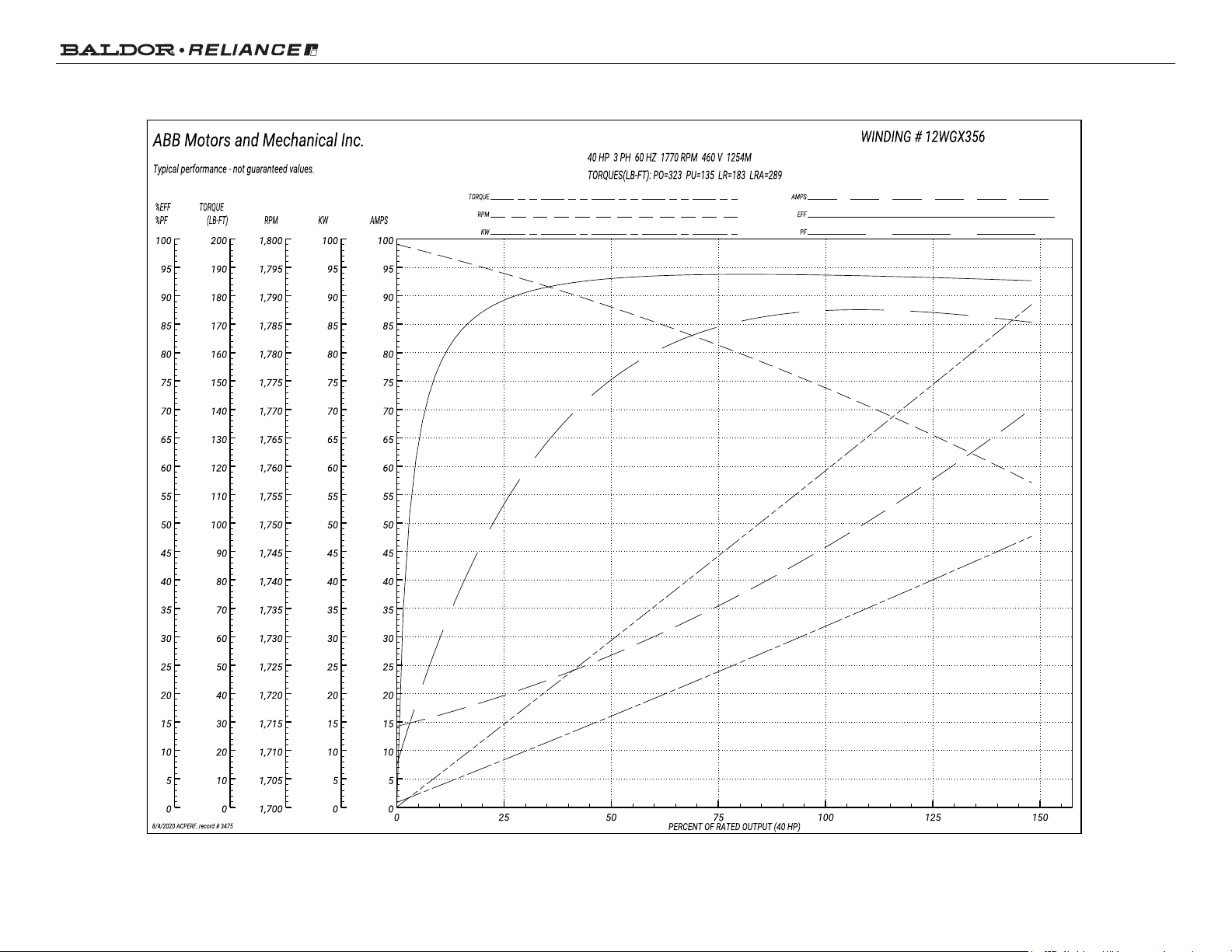

Performance Graph at 460V, 60Hz, 40.0HP Typical performance - Not guaranteed values
Product Information Packet: EHM9149T - 40HP,1770RPM,3PH,60HZ,324T,1254M,TEFC,F1
Page 10 of 11
Product Information Packet: EHM9149T - 40HP,1770RPM,3PH,60HZ,324T,1254M,TEFC,F1
Page 11 of 11
