Product Information Packet
EGDM3774T
10HP,1760RPM,3PH,60HZ,215TZ,0748M,TEFC,F
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: EGDM3774T - 10HP,1760RPM,3PH,60HZ,215TZ,0748M,TEFC,F
Part Detail
Revision: C Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 07WGX776 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 07N230 Layout: 07LYN230 Poles: 04 Created Date: 01-08-2016
Base: RG Eff. Date: 07-16-2019 Leads: 9#14 72" LONG Y
Specs
Catalog Number: EGDM3774T
Enclosure: TEFC
Frame: 215TZ
Frame Material: Iron
Output @ Frequency: 10.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 208.0 V @ 60 HZ
460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: CSA
CSA EEV
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Inverter Ready
KVA Code: H
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: No Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 14 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 0748M
Mounting Arrangement: F1
Power Factor: 82
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Pulley Shaft Indicator: Standard
Rodent Screen: None
Bearing Grease Type: Polyrex EM (-20F +300F)
RoHS Status: ROHS COMPLIANT
Page 2 of 10
Product Information Packet: EGDM3774T - 10HP,1760RPM,3PH,60HZ,215TZ,0748M,TEFC,F
Blower: None
Current @ Voltage: 26.300 A @ 208.0 V
25.000 A @ 230.0 V
12.500 A @ 460.0 V
Design Code: A
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: Shaft Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: EGDM3774T - 10HP,1760RPM,3PH,60HZ,215TZ,0748M,TEFC,F
Nameplate NP3126L
CAT.NO. EGDM3774T
SPEC. 07N230X776G1
HP 10
VOLTS 208-230/460
AMP 26.3-25/12.5
RPM 1760
FRAME 215TZ HZ 60 PH 3
SER.F. 1.15 CODE H DES A CL F
NEMA-NOM-EFF 92.4 PF 82
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 26.3
DE 6307 ODE 6206
ENCL TEFC SN
Page 4 of 10
Product Information Packet: EGDM3774T - 10HP,1760RPM,3PH,60HZ,215TZ,0748M,TEFC,F
Parts List
Part Number Description Quantity
SA313213 SA 07N230X776G1 1.000 EA
RA300664 RA 07N230X776G1 1.000 EA
37FN3002C01 EXFN, PLASTIC, 6.00 OD, 1.155 ID 1.000 EA
HW3201A05 3/8-16 EYEBOLT 1.000 EA
09CB3001 CB W/1.09 LEAD HOLE FOR 37, 39, 307 & 30 1.000 EA
09GS1000SP GASKET-CONDUIT BOX, 1/16 THICK LEXIDE 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA
59XW2520G07 .25-20X.44,HEX SER WSHR,TAPTITE 2,GREEN 1.000 EA
37EP1100B65 FRONT TEFC 206 BRG 37M W/O GRSR FOR 37FH 1.000 EA
HW5100A06 W2420-025 WVY WSHR (WB) 1.000 EA
37EP1101D14 PU ENDPLATE MACH, SEAL, DRAIN 1.000 EA
HW4600B51 SEAL 1.375 X 2.125 X 0.313 SINGLE LIP DB 1.000 EA
HA3104A32 THRUBOLT- 5/16-18 X12.750 4.000 EA
XY3118A12 5/16-18 HEX NUT DIRECTIONAL SERRATION 4.000 EA
51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA
07FH4007A07 IEC FH NO GRSR, NOTCH @ 6:00 & 3 F/C HOL 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
09CB3501SP CONDUIT BOX LID FOR 09CB3001 & 09CB3002 1.000 EA
09GS1013SP 09 GS FOR 09CB3501 LID - LEXIDE 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA
HA1005A02 SLINGER, OD 2.00, ID 1.14, 206 BRG, 1.000 EA
HW4600B33 V-RING SLINGER 1.375 X 1.890 X .35 VITON 1.000 EA
HW2501F22 KEY, 5/16 SQ X 2.500 1.000 EA
HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA
Page 5 of 10
Product Information Packet: EGDM3774T - 10HP,1760RPM,3PH,60HZ,215TZ,0748M,TEFC,F
Parts List (continued)
Part Number Description Quantity
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
MJ5001A27 32220KN GRAY SEALER *MIN BUY 4 QTS=1GAL 0.001 QT
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1025C02 WILKOFAST SG, 787.105, TAN 0.036 GA
LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
NP3126L ALUM FARM DUTY SUPER-E UL CSA-EEV PREM 1.000 EA
07PA1011 PKG GRP, 07 CAST IRON PK1181 1.000 EA
10XL3808A28 3/8 X 1 3/4" LAG SCREW 2.000 EA
Page 6 of 10
Product Information Packet: EGDM3774T - 10HP,1760RPM,3PH,60HZ,215TZ,0748M,TEFC,F
AC Induction Motor Performance Data
Record # 27907 - Typical performance - not guaranteed values
Winding: 07WGX776-R006 Type: 0748M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 10 Full Load Torque 29.8 LB-FT
Volts 208-230/460 Start Configuration direct on line
Full Load Amps 26.3-25/12.5 Breakdown Torque 87 LB-FT
R.P.M. 1760 Pull-up Torque 51.9 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 57.5 LB-FT
NEMA Design Code A KVA Code H Starting Current 88.5 A
Service Factor (S.F.) 1.15 No-load Current 5.12 A
NEMA Nom. Eff. 92.4 Power Factor 82 LinelineRes.@25ºC 0.973Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 60°C
S.F. Amps Temp. Rise @ S.F. Load 76°C
Locked-rotor Power Factor 35
Rotor inertia 1.18 LB-FT2
Load Characteristics 460 V, 60 Hz, 10 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 44 67 78 82 84 85 83
Efficiency 90 92.9 93.1 92.5 91.4 90.1 91.8
Speed 1790 1781 1771 1762 1750 1739 1755
Line amperes 5.84 7.52 9.75 12.3 15.2 18.3 14
Page 7 of 10
Product Information Packet: EGDM3774T - 10HP,1760RPM,3PH,60HZ,215TZ,0748M,TEFC,F
Performance Graph at 460V, 60Hz, 10.0HP Typical performance - Not guaranteed values
Page 8 of 10

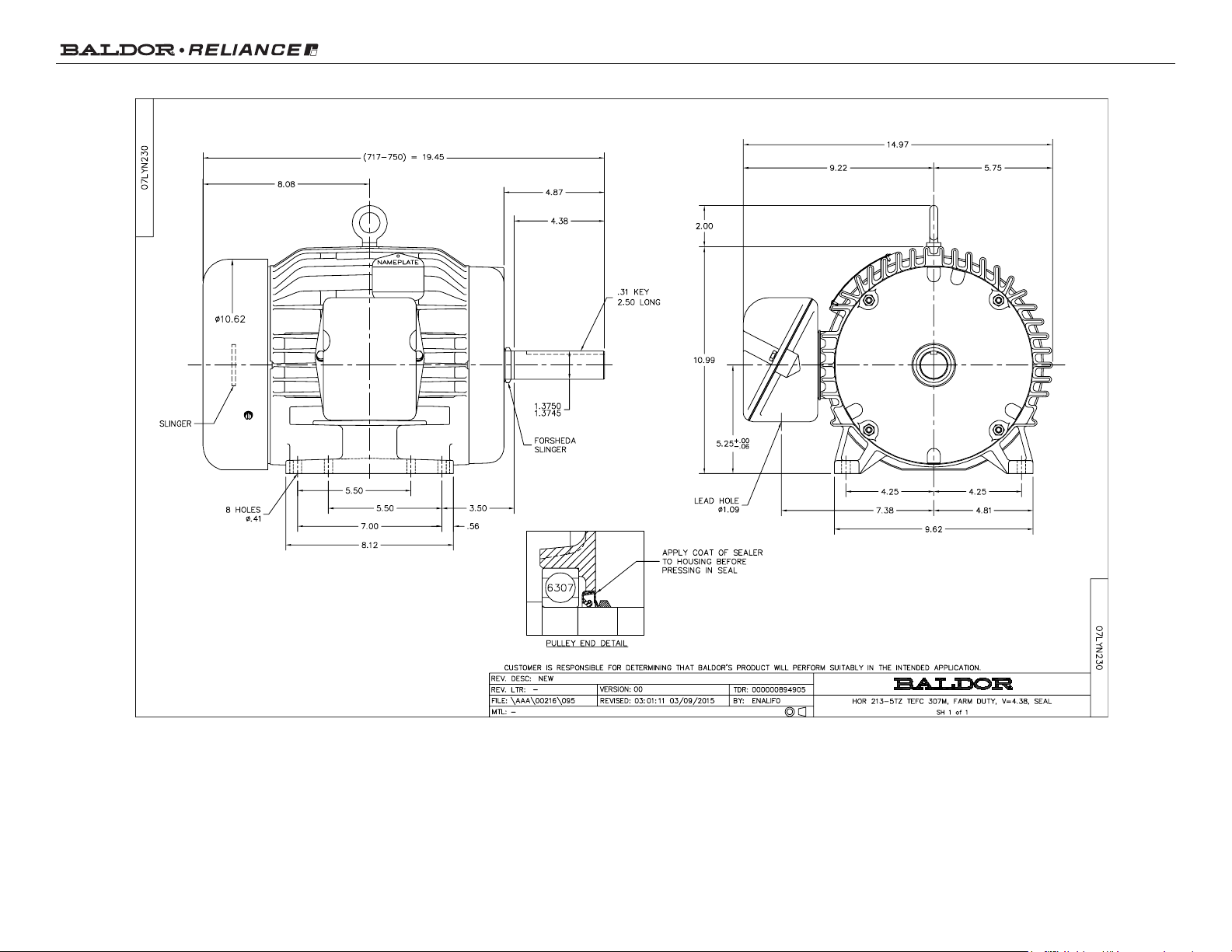

Product Information Packet: EGDM3774T - 10HP,1760RPM,3PH,60HZ,215TZ,0748M,TEFC,F
Page 9 of 10
Product Information Packet: EGDM3774T - 10HP,1760RPM,3PH,60HZ,215TZ,0748M,TEFC,F
Page 10 of 10
