Baldor DRX36744T-5 Product Information Sheet

Product Information Packet

DRX36744T-5

75HP,1780RPM,3PH,60HZ,365T,TEFC,F1

Product Information Packet: DRX36744T-5 - 75HP,1780RPM,3PH,60HZ,365T,TEFC,F1

Part Detail

Revision: - Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: A36WG4078 CD Diagram: 416820-036 Mfg Plant: Mech. Spec: Layout: 611742-772 Poles: 04 Created Date: 07-16-2019 Base: Eff. Date: 07-26-2019 Leads: 3#4

Specs

Catalog Number: DRX36744T-5 Enclosure: TEFC Frame: 365T Frame Material: Iron Output @ Frequency: 75.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 575.0 V @ 60 HZ XP Class and Group: CLI GP C,D XP Division: Division I Agency Approvals: CCSA US

CSA CSA EEV

UL Auxillary Box: No Auxillary Box Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Constant Torque Speed Range: 10-60

Heater Indicator: No Heater Insulation Class: F Inverter Code: Inverter Ready IP Rating: NONE KVA Code: G Lifting Lugs: Standard Lifting Lugs Motor Lead Quantity/Wire Size: 3 @ 4 AWG Motor Type: A36070M Mounting Arrangement: F1 Power Factor: 86 Product Family: General Industrial Pulley End Bearing Type: Ball Pulley Face Code: Standard Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: Shaft Slinger Speed Code: Single Speed

Current @ Voltage: 68.500 A @ 575.0 V

Motor Standards: NEMA

Page 2 of 15

Product Information Packet: DRX36744T-5 - 75HP,1780RPM,3PH,60HZ,365T,TEFC,F1

Design Code: B Drip Cover: No Drip Cover Duty Rating: CONT Feedback Device: NO FEEDBACK

Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: Normally Closed Thermostat XP Temp Code: T3C

Page 3 of 15

Product Information Packet: DRX36744T-5 - 75HP,1780RPM,3PH,60HZ,365T,TEFC,F1

Nameplate NP2496L

MOBIL POLYREX EM

Page 4 of 15

Product Information Packet: DRX36744T-5 - 75HP,1780RPM,3PH,60HZ,365T,TEFC,F1

Nameplate 000692000FX

Page 5 of 15

Product Information Packet: DRX36744T-5 - 75HP,1780RPM,3PH,60HZ,365T,TEFC,F1

Nameplate 000613006PC

CLASS I GROUP C D X NO.

CLASS II GROUP X X X

OPERATING TEMP CODE T3C

Page 6 of 15

Product Information Packet: DRX36744T-5 - 75HP,1780RPM,3PH,60HZ,365T,TEFC,F1

Nameplate NP3140L

SPEC NO. A36-0001-4078 CAT.NO. DRX36744T-5 FRAME 365T

HP 75 VOLTS 575 PHASE 3 DESIGN B TYPE P

RPM 1780 AMPS 68.5 HZ 60 AMB 40 SF 1.00

DRIVE END BEARING 65BC03J30X DUTY CONT INSUL.CLASS F

OPP D.E. BEARING 65BC03J30X ENCL TEFC CODE G

SF 1.15 WK2 16.2 MAG CUR 22.3 RPM MAX 3600

CT HZ 10-60 VT HZ 0-60 CHP HZ 60-90 NEMA-NOM-EFF 95.4

SUIT FOR 55C AMB AT 1.00 SF IP55

SER.NO. MOTOR WEIGHT 965

Page 7 of 15

Product Information Packet: DRX36744T-5 - 75HP,1780RPM,3PH,60HZ,365T,TEFC,F1

Parts List

Part Number Description Quantity SA371863 SA A36-0001-4078 1.000 EA RA361580 RA A36-0001-4078 1.000 EA 421948051 LABEL, MYLAR 1.000 EA NP2496L MOTOR LUBE NAMEPLATE 1.000 EA 000692000JF CAUTION LABEL TO PREVENT IGNITION 1.000 EA 000692000VD LABEL WARNING 1.000 EA 000692000FX UL LISTED LOGO LABEL 2.53 X 0.75 X .018 1.000 EA 000613006PC N/P U/L (REL QTY 500) 1.000 EA NP3140L INVERTER DUTY, SS, CC, CSA-C US, CSA EEV 1.000 EA 609158001B SLGR - 360 1.000 EA 603284001S SLGR - 360 1.000 EA 087793060EN BRKT STD ALT DWG E360 FCXP/POCKET FOR 1.000 EA 415072001B CLAMP 1.000 EA 078559001A +FANCV - 360 1.000 EA 034180012DA KEY 1X4X1/4X1-1/2 L 1.000 EA 702676001C FAN 360 1.000 EA 004824015A GREASE POLYREX EM 0.540 LB 032018008AK HHCS 1/4-20X1 PLATED 4.000 EA 032018018CK HHCS 3/8-16X2-1/4 PLTD. 2.000 EA 415096002A CPLG 1/8 HEX TYPE 1.000 EA 415045002E SLGR 1.000 EA 410700004F WSHR 1.000 EA 034017016AB LCKW 1/2" PLATED 4.000 EA 035000001G GREASE RELIEF FITTING, ALEMITE 317400 1.000 EA

Page 8 of 15

Product Information Packet: DRX36744T-5 - 75HP,1780RPM,3PH,60HZ,365T,TEFC,F1

Parts List (continued)

Part Number Description Quantity 034017012AB LCKW 1/4 STD. PLATED 034017012AF 4.000 EA 032130020DB HSHCS 1/2-13X2-1/2 PLTD. 4.000 EA 034017014AB LCKW 3/8 STD. PLATED 2.000 EA 034530056AC P/NIP 1/8X7L GALV-365 1.000 EA 402558000DDA BRDRN 1.000 EA 034600001AA BUSH 1/4TO1/8 BLACK 1.000 EA 034600001AA BUSH 1/4TO1/8 BLACK 1.000 EA 087793060EN BRKT STD ALT DWG E360 FCXP/POCKET FOR 1.000 EA 032018018CK HHCS 3/8-16X2-1/4 PLTD. 2.000 EA 415045002E SLGR 1.000 EA 034017016AB LCKW 1/2" PLATED 4.000 EA 034017014AB LCKW 3/8 STD. PLATED 2.000 EA 402558000DDA BRDRN 1.000 EA 034530020AB P/NIP 1/8X2-1/2 PLTED 1.000 EA 415096002A CPLG 1/8 HEX TYPE 1.000 EA 032130020DB HSHCS 1/2-13X2-1/2 PLTD. 4.000 EA 035000001G GREASE RELIEF FITTING, ALEMITE 317400 1.000 EA 073646000E C/B 320 WA073646000 1.000 EA 064069000A C/BC320/360 X 064069000B 1.000 EA 418150003A GREASE FITTING CAP 1.000 EA 032018014DK HHCS 1/2-13X1-3/4 PLTD 4.000 EA 063916001DE +P/NIP 3X2-5/8 DIMPL-360 1.000 EA 034017016AB LCKW 1/2" PLATED 4.000 EA 035000001A ALFTG 1/8" 1610-BL 1.000 EA

Page 9 of 15

Product Information Packet: DRX36744T-5 - 75HP,1780RPM,3PH,60HZ,365T,TEFC,F1

415000103A T/LUG #14AWG-#4AWG W/HOLE FOR .250 BOLT 1.000 EA 406099000A PLUG - FAN COVER 320-440 1.000 EA 032018004AM HHCS 1/4-20X1/2PLTD GREN 1.000 EA 034036012AB LCKW EXTERNAL TOOTH 1/4" 1.000 EA 035000001A ALFTG 1/8" 1610-BL 1.000 EA 418150003A GREASE FITTING CAP 1.000 EA 004824003CEH WILKO PAINT 789.229 DARK GREY CHARCOAL T 0.250 GA 033775004EA DRSCR #6-1/4 304 S.S. 8.000 EA 034180034HA KEY 5/8X5/8X4-1/4 L 1.000 EA 14PA1000 PACKAGING 314 GROUP COMBINED PRINT 1.000 EA HW1000A32 5/16 FL WASHER WIDE,ID=.344,OD=1.125 3.000 EA 032509020C CARRIAGE BOLT - 360 3.000 EA

Page 10 of 15

Product Information Packet: DRX36744T-5 - 75HP,1780RPM,3PH,60HZ,365T,TEFC,F1

AC Induction Motor Performance Data

Record # 77584 - Typical performance - not guaranteed values

Winding: A36WG4078-R003 Type: A3670M Enclosure: TEFC

Nameplate Data

575 V, 60 Hz:

Single Voltage Motor Rated Output (HP) 75 Full Load Torque 220 LB-FT Volts 575 Start Configuration direct on line Full Load Amps 68.5 Breakdown Torque 619 LB-FT R.P.M. 1780 Pull-up Torque 339 LB-FT Hz 60 Phase 3 Locked-rotor Torque 431 LB-FT NEMA Design Code B KVA Code G Starting Current 437 A Service Factor (S.F.) 1 No-load Current 22.31 A NEMA Nom. Eff. 95.4 Power Factor 86 LinelineRes.@25ºC 0.142Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 61°C

Locked-rotor Power Factor 32.1

Rotor inertia 16.2 LB-FT2

Load Characteristics 575 V, 60 Hz, 75 HP

% of Rated Load 25 50 75 100 125 150 Power Factor 54 76 83 86 86 85 Efficiency 93.7 95.9 95.7 95.4 94.6 93.7 Speed 1797 1792 1787 1782 1777 1770 Line amperes 27.39 38.79 53.01 68.52 85.75 105

Page 11 of 15

Product Information Packet: DRX36744T-5 - 75HP,1780RPM,3PH,60HZ,365T,TEFC,F1

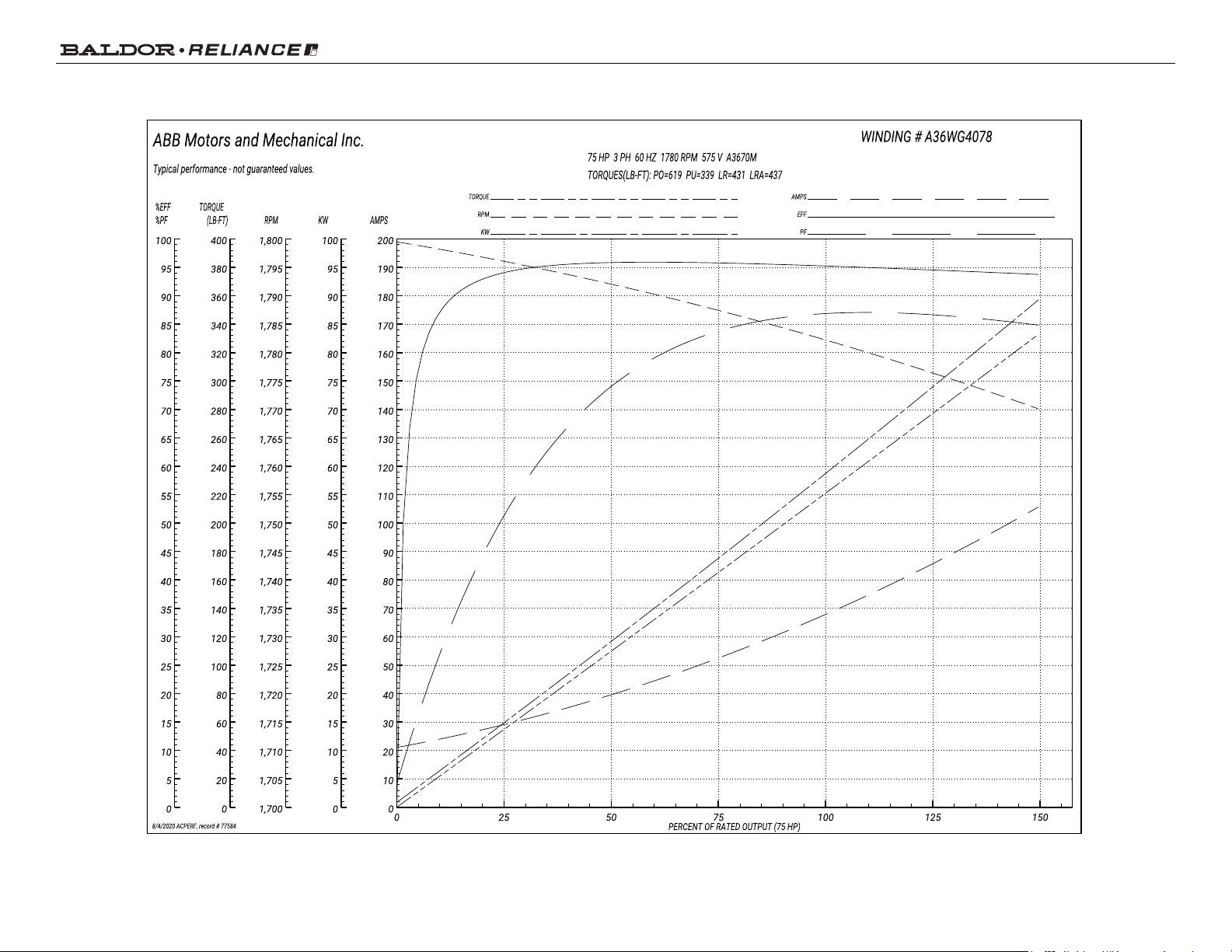

Performance Graph at 0V, 0Hz, 0.0null Typical performance - Not guaranteed values

Page 12 of 15

Product Information Packet: DRX36744T-5 - 75HP,1780RPM,3PH,60HZ,365T,TEFC,F1

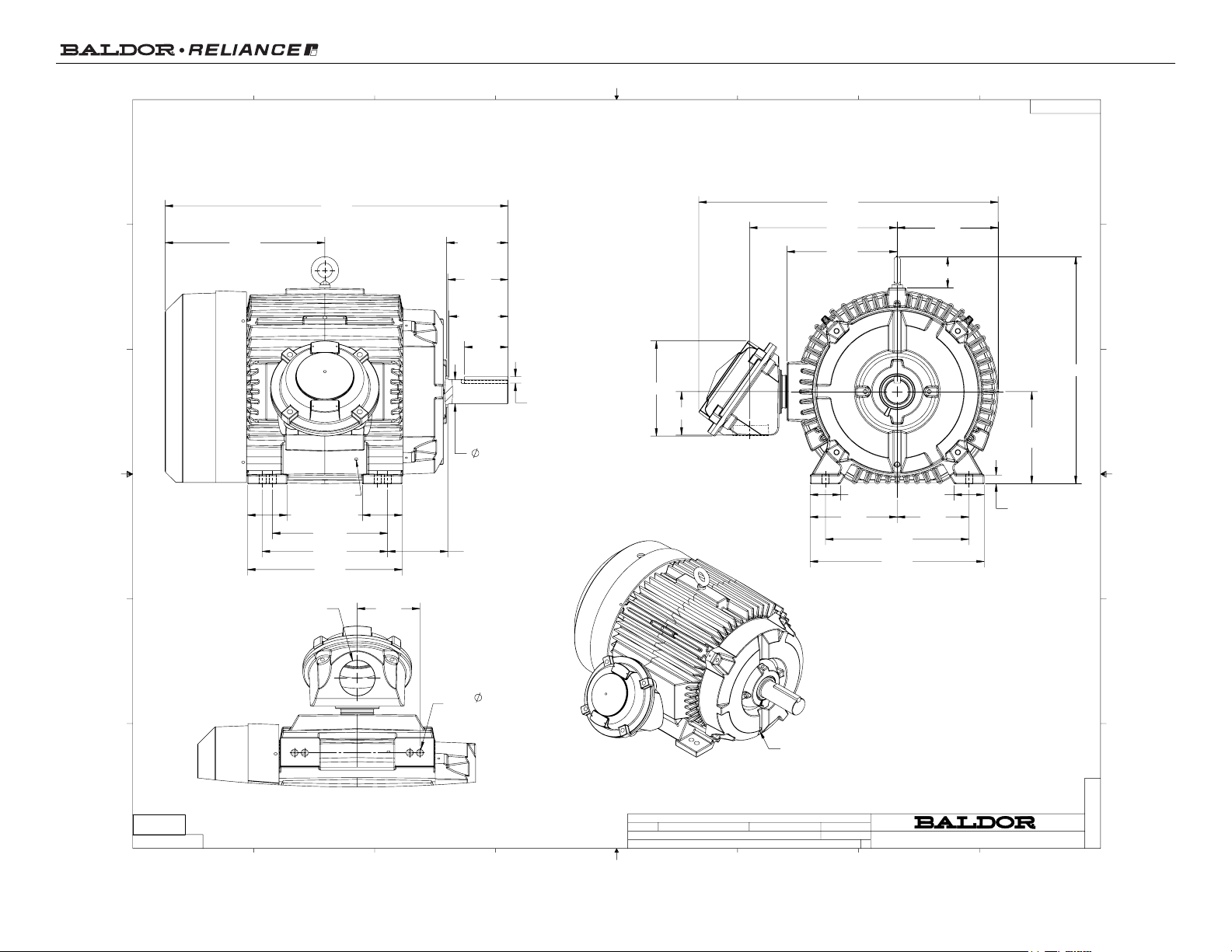

1 OF 1

SHEET NUMBER

29.23

10.75

9.00

+-.00

.06

7.00

14.00

17.00

9.30

14.42

2.96 2.96

8.50

.85

4.25

3.07

9.85

22.19

8X

.69 THRU

(FOOT MOUNTING)

6.12

3 NPT

11.25

12.25

3.88

15.11

15.60

3.88

BA=5.88

V=5.76

N-W=

5.88

N=6.01

33.48

.625

SQ. KEY

4.25

K'WAY

2.375

+-.000

.001

3/8-16 UNC

(GROUND TAP)

BREATHER DRAIN

BOTH ENDS

DUTY MASTER ALTERNATING CURRENT MOTORS

SQUIRREL-CAGE INDUCTION

E365T/E364T FRAME MOUNTING HOLES

DIV.1/CL.1/GRP. C & D

IF MOUNTING CLEARANCE DETAILS ARE REQUIRED, CONSULT FACTORY. MAX PERMISSIBLE SHAFT RUNOUT WHEN MEASURED AT END OF STANDARD SHAFT EXTENSION IS .003" T.I.R.

DIMENSIONS ARE IN INCHES. CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT MOTOR PERFORMANCE IS SUITABLE IN THE APPLICATION.

ENCLOSURE: TOTALLY ENCLOSED

MOUNTING: FOOT, F-1

COOLING: FAN COOLED

UNDERWRITER MOTOR

D

C

B

A

B

C

D

1

2

3

4

5

6

7

8

7

6

5

4

3

2

1

E

F

E

F

C

611742-772

00

000001088043

611742-772

03:41:44 10/24/2018

-

USJEDIL

NEW DRAWING

611742-772

TDR:

VERSION:

MODEL NO.

REVISED:

BY:

REV:

REV. DESC:

E365/364T FCXP F1 FOOT CAST IRON BOX/CL.1/GRP C & D/DRAINS

Page 13 of 15
