Baldor DRX36724T Product Information Sheet

Product Information Packet

DRX36724T

75HP,3555RPM,3PH,60HZ,365TS,TEFC,F1

Product Information Packet: DRX36724T - 75HP,3555RPM,3PH,60HZ,365TS,TEFC,F1

Part Detail

Revision: - Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: A36WG0026 CD Diagram: 416820-002 Mfg Plant: Mech. Spec: Layout: 611742-779 Poles: 02 Created Date: 04-30-2019 Base: Eff. Date: 05-29-2019 Leads: 3#2,6#4

Specs

Catalog Number: DRX36724T Enclosure: TEFC Frame: 365TS Frame Material: Iron Output @ Frequency: 75.000 HP @ 60 HZ Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ Voltage @ Frequency: 460.0 V @ 60 HZ

230.0 V @ 60 HZ XP Class and Group: CLI GP C,D XP Division: Division I Agency Approvals: CCSA US

CSA CSA EEV

UL Auxillary Box: No Auxillary Box Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F)

Feedback Device: NO FEEDBACK Heater Indicator: No Heater Insulation Class: F Inverter Code: Inverter Ready IP Rating: NONE KVA Code: F Lifting Lugs: Standard Lifting Lugs Motor Lead Quantity/Wire Size: 3 @ 2 AWG Motor Type: A36068M Mounting Arrangement: F1 Power Factor: 92 Product Family: General Industrial Pulley End Bearing Type: Ball Pulley Face Code: Standard Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: Shaft Slinger

Constant Torque Speed Range: 6-60

Speed Code: Single Speed

Page 2 of 18

Product Information Packet: DRX36724T - 75HP,3555RPM,3PH,60HZ,365TS,TEFC,F1

Current @ Voltage: 81.800 A @ 460.0 V

164.000 A @ 230.0 V Design Code: B Drip Cover: No Drip Cover Duty Rating: CONT

Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: Normally Closed Thermostat XP Temp Code: T3C

Page 3 of 18

Product Information Packet: DRX36724T - 75HP,3555RPM,3PH,60HZ,365TS,TEFC,F1

Nameplate NP2496L

MOBIL POLYREX EM

Page 4 of 18

Product Information Packet: DRX36724T - 75HP,3555RPM,3PH,60HZ,365TS,TEFC,F1

Nameplate 000692000FX

Page 5 of 18

Product Information Packet: DRX36724T - 75HP,3555RPM,3PH,60HZ,365TS,TEFC,F1

Nameplate 000613006PC

CLASS I GROUP C D X NO.

CLASS II GROUP X X X

OPERATING TEMP CODE T3C

Page 6 of 18

Product Information Packet: DRX36724T - 75HP,3555RPM,3PH,60HZ,365TS,TEFC,F1

Nameplate NP3140L

SPEC NO. A36-5004-0026 CAT.NO. DRX36724T FRAME 365TS

HP 75 VOLTS 230/460 PHASE 3 DESIGN B TYPE P

RPM 3555 AMPS 164/81.8 HZ 60 AMB 40 SF 1.00

DRIVE END BEARING 65BC03J30X DUTY CONT INSUL.CLASS F

OPP D.E. BEARING 65BC03J30X ENCL TEFC CODE F

SF 1.15 WK2 8.642 MAG CUR 31/15.5 RPM MAX 4200

CT HZ 6-60 VT HZ 0-60 CHP HZ 60-70 NEMA-NOM-EFF 93.6

SUIT FOR 55C AMB AT 1.00 SF IP55

SER.NO. MOTOR WEIGHT

Page 7 of 18

Product Information Packet: DRX36724T - 75HP,3555RPM,3PH,60HZ,365TS,TEFC,F1

Parts List

Part Number Description Quantity SA369958 SA A36-5004-0026 1.000 EA RA359579 RA A36-5004-0026 1.000 EA 421948032 LABEL, MYLAR 1.000 EA NP2496L MOTOR LUBE NAMEPLATE 1.000 EA 000692000JF CAUTION LABEL TO PREVENT IGNITION 1.000 EA 000692000VD LABEL WARNING 1.000 EA 000692000FX UL LISTED LOGO LABEL 2.53 X 0.75 X .018 1.000 EA 000613006PC N/P U/L (REL QTY 500) 1.000 EA NP3140L INVERTER DUTY, SS, CC, CSA-C US, CSA EEV 1.000 EA 609158001B SLGR - 360 1.000 EA 603284001S SLGR - 360 1.000 EA 087793060EN BRKT STD ALT DWG E360 FCXP/POCKET FOR 1.000 EA 415072001B CLAMP 1.000 EA 078559001A +FANCV - 360 1.000 EA 034180012DA KEY 1X4X1/4X1-1/2 L 1.000 EA 702676001C FAN 360 1.000 EA 004824015A GREASE POLYREX EM 0.540 LB 032018008AK HHCS 1/4-20X1 PLATED 4.000 EA 032018018CK HHCS 3/8-16X2-1/4 PLTD. 2.000 EA 415096002A CPLG 1/8 HEX TYPE 1.000 EA 415045002E SLGR 1.000 EA 410700004F WSHR 1.000 EA 034017016AB LCKW 1/2" PLATED 4.000 EA 035000001G GREASE RELIEF FITTING, ALEMITE 317400 1.000 EA

Page 8 of 18

Product Information Packet: DRX36724T - 75HP,3555RPM,3PH,60HZ,365TS,TEFC,F1

Parts List (continued)

Part Number Description Quantity 034017012AB LCKW 1/4 STD. PLATED 034017012AF 4.000 EA 032130020DB HSHCS 1/2-13X2-1/2 PLTD. 4.000 EA 034017014AB LCKW 3/8 STD. PLATED 2.000 EA 034530056AC P/NIP 1/8X7L GALV-365 1.000 EA 402558000DDA BRDRN 1.000 EA 034600001AA BUSH 1/4TO1/8 BLACK 1.000 EA 034600001AA BUSH 1/4TO1/8 BLACK 1.000 EA 087793060EN BRKT STD ALT DWG E360 FCXP/POCKET FOR 1.000 EA 032018018CK HHCS 3/8-16X2-1/4 PLTD. 2.000 EA 415045002E SLGR 1.000 EA 034017016AB LCKW 1/2" PLATED 4.000 EA 034017014AB LCKW 3/8 STD. PLATED 2.000 EA 402558000DDA BRDRN 1.000 EA 034530020AB P/NIP 1/8X2-1/2 PLTED 1.000 EA 415096002A CPLG 1/8 HEX TYPE 1.000 EA 032130020DB HSHCS 1/2-13X2-1/2 PLTD. 4.000 EA 035000001G GREASE RELIEF FITTING, ALEMITE 317400 1.000 EA 073646000E C/B 320 WA073646000 1.000 EA 064069000A C/BC320/360 X 064069000B 1.000 EA 418150003A GREASE FITTING CAP 1.000 EA 032018014DK HHCS 1/2-13X1-3/4 PLTD 4.000 EA 063916001DE +P/NIP 3X2-5/8 DIMPL-360 1.000 EA 034017016AB LCKW 1/2" PLATED 4.000 EA 035000001A ALFTG 1/8" 1610-BL 1.000 EA

Page 9 of 18

Product Information Packet: DRX36724T - 75HP,3555RPM,3PH,60HZ,365TS,TEFC,F1

415000103A T/LUG #14AWG-#4AWG W/HOLE FOR .250 BOLT 1.000 EA 406099000A PLUG - FAN COVER 320-440 1.000 EA 032018004AM HHCS 1/4-20X1/2PLTD GREN 1.000 EA 034036012AB LCKW EXTERNAL TOOTH 1/4" 1.000 EA 035000001A ALFTG 1/8" 1610-BL 1.000 EA 418150003A GREASE FITTING CAP 1.000 EA 004824003CEH WILKO PAINT 789.229 DARK GREY CHARCOAL T 0.250 GA 033775004EA DRSCR #6-1/4 304 S.S. 8.000 EA 034180016GA KEY 1/2X1/2X2 L 1.000 EA 14PA1000 PACKAGING 314 GROUP COMBINED PRINT 1.000 EA HW1000A32 5/16 FL WASHER WIDE,ID=.344,OD=1.125 3.000 EA 032509020C CARRIAGE BOLT - 360 3.000 EA

Page 10 of 18

Product Information Packet: DRX36724T - 75HP,3555RPM,3PH,60HZ,365TS,TEFC,F1

365TS 75 P 3/60 3555 230/460

164/81.8 CONT 40/F 1.00 B F TEFC

892019 418141005TE --- --- .0186/.0744

0 15.5 3600 12.6 0

18.8 24.9 3589 78.9 89.3

37.5 41.4 3578 91.1 93.1

56.2 60.8 3567 92.3 93.9

75.0 81.8 3555 91.6 93.8

93.8 104 3542 90.9 93.3

LB.-FT.

0 218 242 494

1565 188 209 440

3395 226 250 259

3555 100 111 81.8

460. VOLT

TYPICAL DATA

XE MOTOR-NEMA NOM. EFF. 93.6 %

GUARANTEED MIN. EFF. 92.4%

C.E. JAMISON

W.L. SMITH

A36WG0026-R004

C.E. JAMISON

08/17/17

04/30/19

Printed on 4/30/19 15:00 @ bengap01.baldor.com

REL.

S.O.

FRAME HP TYPE

PHASE/

HERTZ

RPM VOLTS

AMPS DUTY

AMB

C/

INSUL.

S.F.

NEMA

DESIGN

CODE

LETTER

ENCL.

E/S ROTOR

TEST

S.O.

TEST

DATE

STATOR RES.@25

C

OHMS (BETWEEN LINES)

PERFORMANCE

LOAD HP AMPERES RPM

%

POWER FACTOR

%

EFFICIENCY

NO LOAD

1/4

2/4

3/4

4/4

5/4

SPEED TORQUE

RPM

TORQUE

% FULL LOAD

TORQUE

AMPERES

LOCKED ROTOR

PULL UP

BREAKDOWN

FULL LOAD

AMPERES SHOWN FOR CONNECTION. IF OTHER VOLTAGE CONNECTIONS ARE AVAILABLE, THE

AMPERES WILL VARY INVERSELY WITH THE RATED VOLTAGE

REMARKS:

DR. BY

CK. BY

APP. BY

DATE

A-C MOTOR

PERFORMANCE

DATA

ISSUE DATE

Rotext2(0)

Page 11 of 18

Product Information Packet: DRX36724T - 75HP,3555RPM,3PH,60HZ,365TS,TEFC,F1

3555 1.00 418141005TE

365TS 230/460 B TYPICAL DATA

75 164/81.8 F ---

P CONT TEFC .0186/.0744

3/60 40/F 892019

Printed on 4/30/19 15:00 @ bengap01.baldor.com

REL S.O.

FRAME

HP

TYPE

PHASE/HERTZ

RPM

VOLTS

AMPS

DUTY

AMB

C/INSUL

S.F.

NEMA DESIGN

CODE LETTER

ENCLOSURE

E/S

ROTOR

TEST S.O.

TEST DATE

STATOR RES.@ 25

C

OHMS (BETWEEN LINES)

A-C MOTOR

PERFORMANCE

CURVES

DR. BY

CK. BY

APP. BY

DATE

ISSUE DATE

AMPERES SHOWN FOR

AMPERES WILL VARY INVERSELY WITH THE RATED VOLTAGE.

CONNECTION, IF OTHER VOLTAGE CONNECTIONS ARE AVAILABLE, THE

Rotext2(0)

460 VOLT

C.E. JAMISON

W.L. SMITH

C.E. JAMISON

08/17/17

A36WG0026-R004

04/30/19

0 400 800 1200 1600 2000 2400 2800 3200 3600

SPEED IN RPM,(FLT = 111 LB. FT.)

0 100 200 300 400 500 600

AMPS AT 460 VOLTS (1)

0 50 100 150 200 250 300

TORQUE IN LB. FT. (2)

1

2

0 10 20 30 40 50 60 70 80 90 100 110

HORSEPOWER

0 20 40 60 80 100 120 140 160

AMPS AT 460 VOLTS (1)

0 20 40 60 80 100

P.F.(2) & EFF.(3) IN %

3520 3530 3540 3550 3560 3570 3580 3590 3600

SPEED IN RPM (4)

1

2

3

4

FL

XE MOTOR-NEMA NOM. EFF. 93.6 %

GUARANTEED MIN. EFF. 92.4%

Page 12 of 18

Product Information Packet: DRX36724T - 75HP,3555RPM,3PH,60HZ,365TS,TEFC,F1

3555 1.00 418141005TE

365TS 230/460 B TYPICAL DATA

75 164/81.8 F ---

P CONT TEFC .0186/.0744

3/60 40/F 892019

Printed on 4/30/19 15:00 @ bengap01.baldor.com

REL. S.O.

FRAME

HP

TYPE

PHASE/HERTZ

RPM

VOLTS

AMPS

DUTY

AMB

C/INSUL

S.F.

NEMA DESIGN

CODE LETTER

ENCLOSURE

E/S

ROTOR

TEST S.O.

TEST DATE

STATOR RES.@ 25

C

OHMS (BETWEEN LINES)

A-C MOTOR

PERFORMANCE

CURVES

REMARKS:

DR. BY

CK. BY

APP. BY

DATE

ISSUE DATE

AMPERES SHOWN FOR

AMPERES WILL VARY INVERSELY WITH THE RATED VOLTAGE.

VOLT CONNECTION, IF OTHER VOLTAGE CONNECTIONS ARE AVAILABLE, THE

1

2

3

4

56789

1

2

3

4

56789

1

2

3

4

56789

10

Rotext2(0)

0 100 200 300 400 500 600 700

% FULL LOAD CURRENT

TIME IN SEC.

0

00

OVERLOAD

ACCELERATION

LOCKED-ROTOR

LOCKED-ROTOR, 40.C

MOTOR INITIAL TEMPERATURE:

110

C FOR OVERLOAD AND ACC.

110 C FOR LOCKED-ROTOR

THERMAL LIMIT CURVE

XE MOTOR-NEMA NOM. EFF. 93.6 %

GUARANTEED MIN. EFF. 92.4%

460

C.E. JAMISON

W.L. SMITH

C.E. JAMISON

08/17/17

A36WG0026-R004

04/30/19

Page 13 of 18

Product Information Packet: DRX36724T - 75HP,3555RPM,3PH,60HZ,365TS,TEFC,F1

1 OF 1

SHEET NUMBER

.89

14.00

17.00

8.99

+-.01

.05

10.75

4.50

29.00

7.00

2.96 2.96

8.50

14.13

3.07

22.19

9.85

8X

.69 THRU

(FOOT MOUNTING)

6.12

3 NPT

11.25

12.25

15.11

3.88

BA=5.88

V=3.63

N=3.88

1.8745±.0005

31.35

3/8-16 UNC

(GROUND TAP)

3.88

11.87

N-W=3.75

2.00

K'WAY

.500

SQ. KEY

V-SLINGER

BOTH ENDS

DRAIN

BOTH ENDS

DUTY MASTER ALTERNATING CURRENT MOTORS

SQUIRREL-CAGE INDUCTION

E365TS/E364TS FRAME MOUNTING HOLES

MOTOR WEIGHT (LBS) = 944, MAY VARY BY 15% DEPENDING RATING. IF MOUNTING CLEARANCE DETAILS ARE REQUIRED, CONSULT FACTORY. MAX PERMISSIBLE SHAFT RUNOUT WHEN MEASURED AT END OF STANDARD SHAFT EXTENSION IS .003" T.I.R.

DIMENSIONS ARE IN INCHES. CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT MOTOR PERFORMANCE IS SUITABLE IN THE APPLICATION.

ENCLOSURE: TOTALLY ENCLOSED

MOUNTING: FOOT, F-1

COOLING: FAN COOLED

D

C

B

A

B

C

D

1

2

3

4

5

6

7

8

7

6

5

4

3

2

1

E

F

E

F

C

611742-779

00

000001107162

611742-779

01:54:43 04/30/2019

-

USJEDIL

NEW DRAWING

611742-779

TDR:

VERSION:

MODEL NO.

REVISED:

BY:

REV:

REV. DESC:

E365/364TS FCXP F1 FOOT/CI CONDUIT BOX/GROUND TAP/DRAINS

Page 14 of 18

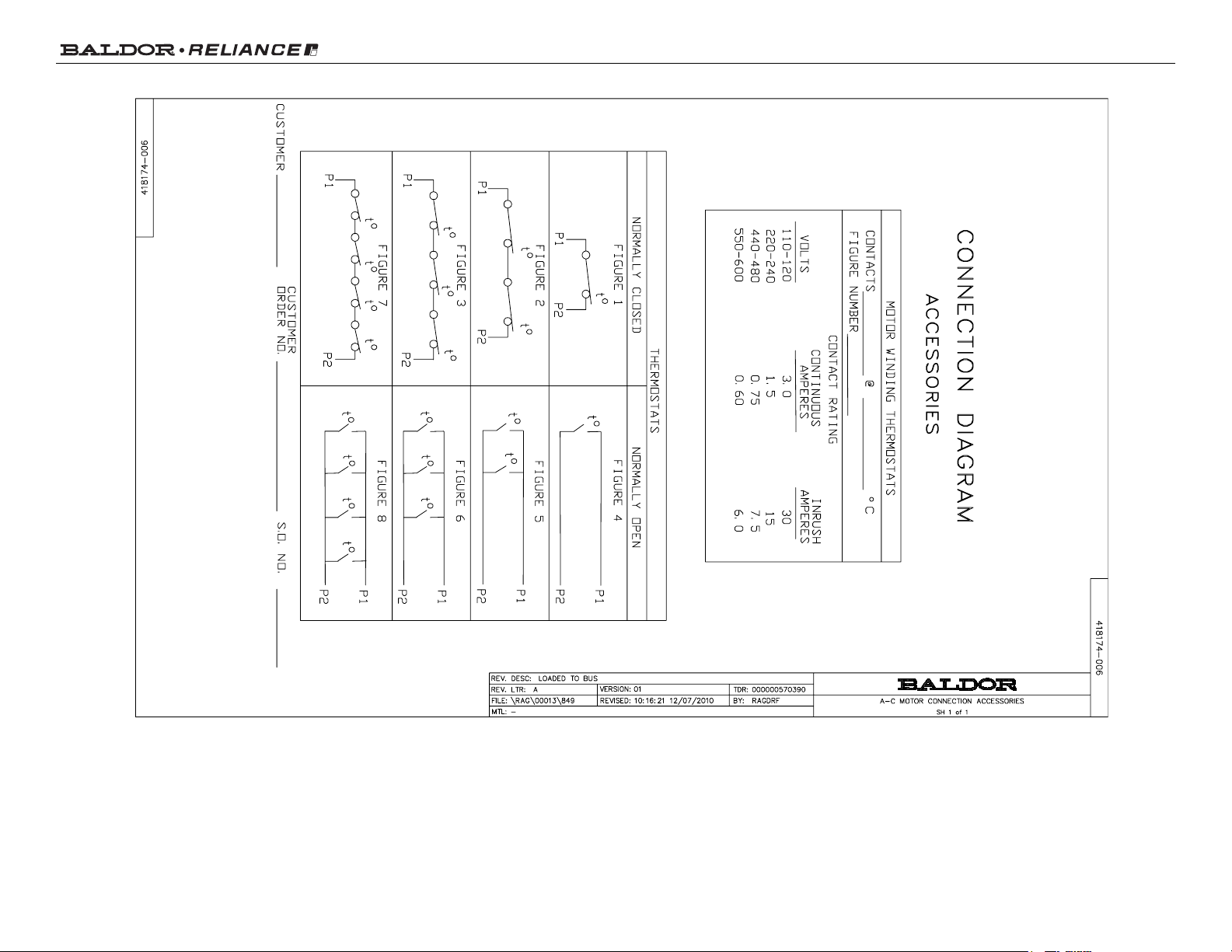

Product Information Packet: DRX36724T - 75HP,3555RPM,3PH,60HZ,365TS,TEFC,F1

Page 15 of 18

Product Information Packet: DRX36724T - 75HP,3555RPM,3PH,60HZ,365TS,TEFC,F1

Page 16 of 18

Product Information Packet: DRX36724T - 75HP,3555RPM,3PH,60HZ,365TS,TEFC,F1

Marketing maintained PDF of MN408:

http://www.baldor.com/support/Literature/Load.ashx/MN408?ManNumber=MN408

Page 17 of 18

Product Information Packet: DRX36724T - 75HP,3555RPM,3PH,60HZ,365TS,TEFC,F1

Marketing maintained PDF of MN416:

http://www.baldor.com/support/Literature/Load.ashx/MN416?ManNumber=MN416

Page 18 of 18
