Product Information Packet
DRX32524T
50HP,3560//2960RPM,3PH,60HZ,326TS,XPFC,F
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: DRX32524T - 50HP,3560//2960RPM,3PH,60HZ,326TS,XPFC,F
Part Detail
Revision: C Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 12WGY587 CD Diagram: CD0180 Mfg Plant: Mech. Spec: Layout: 12LY-000-232 Poles: 02 Created Date: 05-30-2019 Base: Eff. Date: 06-08-2020 Leads: 9#8
Specs
Catalog Number: DRX32524T Enclosure: XPFC Frame: 326TS Frame Material: Iron Output @ Frequency: 50.000 HP @ 60 HZ
40.000 HP @ 50 HZ Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ Voltage @ Frequency: 190.0 V @ 50 HZ
230.0 V @ 60 HZ
380.0 V @ 50 HZ
460.0 V @ 60 HZ XP Class and Group: CLI GP C,D XP Division: Division I Agency Approvals: UR
CSA EEV CSA
Auxillary Box: No Auxillary Box
Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Heater Indicator: No Heater Insulation Class: F Inverter Code: Inverter Duty IP Rating: NONE KVA Code: K Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Termination: Flying Leads Motor Type: 1264M Mounting Arrangement: F1 Power Factor: 89 Product Family: Hazardous Location Motor Pulley Face Code: Standard
Auxillary Box Lead Termination: None
Rodent Screen: None
Product Information Packet: DRX32524T - 50HP,3560//2960RPM,3PH,60HZ,326TS,XPFC,F
Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None Constant Torque Speed Range: 6 Current @ Voltage: 56.000 A @ 460.0 V
54.000 A @ 380.0 V
122.000 A @ 208.0 V
112.000 A @ 230.0 V
108.000 A @ 190.0 V Design Code: A
Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: Normally Closed Thermostat Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None XP Temp Code: T3C
Product Information Packet: DRX32524T - 50HP,3560//2960RPM,3PH,60HZ,326TS,XPFC,F
Nameplate NP1401XPSLEV
NO. CC 010A
S/N TEMP CODE T3C
SPEC. 12-0000-0682 INV.TYPE PWM
CAT.NO. DRX32524T C HP FR 60 C HP TO 90
HP 50//40 CT HZ FROM 6 CT HZ TO 60
VOLTS 230/460//190/380 VT HZ FROM 6 VT HZ TO 60
AMPS 112/56//108/54 MAG CUR 36/18
RPM 3560//2960 MX RPM 5400
HZ 60//50 PH 3 CL F NOM.EFF. 93
SER.F. 1.00 DES A SL HZ 0.7 WK2 5.01
FRAME 326TS RATING 40C AMB-CONT
55C AMB @ 1.0 SF, 60C RISE
1.15SF ON SINEWAVE NEMA MG-1 PT.5,IP55
Product Information Packet: DRX32524T - 50HP,3560//2960RPM,3PH,60HZ,326TS,XPFC,F
Parts List
Part Number Description Quantity SA370165 SA 12-0000-0682 1.000 EA RA359804 RA 12-0000-0682 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA LB1119N WARNING LABEL 1.000 EA LC0181 CONNECTION LABEL 1.000 EA LB1417 LABEL CARTON 6X4 PERFORATED BLANK ROLLS 1.000 EA NP1401XPSLEV SS XP INV UL CSA-EEV CC CL-I GP-C&D 1.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 4.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA LB1081C ALUM XP CAUTION LABEL (COL PLANT ONLY- 1.000 EA 12FH1001A07P FAN COVER, MACH W/EPOXY PRIMER & SLOT FO 1.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 3.000 EA 10XN3118K12 5/16-18 X .75 GRADE 5, ZINC PLATED 3.000 EA 37FN3002C04 EXFN, PLASTIC, 6.00 OD, 2.003 ID 1.000 EA HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA 51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.200 LB 12EP1705A34PP15 FREP MACH. 312 W/EPOXY PRIMER & PAINT 1.000 EA HA3051A03 1/2-13X2.75 BLT GR8 1.75 TO E NC F/S 4.000 EA HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 4.000 EA HA2067A01 ALUM SLINGER (AUTO) 1.000 EA HW5100A13 W4627-047 WVY WSHER 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA
Product Information Packet: DRX32524T - 50HP,3560//2960RPM,3PH,60HZ,326TS,XPFC,F
Parts List (continued)
Part Number Description Quantity HW4500A21 1618BALEMITE FITTING 825 UNIVERSAL 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HW4505A02 BREATHER/DRAIN-EXP PROOF-.250-18 PTF AIS 1.000 EA HW3023E06 .125 X .625 SPIRAL SPRING PIN 1.000 EA 12EP1706A08P EP, MACH. XPFC 312 BRG. W/DRAIN HW4505A0 1.000 EA HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 4.000 EA HA3051A03 1/2-13X2.75 BLT GR8 1.75 TO E NC F/S 4.000 EA HA2067A02 SLINGER ALUM (AUTO) 1.000 EA 80XN1032A07 SET SCREW, HEX XOCK, ZN 2.000 EA 80XN1032A07 SET SCREW, HEX XOCK, ZN 2.000 EA HA4017A08 .125X3.50 GREASER EXTEN. 1.000 EA HA4017A03 .125 X 1.75 GREASE EXT (F/S) 1.000 EA HW4019A01 PIPE COUPLING 1/8 NPT,STEEL,ZINC COATING 1.000 EA 10XN3118K44 5/16-18 X 2.75" HEX HD, GRADE 5 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HW4505A02 BREATHER/DRAIN-EXP PROOF-.250-18 PTF AIS 1.000 EA HW3023E06 .125 X .625 SPIRAL SPRING PIN 1.000 EA 12CB1003A01P KOBX,MACH 2.00 NPT GROUP C MTRS,EPOXY PR 1.000 EA 10XN3118K24 5/16-18 X 1.50" HEX HD, GRADE 5 4.000 EA WD1000B19 TERMINAL BURNDY L250HP 1.000 EA 10XN3816K12 3/8-16 X 3/4 HEX HD CAP GRADE 5 1.000 EA
Product Information Packet: DRX32524T - 50HP,3560//2960RPM,3PH,60HZ,326TS,XPFC,F
HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 1.000 EA 12CB1502A01P CONDUIT BOX LID MACH. GROUP C MTRS 1.000 EA 84XN5013J32 SOCKET HD.CAP SCR,1/2-13 X 2"LG,ALLOY ST 10.000 EA HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 10.000 EA MG1025G29 WILKOFAST, 789.229, DARK CHARCOAL GRAY 0.125 GA 14PA1000 PACKAGING 314 GROUP COMBINED PRINT 1.000 EA HW2501H18 KEY, 1/2 SQ X 2.000 1.000 EA MJ5001A27 32220KN GRAY SEALER *MIN BUY 4 QTS=1GAL 0.001 QT
Product Information Packet: DRX32524T - 50HP,3560//2960RPM,3PH,60HZ,326TS,XPFC,F
AC Induction Motor Performance Data
Record # 66213 - Typical performance - not guaranteed values
Winding: 12WGY587-R004 Type: 1264M Enclosure: XPFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection Rated Output (HP) 50 Full Load Torque 74.1 LB-FT Volts 230/460 Start Configuration direct on line Full Load Amps 112/56 Breakdown Torque 287 LB-FT R.P.M. 3560 Pull-up Torque 107 LB-FT Hz 60 Phase 3 Locked-rotor Torque 137 LB-FT NEMA Design Code A KVA Code K Starting Current 505 A Service Factor (S.F.) 1 No-load Current 17.6 A NEMA Nom. Eff. 93 Power Factor 89 LinelineRes.@25ºC 0.08644Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 53°C
Locked-rotor Power Factor 21.5
Rotor inertia 4.98 LB-FT2
Load Characteristics 460 V, 60 Hz, 50 HP
% of Rated Load 25 50 75 100 125 150 Power Factor 58 79 86 90 90 91 Efficiency 91.5 94.3 94.8 94.6 94.1 93.5 Speed 3590 3580.8 3570.3 3560.2 3549.3 3538.6 Line amperes 22.4 31.8 43.5 55.6 69 82.4
Product Information Packet: DRX32524T - 50HP,3560//2960RPM,3PH,60HZ,326TS,XPFC,F
Performance Graph at 460V, 60Hz, 50.0HP Typical performance - Not guaranteed values
Product Information Packet: DRX32524T - 50HP,3560//2960RPM,3PH,60HZ,326TS,XPFC,F
AC Induction Motor Performance Data
Record # 75687 - Typical performance - not guaranteed values
Winding: 12WGY587-R003 Type: 1264M Enclosure: XPFC
Nameplate Data
380 V, 50 Hz:
High Voltage Connection Rated Output (HP) 50//40 Full Load Torque 71.22 LB-FT Volts 230/460//190/380 Start Configuration direct on line Full Load Amps 112/56//108/54 Breakdown Torque 278 LB-FT R.P.M. 3560//2960 Pull-up Torque 113 LB-FT Hz 60//50 Phase 3 Locked-rotor Torque 145 LB-FT NEMA Design Code A KVA Code K Starting Current 495 A Service Factor (S.F.) 1 No-load Current 17.33 A NEMA Nom. Eff. 93 Power Factor 89 LinelineRes.@25ºC 0.0846Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 49°C S.F. Amps Temp. Rise @ S.F. Load 60°C
Locked-rotor Power Factor 24.1
Rotor inertia 4.98 LB-FT2
Load Characteristics 380 V, 50 Hz, 40 HP
% of Rated Load 25 50 75 100 125 150 Power Factor 57 78 86 89 90 91 Efficiency 92.7 94.9 95 94.6 94 93.3 Speed 2991 2982 2972 2962 2952 2942 Line amperes 21.78 30.84 42.08 53.81 66.82 79.96
Page 10 of 14
Product Information Packet: DRX32524T - 50HP,3560//2960RPM,3PH,60HZ,326TS,XPFC,F

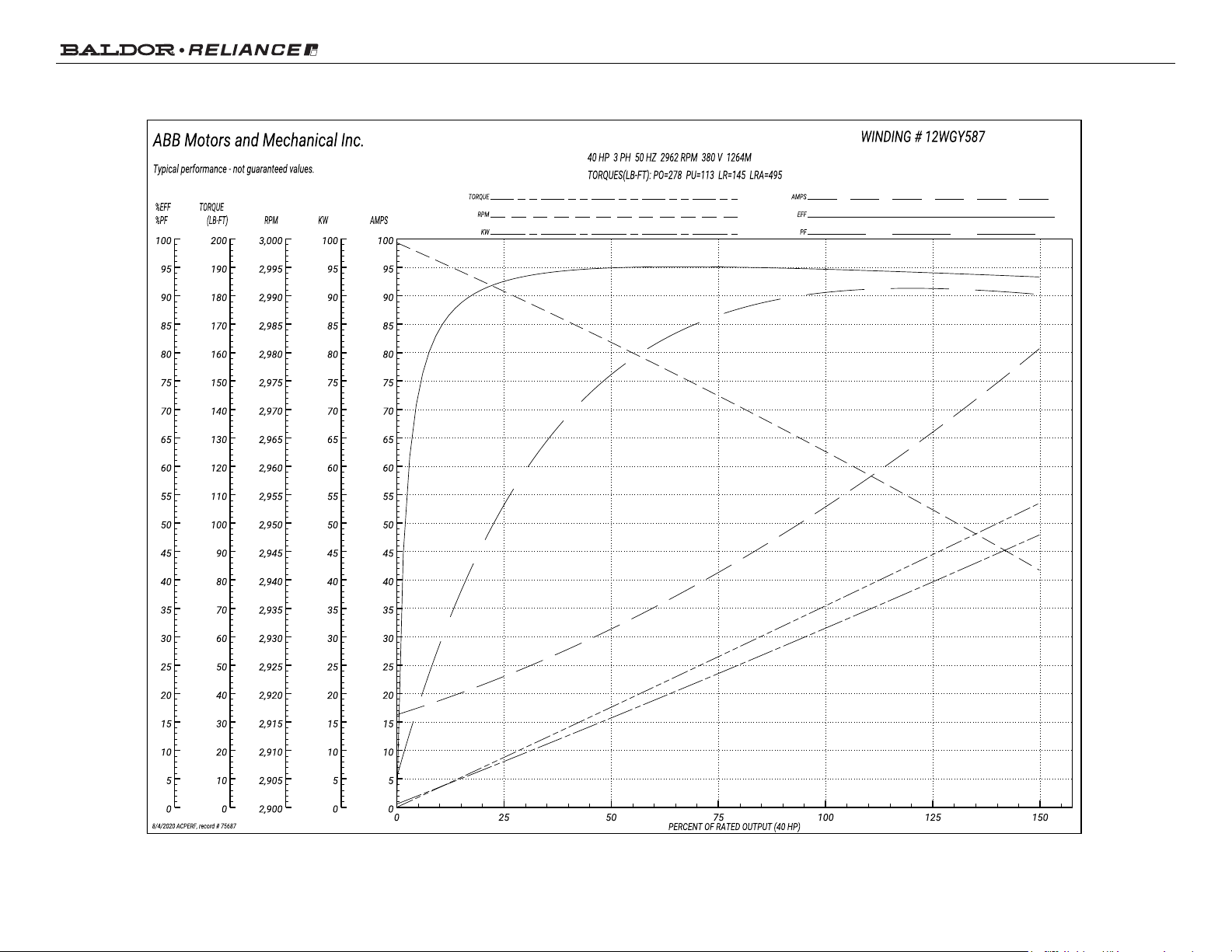

Performance Graph at 380V, 50Hz, 40.0HP Typical performance - Not guaranteed values
Page 11 of 14
Product Information Packet: DRX32524T - 50HP,3560//2960RPM,3PH,60HZ,326TS,XPFC,F

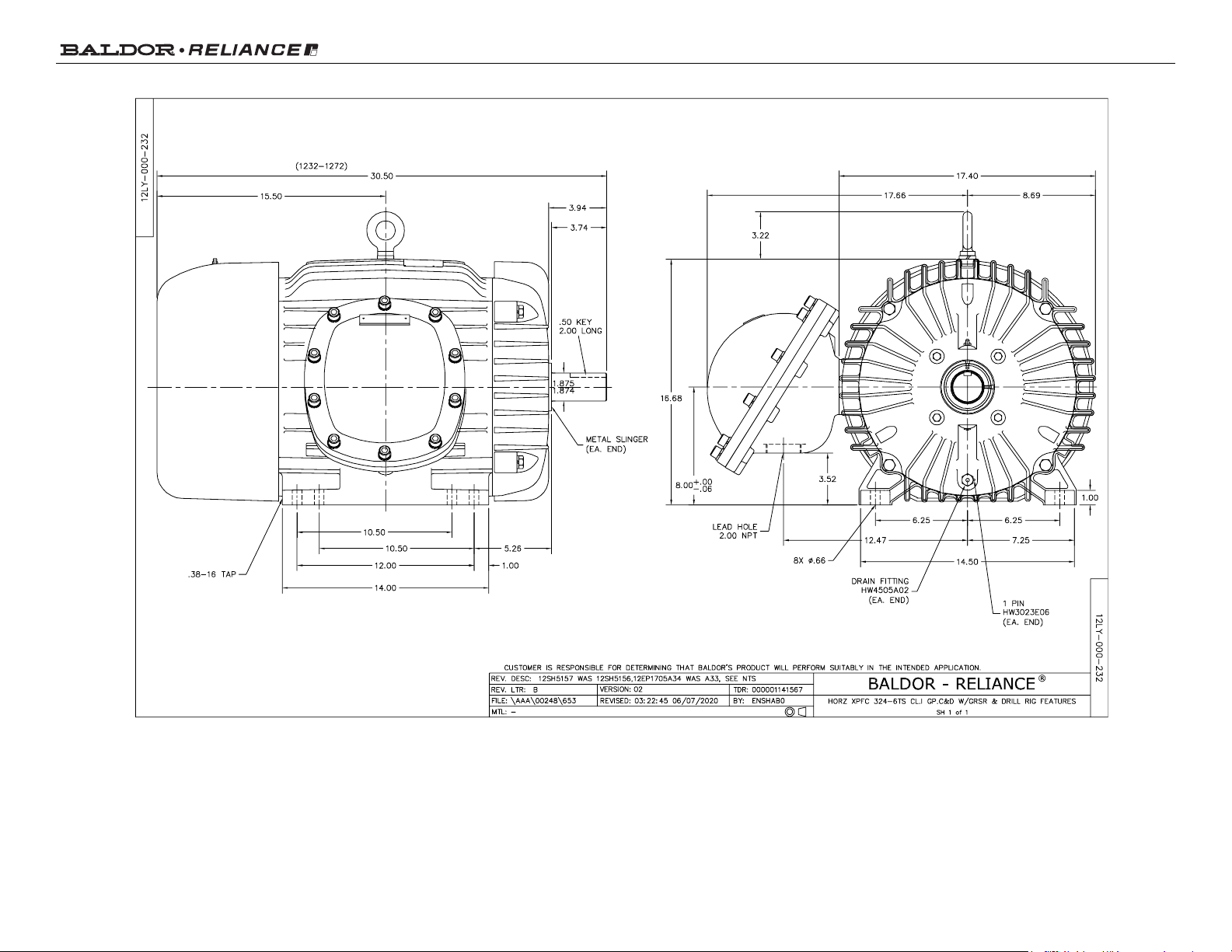

Page 12 of 14
Product Information Packet: DRX32524T - 50HP,3560//2960RPM,3PH,60HZ,326TS,XPFC,F
Page 13 of 14
Product Information Packet: DRX32524T - 50HP,3560//2960RPM,3PH,60HZ,326TS,XPFC,F
Marketing maintained PDF of MN416:
http://www.baldor.com/support/Literature/Load.ashx/MN416?ManNumber=MN416
Page 14 of 14
