Baldor DRX32444T-5 Product Information Sheet

Download

Product Information Packet

DRX32444T-5

40HP,1775RPM,3PH,60HZ,324T,XPFC,F1

Product Information Packet: DRX32444T-5 - 40HP,1775RPM,3PH,60HZ,324T,XPFC,F1

Part Detail

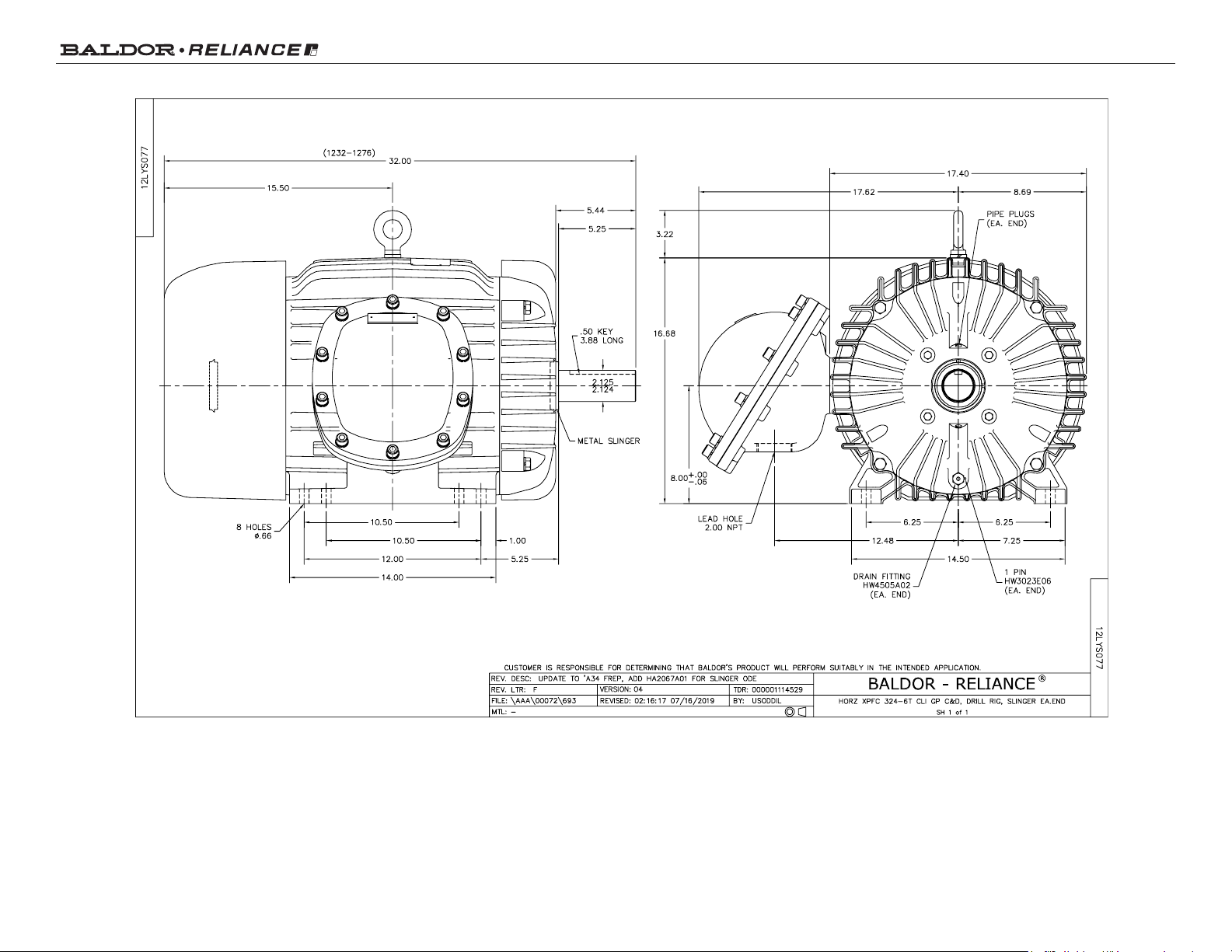

Revision: B Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 12WGY285 CD Diagram: CD0006 Mfg Plant: Mech. Spec: Layout: 12LYS077 Poles: 04 Created Date: 07-16-2019 Base: Eff. Date: 07-08-2020 Leads: 3#8

Specs

Catalog Number: DRX32444T-5 Enclosure: XPFC Frame: 324T Frame Material: Iron Output @ Frequency: 40.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 575.0 V @ 60 HZ XP Class and Group: CLI GP C,D XP Division: Division I Agency Approvals: CSA

CSA EEV

UR Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None

Heater Indicator: No Heater Insulation Class: F Inverter Code: Inverter Duty IP Rating: NONE KVA Code: H Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Termination: Flying Leads Motor Type: 1254M Mounting Arrangement: F1 Power Factor: 82 Product Family: Hazardous Location Motor Pulley Face Code: Standard Rodent Screen: None Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Speed Code: Single Speed

Constant Torque Speed Range: 6

Motor Standards: NEMA

Page 2 of 12

Product Information Packet: DRX32444T-5 - 40HP,1775RPM,3PH,60HZ,324T,XPFC,F1

Current @ Voltage: 39.000 A @ 575.0 V Design Code: A Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK

Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: Normally Closed Thermostat Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None XP Temp Code: T3C

Page 3 of 12

Product Information Packet: DRX32444T-5 - 40HP,1775RPM,3PH,60HZ,324T,XPFC,F1

Nameplate NP1401XPSLEV

NO. CC 010A

S/N TEMP CODE T3C

SPEC. 12-0000-0851 INV.TYPE PWM

CAT.NO. DRX32444T-5 C HP FR 60 C HP TO 90

HP 40 CT HZ FROM 6 CT HZ TO 60

VOLTS 575 VT HZ FROM 6 VT HZ TO 60

AMPS 39 MAG CUR 15.6

RPM 1775 MX RPM 2700

HZ 60 PH 3 CL F NOM.EFF. 94.1

SER.F. 1.00 DES A SL HZ 0.83 WK2 7.19

FRAME 324T RATING 40C AMB-CONT

55C AMB @ 1.0 SF, 60C RISE

1.15SF ON SINEWAVE NEMA MG-1 PT.5,IP55

Page 4 of 12

Product Information Packet: DRX32444T-5 - 40HP,1775RPM,3PH,60HZ,324T,XPFC,F1

Parts List

Part Number Description Quantity SA371886 SA 12-0000-0851 1.000 EA RA361604 RA 12-0000-0851 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA LB1119N WARNING LABEL 1.000 EA LC0006 CONNECTION LABEL 1.000 EA LB1417 LABEL CARTON 6X4 PERFORATED BLANK ROLLS 1.000 EA NP1401XPSLEV SS XP INV UL CSA-EEV CC CL-I GP-C&D 1.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 4.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA LB1081C ALUM XP CAUTION LABEL (COL PLANT ONLY- 1.000 EA 12FH1001A07P FAN COVER, MACH W/EPOXY PRIMER & SLOT FO 1.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 3.000 EA 10XN3118K12 5/16-18 X .75 GRADE 5, ZINC PLATED 3.000 EA 09FN3001B03SP EXTERNAL FAN, PLASTIC 1.000 EA HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.200 LB 12EP1705A34PP15 FREP MACH. 312 W/EPOXY PRIMER & PAINT 1.000 EA HA3051A03 1/2-13X2.75 BLT GR8 1.75 TO E NC F/S 4.000 EA HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 4.000 EA HA2067A01 ALUM SLINGER (AUTO) 1.000 EA 80XN1032A07 SET SCREW, HEX XOCK, ZN 2.000 EA HW5100A13 W4627-047 WVY WSHER 1.000 EA HW4500A20 1/8NPT SL PIPE PLUG 2.000 EA

Page 5 of 12

Product Information Packet: DRX32444T-5 - 40HP,1775RPM,3PH,60HZ,324T,XPFC,F1

Parts List (continued)

Part Number Description Quantity HW4505A02 BREATHER/DRAIN-EXP PROOF-.250-18 PTF AIS 1.000 EA HW3023E06 .125 X .625 SPIRAL SPRING PIN 1.000 EA 12EP1706A08P EP, MACH. XPFC 312 BRG. W/DRAIN HW4505A0 1.000 EA HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 4.000 EA HA3051A03 1/2-13X2.75 BLT GR8 1.75 TO E NC F/S 4.000 EA HA2067A02 SLINGER ALUM (AUTO) 1.000 EA 80XN1032A07 SET SCREW, HEX XOCK, ZN 2.000 EA 10XN3118K44 5/16-18 X 2.75" HEX HD, GRADE 5 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA HW4500A20 1/8NPT SL PIPE PLUG 2.000 EA HW4505A02 BREATHER/DRAIN-EXP PROOF-.250-18 PTF AIS 1.000 EA HW3023E06 .125 X .625 SPIRAL SPRING PIN 1.000 EA 12CB1003A01P KOBX,MACH 2.00 NPT GROUP C MTRS,EPOXY PR 1.000 EA 10XN3118K24 5/16-18 X 1.50" HEX HD, GRADE 5 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA WD1000B19 TERMINAL BURNDY L250HP 1.000 EA 10XN3816K12 3/8-16 X 3/4 HEX HD CAP GRADE 5 1.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 1.000 EA 12CB1502A01P CONDUIT BOX LID MACH. GROUP C MTRS 1.000 EA 84XN5013J32 SOCKET HD.CAP SCR,1/2-13 X 2"LG,ALLOY ST 10.000 EA HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 10.000 EA MG1025G29 WILKOFAST, 789.229, DARK CHARCOAL GRAY 0.125 GA 12PA1020 PKGP CRATE 312 EXPORT 36 X 30-1/2 X 22- 1.000 EA HW2501H33 KEY, 1/2 SQ X 3.875 1.000 EA

Page 6 of 12

Product Information Packet: DRX32444T-5 - 40HP,1775RPM,3PH,60HZ,324T,XPFC,F1

AC Induction Motor Performance Data

Record # 77494 - Typical performance - not guaranteed values

Winding: 12WGY285-R007 Type: 1254M Enclosure: XPFC

Nameplate Data

575 V, 60 Hz:

Single Voltage Motor Rated Output (HP) 40 Full Load Torque 118 LB-FT Volts 575 Start Configuration direct on line Full Load Amps 39 Breakdown Torque 367 LB-FT R.P.M. 1775 Pull-up Torque 174 LB-FT Hz 60 Phase 3 Locked-rotor Torque 185 LB-FT NEMA Design Code A KVA Code H Starting Current 267 A Service Factor (S.F.) 1 No-load Current 15.6 A NEMA Nom. Eff. 94.1 Power Factor 82 LinelineRes.@25ºC 0.226Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 54°C S.F. Amps Temp. Rise @ S.F. Load 65°C

Locked-rotor Power Factor 27.2

Rotor inertia 7.19 LB-FT2

Load Characteristics 575 V, 60 Hz, 40 HP

% of Rated Load 25 50 75 100 125 150 Power Factor 46 67 77 82 84 85 Efficiency 90 93.6 94.3 94.3 94.1 93.3 Speed 1795 1790 1785 1780 1774 1767 Line amperes 18.3 24.1 31.1 38.7 47.6 56.3

Page 7 of 12
