Baldor DRX18544T-5 Product Information Sheet

Download

Product Information Packet

DRX18544T-5

5HP,1750RPM,3PH,60HZ,184T,XPFC,F1

Product Information Packet: DRX18544T-5 - 5HP,1750RPM,3PH,60HZ,184T,XPFC,F1

Part Detail

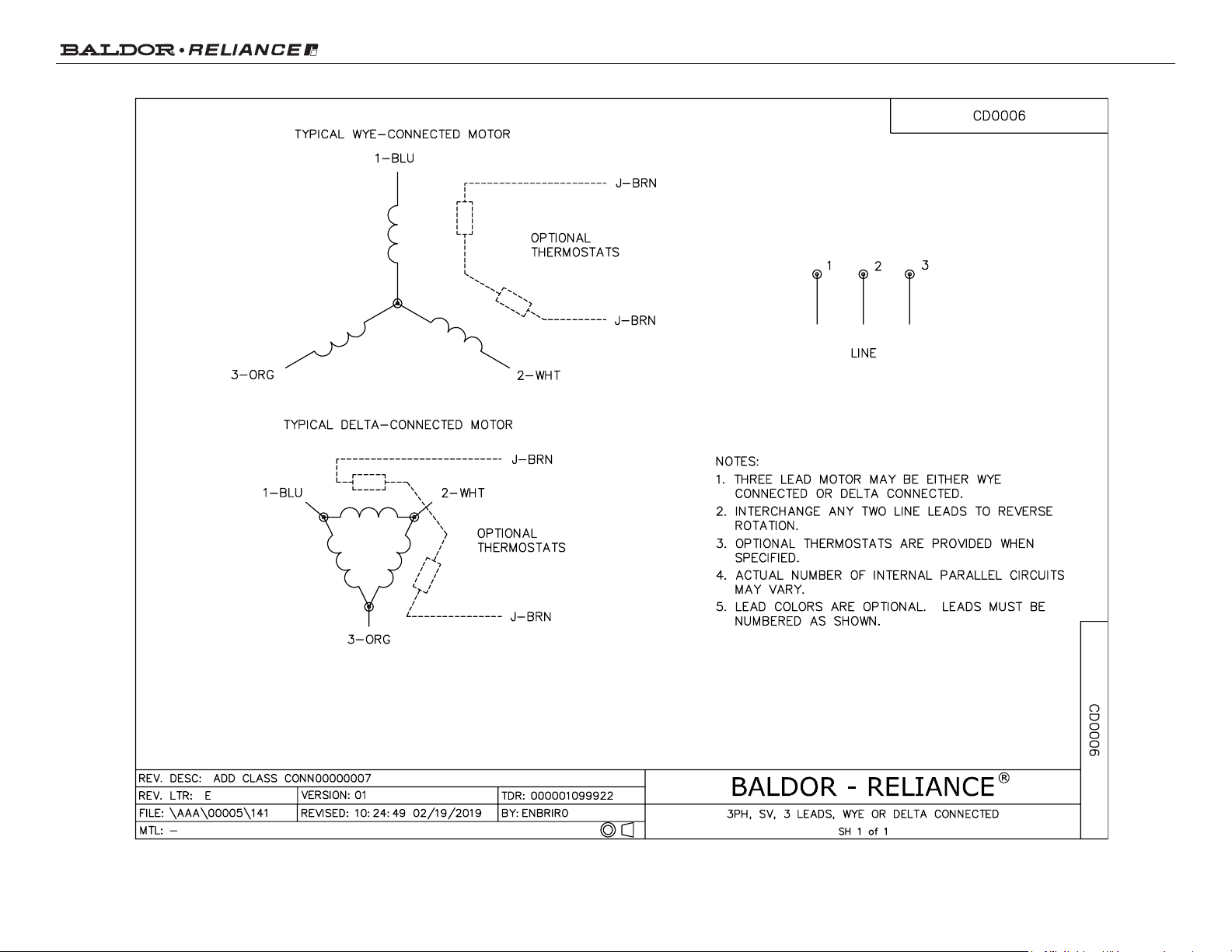

Revision: B Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 06WGX200 CD Diagram: CD0006 Mfg Plant: Mech. Spec: Layout: 06LY-000-044 Poles: 04 Created Date: 07-17-2019 Base: Eff. Date: 07-27-2020 Leads: 3#16

Specs

Catalog Number: DRX18544T-5 Enclosure: XPFC Frame: 184T Frame Material: Iron Output @ Frequency: 5.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 575.0 V @ 60 HZ XP Class and Group: CLI GP C,D XP Division: Division I Agency Approvals: CSA

CSA EEV

UR Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None

Heater Indicator: No Heater Insulation Class: F Inverter Code: Inverter Duty IP Rating: NONE KVA Code: J Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Termination: Flying Leads Motor Type: 0642M Mounting Arrangement: F1 Power Factor: 79 Product Family: General Purpose Pulley Face Code: Standard Rodent Screen: None Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Speed Code: Single Speed

Constant Torque Speed Range: 6

Motor Standards: NEMA

Page 2 of 11

Product Information Packet: DRX18544T-5 - 5HP,1750RPM,3PH,60HZ,184T,XPFC,F1

Current @ Voltage: 5.300 A @ 575.0 V Design Code: B Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK

Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: Normally Closed Thermostat Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None XP Temp Code: T3C

Page 3 of 11

Product Information Packet: DRX18544T-5 - 5HP,1750RPM,3PH,60HZ,184T,XPFC,F1

Nameplate NP1401XPSLEV

NO. CC 010A

S/N TEMP CODE T3C

SPEC. 06-0000-0171 INV.TYPE PWM

CAT.NO. DRX18544T-5 C HP FR 60 C HP TO 90

HP 5 CT HZ FROM 6 CT HZ TO 60

VOLTS 575 VT HZ FROM 6 VT HZ TO 60

AMPS 5.3 MAG CUR 2.3

RPM 1750 MX RPM 2700

HZ 60 PH 3 CL F NOM.EFF. 89.5

SER.F. 1.00 DES B SL HZ 1.7 WK2 0.39

FRAME 184T RATING 40C AMB-CONT

55C AMB @1.0SF

1.15SF SINEWAVE NEMA MG-1 PT 5,IP55

Page 4 of 11

Product Information Packet: DRX18544T-5 - 5HP,1750RPM,3PH,60HZ,184T,XPFC,F1

Parts List

Part Number Description Quantity SA371990 SA 06-0000-0171 1.000 EA RA361713 RA 06-0000-0171 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA LB1119N WARNING LABEL 1.000 EA LC0006 CONNECTION LABEL 1.000 EA NP1401XPSLEV SS XP INV UL CSA-EEV CC CL-I GP-C&D 1.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA LB1081F ALUM XP CAUTION LABEL (FS PLANT ONLY- 1.000 EA HW3201A05 3/8-16 EYEBOLT 1.000 EA 06FH1003A06 FH, XP W/GRSR 1.000 EA 51XN1032A14 10-32 X 0.875 HX WS SL SR 4.000 EA 34FN3002A02 EXTERNAL FAN, PLASTIC, .905/.907 HUB W/ 1.000 EA 51XB0818A12 8-18X3/4 HXWSSLD SERTYB 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB 06EP1709A08 FRONT XPFC 205 BRG GRP C W/ DRAIN (HW450 1.000 EA 10XN3118K20 5/16-18 X 1 1/4 GRADE 5 STEEL ZC PLATED 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA HW5100A05 WVY WSHR F/205 & 304 BRGS 1.000 EA HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA HW4500A19 1/4-28X1/4 SLOTTED PLUG F/S 1.000 EA HW4506A02 BREATHER/DRAIN-EXP PROOF-.125-27 NPTF AI 1.000 EA HW3022E05 .125 DIA X .500 ROLLED SPRING PIN 1.000 EA 36EP1718A16 PULLEY 206 BRG GROUP C W/GRSR, DRAIN & S 1.000 EA

Page 5 of 11

Product Information Packet: DRX18544T-5 - 5HP,1750RPM,3PH,60HZ,184T,XPFC,F1

Parts List (continued)

Part Number Description Quantity HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA 10XN3118K20 5/16-18 X 1 1/4 GRADE 5 STEEL ZC PLATED 4.000 EA HA2065A01 SLINGER, ALUM (AUTO) 1.000 EA 80XN1032A07 SET SCREW, HEX XOCK, ZN 1.000 EA HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA HW4500A19 1/4-28X1/4 SLOTTED PLUG F/S 1.000 EA HW4506A02 BREATHER/DRAIN-EXP PROOF-.125-27 NPTF AI 1.000 EA HW3022E05 .125 DIA X .500 ROLLED SPRING PIN 1.000 EA 07CB1000A02 CONDUIT BOX, MODEL 306,EXP. PROOF 1.000 EA 10XN2520A14 1/4 20X7/8 HX HD CAP 4.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA WD1000B17 T&B CX35TN OR L35P TERMINAL LUG 1.000 EA 11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA 07CB1502A01 CONDUIT BOX LID MACH (DUCTILE IRON) 1.000 EA 10XN2520K16 1/4-20 X 1" HX HD SCRW GRADE 5, ZINC P 4.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA MG1500Y02 WILKOPON (use 004824003CAH) 0.022 GA MG1025G29 WILKOFAST, 789.229, DARK CHARCOAL GRAY 0.022 GA 37PA1074 PALLET PACK GRP, PRINT BOX PK1026A06 1.000 EA HW2501E16 KEY, 1/4 SQ X 1.750 1.000 EA

Page 6 of 11

Product Information Packet: DRX18544T-5 - 5HP,1750RPM,3PH,60HZ,184T,XPFC,F1

AC Induction Motor Performance Data

Record # 77542 - Typical performance - not guaranteed values

Winding: 06WGX200-R053 Type: 0642M Enclosure: XPFC

Nameplate Data

575 V, 60 Hz:

Single Voltage Motor Rated Output (HP) 5 Full Load Torque 15.04 LB-FT Volts 575 Start Configuration direct on line Full Load Amps 5.3 Breakdown Torque 52.3 LB-FT R.P.M. 1750 Pull-up Torque 21.6 LB-FT Hz 60 Phase 3 Locked-rotor Torque 30.7 LB-FT NEMA Design Code B KVA Code J Starting Current 36.3 A Service Factor (S.F.) 1 No-load Current 2.34 A NEMA Nom. Eff. 89.5 Power Factor 79 LinelineRes.@25ºC 4.27Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 54°C

Locked-rotor Power Factor 40.6

Rotor inertia 0.391 LB-FT2

Load Characteristics 575 V, 60 Hz, 5 HP

% of Rated Load 25 50 75 100 125 150 Power Factor 42 64 76 81 84 85 Efficiency 85.2 89.8 90.1 89.7 88.2 86.4 Speed 1788 1777 1764 1751 1736 1719 Line amperes 2.61 3.26 4.13 5.14 6.31 7.59

Page 7 of 11
