Baldor DRX18344T Product Information Sheet

Download

Product Information Packet

DRX18344T

3HP,1755//1465RPM,3PH,60HZ,182T,XPFC,F1

Product Information Packet: DRX18344T - 3HP,1755//1465RPM,3PH,60HZ,182T,XPFC,F1

Part Detail

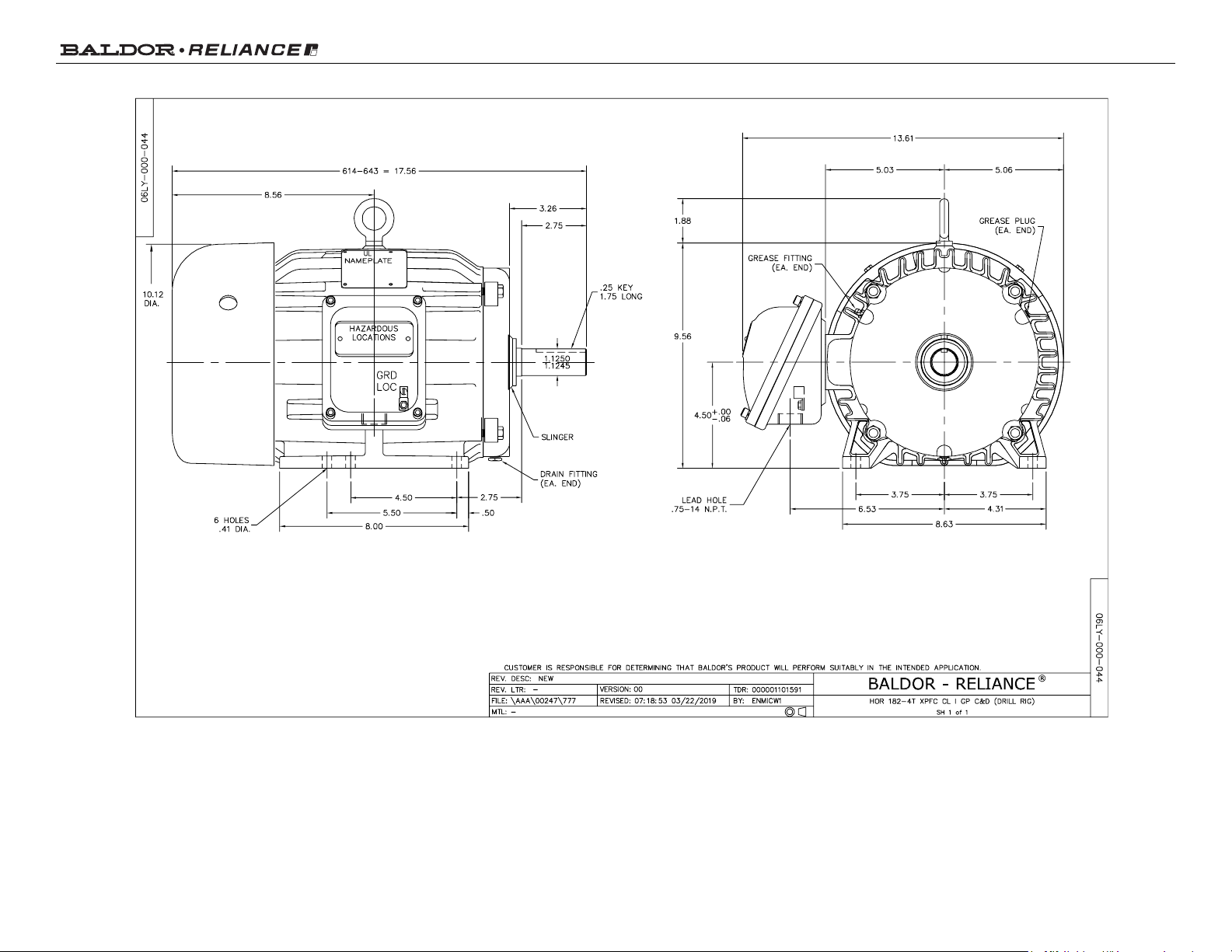

Revision: A Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 06WGX181 CD Diagram: CD0005 Mfg Plant: Mech. Spec: Layout: 06LY-000-044 Poles: 04 Created Date: 04-01-2019 Base: Eff. Date: 06-19-2020 Leads: 9#16

Specs

Catalog Number: DRX18344T Enclosure: XPFC Frame: 182T Frame Material: Iron Output @ Frequency: 3.000 HP @ 60 HZ

2.000 HP @ 50 HZ Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 190.0 V @ 50 HZ

460.0 V @ 60 HZ

230.0 V @ 60 HZ

380.0 V @ 50 HZ XP Class and Group: CLI GP C,D XP Division: Division I Agency Approvals: UR

CSA EEV CSA

Auxillary Box: No Auxillary Box

Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Heater Indicator: No Heater Insulation Class: F Inverter Code: Inverter Duty IP Rating: NONE KVA Code: J Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Termination: Flying Leads Motor Type: 0632M Mounting Arrangement: F1 Power Factor: 77 Product Family: General Purpose Pulley Face Code: Standard Rodent Screen: None

Auxillary Box Lead Termination: None

Shaft Ground Indicator: No Shaft Grounding

Page 2 of 13

Product Information Packet: DRX18344T - 3HP,1755//1465RPM,3PH,60HZ,182T,XPFC,F1

Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None Constant Torque Speed Range: 6 Current @ Voltage: 8.200 A @ 230.0 V

7.000 A @ 190.0 V

4.100 A @ 460.0 V

3.500 A @ 380.0 V Design Code: B Drip Cover: No Drip Cover

Shaft Rotation: Reversible Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: Normally Closed Thermostat Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None XP Temp Code: T3C

Page 3 of 13

Product Information Packet: DRX18344T - 3HP,1755//1465RPM,3PH,60HZ,182T,XPFC,F1

Nameplate NP1401XPSLEV

NO. CC 010A

S/N TEMP CODE T3C

SPEC. 06-0000-0053 INV.TYPE PWM

CAT.NO. DRX18344T C HP FR 60 C HP TO 90

HP 3//2 CT HZ FROM 6 CT HZ TO 60

VOLTS 230/460//190/380 VT HZ FROM 6 VT HZ TO 60

AMPS 8.2/4.1//7/3.5 MAG CUR 4.2/2.1

RPM 1755//1465 MX RPM 2700

HZ 60//50 PH 3 CL F NOM.EFF. 89.5

SER.F. 1.00 DES B SL HZ 1.5 WK2 0.3

FRAME 182T RATING 40C AMB-CONT

55C AMB @ 1.0 SF

1.15 SF SINEWAVE NEMA MG-1 PT 5,IP55

Page 4 of 13

Product Information Packet: DRX18344T - 3HP,1755//1465RPM,3PH,60HZ,182T,XPFC,F1

Parts List

Part Number Description Quantity SA367982 SA 06-0000-0053 1.000 EA RA357468 RA 06-0000-0053 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA LB1119N WARNING LABEL 1.000 EA LC0145B01 CONNECTION LABEL 1.000 EA NP1401XPSLEV SS XP INV UL CSA-EEV CC CL-I GP-C&D 1.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA LB1081F ALUM XP CAUTION LABEL (FS PLANT ONLY- 1.000 EA HW3201A05 3/8-16 EYEBOLT 1.000 EA 06FH1003A06 FH, XP W/GRSR 1.000 EA 51XN1032A14 10-32 X 0.875 HX WS SL SR 4.000 EA 34FN3002A02 EXTERNAL FAN, PLASTIC, .905/.907 HUB W/ 1.000 EA 51XB0818A12 8-18X3/4 HXWSSLD SERTYB 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB 06EP1709A08 FRONT XPFC 205 BRG GRP C W/ DRAIN (HW450 1.000 EA 10XN3118K20 5/16-18 X 1 1/4 GRADE 5 STEEL ZC PLATED 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA HW5100A05 WVY WSHR F/205 & 304 BRGS 1.000 EA HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA HW4500A19 1/4-28X1/4 SLOTTED PLUG F/S 1.000 EA HW4506A02 BREATHER/DRAIN-EXP PROOF-.125-27 NPTF AI 1.000 EA 36EP1718A16 PULLEY 206 BRG GROUP C W/GRSR, DRAIN & S 1.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA

Page 5 of 13

Product Information Packet: DRX18344T - 3HP,1755//1465RPM,3PH,60HZ,182T,XPFC,F1

Parts List (continued)

Part Number Description Quantity 10XN3118K20 5/16-18 X 1 1/4 GRADE 5 STEEL ZC PLATED 4.000 EA HA2065A01 SLINGER, ALUM (AUTO) 1.000 EA 80XN1032A07 SET SCREW, HEX XOCK, ZN 1.000 EA HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA HW4500A19 1/4-28X1/4 SLOTTED PLUG F/S 1.000 EA HW4506A02 BREATHER/DRAIN-EXP PROOF-.125-27 NPTF AI 1.000 EA HW3022E05 .125 DIA X .500 ROLLED SPRING PIN 1.000 EA 07CB1000A02 CONDUIT BOX, MODEL 306,EXP. PROOF 1.000 EA 84XN2520J12 1/4-20 X 3/4 SOC.HD CAP SCR 4.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA WD1000B17 T&B CX35TN OR L35P TERMINAL LUG 1.000 EA 11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA 07CB1502A01 CONDUIT BOX LID MACH (DUCTILE IRON) 1.000 EA 84XN2520J16 1/4-20 X 1 SOC HD CAP SCREW 4.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA MG1500Y02 WILKOPON (use 004824003CAH) 0.001 GA MG1025G29 WILKOFAST, 789.229, DARK CHARCOAL GRAY 0.022 GA 36PA1001 PKG GRP, PRINT PK1017A06 1.000 EA HW2501E17 .250 SQUARE X 1.875 LONG LOW CARBON STEE 1.000 EA HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA

Page 6 of 13

Product Information Packet: DRX18344T - 3HP,1755//1465RPM,3PH,60HZ,182T,XPFC,F1

AC Induction Motor Performance Data

Record # 72220 - Typical performance - not guaranteed values

Winding: 06WGX181-R087 Type: 0632M Enclosure: XPFC

Nameplate Data

460 V, 60 Hz:

High Voltage Connection Rated Output (HP) 3//2 Full Load Torque 9.08 LB-FT Volts 230/460//190/380 Start Configuration direct on line Full Load Amps 8.2/4.1//7/3.5 Breakdown Torque 33.1 LB-FT R.P.M. 1755//1465 Pull-up Torque 18.2 LB-FT Hz 60//50 Phase 3 Locked-rotor Torque 20.4 LB-FT NEMA Design Code B KVA Code J Starting Current 29.8 A Service Factor (S.F.) 1 No-load Current 2.14 A NEMA Nom. Eff. 89.5 Power Factor 77 LinelineRes.@25ºC 3.93Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 35°C S.F. Amps Temp. Rise @ S.F. Load 42°C

Locked-rotor Power Factor 41.4

Rotor inertia 0.298 LB-FT2

Load Characteristics 460 V, 60 Hz, 3 HP

% of Rated Load 25 50 75 100 125 150 Power Factor 38 58 70 77 81 83 Efficiency 83.5 88.9 90 89.8 89.1 87.7 Speed 1790 1779 1769 1757 1744 1730 Line amperes 2.34 2.79 3.39 4.1 4.91 5.86

Page 7 of 13

Product Information Packet: DRX18344T - 3HP,1755//1465RPM,3PH,60HZ,182T,XPFC,F1

Performance Graph at 460V, 60Hz, 3.0HP Typical performance - Not guaranteed values

Page 8 of 13

Product Information Packet: DRX18344T - 3HP,1755//1465RPM,3PH,60HZ,182T,XPFC,F1

AC Induction Motor Performance Data

Record # 72221 - Typical performance - not guaranteed values

Winding: 06WGX181-R087 Type: 0632M Enclosure: XPFC

Nameplate Data

380 V, 50 Hz:

High Voltage Connection Rated Output (HP) 3//2 Full Load Torque 7.25 LB-FT Volts 230/460//190/380 Start Configuration direct on line Full Load Amps 8.2/4.1//7/3.5 Breakdown Torque 31.25 LB-FT R.P.M. 1755//1465 Pull-up Torque 18.55 LB-FT Hz 60//50 Phase 3 Locked-rotor Torque 20.79 LB-FT NEMA Design Code B KVA Code J Starting Current 28.72 A Service Factor (S.F.) 1 No-load Current 2.11 A NEMA Nom. Eff. 89.5 Power Factor 77 LinelineRes.@25ºC 3.93Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 28°C S.F. Amps Temp. Rise @ S.F. Load 32°C

Locked-rotor Power Factor 46.1

Rotor inertia 0.298 LB-FT2

Load Characteristics 380 V, 50 Hz, 2 HP

% of Rated Load 25 50 75 100 125 150 Power Factor 33 52 65 73 78 81 Efficiency 79.7 86.5 88.4 88.7 88.4 87.1 Speed 1491 1483 1474 1465 1455 1443 Line amperes 2.25 2.57 3.01 3.53 4.14 4.87
