Product Information Packet
DRX14244T-5
2HP,1755RPM,3PH,60HZ,145T,XPFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: DRX14244T-5 - 2HP,1755RPM,3PH,60HZ,145T,XPFC,F1
Part Detail
Revision: A Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 35WGN956 CD Diagram: CD0006 Mfg Plant:
Mech. Spec: Layout: 35LYX081 Poles: 04 Created Date: 07-16-2019
Base: Eff. Date: 06-15-2020 Leads: 3#18
Specs
Catalog Number: DRX14244T-5
Enclosure: XPFC
Frame: 145T
Frame Material: Steel
Output @ Frequency: 2.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 575.0 V @ 60 HZ
XP Class and Group: CLI GP C,D
XP Division: Division I
Agency Approvals: CSA
CSA EEV
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Inverter Duty
IP Rating: NONE
KVA Code: L
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Termination: Flying Leads
Motor Type: 3528M
Mounting Arrangement: F1
Power Factor: 75
Product Family: General Purpose
Pulley Face Code: Standard
Rodent Screen: None
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Speed Code: Single Speed
Constant Torque Speed Range: 6
Motor Standards: NEMA
Page 2 of 11
Product Information Packet: DRX14244T-5 - 2HP,1755RPM,3PH,60HZ,145T,XPFC,F1
Current @ Voltage: 2.300 A @ 575.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: Normally Closed Thermostat
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
XP Temp Code: T3C
Page 3 of 11
Product Information Packet: DRX14244T-5 - 2HP,1755RPM,3PH,60HZ,145T,XPFC,F1
Nameplate NP1401XPSLEV
NO. CC 010A
S/N TEMP CODE T3C
SPEC. 35-0000-0263 INV.TYPE PWM
CAT.NO. DRX14244T-5 C HP FR 60 C HP TO 90
HP 2 CT HZ FROM 6 CT HZ TO 60
VOLTS 575 VT HZ FROM 6 VT HZ TO 60
AMPS 2.3 MAG CUR 1.5
RPM 1755 MX RPM 2700
HZ 60 PH 3 CL F NOM.EFF. 86.5
SER.F. 1.00 DES B SL HZ 1.5 WK2 0.17
FRAME 145T RATING 40C AMB-CONT
55C AMB @ 1.0 SF
1.15 SF SINEWAVE NEMA MG-1 PT 5,IP55
Page 4 of 11
Product Information Packet: DRX14244T-5 - 2HP,1755RPM,3PH,60HZ,145T,XPFC,F1
Parts List
Part Number Description Quantity
SA371905 SA 35-0000-0263 1.000 EA
RA361625 RA 35-0000-0263 1.000 EA
LB1119N WARNING LABEL 1.000 EA
LC0006 CONNECTION LABEL 1.000 EA
NP1401XPSLEV SS XP INV UL CSA-EEV CC CL-I GP-C&D 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
LB1359F ALUM XP CAUTION LABEL 1.000 EA
35FH4005A01SP IEC FH NO GREASER W/PRIMED 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
35FN3002A05SP EXFN, PLASTIC, 6.376 OD, .638 ID 1.000 EA
51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
HA3104A08 THRUBOLT-5/16-18X9.375 X X 4.000 EA
XY3118A12 5/16-18 HEX NUT DIRECTIONAL SERRATION 4.000 EA
35EP1715A08 FREP XPFC 203 BRG GROUP "C" W/DRAIN 1.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
HW4506A02 BREATHER/DRAIN-EXP PROOF-.125-27 NPTF AI 1.000 EA
HW3022E05 .125 DIA X .500 ROLLED SPRING PIN 1.000 EA
35EP3701B05 PUEP X-PROOF - 205 BRG GROUP C&E 1.000 EA
HA2009A86 SLINGER FOR GROUP E MTRS - 205 BRG. 1.000 EA
80XN0632J06 SET SCREW, 6-32 X 3/8", HEX SOCKET, AS 1.000 EA
HW4506A02 BREATHER/DRAIN-EXP PROOF-.125-27 NPTF AI 1.000 EA
HW3022E05 .125 DIA X .500 ROLLED SPRING PIN 1.000 EA
Page 5 of 11
Product Information Packet: DRX14244T-5 - 2HP,1755RPM,3PH,60HZ,145T,XPFC,F1
Parts List (continued)
Part Number Description Quantity
35CB1005A01 CONDUIT BOX,MACH - GROUP "C" MTRS 1.000 EA
RM1020A41 O-RING, -150 BUNA-N, .103 CS X 2.862 ID 1.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
35CB1501A01 CONDUIT BOX LID, MACH. - GROUP "C"MTRS 1.000 EA
MG1500Y02 WILKOPON (use 004824003CAH) 0.022 GA
MG1025G29 WILKOFAST, 789.229, DARK CHARCOAL GRAY 0.022 GA
36PA1000 PKG GRP, PRINT PK1016A06 1.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
Page 6 of 11
Product Information Packet: DRX14244T-5 - 2HP,1755RPM,3PH,60HZ,145T,XPFC,F1
AC Induction Motor Performance Data
Record # 77529 - Typical performance - not guaranteed values
Winding: 35WGN956-R014 Type: 3528M Enclosure: XPFC
Nameplate Data
575 V, 60 Hz:
Single Voltage Motor
Rated Output (HP) 2 Full Load Torque 5.98 LB-FT
Volts 575 Start Configuration direct on line
Full Load Amps 2.3 Breakdown Torque 26 LB-FT
R.P.M. 1755 Pull-up Torque 16.6 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 18 LB-FT
NEMA Design Code B KVA Code L Starting Current 19.6 A
Service Factor (S.F.) 1 No-load Current 1.48 A
NEMA Nom. Eff. 86.5 Power Factor 75 LinelineRes.@25ºC 11.2Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 62°C
Locked-rotor Power Factor 50.3
Rotor inertia 0.165 LB-FT2
Load Characteristics 575 V, 60 Hz, 2 HP
% of Rated Load 25 50 75 100 125 150
Power Factor 32 52 65 74 79 82
Efficiency 76 84.3 86.8 86.9 86.5 85.2
Speed 1790 1780 1769 1757 1744 1729
Line amperes 1.54 1.71 1.99 2.34 2.73 3.2
Page 7 of 11
Product Information Packet: DRX14244T-5 - 2HP,1755RPM,3PH,60HZ,145T,XPFC,F1
Performance Graph at 575V, 60Hz, 2.0HP Typical performance - Not guaranteed values
Page 8 of 11
Product Information Packet: DRX14244T-5 - 2HP,1755RPM,3PH,60HZ,145T,XPFC,F1
7.19
510-520 = 14.22
521-528 = 15.09
529-535 = 15.97
536 - 546 = 17.34
2.25
5.94
2.25 4.00
5.00 .50
2.60
.8750
.8745
4.60
6 HOLES
.38 WIDE
.19 KEY
1.38 LONG
DRAINS
(EACH END)
7.08
6.50
6.67
3.50
3.44
2.75 2.75
3.25 4.82
7.21
LEAD HOLE
.75 N.P.T.
.09
.38
1.00
(MIN)
.006
.004
.37
.0015 MAX
CLEARANCE
(EACH END)
DRIVE END DETAIL
.019 MAX
DIAMETRICAL
CLEARANCE
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1

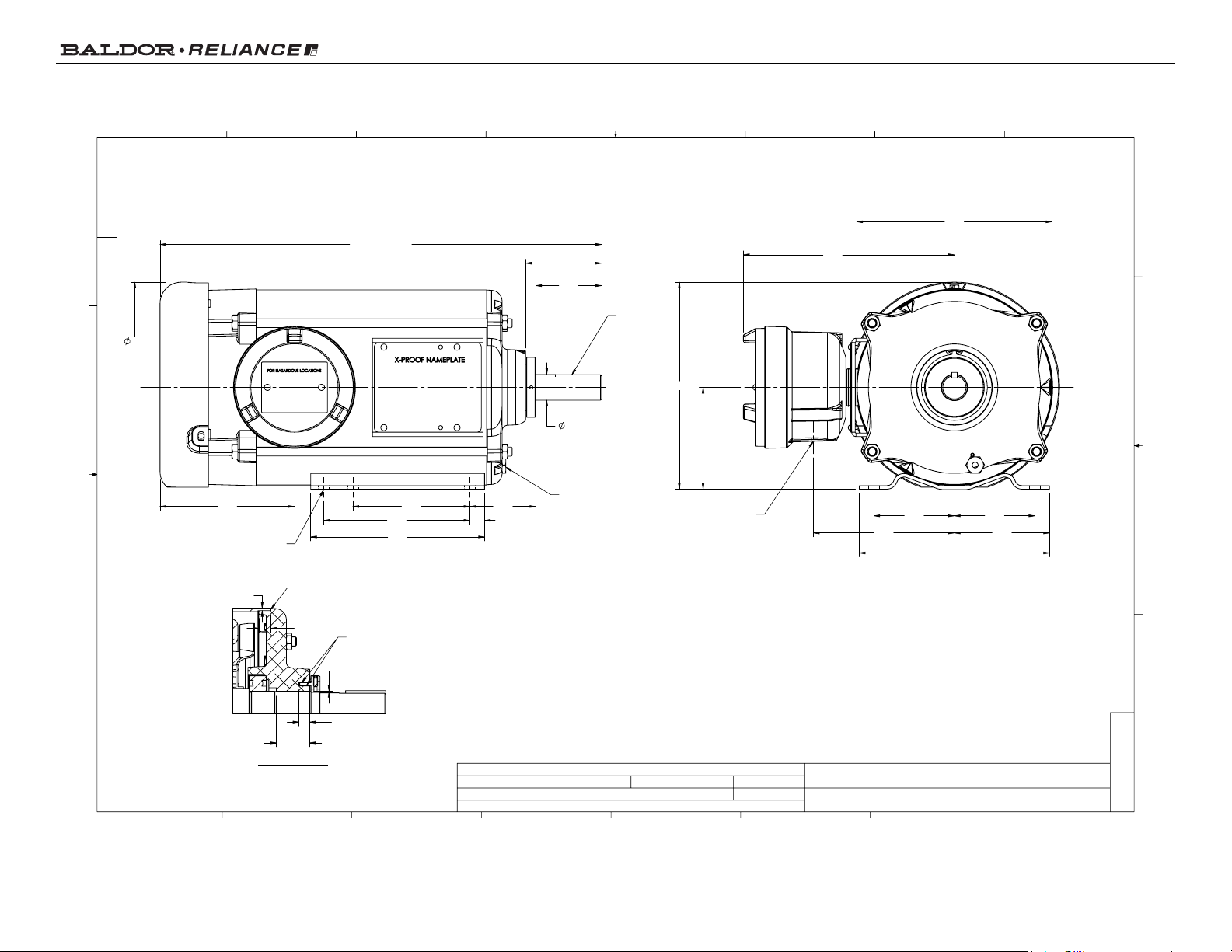

35LYX081
B
HORZ 143-5T XPFC 35M CL-I GP-C&D, DRILL RIG W/FACE DRAINS
REV. DESC:
REV:
BY:
REVISED:
MODEL NO.
VERSION:
TDR:
REF:
35LYX081
LOAD TO SOLIDWORKS
USBUFRA
D
01:07:11 08/30/2019
-
000001117187
04
35LYX081
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
BALDOR - RELIANCE
®
Page 9 of 11
Product Information Packet: DRX14244T-5 - 2HP,1755RPM,3PH,60HZ,145T,XPFC,F1
Page 10 of 11
Product Information Packet: DRX14244T-5 - 2HP,1755RPM,3PH,60HZ,145T,XPFC,F1
Marketing maintained PDF of MN416:
http://www.baldor.com/support/Literature/Load.ashx/MN416?ManNumber=MN416
