Product Information Packet
D2010R-2
10HP,1750RPM,DC,SC2113ATCZ,SPG
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: D2010R-2 - 10HP,1750RPM,DC,SC2113ATCZ,SPG
Part Detail
Revision: - Status: PRD/A Change #: Proprietary: No

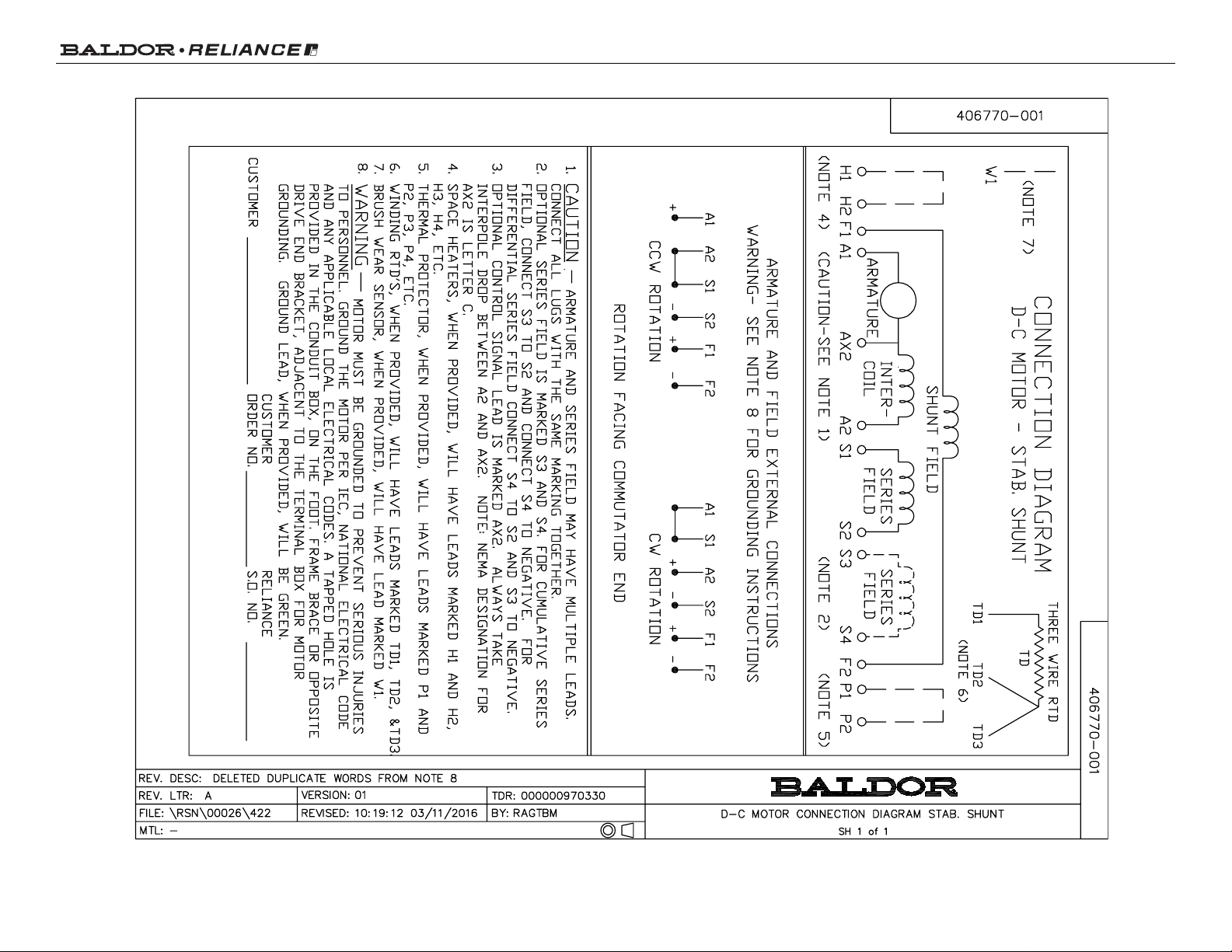

Type: DC Prod. Type: Elec. Spec: G6190A A CD Diagram: 406770-001
Enclosure: DP Mfg Plant: Mech. Spec: Layout: 609950-023
Frame: SC211 Mounting: F1 Poles: 00 Created Date: 04-09-2015
Base: Rotation: R Insulation: F Eff. Date: 04-13-2015
Field Type: Literature: Elec. Diagram: Replaced By:
Specs
Enclosure: DP
Frame: SC2113ATCZ
Frame Material: Exposed Laminations
Agency Approvals: CCSA US
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Drip Cover: No Drip Cover
Duty Rating: CONT
Feedback Device: NO FEEDBACK
Field Winding Type: STAB SHUNT
Frame Prefix: SC
Heater Indicator: No Heater
Insulation Class: F
Lifting Lugs: Standard Lifting Lugs
Mounting Arrangement: F1
Shaft Extension Location: Pulley End
Page 2 of 10
Product Information Packet: D2010R-2 - 10HP,1750RPM,DC,SC2113ATCZ,SPG
Shaft Ground Indicator: No Shaft Grounding
Shaft Slinger Indicator: No Slinger
Motor Standards: NEMA
Thermal Device - Bearing: None
Page 3 of 10
Product Information Packet: D2010R-2 - 10HP,1750RPM,DC,SC2113ATCZ,SPG
Nameplate 000613006HP
CAT.NO. D2010R-2 SPEC NO. T21S1001
FR SC 2113ATCZ HP 10 DUTY CONT
ENCL. DP RPM 1750/ 2300 S.F. 1.0
ENCL MOD GUARDED VOLTS 240 INSUL F
MAX SAFE SPEED 4500 AMPS 37.00 AMB. 40
FIELD DATA SER.NO.
WINDING STAB SHUNT POWER CODE C
VOLTS 240 D.E. BRG. 50BC03J30X
MAX AMPS @ 25 C 2.20 O.D.E. BRG. 45BC02J30X
HOT AMPS 1.56/ 1.08 MIN. AMB. 0 TYPE TR
BRUSH:419904051AB; SPLASHPROOF
Page 4 of 10
Product Information Packet: D2010R-2 - 10HP,1750RPM,DC,SC2113ATCZ,SPG
Parts List
Part Number Description Quantity
SA297165 SA T21S1001 1.000 EA
AA016179 AA T21S1001 1.000 EA
000613006HP NAMEPLATE - RPM III D-C MOTOR W/CSA LOGO 1.000 EA
000692000FP NP, WARNING LIFT INSTRUCTIONS 1.000 EA
000692000FS WARNING LABEL 1.000 EA
418057747A METAL FASTENER 8.000 EA
406770001 C/D TAG (STAB SHUNT) 1.000 EA
034182010GA KEY 1/2 X 3/8 X 1.25" 1.000 EA
036000012HB HHCS M6X12MM LONG PLATED 4.000 EA
036000020KB MHHCS M10-1.5X20MM PLTD. 4.000 EA
036501008AB KPNUT M6-1.0 ZINCPLTED 8.000 EA
036610010AB MHSLW M10 PLATED 4.000 EA
419904051AB BRUSH EXTRUDER DUTY C 4.000 EA
419905003A FLAT WASHER ROCKER RPM III RGG 4.000 EA
419905008A HARDWARE 8.000 EA
706364051AA BRHLD ADD HARDWARE 4.000 EA
706372001B ROCKR METRIC 1.000 EA
004824015A GREASE POLYREX EM 0.100 LB
034693001AB PPLG - G508- use 034692001AB 1.000 EA
034693001AB PPLG - G508- use 034692001AB 1.000 EA
035000001A ALFTG 1/8" 1610-BL 1.000 EA
035000001BB GREASE FTG,GRS.IN 1.000 EA
036000055JB HHCS,DE CAP 2.000 EA
036000075KB HHCS M10 75MM ZINCPLAT 3.000 EA
Page 5 of 10
Product Information Packet: D2010R-2 - 10HP,1750RPM,DC,SC2113ATCZ,SPG
Parts List (continued)
Part Number Description Quantity
036500010AB METRIC NUT M10-1.5PLTD400 4.000 EA
036500010AB METRIC NUT M10-1.5PLTD400 4.000 EA
048977006B GRFTG - XP 1.000 EA
048977006B GRFTG - XP 1.000 EA
400638001H SPRING WASHER (Customer number 43699) 1.000 EA
418150003A GREASE FITTING CAP 2.000 EA
609830005M TBOLT METRIC RP609830- 4.000 EA
801924102A BRKT,ODE,C210 1.000 EA
801925104A BRKT,DE,C210 1.000 EA
032018004CK HHCS 3/8-16X1/2L PLATED 4.000 EA
036000012HB HHCS M6X12MM LONG PLATED 2.000 EA
036000045JB M8-1.25 X 45MM HXHCS 4.000 EA
036620009AB M8 EXTERNAL LK WASHER 1.000 EA
065530000B GASK 1.000 EA
075451000A COVER, CONDUIT BOX 1.000 EA
415000103G TLUG 1.000 EA
417733001G GASKT 2.000 EA
418010006A CAST,MPLATE,180-280,EX1,7BY 1.000 EA
418018074A GROUND LABEL G100 METRIC 160 D.C. 1.000 EA
422919007 HHCVR KIT,C210, DE SOLID XT 1.000 EA
422919010 HHCVR KIT,C210, DE, S/P, X/T 1.000 EA
422919010 HHCVR KIT,C210, DE, S/P, X/T 1.000 EA
422919019 HHCVR KIT,C210,ODE,SOILD XT 1.000 EA
422919021 HHCVR KIT,C210,ODE,LOUVERED,SP,XT 1.000 EA
Page 6 of 10
Product Information Packet: D2010R-2 - 10HP,1750RPM,DC,SC2113ATCZ,SPG
422919021 HHCVR KIT,C210,ODE,LOUVERED,SP,XT 1.000 EA
706305026A GUARD,SHAFT 1.000 EA
706320003A CONDUIT BOX 1.000 EA
000640000P TAG WINDING THERMOST 1.000 EA
000692000NG LABEL ;NP 4POLE METRIC LABEL 1.000 EA
004824007K SPECIAL PAINT 0.100 EA
034180019EA KEY 5/16X5/16X2-3/8L 1.000 EA
Page 7 of 10
Product Information Packet: D2010R-2 - 10HP,1750RPM,DC,SC2113ATCZ,SPG
Page 8 of 10
Product Information Packet: D2010R-2 - 10HP,1750RPM,DC,SC2113ATCZ,SPG
Page 9 of 10
Product Information Packet: D2010R-2 - 10HP,1750RPM,DC,SC2113ATCZ,SPG
Page 10 of 10
