Product Information Packet
CWDM3555T
2HP,3450RPM,3PH,60HZ,145TC,3526M,TEFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: CWDM3555T - 2HP,3450RPM,3PH,60HZ,145TC,3526M,TEFC,F1
Part Detail
Revision: R Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 35WGT962 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 35T936 Layout: 35LYT936 Poles: 02 Created Date: 06-22-2007
Base: RG Eff. Date: 10-19-2010 Leads: 9#18
Specs
Catalog Number: CWDM3555T
Enclosure: TEFC
Frame: 145TC
Frame Material: Steel
Output @ Frequency: 2.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Insulation Class: F
Inverter Code: Not Inverter
KVA Code: L
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3526M
Mounting Arrangement: F1
Power Factor: 88
Product Family: Wash Down
Pulley End Bearing Type: Sealed Bearing
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Current @ Voltage: 2.600 A @ 460.0 V
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 12
Product Information Packet: CWDM3555T - 2HP,3450RPM,3PH,60HZ,145TC,3526M,TEFC,F1
5.200 A @ 230.0 V
5.600 A @ 208.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Rotation: Reversible
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 12
Product Information Packet: CWDM3555T - 2HP,3450RPM,3PH,60HZ,145TC,3526M,TEFC,F1
Nameplate NP1496L
CAT.NO. CWDM3555T
SPEC. 35T936T962H1
HP 2
VOLTS 208-230/460
AMP 5.6-5.2/2.6
RPM 3450
FRAME 145TC HZ 60 PH 3
SER.F. 1.15 CODE L DES B CLASS F
NEMA-NOM-EFF 84 PF 88
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 5.6
DE 6205 ODE 6203
ENCL TEFC SN
Page 4 of 12
Product Information Packet: CWDM3555T - 2HP,3450RPM,3PH,60HZ,145TC,3526M,TEFC,F1
Parts List
Part Number Description Quantity
SA109217 SA 35T936T962H1 1.000 EA
RA100712 RA 35T936T962H1 1.000 EA
34FN3002A01SP EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ 1.000 EA
S/P101-000-000 EPACT PROCEDURES-FS PLANT-POLYREX EM, NO 1.000 EA
NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA
35CB3008A01W 35 CB .50 NPT @ 6, MACH WHITE EPOXY 1.000 EA
35GS1039 05 MOLDED GASKET W/LIP, 1.12 LEAD HOLE, 1.000 EA
51XB1016A08 10-16X 1/2HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
35EP3122B00W FREP TEFC,"O" DRILLS,NO GRSR, MACH.WHITE 1.000 EA
HW4032A01 BLACK DRAIN PLUG FOR WASH DOWN MOTORS 3.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
35EP3307E00W SPL FACE MTD EP - 205 BRG - W/SEAL FOR W 1.000 EA
HW4032A01 BLACK DRAIN PLUG FOR WASH DOWN MOTORS 3.000 EA
HW4600B49 SEAL 0.938 X 1.624 X 0.250 SINGLE LIP DB 1.000 EA
12XN1032S20 10-32 X 1-1/4 HEX M.S. , STAINLESS STEEL 2.000 EA
51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA
35FH4005A32SP IEC FH NO GRSR W/3 HOLES - PRIMED 1.000 EA
11XW1032S06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 3.000 EA
35CB4522 35 LIPPED CB LID PRIMED 1.000 EA
35GS1030A02 35 GS FOR CB LID - WHITE NEOPRENE 1.000 EA
59XW0832S07 TAPTITE II,HEX WSHR UNSLTD SER,410 S.S., 4.000 EA
HW1003S08 WASHER, #8 EX TH LK, SS 4.000 EA
HA1005A05SP SLINGER, OD 1.50, ID .659, 203 BRG 1.000 EA
Page 5 of 12
Product Information Packet: CWDM3555T - 2HP,3450RPM,3PH,60HZ,145TC,3526M,TEFC,F1
Parts List (continued)
Part Number Description Quantity
HW4600B46 V-RING SLINGER 0.875 X 1.420 X .24 VITON 1.000 EA
HW2502D13 SS KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
10XF0440S02 04-40 X 1/8 TYPE F HEX HD STAINLESS STIC 2.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MJ5001A27 32220KN GRAY SEALER *MIN BUY 4 QTS=1GAL 0.001 QT
MG1025W01 OBSOLETE - USE MG1025W01 0.017 GA
LB1164 LABEL,WARNING AND DRAIN 1.000 EA
HA3100S11 THRUBOLT - 10-32 X 8.500 W 4.000 EA
LB1125C04 STD-E (STOCK CTN LABEL STD-E WITH FLAG) 1.000 EA
LC0005 CONN.DIA.,TY M,9-LD,DUAL VOLT,REVERSING 1.000 EA
NP1496L SS WD UL CSA CC 1.000 EA
PA1000 PACKING GROUP 3500 SHORT 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 12
Product Information Packet: CWDM3555T - 2HP,3450RPM,3PH,60HZ,145TC,3526M,TEFC,F1
AC Induction Motor Performance Data
Record # 20593 - Typical performance - not guaranteed values
Winding: 35WGT962-R005 Type: 3526M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 2 Full Load Torque 3 LB-FT
Volts 208-230/460 Start Configuration direct on line
Full Load Amps 5.6-5.2/2.6 Breakdown Torque 12.4 LB-FT
R.P.M. 3450 Pull-up Torque 7.6 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 11 LB-FT
NEMA Design Code B KVA Code L Starting Current 24.3 A
Service Factor (S.F.) 1.15 No-load Current 1.1 A
NEMA Nom. Eff. 84 Power Factor 88 LinelineRes.@25ºC 7.86Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 47°C
S.F. Amps Temp. Rise @ S.F. Load 55°C
Locked-rotor Power Factor 54
Rotor inertia 0.0712 LB-FT2
Load Characteristics 460 V, 60 Hz, 2 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 50 73 80 85 89 89 87
Efficiency 72.7 81.2 83.8 84.2 83.7 82.6 83.9
Speed 3563 3537 3507 3475 3440 3402 3454
Line amperes 1.3 1.6 2.1 2.6 3.1 3.7 2.9
Page 7 of 12
Product Information Packet: CWDM3555T - 2HP,3450RPM,3PH,60HZ,145TC,3526M,TEFC,F1

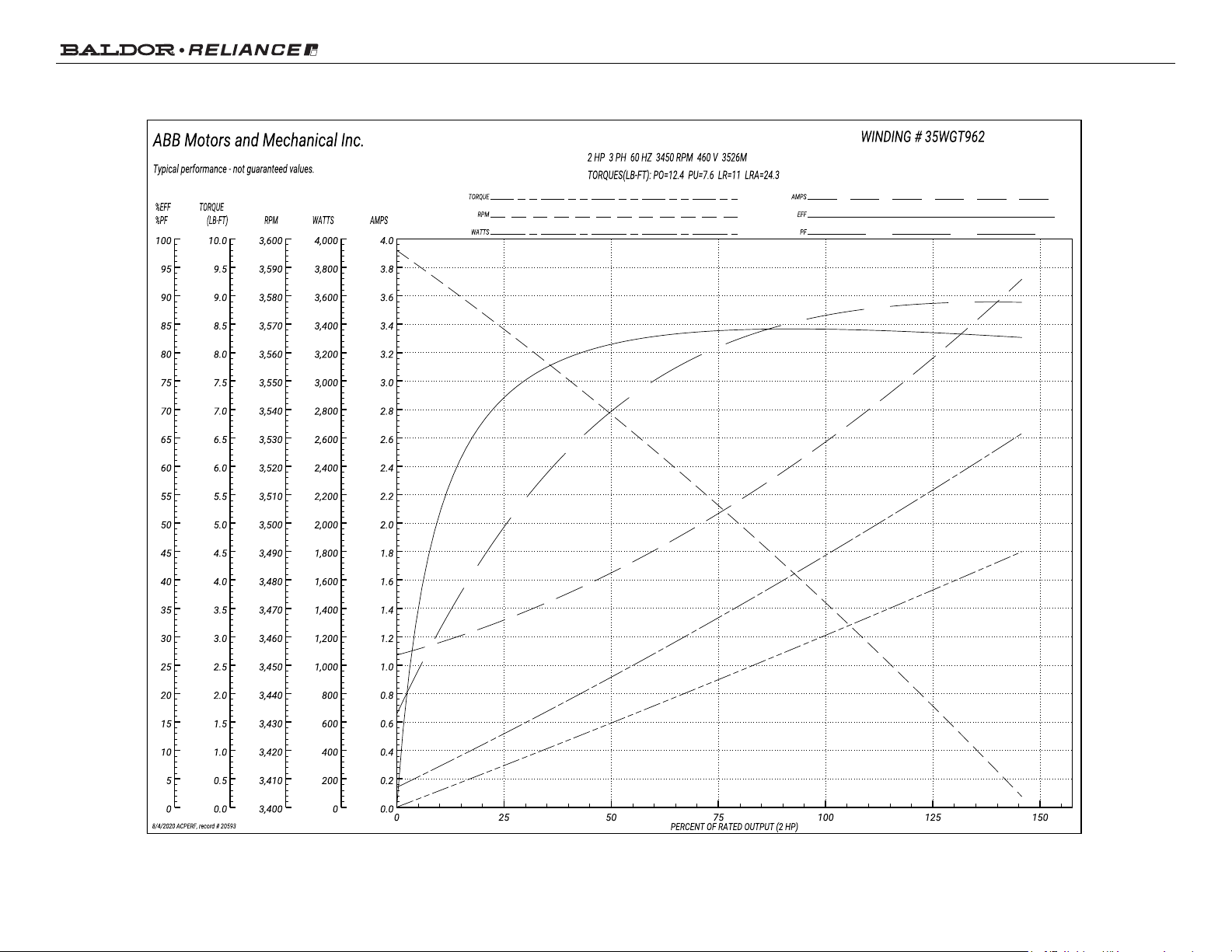

Performance Graph at 460V, 60Hz, 2.0HP Typical performance - Not guaranteed values
Page 8 of 12
Product Information Packet: CWDM3555T - 2HP,3450RPM,3PH,60HZ,145TC,3526M,TEFC,F1
AC Induction Motor Performance Data
Record # 36865 - Typical performance - not guaranteed values
Winding: 35WGT962-R002 Type: 3526M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 2 Full Load Torque 3 LB-FT
Volts 208-230/460 Start Configuration direct on line
Full Load Amps 5.6-5.2/2.6 Breakdown Torque 12.4 LB-FT
R.P.M. 3450 Pull-up Torque 7.6 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 11 LB-FT
NEMA Design Code B KVA Code L Starting Current 24.3 A
Service Factor (S.F.) 1.15 No-load Current 1.1 A
NEMA Nom. Eff. 84 Power Factor 88 LinelineRes.@25ºC 7.1Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 47°C
S.F. Amps Temp. Rise @ S.F. Load 55°C
Locked-rotor Power Factor 54
Rotor inertia 0.0712 LB-FT2
Load Characteristics 460 V, 60 Hz, 2 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 50 73 80 85 89 89 87
Efficiency 72.7 81.2 83.9 84.2 83.7 82.6 83.9
Speed 3563 3537 3507 3475 3440 3402 3454
Line amperes 1.3 1.6 2.1 2.6 3.1 3.7 2.9
Page 9 of 12
Product Information Packet: CWDM3555T - 2HP,3450RPM,3PH,60HZ,145TC,3526M,TEFC,F1
Performance Graph at 460V, 60Hz, 2.0HP Typical performance - Not guaranteed values
Page 10 of 12
Product Information Packet: CWDM3555T - 2HP,3450RPM,3PH,60HZ,145TC,3526M,TEFC,F1
.8750
.8745
4.500
4.497
6.500
6.499
4.00
5.00
2.75
.50
5.94
2.12
.13
.13
510-528 = 13.29
529-535 = 14.17
536-546 = 15.54
7.19
3.76
SLINGER
(EA. END)
(4) .125" NPT HOLES
3 W/PLUGS
@ 3, 9, & 1:00
(FRONT END)
(4) .125" NPT HOLES
3 W/PLUGS
@ 3, 9, & 11:00
(PULLEY END)
.19 KEY
1.38 LONG
6 HOLES
Ø.38
NAMEPLATE
2.75 2.75
3.25
6.50
3.50
3.44
6.81
45° 45°
6.61
5.80
4.69
LEAD HOLE
.50 N.P.T.
4 HOLES
.38-16 TAP
ON Ø5.88 B.C.
PULLEY END DETAIL
APPLY A COAT OF
SEALER UNDER HEAD
OF RETAINER BOLT
APPLY A COAT OF
SEALER TO HOUSING
BEFORE PRESSING
SEAL IN
FRONT END DETAIL
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
35LYT936
B
HOR 143-5TC TEFC M HOSE DOWN(SP 9),2 POLE "W" BASE(35BA4009)
SH 1 of 1
REV. DESC:
REV:
BY:
REVISED:
MODEL NO.
VERSION:
TDR:
REF:
35LYT936
LOAD INOPC CREATED SWD DRG INTO BUS - PACKAGE 17
USBUFRA
E
03:53:10 02/08/2019
-
000001098865
05
35LYT936
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
BALDOR - RELIANCE
®
Page 11 of 12
Product Information Packet: CWDM3555T - 2HP,3450RPM,3PH,60HZ,145TC,3526M,TEFC,F1
Page 12 of 12
