Product Information Packet
CSSWDM3709T
7.5HP,3525RPM,3PH,60HZ,213TC,3733M,TEFC
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: CSSWDM3709T - 7.5HP,3525RPM,3PH,60HZ,213TC,3733M,TEFC
Part Detail
Revision: H Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 37WGY216 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 37J639 Layout: 37LYJ639 Poles: 02 Created Date: 07-19-2006
Base: RG Eff. Date: 11-24-2009 Leads: 9#14
Specs
Catalog Number: CSSWDM3709T
Enclosure: TEFC
Frame: 213TC
Output @ Frequency: 7.500 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
208.0 V @ 60 HZ
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 17.800 A @ 230.0 V
Insulation Class: F
Inverter Code: Not Inverter
KVA Code: K
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 14 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3733M
Mounting Arrangement: F1
Power Factor: 88
Product Family: Wash Down All Stainless Steel
Pulley End Bearing Type: Sealed Bearing
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
19.200 A @ 208.0 V
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 12
Product Information Packet: CSSWDM3709T - 7.5HP,3525RPM,3PH,60HZ,213TC,3733M,TEFC
8.900 A @ 460.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 12
Product Information Packet: CSSWDM3709T - 7.5HP,3525RPM,3PH,60HZ,213TC,3733M,TEFC
Nameplate NP1951C01
CAT.NO. CSSWDM3709T
SPEC. 37J639Y216H1
HP 7.5
VOLTS 208-230/460
AMP 19.2-17.8/8.9
RPM 3525
FRAME 213TC HZ 60 PH 3
SER.F. 1.15 CODE K DES B CLASS F
NEMA-NOM-EFF 88.5 PF 88
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 19.2
DE 6307 ODE 6206
ENCL TEFC SN
Page 4 of 12
Product Information Packet: CSSWDM3709T - 7.5HP,3525RPM,3PH,60HZ,213TC,3733M,TEFC
Parts List
Part Number Description Quantity
SA147565 SA 37J639Y216H1 1.000 EA
RA136606 RA 37J639Y216H1 1.000 EA
36FN3000C02SP EXFN, PLASTIC, 5.25 OD, 1.175 ID 1.000 EA
HW3200S01 EYEBOLT 3/8-16 X3/4 S.S. TDR #35988 1.000 EA
37CB1004A01 CONDUIT BOX, MACH 1.000 EA
37GS3011 1/8"WHITE NEOPRENE BOX GS 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
37FE1907A01 FR ENDPLATE ASSY 1.000 EA
HW4606A03 JM CLIPPER/SEAL (LWE-1156-1875-AL44) 1.000 EA
HW5100A06 W2420-025 WVY WSHR (WB) 1.000 EA
37EP1908A02 PU EP FOR LOCKED 307 BRG 1.000 EA
HW4500A33 1/8 NPT STAINLESS,HOLO-KROME #13002,PRES 3.000 EA
HW4606A04 JM CLIPPER/SEAL (LWE-1376-2125-AL45) 1.000 EA
10XN2520S32 1/4-20 X 2 HEX HEAD SS 4.000 EA
XY3118S12 5/16-18 HEX NUT, STAINLESS STEEL 4.000 EA
37FH4000A45 STAINLESS FAN COVER, NO GREASER SLOT (FO 1.000 EA
10XN1032S06 HEX HD CAP SCREW, SS 3.000 EA
36CB4517 LIPPED CB LID #304 STAINLESS - CLEANED 1.000 EA
37GS3010SP 1/16"WHITE LID GASKET 1.000 EA
59XN0832S07 8/32 X 7/16 HX WS HD SER X 4.000 EA
HW2502F21 #303 SS,SQ KEY 5/16 X 2.375 1.000 EA
HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA
Page 5 of 12
Product Information Packet: CSSWDM3709T - 7.5HP,3525RPM,3PH,60HZ,213TC,3733M,TEFC
Parts List (continued)
Part Number Description Quantity
MJ5001A02 732 CL SEALANT 3 OZ DIXIE BEARING 289100 0.001 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA
HA3104S32 THRUBOLT 5/16-18X12.75 SS 4.000 EA
LB1125C04 STD-E (STOCK CTN LABEL STD-E WITH FLAG) 1.000 EA
G0PA1000 PKG GRP, PRINT PK1026A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 12
Product Information Packet: CSSWDM3709T - 7.5HP,3525RPM,3PH,60HZ,213TC,3733M,TEFC
AC Induction Motor Performance Data
Record # 20923 - Typical performance - not guaranteed values
Winding: 37WGY216-R007 Type: 3734M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 7.5 Full Load Torque 11.2 LB-FT
Volts 208-230/460 Start Configuration direct on line
Full Load Amps 19.2-17.8/8.9 Breakdown Torque 48.3 LB-FT
R.P.M. 3525 Pull-up Torque 25.6 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 27.2 LB-FT
NEMA Design Code B KVA Code K Starting Current 81 A
Service Factor (S.F.) 1.15 No-load Current 2.62 A
NEMA Nom. Eff. 88.5 Power Factor 88 LinelineRes.@25ºC 1.06Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 38°C
S.F. Amps Temp. Rise @ S.F. Load 47°C
Locked-rotor Power Factor 33.3
Rotor inertia 0.311 LB-FT2
Load Characteristics 460 V, 60 Hz, 7.5 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 58 78 85 87 90 90 88
Efficiency 88.3 92.2 92.9 92.8 91.5 90.8 92.3
Speed 3578 3558 3539 3516 3490 3468 3502
Line amperes 3.36 4.92 6.64 8.68 10.6 12.9 9.92
Page 7 of 12
Product Information Packet: CSSWDM3709T - 7.5HP,3525RPM,3PH,60HZ,213TC,3733M,TEFC

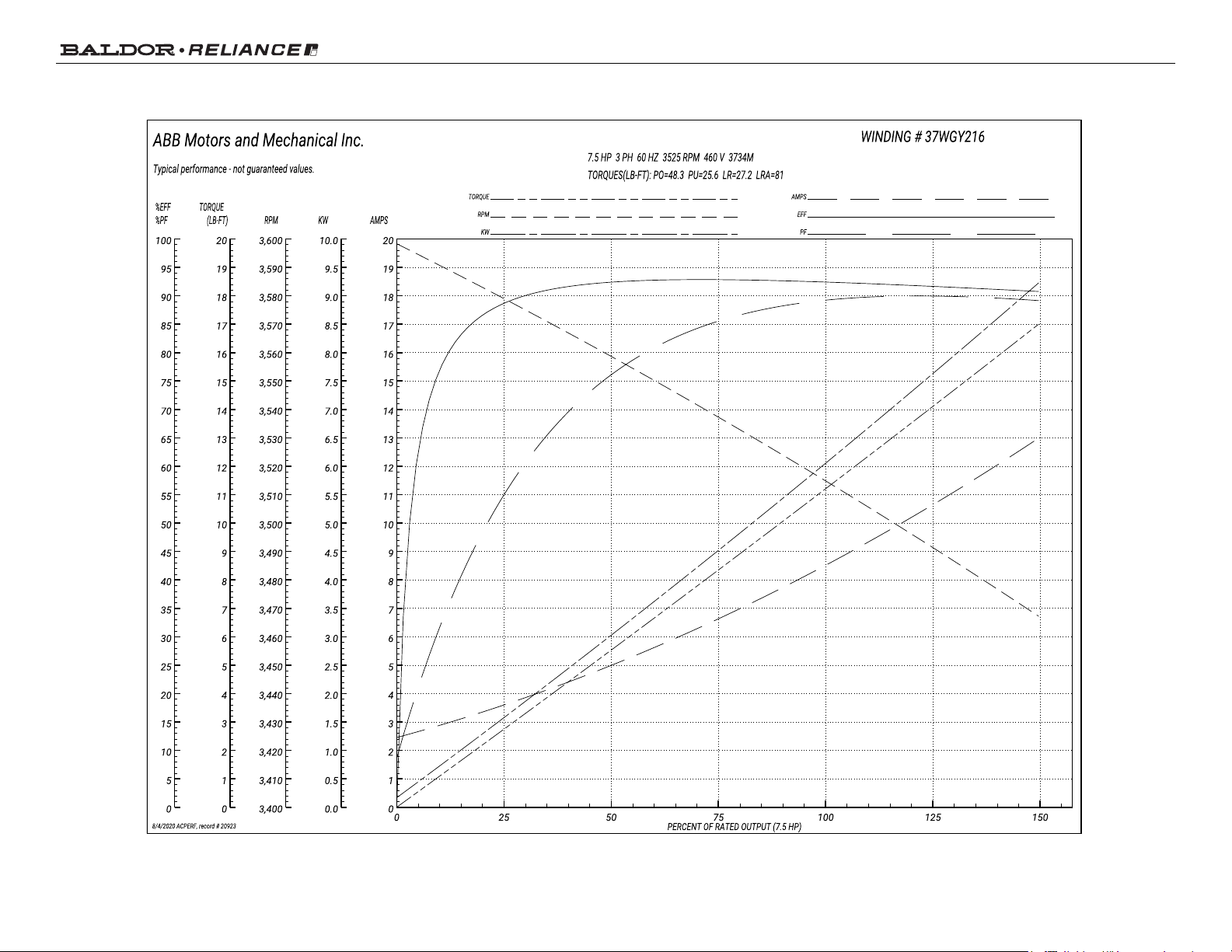

Performance Graph at 460V, 60Hz, 7.5HP Typical performance - Not guaranteed values
Page 8 of 12
Product Information Packet: CSSWDM3709T - 7.5HP,3525RPM,3PH,60HZ,213TC,3733M,TEFC
AC Induction Motor Performance Data
Record # 31835 - Typical performance - not guaranteed values
Winding: 37WGY216-R003 Type: 3734M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 7.5 Full Load Torque 11.2 LB-FT
Volts 208-230/460 Start Configuration direct on line
Full Load Amps 19.2-17.8/8.9 Breakdown Torque 48.3 LB-FT
R.P.M. 3525 Pull-up Torque 25.6 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 27.2 LB-FT
NEMA Design Code B KVA Code K Starting Current 81 A
Service Factor (S.F.) 1.15 No-load Current 2.62 A
NEMA Nom. Eff. 88.5 Power Factor 88 LinelineRes.@25ºC 1.06Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 38°C
S.F. Amps Temp. Rise @ S.F. Load 47°C
Locked-rotor Power Factor 33.3
Rotor inertia 0.311 LB-FT2
Load Characteristics 460 V, 60 Hz, 7.5 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 58 78 85 87 90 90 89
Efficiency 88.3 92.2 92.9 92.8 91.5 90.8 88.5
Speed 3578 3558 3539 3516 3490 3468 3476
Line amperes 3.36 4.92 6.64 8.68 10.6 12.9 10.4
Page 9 of 12
Product Information Packet: CSSWDM3709T - 7.5HP,3525RPM,3PH,60HZ,213TC,3733M,TEFC
Performance Graph at 460V, 60Hz, 7.5HP Typical performance - Not guaranteed values
Page 10 of 12
Product Information Packet: CSSWDM3709T - 7.5HP,3525RPM,3PH,60HZ,213TC,3733M,TEFC

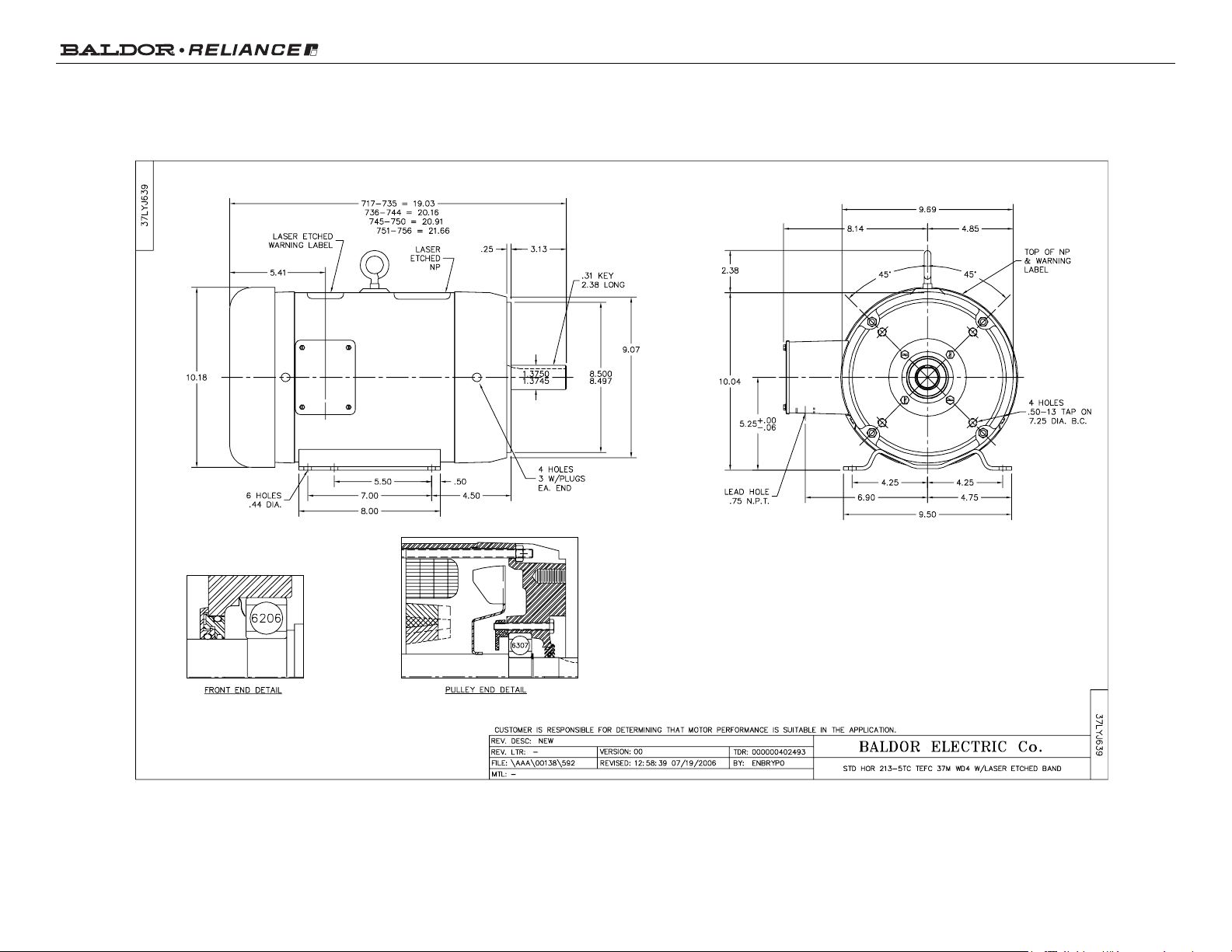

Page 11 of 12
Product Information Packet: CSSWDM3709T - 7.5HP,3525RPM,3PH,60HZ,213TC,3733M,TEFC
Page 12 of 12
