Baldor CPX25226T Product Information Sheet

Product Information Packet
CPX25226T
50M 2P XPFC HOR 256T TSTATS CP FEAT INV
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: CPX25226T - 50M 2P XPFC HOR 256T TSTATS CP FEAT INV
Part Detail
Revision: E Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 09WGZ651 CD Diagram: CD0180 Mfg Plant: Mech. Spec: 09M363 Layout: 09LYM363 Poles: 02 Created Date: 02-13-2019 Base: RG Eff. Date: 06-08-2020 Leads: 9#10
Specs
Catalog Number: CPX25226T Enclosure: XPFC Frame: 256TY Frame Material: Iron Output @ Frequency: 15.000 HP @ 50 HZ
20.000 HP @ 60 HZ Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ Voltage @ Frequency: 380.0 V @ 50 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ
190.0 V @ 50 HZ XP Class and Group: CLI GP C,D; CLII GP E,F,G XP Division: Division I Agency Approvals: UR
CSA EEV CSA
Auxillary Box: No Auxillary Box
Enclosure Modification: Severe Duty Features Feedback Device: NO FEEDBACK Front Shaft Indicator: None Heater Indicator: No Heater Insulation Class: F Inverter Code: Inverter Duty IP Rating: IP55 KVA Code: H Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 10 AWG Motor Lead Termination: Flying Leads Motor Type: X0950M Mounting Arrangement: F1 Power Factor: 91 Product Family: Hazardous Location Motor Pulley End Bearing Type: Ball
Auxillary Box Lead Termination: None
Pulley Face Code: Standard
Product Information Packet: CPX25226T - 50M 2P XPFC HOR 256T TSTATS CP FEAT INV
Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None Constant Torque Speed Range: 6 Current @ Voltage: 48.000 A @ 208.0 V
44.000 A @ 230.0 V
40.000 A @ 190.0 V
22.000 A @ 460.0 V
20.000 A @ 380.0 V Design Code: A Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated
Pulley Shaft Indicator: Standard Rodent Screen: None Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: Shaft Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: Normally Closed Thermostat Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None XP Temp Code: T3C
Product Information Packet: CPX25226T - 50M 2P XPFC HOR 256T TSTATS CP FEAT INV
Nameplate NP2033XPSLEV
NO. CC 010A
S/N TEMP CODE T3C
SPEC. 09M363Z651G1 INV.TYPE PWM
CAT.NO. CPX25226T C HP FR 60 C HP TO 90
HP 20//15 CT HZ FROM 6 CT HZ TO 60
VOLTS 230/460//190/380 VT HZ FROM 6 VT HZ TO 60
AMPS 44/22//40/20 MAG CUR 11.6/5.8
RPM 3530//2930 MX RPM 5400
HZ 60//50 PH 3 CL F NOM.EFF. 91
SER.F. 1.00 DES A SL HZ 1.2 WK2 1.28
FRAME 256TY RATING 40C AMB-CONT
BLANK 55C AMB AT 1.0SF, 60C RISE
1.15SF ON SINEWAVE NEMA MG-1 PT.5,IP55
Product Information Packet: CPX25226T - 50M 2P XPFC HOR 256T TSTATS CP FEAT INV
Parts List
Part Number Description Quantity SA366142 SA 09M363Z651G1 1.000 EA RA355548 RA 09M363Z651G1 1.000 EA 37FN3002C02 EXFN, PLASTIC, 6.00 OD, 1.503 ID 1.000 EA WD1000B25 GND LUG, BURNDY L125HP OR T&B L125HP-BB 1.000 EA 10XN3118K12 5/16-18 X .75 GRADE 5, ZINC PLATED 1.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 1.000 EA MJ5000A09 EFI KIT #1578 (400 ML CARTRIDGE OF EFI 0.031 EA 09CB1003A01P KOBX, MACH 1.25 NPT GROUP C MTRS PRIMED 1.000 EA 10XN3118K24 5/16-18 X 1.50" HEX HD, GRADE 5 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA WD1000B25 GND LUG, BURNDY L125HP OR T&B L125HP-BB 1.000 EA 10XN3118K12 5/16-18 X .75 GRADE 5, ZINC PLATED 1.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 1.000 EA HA2009A39 SLINGER FOR GROUP E MTRS - 208 BRG. 1.000 EA 80XN0632A10 SET SCREW,#6-32 X .62 LG.HEX SOC. HD. 2.000 EA 10XN3816K28 3/8-16 X 1.75 HEX HD CAP SCREW, GRADE 5 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA HA4017A08 .125X3.50 GREASER EXTEN. 1.000 EA HA4017A02 .125X2.50 GREASER EXTENS.F/S 1.000 EA HW4019A01 PIPE COUPLING 1/8 NPT,STEEL,ZINC COATING 1.000 EA HW5100A08 W3118-035 WVY WSHR (WB) 1.000 EA 09EP1707A26P PUEP MACH, NON-XP; EPOXY PRIMER 1.000 EA 10XN3816K28 3/8-16 X 1.75 HEX HD CAP SCREW, GRADE 5 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA
Product Information Packet: CPX25226T - 50M 2P XPFC HOR 256T TSTATS CP FEAT INV
Parts List (continued)
Part Number Description Quantity HA2009A38 SLINGER FOR GROUP E MTRS - 309 BRG. 1.000 EA 80XN0632A10 SET SCREW,#6-32 X .62 LG.HEX SOC. HD. 2.000 EA 10XN2520K36 1/4-20 X 2.25" HX HD SCRWGRADE 5, ZINC P 4.000 EA 09FH1004A48P FAN COVER, MACH, W/GRSR, RLF & DRN HOLE 1.000 EA 10XN2520K14 1/4-20 X .88 HEX GRD 5 (20001) 3.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 3.000 EA 09CB1502A01P CONDUIT BOX LID MACH. GROUP C MTRS W/EP 1.000 EA 84XN5013J24 1/2-13 X 1-1/2 HEX SOCKET HD CAP SCREW 6.000 EA HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 6.000 EA HW2501G25 KEY, 3/8 SQ X 2.875 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA LB1073 ALUM XP CAUTION LABEL 1.000 EA LB1002N LABEL,MARINE DUTY (ON ROLLS) 1.000 EA MJ5001A27 32220KN GRAY SEALER *MIN BUY 4 QTS=1GAL 0.001 QT 09EP1700A70PP15 FREP, MACH FOR GROUP C & GROUP E MTRS 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HW4500A20 1/8NPT SL PIPE PLUG 1.000 EA HW4505A02 BREATHER/DRAIN-EXP PROOF-.250-18 PTF AIS 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.080 LB HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HW4500A20 1/8NPT SL PIPE PLUG 1.000 EA HW4505A02 BREATHER/DRAIN-EXP PROOF-.250-18 PTF AIS 1.000 EA HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA
Product Information Packet: CPX25226T - 50M 2P XPFC HOR 256T TSTATS CP FEAT INV
51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA MG1025G29 WILKOFAST, 789.229, DARK CHARCOAL GRAY 0.050 GA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 6.000 EA LB1119N WARNING LABEL 1.000 EA LC0181 CONNECTION LABEL 1.000 EA NP2033XPSLEV SS XP INV UL CSA-EEV CC CL-I GP-C&D 1.000 EA 40PA1005 PACKAGING GROUP, 09 STD 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Product Information Packet: CPX25226T - 50M 2P XPFC HOR 256T TSTATS CP FEAT INV
AC Induction Motor Performance Data
Record # 54032 - Typical performance - not guaranteed values
Winding: 09WGZ651-R011 Type: 0950M Enclosure: XPFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection Rated Output (HP) 20 Full Load Torque 30 LB-FT Volts 230/460 Start Configuration direct on line Full Load Amps 44/22 Breakdown Torque 167 LB-FT R.P.M. 3530 Pull-up Torque 33.7 LB-FT Hz 60 Phase 3 Locked-rotor Torque 51 LB-FT NEMA Design Code A KVA Code H Starting Current 160 A Service Factor (S.F.) 1 No-load Current 5.75 A NEMA Nom. Eff. 91 Power Factor 91 LinelineRes.@25ºC 0.43337Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 58°C
Load Characteristics 460 V, 60 Hz, 20 HP
% of Rated Load 25 50 75 100 125 150 Power Factor 65 83 89 91 91 91 Efficiency 89.4 92.7 92.9 92.4 91.4 90.1 Speed 3580.7 3566.7 3547.3 3526.6 3504.5 3479.4 Line amperes 8.04 12.2 17.1 22.4 28.2 34.2
Product Information Packet: CPX25226T - 50M 2P XPFC HOR 256T TSTATS CP FEAT INV

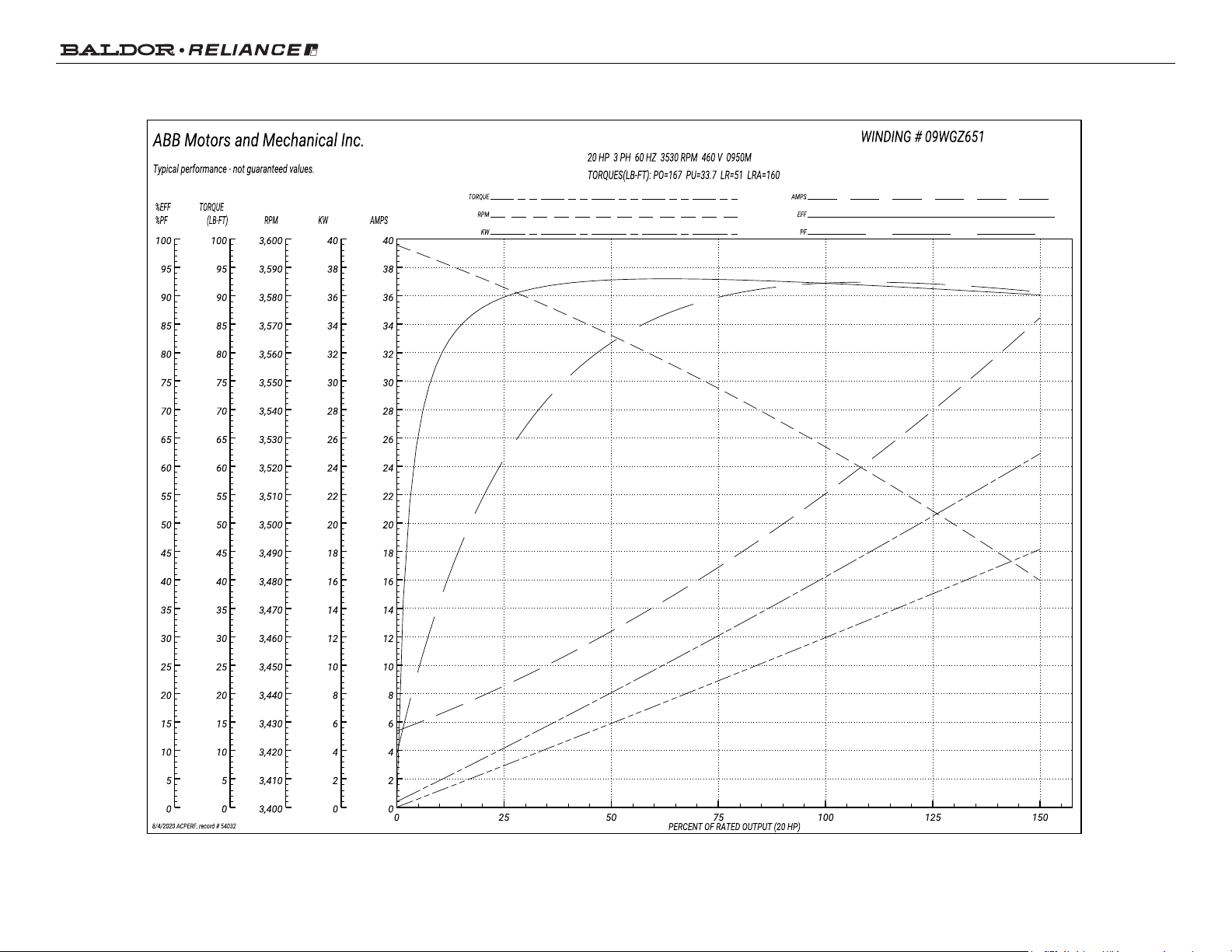

Performance Graph at 460V, 60Hz, 20.0HP Typical performance - Not guaranteed values
Product Information Packet: CPX25226T - 50M 2P XPFC HOR 256T TSTATS CP FEAT INV
AC Induction Motor Performance Data
Record # 75709 - Typical performance - not guaranteed values
Winding: 09WGZ651-R010 Type: 0950M Enclosure: XPFC
Nameplate Data
380 V, 50 Hz:
High Voltage Connection Rated Output (HP) 20//15 Full Load Torque 27.04 LB-FT Volts 230/460//190/380 Start Configuration direct on line Full Load Amps 44/22//40/20 Breakdown Torque 161 LB-FT R.P.M. 3530//2930 Pull-up Torque 35.64 LB-FT Hz 60//50 Phase 3 Locked-rotor Torque 53.94 LB-FT NEMA Design Code A KVA Code H Starting Current 156 A Service Factor (S.F.) 1 No-load Current 5.68 A NEMA Nom. Eff. 91 Power Factor 91 LinelineRes.@25ºC 0.41Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 51°C S.F. Amps Temp. Rise @ S.F. Load 64°C
Locked-rotor Power Factor 31.3
Rotor inertia 1.28 LB-FT2
Load Characteristics 380 V, 50 Hz, 15 HP
% of Rated Load 25 50 75 100 125 150 Power Factor 62 82 88 91 91 92 Efficiency 89.5 92.9 92.7 91.9 90.9 89.7 Speed 2983 2970 2952 2934 2914 2892 Line amperes 7.59 11.31 15.7 20.45 25.66 31.13
Page 10 of 14
Product Information Packet: CPX25226T - 50M 2P XPFC HOR 256T TSTATS CP FEAT INV
Performance Graph at 380V, 50Hz, 15.0HP Typical performance - Not guaranteed values
Page 11 of 14
Product Information Packet: CPX25226T - 50M 2P XPFC HOR 256T TSTATS CP FEAT INV

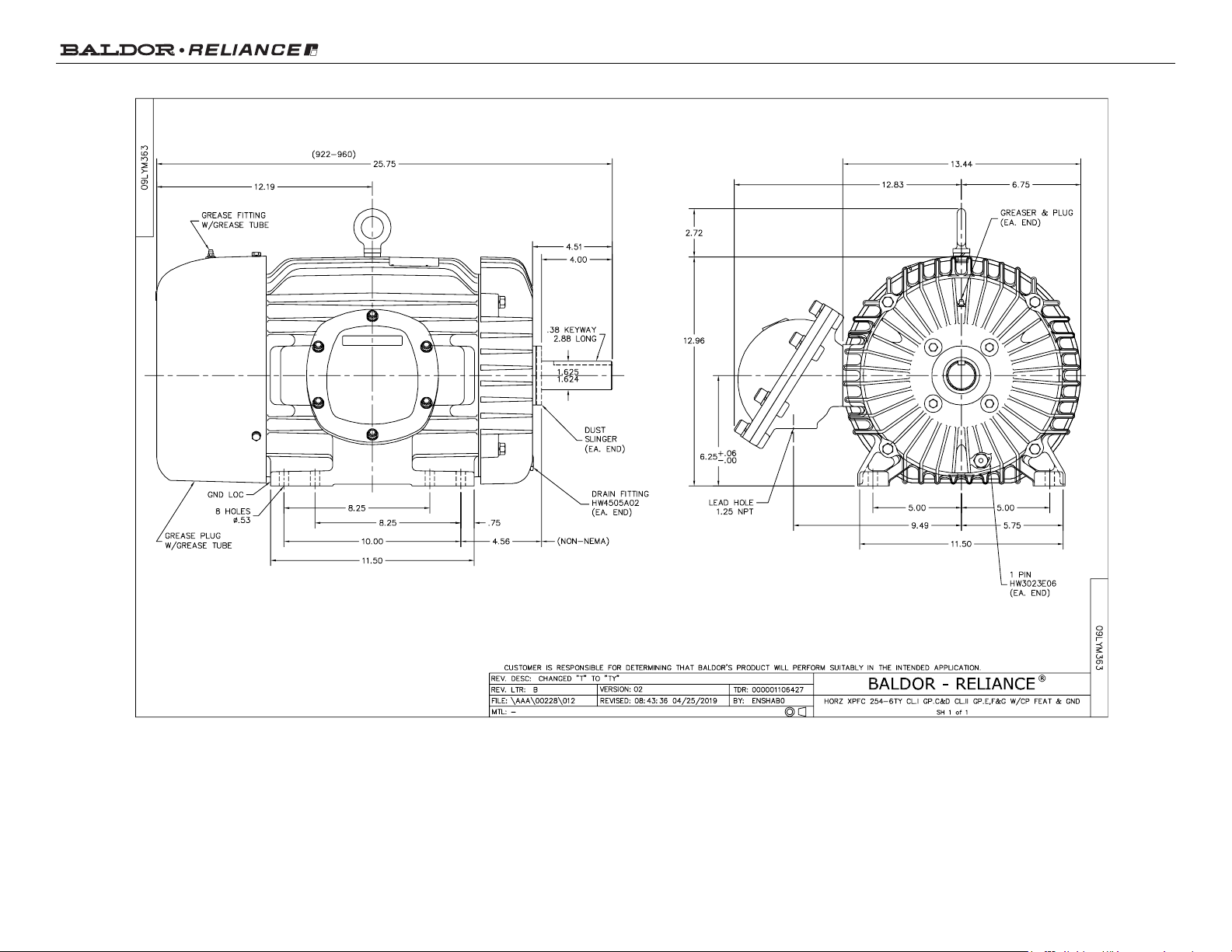

Page 12 of 14
Product Information Packet: CPX25226T - 50M 2P XPFC HOR 256T TSTATS CP FEAT INV

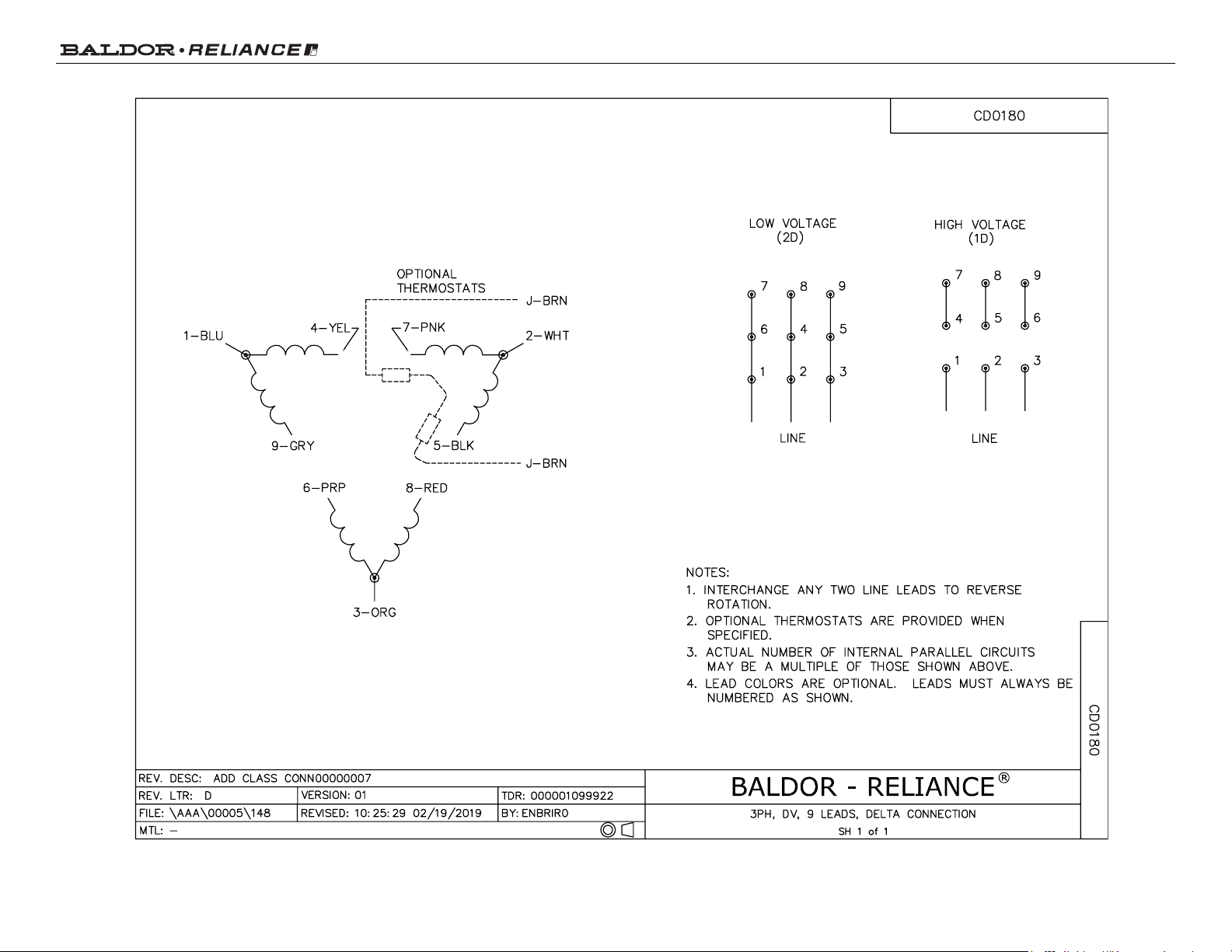

Page 13 of 14
Product Information Packet: CPX25226T - 50M 2P XPFC HOR 256T TSTATS CP FEAT INV
Marketing maintained PDF of MN416:
http://www.baldor.com/support/Literature/Load.ashx/MN416?ManNumber=MN416
Page 14 of 14
