CM4110T
Product Information Sheet
11 pgs206.42 Kb0

Baldor CM4110T Product Information Sheet

Download
Product Information Packet
CM4110T
40HP,1765RPM,3PH,60HZ,324TC,1068M,TEFC
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: CM4110T - 40HP,1765RPM,3PH,60HZ,324TC,1068M,TEFC
Part Detail
Revision: J Status: INA/A Change #: Proprietary: No Type: AC Elec. Spec: 10WGX646 CD Diagram: CD0005 Mfg Plant: Mech. Spec: 10F316 Layout: 10LYF316 Poles: 04 Created Date: Base: RG Eff. Date: 07-07-2010 Leads: 9#8
Specs
Catalog Number: CM4110T Enclosure: TEFC Frame: 324TC Frame Material: Iron Output @ Frequency: 40.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 230.0 V @ 60 HZ
460.0 V @ 60 HZ XP Division: Not Applicable Agency Approvals: UR
CSA Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None Current @ Voltage: 104.000 A @ 208.0 V
Heater Indicator: No Heater Insulation Class: F Inverter Code: Not Inverter KVA Code: G Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 8 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 1068M Mounting Arrangement: F1 Power Factor: 85 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: C-Face Pulley Shaft Indicator: Standard Rodent Screen: None
48.000 A @ 460.0 V
Shaft Extension Location: Pulley End
Product Information Packet: CM4110T - 40HP,1765RPM,3PH,60HZ,324TC,1068M,TEFC
96.000 A @ 230.0 V Design Code: B Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None
Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: Shaft Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor
Product Information Packet: CM4110T - 40HP,1765RPM,3PH,60HZ,324TC,1068M,TEFC
Nameplate NP1256L
CAT.NO. CM4110T
SPEC. 10F316X646H1
HP 40
VOLTS 230/460
AMP 96/48 RPM 1765
FRAME 324TC HZ 60 PH 3
SER.F. 1.15 CODE G DES B CLASS F
NEMA-NOM-EFF 93 PF 85
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 104 DE 6312 ODE 6309
ENCL TEFC SN
Product Information Packet: CM4110T - 40HP,1765RPM,3PH,60HZ,324TC,1068M,TEFC
Parts List
Part Number Description Quantity SA089921 SA 10F316X646H1 1.000 EA RA082722 RA 10F316X646H1 1.000 EA S/P101-000-003 EPACT PROC-ZK 280FR & UP,LARGE KOBX,POLY 1.000 EA 10CB3001 CONDUIT BOX CAST W/2.500 LEAD HOLE 1.000 EA 12GS1000 GASKET 1.000 EA 10XN3118K12 5/16-18 X .75 GRADE 5, ZINC PLATED 4.000 EA 10XN3118K12 5/16-18 X .75 GRADE 5, ZINC PLATED 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA WD1000B16 T&B CX70TN OR L70P TERMINAL LUG 1.000 EA 51XF2520A08 SCREW, HEX SER SLT HD, ZN 1/4-20 X .50 L 1.000 EA 10EP1106A01 FR ENDPLATE, MACH 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA HA4001A01SP DRAIN PLUG, PLASTIC (MICRO PLAS) 1.000 EA XY3816A12 3/8-16 FINISHED NUT 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA HW5100A11 W3917-042 WVY WSHR (WB) 1.000 EA 10XN2520K36 1/4-20 X 2.25" HX HD SCRWGRADE 5, ZINC P 2.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 2.000 EA 10XN3118K44 5/16-18 X 2.75" HEX HD, GRADE 5 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA 10EP1304A01 PU ENDPLATE, MACH 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HA3113A15 THRUBOLT 3/8-16 X 18.875 W/3.50 THD LENG 4.000 EA
Product Information Packet: CM4110T - 40HP,1765RPM,3PH,60HZ,324TC,1068M,TEFC
Parts List (continued)
Part Number Description Quantity HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA 10FH4000 310 FAN HOUSING STAMPED 1.000 EA 10XN2520K08 1/4-20 X .50 GRADE #5, STL, ZINC PLATE 4.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA 10CB3500SP CONDUIT BOX LID, CAST 1.000 EA 10GS1000SP GASKET, CONDUIT BOX LID 1.000 EA 51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 4.000 EA HW4600B41 V-RING SLINGER 2.125 X 2.880 X 0.280 1.000 EA HW2501H33 KEY, 1/2 SQ X 3.875 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA HW4500A21 1618BALEMITE FITTING 825 UNIVERSAL 1.000 EA HA4017A01 1/8 X 4 GREASE EXT (F/S) 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.130 LB HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4001A01SP DRAIN PLUG, PLASTIC (MICRO PLAS) 1.000 EA MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.070 GA 85XU0407A04 #4-7 X 1/4 DRIVE PIN 2.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA 09FN3001B02 EXTERNAL FAN, PLASTIC 1.000 EA 51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA LB1125C04 STD-E (STOCK CTN LABEL STD-E WITH FLAG) 4.000 EA LC0005E02 SPL CONN.DIA./WARN.LABEL(LC0005/LB1119) 1.000 EA
Product Information Packet: CM4110T - 40HP,1765RPM,3PH,60HZ,324TC,1068M,TEFC
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA 42PA1007 PACKAGING GROUP, 09 STD 1.000 EA
Product Information Packet: CM4110T - 40HP,1765RPM,3PH,60HZ,324TC,1068M,TEFC
AC Induction Motor Performance Data
Record # 2767 - Typical performance - not guaranteed values
Winding: 10WGX646-R001 Type: 1068M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection Rated Output (HP) 40 Full Load Torque 119 LB-FT Volts 230/460 Start Configuration direct on line Full Load Amps 96/48 Breakdown Torque 351 LB-FT R.P.M. 1765 Pull-up Torque 148 LB-FT Hz 60 Phase 3 Locked-rotor Torque 191 LB-FT NEMA Design Code B KVA Code G Starting Current 304 A Service Factor (S.F.) 1.15 No-load Current 17.6 A NEMA Nom. Eff. 93 Power Factor 85 LinelineRes.@25ºC 0.165Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 70°C S.F. Amps Temp. Rise @ S.F. Load 86°C
Locked-rotor Power Factor 31
Rotor inertia 5.42 LB-FT2
Load Characteristics 460 V, 60 Hz, 40 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 52 72 81 85 86 87 86 Efficiency 88.5 92.4 93.2 93 92.4 91.6 92.6 Speed 1792 1786 1779 1771 1762 1753 1766 Line amperes 20.9 27.9 37.1 47.7 59 70.7 54.48
Product Information Packet: CM4110T - 40HP,1765RPM,3PH,60HZ,324TC,1068M,TEFC

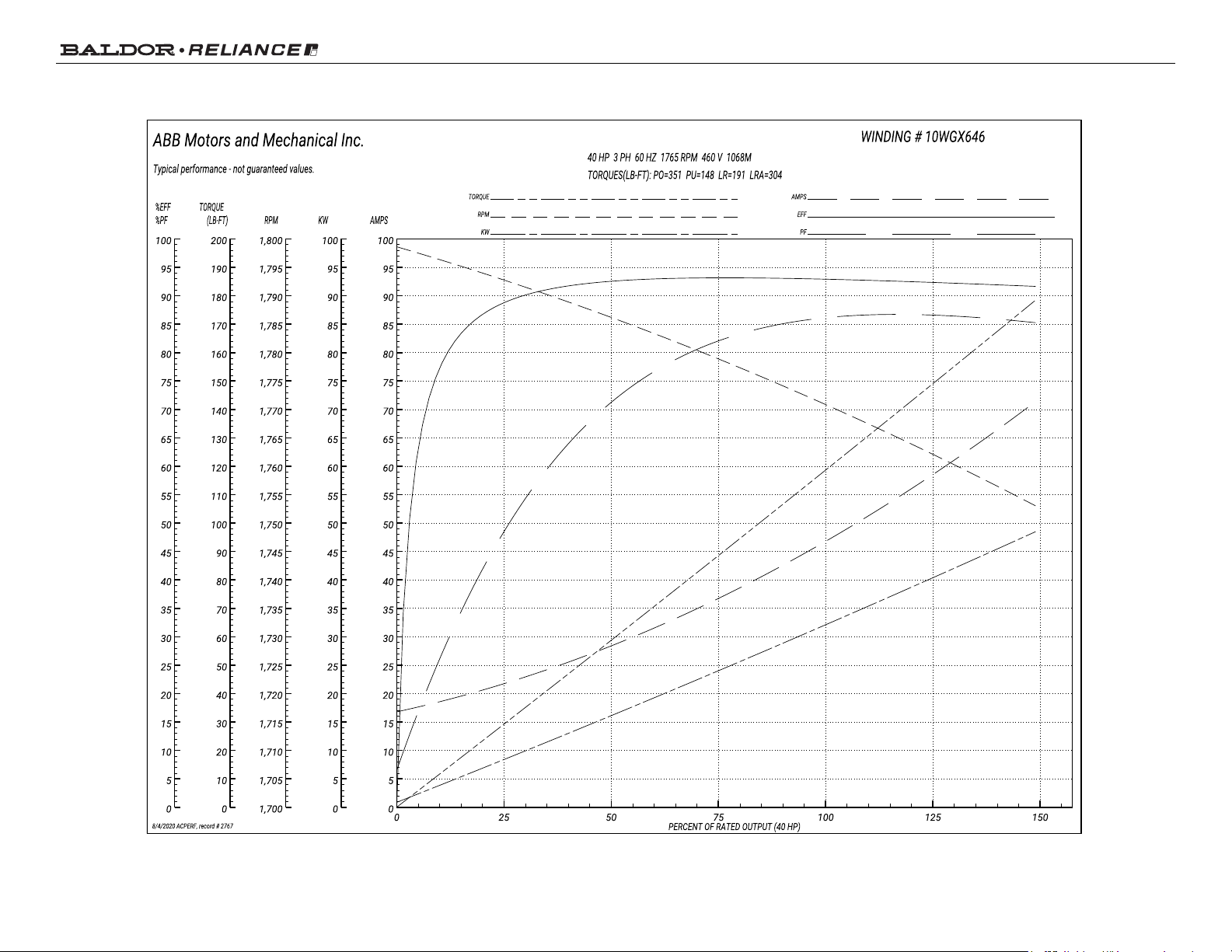

Performance Graph at 460V, 60Hz, 40.0HP Typical performance - Not guaranteed values
Product Information Packet: CM4110T - 40HP,1765RPM,3PH,60HZ,324TC,1068M,TEFC
Page 10 of 11
Product Information Packet: CM4110T - 40HP,1765RPM,3PH,60HZ,324TC,1068M,TEFC
Page 11 of 11
