Baldor CM4107T Product Information Sheet

Product Information Packet

CM4107T

25HP,3530RPM,3PH,60HZ,284TSC,0942M,TEFC

Product Information Packet: CM4107T - 25HP,3530RPM,3PH,60HZ,284TSC,0942M,TEFC

Part Detail

Revision: Y Status: INA/A Change #: Proprietary: No Type: AC Elec. Spec: 09WGY354 CD Diagram: CD0180 Mfg Plant: Mech. Spec: 09F637 Layout: 09LYF637 Poles: 02 Created Date: Base: RG Eff. Date: 03-08-2016 Leads: 9#10

Specs

Catalog Number: CM4107T Enclosure: TEFC Frame: 284TSC Frame Material: Iron Output @ Frequency: 25.000 HP @ 60 HZ Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ Voltage @ Frequency: 230.0 V @ 60 HZ

460.0 V @ 60 HZ XP Division: Not Applicable Agency Approvals: UR

CSA Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None Current @ Voltage: 28.000 A @ 460.0 V

Heater Indicator: No Heater Insulation Class: F Inverter Code: Not Inverter KVA Code: J Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 10 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 0942M Mounting Arrangement: F1 Power Factor: 91 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: C-Face Pulley Shaft Indicator: Standard Rodent Screen: None

56.000 A @ 230.0 V

Shaft Extension Location: Pulley End

Page 2 of 11

Product Information Packet: CM4107T - 25HP,3530RPM,3PH,60HZ,284TSC,0942M,TEFC

62.000 A @ 208.0 V Design Code: A Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None

Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: Shaft Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor

Page 3 of 11

Product Information Packet: CM4107T - 25HP,3530RPM,3PH,60HZ,284TSC,0942M,TEFC

Nameplate NP1256L

CAT.NO. CM4107T

SPEC. 09F637Y354H1

HP 25

VOLTS 230/460

AMP 56/28 RPM 3510

FRAME 284TSC HZ 60 PH 3

SER.F. 1.15 CODE J DES A CLASS F

NEMA-NOM-EFF 91 PF 91

RATING 40C AMB-CONT

CC USABLE AT 208V 62 DE 6311 ODE 6208

ENCL TEFC SN

Page 4 of 11

Product Information Packet: CM4107T - 25HP,3530RPM,3PH,60HZ,284TSC,0942M,TEFC

Parts List

Part Number Description Quantity SA088811 SA 09F637Y354H1 1.000 EA RA081693 RA 09F637Y354H1 1.000 EA HW1002A63 0ASHER, 5/8 HI-COLLAR SPRLCKWASHER 1.000 EA 10CB3000SP KOBX, CAST W/2.00 LEAD HOLE 1.000 EA 12GS1000 GASKET 1.000 EA 10XN3118K12 5/16-18 X .75 GRADE 5, ZINC PLATED 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA 09EP1310A08 SPL FACE MTD EP 284-6TC 309 ENCL 311 BRG 1.000 EA WD1000B16 T&B CX70TN OR L70P TERMINAL LUG 1.000 EA 51XF2520A08 SCREW, HEX SER SLT HD, ZN 1/4-20 X .50 L 1.000 EA 09EP1100A14SP ENDPLATE, MACH 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA XY3816A12 3/8-16 FINISHED NUT 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA HW5100A08 W3118-035 WVY WSHR (WB) 1.000 EA 10XN2520K28 1/4-20 X 1.75" HX HD SCRWGRADE 5, ZINC P 2.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 2.000 EA 10XN3118K40 5/16-18 X 2.50" HEX HD, GRADE 5 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HA3113A15 THRUBOLT 3/8-16 X 18.875 W/3.50 THD LENG 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA 09FH4000SP 309 FH - BLACK PRIMER 1.000 EA HA2081A05 SPACER TUBE, 309 FAN HSG, 2.00 LONG 4.000 EA

Page 5 of 11

Product Information Packet: CM4107T - 25HP,3530RPM,3PH,60HZ,284TSC,0942M,TEFC

Parts List (continued)

Part Number Description Quantity XY3816A12 3/8-16 FINISHED NUT 4.000 EA 10CB3500SP CONDUIT BOX LID, CAST 1.000 EA 10GS1000SP GASKET, CONDUIT BOX LID 1.000 EA HW4600B40 V-RING SLINGER 2.000 X 2.680 X .28 VITON 1.000 EA 51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA HW2501G17 KEY, 3/8 SQ X 1.875 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA HW4500A05 1669B ALEM/UNIV860 GR FTG X 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.080 LB HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.050 GA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA 37FN3002C02 EXFN, PLASTIC, 6.00 OD, 1.503 ID 1.000 EA HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA 51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA LB1119N WARNING LABEL 1.000 EA LC0181 CONNECTION LABEL 1.000 EA NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA 40PA1005 PACKAGING GROUP, 09 STD 1.000 EA

Page 6 of 11

Product Information Packet: CM4107T - 25HP,3530RPM,3PH,60HZ,284TSC,0942M,TEFC

AC Induction Motor Performance Data

Record # 1969 - Typical performance - not guaranteed values

Winding: 09WGY354-R001 Type: 0942M Enclosure: TEFC

Nameplate Data

460 V, 60 Hz:

High Voltage Connection Rated Output (HP) 25 Full Load Torque 37.3 LB-FT Volts 230/460 Start Configuration direct on line Full Load Amps 56/28 Breakdown Torque 170 LB-FT R.P.M. 3510 Pull-up Torque 57.8 LB-FT Hz 60 Phase 3 Locked-rotor Torque 82.1 LB-FT NEMA Design Code A KVA Code J Starting Current 227 A Service Factor (S.F.) 1.15 No-load Current 8.62 A NEMA Nom. Eff. 91 Power Factor 91 LinelineRes.@25ºC 0.299Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 80°C S.F. Amps Temp. Rise @ S.F. Load 98°C

Locked-rotor Power Factor 28

Rotor inertia 1.07 LB-FT2

Load Characteristics 460 V, 60 Hz, 25 HP

% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 61 81 88 91 91 92 91 Efficiency 87.5 91.4 91.9 91.4 90.5 89.2 90.9 Speed 3580 3560 3539 3517 3493 3466 3503 Line amperes 11.04 15.91 21.82 28.3 35.4 43 32.6

Page 7 of 11

Product Information Packet: CM4107T - 25HP,3530RPM,3PH,60HZ,284TSC,0942M,TEFC

Performance Graph at 460V, 60Hz, 25.0HP Typical performance - Not guaranteed values

Page 8 of 11

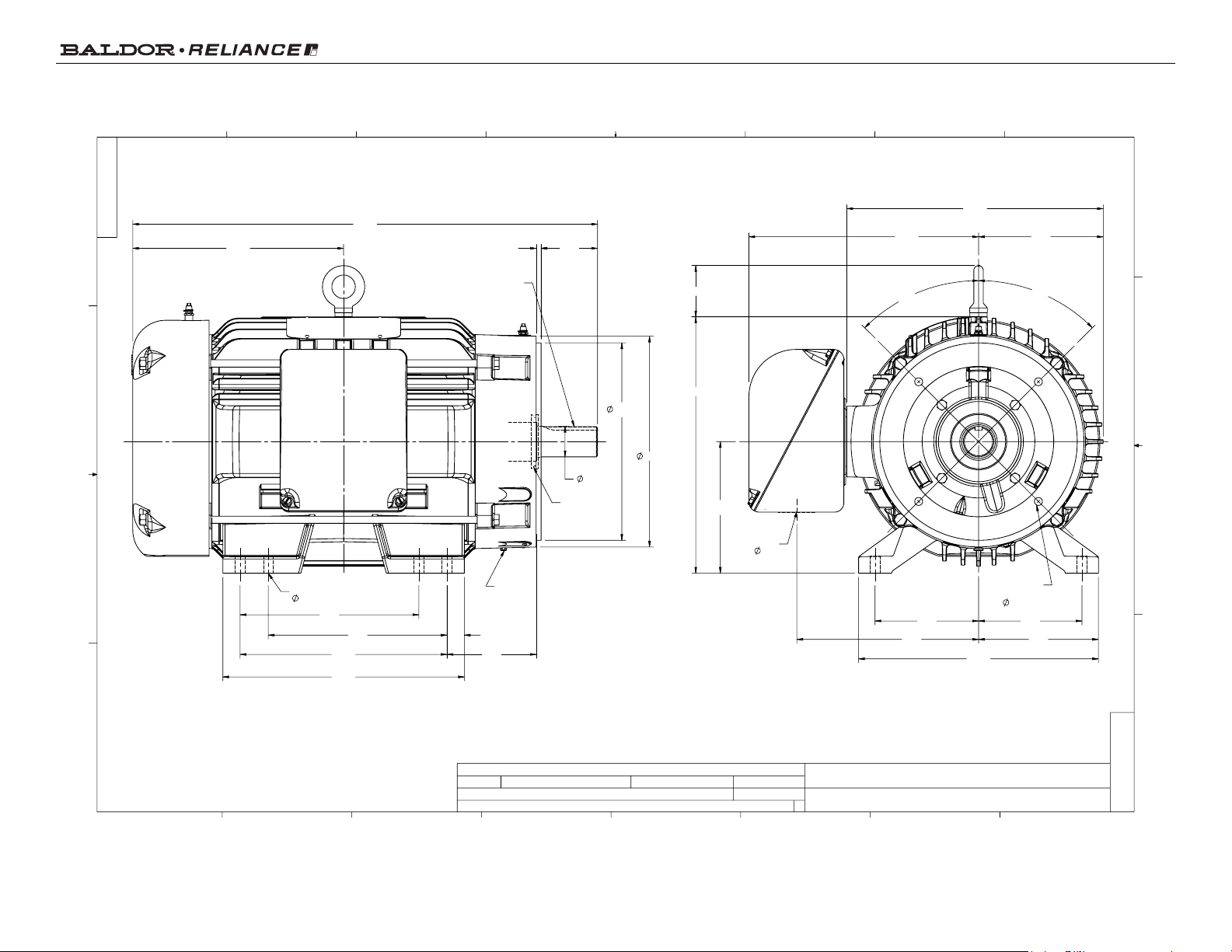

Product Information Packet: CM4107T - 25HP,3530RPM,3PH,60HZ,284TSC,0942M,TEFC

24.70

11.21

12.84

11.00

9.50

.92

11.21

10.500

10.497

3.00

1.625

1.624

4.75

.25

.38 KEY

1.88 LONG

8 HOLES

.53

AUTO DRAIN (EA. END)

SLINGER

(932 - 962) = 2 POLE

(964 - 966) = 4,6,8 POLE ONLY

NAMEPLATE

12.75

9.66 6.38

5.50 5.50

12.20

45°

7.00

6.94

13.63

6.63

13.63

2.73

LEAD HOLE

2.00

4 HOLES

.50 -13 TAP

.88 DEEP ON

9.00 B.C

D

C

B

A

B

C

D

1

2

3

4

5

6

7

8

7

6

5

4

3

2

1

09LYF637

B

HORZ TEFC 284-6TSC

REV. DESC:

REV:

BY:

REVISED:

MODEL NO.

VERSION:

TDR:

REF:

09LYF637

LOAD DRAWING TO SOLIDWORKS

ENALEM0

L

07:12:09 02/12/2020

-

000001132140

09

09LYF637

CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION

BALDOR - RELIANCE

®

Page 9 of 11
