Product Information Packet
CM4104T
30HP,1760RPM,3PH,60HZ,286TC,0962M,TEFC,F
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: CM4104T - 30HP,1760RPM,3PH,60HZ,286TC,0962M,TEFC,F
Part Detail
Revision: K Status: INA/A Change #: Proprietary: No Type: AC Elec. Spec: 09WGY901 CD Diagram: CD0180 Mfg Plant: Mech. Spec: 09F439 Layout: 09LYF439 Poles: 04 Created Date: Base: RG Eff. Date: 10-23-2009 Leads: 9#10
Specs
Catalog Number: CM4104T Enclosure: TEFC Frame: 286TC Frame Material: Iron Output @ Frequency: 30.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 230.0 V @ 60 HZ
460.0 V @ 60 HZ XP Division: Not Applicable Agency Approvals: UR
CSA Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None Current @ Voltage: 36.000 A @ 460.0 V
Insulation Class: F Inverter Code: Not Inverter KVA Code: H Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 10 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 0962M Mounting Arrangement: F1 Power Factor: 85 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: C-Face Pulley Shaft Indicator: Standard Rodent Screen: None Shaft Extension Location: Pulley End
72.000 A @ 230.0 V
Shaft Ground Indicator: No Shaft Grounding
Product Information Packet: CM4104T - 30HP,1760RPM,3PH,60HZ,286TC,0962M,TEFC,F
78.000 A @ 208.0 V Design Code: A Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater
Shaft Rotation: Reversible Shaft Slinger Indicator: Shaft Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None
Product Information Packet: CM4104T - 30HP,1760RPM,3PH,60HZ,286TC,0962M,TEFC,F
Nameplate NP1256L
CAT.NO. CM4104T
SPEC. 09F439Y901H1
HP 30
VOLTS 230/460
AMP 72/36 RPM 1760
FRAME 286TC HZ 60 PH 3
SER.F. 1.15 CODE H DES A CLASS F
NEMA-NOM-EFF 92.4 PF 85
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 78 DE 6311 ODE 6208
ENCL TEFC SN
Product Information Packet: CM4104T - 30HP,1760RPM,3PH,60HZ,286TC,0962M,TEFC,F
Parts List
Part Number Description Quantity SA146554 SA 09F439Y901H1 1.000 EA RA135628 RA 09F439Y901H1 1.000 EA 09FN3001C01 EXTERNAL FAN, PLASTIC 1.000 EA S/P101-000-004 EPACT PROC-CL, 280FR & UP,LARGE BOX,POLY 1.000 EA 10CB3000SP KOBX, CAST W/2.00 LEAD HOLE 1.000 EA 12GS1000 GASKET 1.000 EA 10XN3118K12 5/16-18 X .75 GRADE 5, ZINC PLATED 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA WD1000B16 T&B CX70TN OR L70P TERMINAL LUG 1.000 EA 51XF2520A08 SCREW, HEX SER SLT HD, ZN 1/4-20 X .50 L 1.000 EA 09EP1100A14SP ENDPLATE, MACH 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA XY3816A12 3/8-16 FINISHED NUT 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA HW5100A08 W3118-035 WVY WSHR (WB) 1.000 EA 10XN2520K28 1/4-20 X 1.75" HX HD SCRWGRADE 5, ZINC P 2.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 2.000 EA 10XN3118K40 5/16-18 X 2.50" HEX HD, GRADE 5 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA 09EP1310A08 SPL FACE MTD EP 284-6TC 309 ENCL 311 BRG 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HW4600B40 V-RING SLINGER 2.000 X 2.680 X .28 VITON 1.000 EA HA3113A15 THRUBOLT 3/8-16 X 18.875 W/3.50 THD LENG 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA
Product Information Packet: CM4104T - 30HP,1760RPM,3PH,60HZ,286TC,0962M,TEFC,F
Parts List (continued)
Part Number Description Quantity 09FH4000SP 309 FH - BLACK PRIMER 1.000 EA HA2081A05 SPACER TUBE, 309 FAN HSG, 2.00 LONG 4.000 EA XY3816A12 3/8-16 FINISHED NUT 4.000 EA 10CB3500SP CONDUIT BOX LID, CAST 1.000 EA 10GS1000SP GASKET, CONDUIT BOX LID 1.000 EA 51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA HW2501H28 KEY, 1/2 SQ X 3.250 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA HW4500A05 1669B ALEM/UNIV860 GR FTG X 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4001A01SP DRAIN PLUG, PLASTIC (MICRO PLAS) 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.080 LB HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4001A01SP DRAIN PLUG, PLASTIC (MICRO PLAS) 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA 51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.050 GA 85XU0407A04 #4-7 X 1/4 DRIVE PIN 2.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA LB1119N WARNING LABEL 1.000 EA LB1125C04 STD-E (STOCK CTN LABEL STD-E WITH FLAG) 4.000 EA
Product Information Packet: CM4104T - 30HP,1760RPM,3PH,60HZ,286TC,0962M,TEFC,F
LC0181 CONNECTION LABEL 1.000 EA NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA 10PA1000 PACKAGING GROUP COMBINED PRINT PK1023A06 1.000 EA
Product Information Packet: CM4104T - 30HP,1760RPM,3PH,60HZ,286TC,0962M,TEFC,F
AC Induction Motor Performance Data
Record # 50245 - Typical performance - not guaranteed values
Winding: 09WGY901-R003 Type: 0962M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection Rated Output (HP) 30 Full Load Torque 89.7 LB-FT Volts 230/460 Start Configuration direct on line Full Load Amps 72/36 Breakdown Torque 315.7 LB-FT R.P.M. 1760 Pull-up Torque 148.3 LB-FT Hz 60 Phase 3 Locked-rotor Torque 182.6 LB-FT NEMA Design Code A KVA Code H Starting Current 260.6 A Service Factor (S.F.) 1.15 No-load Current 14.1 A NEMA Nom. Eff. 92.4 Power Factor 85 LinelineRes.@25ºC 0.254Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 75°C S.F. Amps Temp. Rise @ S.F. Load 96°C
Locked-rotor Power Factor 32
Rotor inertia 2.7 LB-FT2
Load Characteristics 460 V, 60 Hz, 30 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 49 71 81 85 87 88 86 Efficiency 88.7 92.4 92.9 92.5 91.7 90.6 92 Speed 1790 1780 1770 1760 1748 1736 1753 Line amperes 16.2 21.4 28.1 35.8 44.1 53.2 40.8
Product Information Packet: CM4104T - 30HP,1760RPM,3PH,60HZ,286TC,0962M,TEFC,F

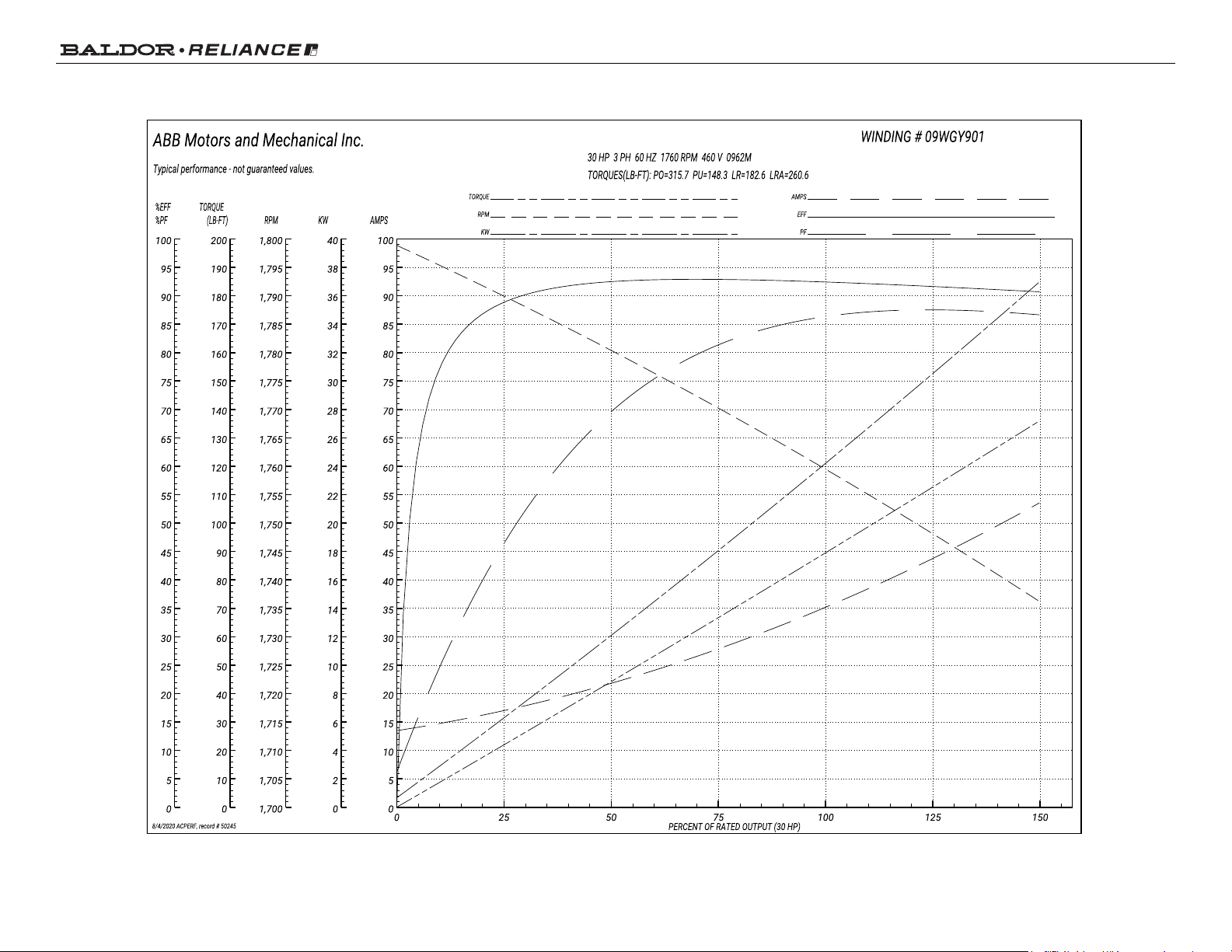

Performance Graph at 460V, 60Hz, 30.0HP Typical performance - Not guaranteed values
Product Information Packet: CM4104T - 30HP,1760RPM,3PH,60HZ,286TC,0962M,TEFC,F
Page 10 of 11
Product Information Packet: CM4104T - 30HP,1760RPM,3PH,60HZ,286TC,0962M,TEFC,F
Page 11 of 11
