Product Information Packet
CM3714T-5
10HP,1770RPM,3PH,60HZ,215TC,3740M,TEFC,F
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: CM3714T-5 - 10HP,1770RPM,3PH,60HZ,215TC,3740M,TEFC,F
Part Detail
Revision: H Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 37WGS399 CD Diagram: CD0006 Mfg Plant:
Mech. Spec: 37G814 Layout: 37LYG814 Poles: 04 Created Date: 03-23-2009
Base: RG Eff. Date: 03-08-2016 Leads: 3#14
Specs
Catalog Number: CM3714T-5
Enclosure: TEFC
Frame: 215TC
Frame Material: Steel
Output @ Frequency: 10.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 575.0 V @ 60 HZ
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 10.800 A @ 575.0 V
Design Code: A
KVA Code: K
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 3 @ 14 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3740M
Mounting Arrangement: F1
Power Factor: 77
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Drip Cover: No Drip Cover
Shaft Slinger Indicator: No Slinger
Page 2 of 10
Product Information Packet: CM3714T-5 - 10HP,1770RPM,3PH,60HZ,215TC,3740M,TEFC,F
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Not Inverter
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: CM3714T-5 - 10HP,1770RPM,3PH,60HZ,215TC,3740M,TEFC,F
Nameplate NP1256L
CAT.NO. CM3714T-5
SPEC. 37G814S399H1
HP 10
VOLTS 575
AMP 10.8
RPM 1770
FRAME 215TC HZ 60 PH 3
SER.F. 1.15 CODE K DES A CLASS F
NEMA-NOM-EFF 89.5 PF 77
RATING 40C AMB-CONT
CC 010A USABLE AT 208V
DE 6307 ODE 6206
ENCL TEFC SN
Page 4 of 10
Product Information Packet: CM3714T-5 - 10HP,1770RPM,3PH,60HZ,215TC,3740M,TEFC,F
Parts List
Part Number Description Quantity
SA180790 SA 37G814S399H1 1.000 EA
RA168742 RA 37G814S399H1 1.000 EA
37FN3002A01SP EXFN, PLASTIC, 9.00 OD, 1.155 ID 1.000 EA
HW3200A01 3/8-16X3/4 I-BLT WELDED F/S 1.000 EA
37CB3006 37 CB CASTING W/1.38 LEAD HOLE @ 6:00 1.000 EA
37GS1000SP GASKET, CONDUIT BOX STD., .06 THICK LEXI 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
37EP3101A01 FR ENDPLATE, FOR ROUTING PURPOSES 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A06 W2420-025 WVY WSHR (WB) 1.000 EA
37PE3300A01 PUEP ASSEMBLY FOR ROUTING 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
10XN2520A30 HEX HD CAP SCREW-STD THD-.25 X 20 THD PE 4.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA
XY3118A12 5/16-18 HEX NUT DIRECTIONAL SERRATION 4.000 EA
51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA
07FH4007SP PRIMED 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
37CB4516 LIPPED LID FOR 37 FRAME NEC KOBX 1.000 EA
37GS1008 37 GS FOR CB LID - LEXIDE 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW2501F21 KEY, 5/16 SQ X 2.375 1.000 EA
HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA
Page 5 of 10
Product Information Packet: CM3714T-5 - 10HP,1770RPM,3PH,60HZ,215TC,3740M,TEFC,F
Parts List (continued)
Part Number Description Quantity
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.028 GA
HA3104A17 5/16-18X13.250 T-BLT/OHIO 4.000 EA
LB1119N WARNING LABEL 1.000 EA
LC0006 CONNECTION LABEL 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
G0PA1000 PKG GRP, PRINT PK1026A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 10
Product Information Packet: CM3714T-5 - 10HP,1770RPM,3PH,60HZ,215TC,3740M,TEFC,F
AC Induction Motor Performance Data
Record # 28619 - Typical performance - not guaranteed values
Winding: 37WGS399-R001 Type: 3740M Enclosure: TEFC
Nameplate Data
575 V, 60 Hz:
Single Voltage Motor
Rated Output (HP) 10 Full Load Torque 29.5 LB-FT
Volts 575 Start Configuration direct on line
Full Load Amps 10.8 Breakdown Torque 121 LB-FT
R.P.M. 1770 Pull-up Torque 53.5 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 68.7 LB-FT
NEMA Design Code A KVA Code K Starting Current 85.5 A
Service Factor (S.F.) 1.15 No-load Current 5.85 A
NEMA Nom. Eff. 89.5 Power Factor 77 LinelineRes.@25ºC 1.82Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 78°C
S.F. Amps Temp. Rise @ S.F. Load 92°C
Locked-rotor Power Factor 41
Rotor inertia 0.984 LB-FT2
Load Characteristics 575 V, 60 Hz, 10 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 36 58 70 77 81 84 79
Efficiency 81.4 88.5 89.4 89.6 89 88.1 89.2
Speed 1793 1785 1777 1769 1760 1751 1764
Line amperes 6.26 7.37 8.8 10.8 13 15.2 12.1
Page 7 of 10
Product Information Packet: CM3714T-5 - 10HP,1770RPM,3PH,60HZ,215TC,3740M,TEFC,F

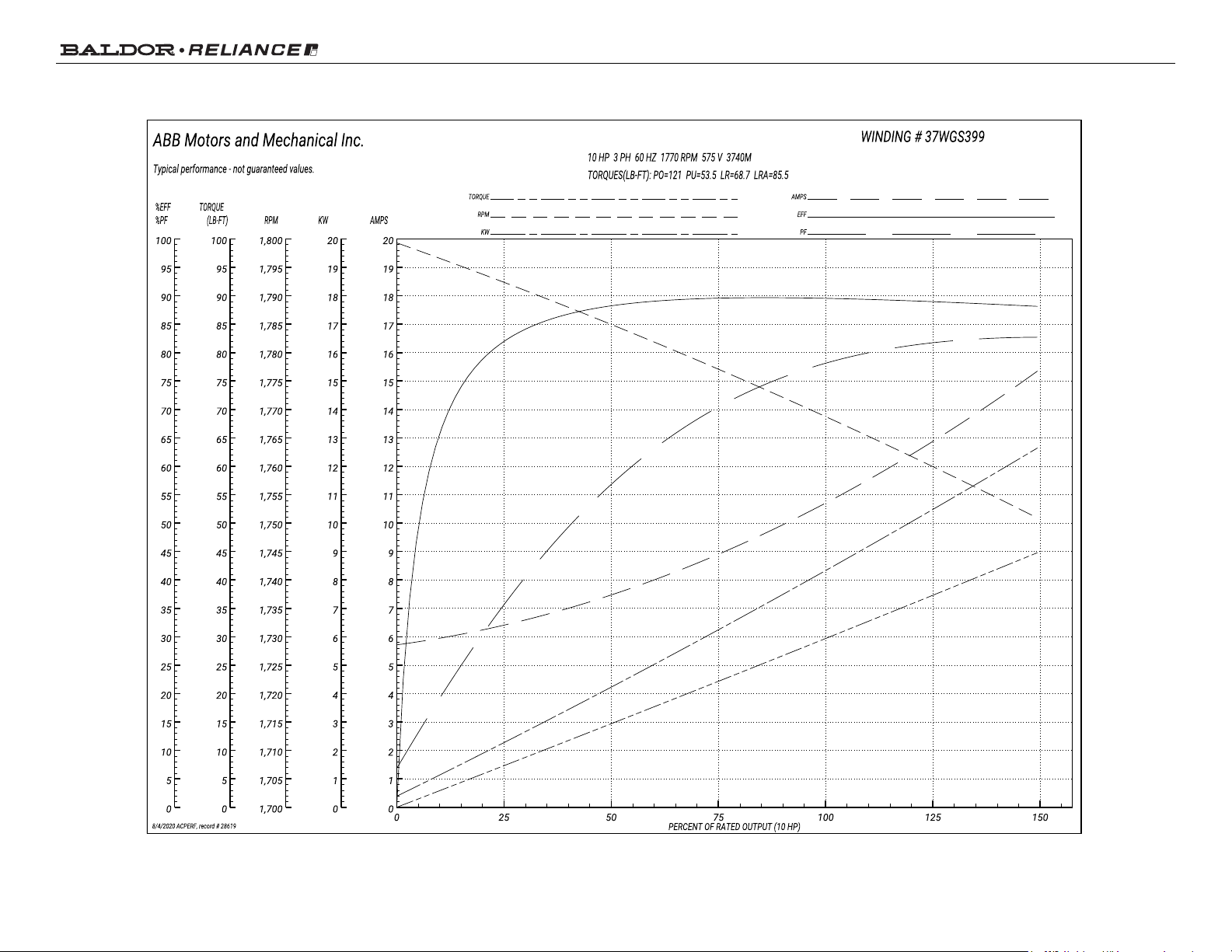

Performance Graph at 575V, 60Hz, 10.0HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: CM3714T-5 - 10HP,1770RPM,3PH,60HZ,215TC,3740M,TEFC,F
Page 9 of 10
Product Information Packet: CM3714T-5 - 10HP,1770RPM,3PH,60HZ,215TC,3740M,TEFC,F
Page 10 of 10
