Product Information Packet
CM3546T-5
1HP,1740RPM,3PH,60HZ,143TC,3518M,TEFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: CM3546T-5 - 1HP,1740RPM,3PH,60HZ,143TC,3518M,TEFC,F1
Part Detail
Revision: T Status: INA/A Change #: Proprietary: No
Type: AC Elec. Spec: 35WGT094 CD Diagram: CD0006 Mfg Plant:
Mech. Spec: 35A002 Layout: 35LYA002 Poles: 04 Created Date:
Base: RG Eff. Date: 10-28-2015 Leads: 3#18
Specs
Catalog Number: CM3546T-5
Enclosure: TEFC
Frame: 143TC
Frame Material: Steel
Output @ Frequency: 1.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 575.0 V @ 60 HZ
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 1.200 A @ 575.0 V
Design Code: B
KVA Code: J
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 3 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3518M
Mounting Arrangement: F1
Power Factor: 80
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Drip Cover: No Drip Cover
Shaft Slinger Indicator: No Slinger
Page 2 of 12
Product Information Packet: CM3546T-5 - 1HP,1740RPM,3PH,60HZ,143TC,3518M,TEFC,F1
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: B
Inverter Code: Not Inverter
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 12
Product Information Packet: CM3546T-5 - 1HP,1740RPM,3PH,60HZ,143TC,3518M,TEFC,F1
Nameplate NP1256L
CAT.NO. CM3546T-5
SPEC. 35A002T094H1
HP 1
VOLTS 575
AMP 1.2
RPM 1740
FRAME 143TC HZ 60 PH 3
SER.F. 1.15 CODE J DES B CLASS B
NEMA-NOM-EFF 82.5 PF 80
RATING 40C AMB-CONT
CC USABLE AT 208V
DE 6205 ODE 6203
ENCL TEFC SN
Page 4 of 12
Product Information Packet: CM3546T-5 - 1HP,1740RPM,3PH,60HZ,143TC,3518M,TEFC,F1
Parts List
Part Number Description Quantity
SA109291 SA 35A002T094H1 1.000 EA
RA100783 RA 35A002T094H1 1.000 EA
NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA
35CB3007 35 CB CASTING W/.88 DIA. LEAD HOLE 1.000 EA
36GS1000SP GASKET-CONDUIT BOX, .06 THICK #SV-330 LE 1.000 EA
51XB1016A07 10-16 X 7/16 HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
35EP3122A00 FREP TEFC ASSEMBLY FOR ROUTING 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
35EP3307D00 PULLEY ENDPLATE, MACH 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
51XN1032A20 10-32 X 1 1/4 HX WS SL SR 2.000 EA
51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA
35FH4005A84SP IEC FH W/GRSR, NO DIMPLES PRIMED 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
35CB4521GX CONDUIT BOX LID KIT **ORDER INDIV PARTS 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
35FN3002A05SP EXFN, PLASTIC, 6.376 OD, .638 ID 1.000 EA
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.017 GA
Page 5 of 12
Product Information Packet: CM3546T-5 - 1HP,1740RPM,3PH,60HZ,143TC,3518M,TEFC,F1
Parts List (continued)
Part Number Description Quantity
HA3100A15 THRUBOLT 10-32 X 8.375 4.000 EA
LB1119N WARNING LABEL 1.000 EA
LC0006 CONNECTION LABEL 1.000 EA
NP1256L ALUM UL CSA CC INDUSTRIAL MOTOR A60 1.000 EA
36PA1000 PKG GRP, PRINT PK1016A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 12
Product Information Packet: CM3546T-5 - 1HP,1740RPM,3PH,60HZ,143TC,3518M,TEFC,F1
AC Induction Motor Performance Data
Record # 9252 - Typical performance - not guaranteed values
Winding: 35WGT094-R001 Type: 3518M Enclosure: TEFC
Nameplate Data
575 V, 60 Hz:
Single Voltage Motor
Rated Output (HP) 1 Full Load Torque 3 LB-FT
Volts 575 Start Configuration direct on line
Full Load Amps 1.2 Breakdown Torque 10 LB-FT
R.P.M. 1740 Pull-up Torque 7 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 8 LB-FT
NEMA Design Code B KVA Code J Starting Current 7.8 A
Service Factor (S.F.) 1.15 No-load Current 0.56 A
NEMA Nom. Eff. 82.5 Power Factor 80 LinelineRes.@25ºC 34.1Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 43°C
S.F. Amps Temp. Rise @ S.F. Load 58°C
Locked-rotor Power Factor 54
Rotor inertia 0.107 LB-FT2
Load Characteristics 575 V, 60 Hz, 1 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 42 63 74 80 84 86 0
Efficiency 72.4 81.2 82.9 82.6 81.1 79 0
Speed 1783 1765 1748 1730 1706 1682 0
Line amperes 0.64 0.8 0.96 1.12 1.44 1.68 1.28
Page 7 of 12
Product Information Packet: CM3546T-5 - 1HP,1740RPM,3PH,60HZ,143TC,3518M,TEFC,F1

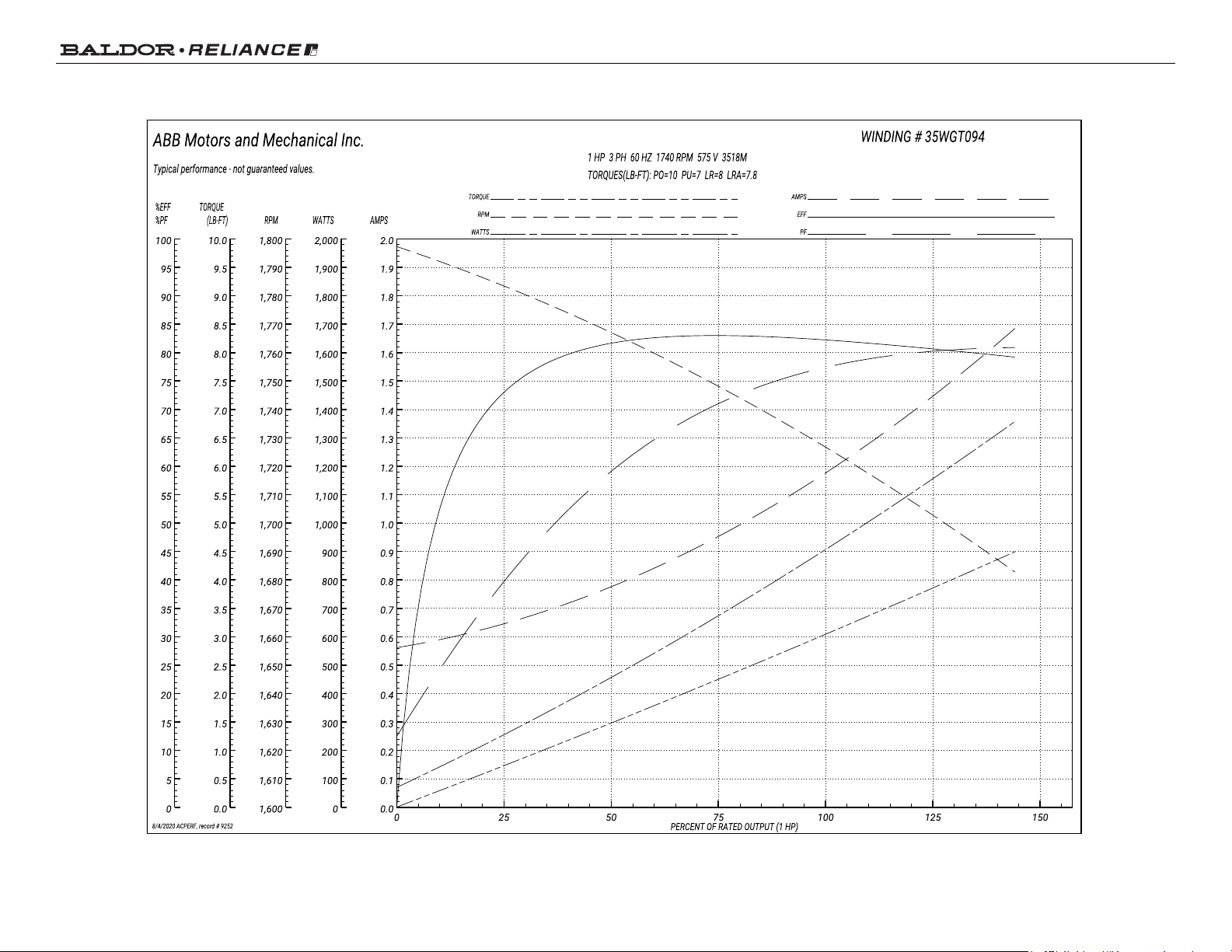

Performance Graph at 575V, 60Hz, 1.0HP Typical performance - Not guaranteed values
Page 8 of 12
Product Information Packet: CM3546T-5 - 1HP,1740RPM,3PH,60HZ,143TC,3518M,TEFC,F1
AC Induction Motor Performance Data
Record # 27910 - Typical performance - not guaranteed values
Winding: 35WGT094-R001 Type: 3518M Enclosure: TEFC
Nameplate Data
575 V, 60 Hz:
Single Voltage Motor
Rated Output (HP) 1 Full Load Torque 2.98 LB-FT
Volts 575 Start Configuration direct on line
Full Load Amps 1.2 Breakdown Torque 11.7 LB-FT
R.P.M. 1740 Pull-up Torque 5.83 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 9.36 LB-FT
NEMA Design Code B KVA Code J Starting Current 9.11 A
Service Factor (S.F.) 1.15 No-load Current 0.711 A
NEMA Nom. Eff. 82.5 Power Factor 80 LinelineRes.@25ºC 27Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 45°C
S.F. Amps Temp. Rise @ S.F. Load 52°C
Locked-rotor Power Factor 54
Rotor inertia 0.107 LB-FT2
Load Characteristics 575 V, 60 Hz, 1 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 39 57 68 76 80 84 78
Efficiency 72.4 81.2 82.9 82.6 81.1 79 81.7
Speed 1786 1774 1760 1747 1731 1714 1737
Line amperes 0.777 0.882 1.04 1.21 1.43 1.72 1.34
Page 9 of 12
Product Information Packet: CM3546T-5 - 1HP,1740RPM,3PH,60HZ,143TC,3518M,TEFC,F1
Performance Graph at 575V, 60Hz, 1.0HP Typical performance - Not guaranteed values
Page 10 of 12
Product Information Packet: CM3546T-5 - 1HP,1740RPM,3PH,60HZ,143TC,3518M,TEFC,F1
4.00
5.00
5.94
7.19
3.75
.8750
.8745
4.500
4.497
6.49
.13
2.12
510-528 = 13.29
529-535 = 14.17
536-546 = 15.54
.50
2.75
.13
NAMEPLATE
6 HOLES
Ø.38
.19 KEY
1.38 LONG
GREASE FITTING
(EACH END)
2.75 2.75
3.25 4.63
6.50
3.50
3.44
6.81
45° 45°
5.75
6.61
LEAD HOLE
Ø.88
4 HOLES
.38-16 TAP
ON Ø5.88 B.C.
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
35LYA002
B
STD HORZ 143-5TC TEFC 35M
REV. DESC:
REV:
BY:
REVISED:
MODEL NO.
VERSION:
TDR:
REF:
35LYA002
LOADING OF SWD DWG FOR 2D TO 3D CONVERSION - PKG15
ENSTEK0
U
04:13:32 01/21/2019
-
000001096905
07
35LYA002
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
BALDOR - RELIANCE
®
SH 1 OF 1
Page 11 of 12
