Baldor CM2334T-5 Product Information Sheet

Product Information Packet

CM2334T-5

20HP,1760RPM,3PH,60HZ,256TC,0760M,TEFC,F

Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.

Product Information Packet: CM2334T-5 - 20HP,1760RPM,3PH,60HZ,256TC,0760M,TEFC,F

Part Detail

Revision: J Status: INA/A Change #: Proprietary: No

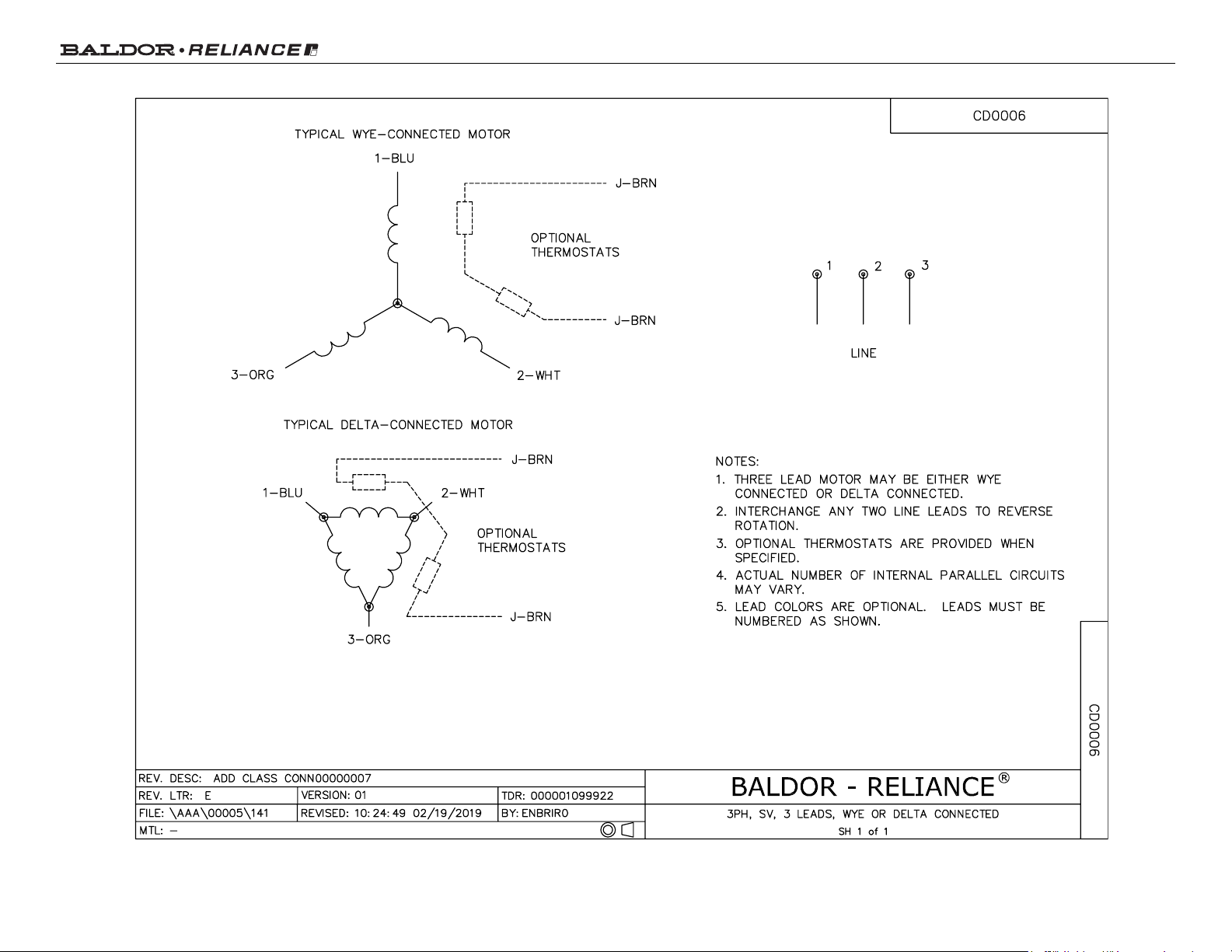

Type: AC Elec. Spec: 07WGX618 CD Diagram: CD0006 Mfg Plant:
Mech. Spec: 07K349 Layout: 07LYK349 Poles: 04 Created Date: 08-03-2006
Base: RG Eff. Date: 03-08-2016 Leads: 3#12

Specs

Catalog Number: CM2334T-5
Enclosure: TEFC
Frame: 256TC
Frame Material: Iron
Output @ Frequency: 20.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 575.0 V @ 60 HZ
XP Division: Not Applicable
Agency Approvals: CSA

UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 20.000 A @ 575.0 V
Design Code: A

KVA Code: J
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 3 @ 12 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 0760M
Mounting Arrangement: F1
Power Factor: 83
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible

Drip Cover: No Drip Cover

Shaft Slinger Indicator: No Slinger

Page 2 of 10

Product Information Packet: CM2334T-5 - 20HP,1760RPM,3PH,60HZ,256TC,0760M,TEFC,F

Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Not Inverter

Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
