Product Information Packet
CJL3513A
1.5HP,3450RPM,1PH,60HZ,3528L,N
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: CJL3513A - 1.5HP,3450RPM,1PH,60HZ,3528L,N
Part Detail
Revision: F Status: PRD/A Change #: Proprietary: No

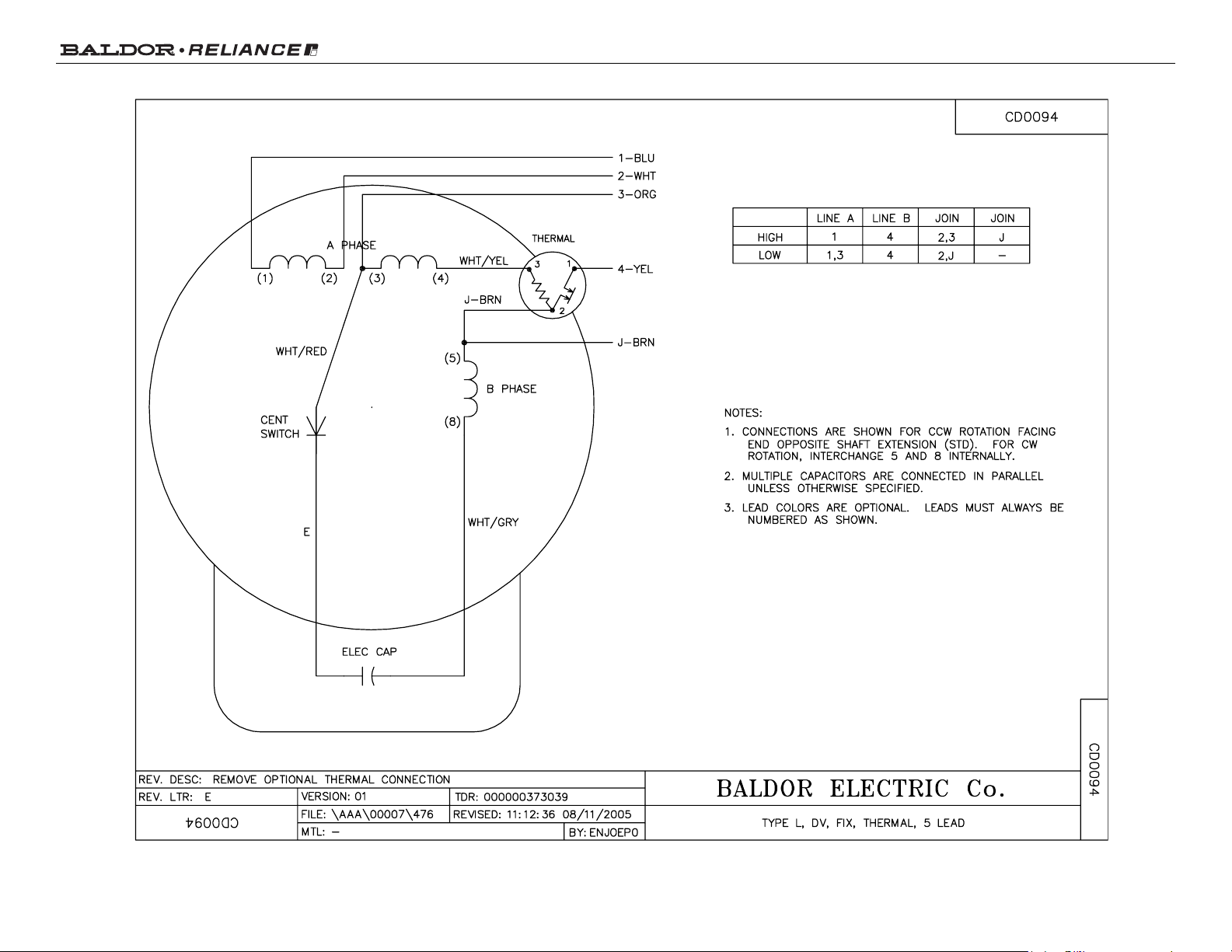

Type: AC Elec. Spec: 35WG0525 CD Diagram: CD0094 Mfg Plant:
Mech. Spec: 35Z185 Layout: 35LYZ185 Poles: 02 Created Date: 06-10-2014
Base: RG Eff. Date: 07-30-2020 Leads: 4#16 A&J,1#14 #4TH
Specs
Catalog Number: CJL3513A
Enclosure: TEFC
Frame: 56J
Frame Material: Steel
Output @ Frequency: 1.500 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 230.0 V @ 60 HZ
115.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: CSA
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Inverter Code: Not Inverter
KVA Code: H
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 4 @ 16 AWG, A&J
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3528L
Mounting Arrangement: F1
Power Factor: 82
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Ext Thread
Rodent Screen: None
RoHS Status: ROHS COMPLIANT
Shaft Extension Location: Pulley End
Current @ Voltage: 16.600 A @ 115.0 V
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 10
Product Information Packet: CJL3513A - 1.5HP,3450RPM,1PH,60HZ,3528L,N
8.300 A @ 230.0 V
8.600 A @ 208.0 V
Design Code: L
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: B
Shaft Rotation: Fixed Opposite Standard
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: Do Not Use Eve-Not Valiid
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: Automatic Thermal Overload
Winding Thermal 1 Location: SB
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: CJL3513A - 1.5HP,3450RPM,1PH,60HZ,3528L,N
Nameplate NP1257L
CAT.NO. CJL3513A
SPEC. 35Z185-0525G1
HP 1.5
VOLTS 115/230
AMP 16.6/8.3
RPM 3450
FRAME 56J HZ 60 PH 1
SER.F. 1.00 CODE H DES L CL B
NEMA-NOM-EFF 70 PF 82
RATING 40C AMB-CONT
CC USABLE AT 208V 8.6
DE 6205 ODE 6203
ENCL TEFC SN
Page 4 of 10
Product Information Packet: CJL3513A - 1.5HP,3450RPM,1PH,60HZ,3528L,N
Parts List
Part Number Description Quantity
SA282313 SA 35Z185-0525G1 1.000 EA
RA268621 RA 35Z185-0525G1 1.000 EA
EC1645A06SP ELEC CAP, 645-774 MFD, 125V, 2.06D X 4. 1.000 EA
NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA
35CB3007 35 CB CASTING W/.88 DIA. LEAD HOLE 1.000 EA
36GS1000SP GASKET-CONDUIT BOX, .06 THICK #SV-330 LE 1.000 EA
51XB1016A07 10-16 X 7/16 HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 2.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
35EP3122K00 MASTER ODE,203 BRG,.683SH,#26 DRN,FH MTG 1.000 EA
51XB1016A05 10-16X5/16HX WA SL SR TYB (F/S) 2.000 EA
35CB4802A02SP CAPACITOR COVER, STAMPED X 1.000 EA
35GS3001A02 GASKET, CA.COVER, 5.38 LONG .06 CS301 1.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
35EP3307F00 MASTER DE,205 BRG,.998SH,#26 DRN 1.000 EA
51XN1032A20 10-32 X 1 1/4 HX WS SL SR 2.000 EA
51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA
35FH4005A55 IEC FH NO GRSR,3 MTG HOLE NO DIMPLES, 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
WD4100A10 465 NIAGARA PLUG (SO ELEC),FOR 1.093 DIA 1.000 EA
35CB4521 35 LIPPED CB LID (GALV & PHOSPH) 1.000 EA
35GS1030 35 GS FOR CB LID - LEXIDE 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
Page 5 of 10
Product Information Packet: CJL3513A - 1.5HP,3450RPM,1PH,60HZ,3528L,N
Parts List (continued)
Part Number Description Quantity
RM1010A12 .437 I.D. 1" VINYL CAP (SHORT) MOCAP 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
35FN3002A05SP EXFN, PLASTIC, 6.376 OD, .638 ID 1.000 EA
MG1000G27 MED CHARCOAL METALLIC GREY 400-0096 0.017 GA
HA3100A15 THRUBOLT 10-32 X 8.375 4.000 EA
WD1000A15 3-520132-2 AMP FLAG (4M/RL) 16-14AWG 2.000 EA
SP5051A99 MODEL 34/35 TORQ STA SW LEAD CONFIG 1.000 EA
LB1118 LABEL,WARNING (ROLL LABEL) 1.000 EA
LB1009N LABEL,ROTATION DIRECTION (ON ROLLS) 1.000 EA
LC0031 CONNECTION LABEL 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
NP1257L ALUM UL CSA CC THERMAL REV MTG 1.000 EA
36PA1000 PKG GRP, PRINT PK1016A06 1.000 EA
FE-0000001 ZRTG FE ASSEMBLY 1.000 EA
PE-0000001 ZRTG PE ASSEMBLY 1.000 EA
Page 6 of 10
Product Information Packet: CJL3513A - 1.5HP,3450RPM,1PH,60HZ,3528L,N
AC Induction Motor Performance Data
Record # 8080 - Typical performance - not guaranteed values
Winding: 35WG0525-R001 Type: 3528L Enclosure: TEFC
Nameplate Data
230 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 1.5 Full Load Torque 2.3 LB-FT
Volts 115/230 Start Configuration direct on line
Full Load Amps 16.6/8.3 Breakdown Torque 5.6 LB-FT
R.P.M. 3450 Pull-up Torque 4.2 LB-FT
Hz 60 Phase 1 Locked-rotor Torque 5.5 LB-FT
NEMA Design Code L KVA Code H Starting Current 42 A
Service Factor (S.F.) 1 No-load Current 3.8 A
NEMA Nom. Eff. 70 Power Factor 82 LinelineRes.@25ºC
1.26ΩAPh
1.23ΩBPh
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 70°C
Load Characteristics 230 V, 60 Hz, 1.5 HP
% of Rated Load 25 50 75 100 125 150
Power Factor 52 69 78 84 87 88
Efficiency 54.9 67.7 71.6 72.4 71.2 68.4
Speed 3568 3543 3518 3485 3452 3409
Line amperes 4.4 5.4 6.6 8.3 9.9 12
Page 7 of 10
Product Information Packet: CJL3513A - 1.5HP,3450RPM,1PH,60HZ,3528L,N

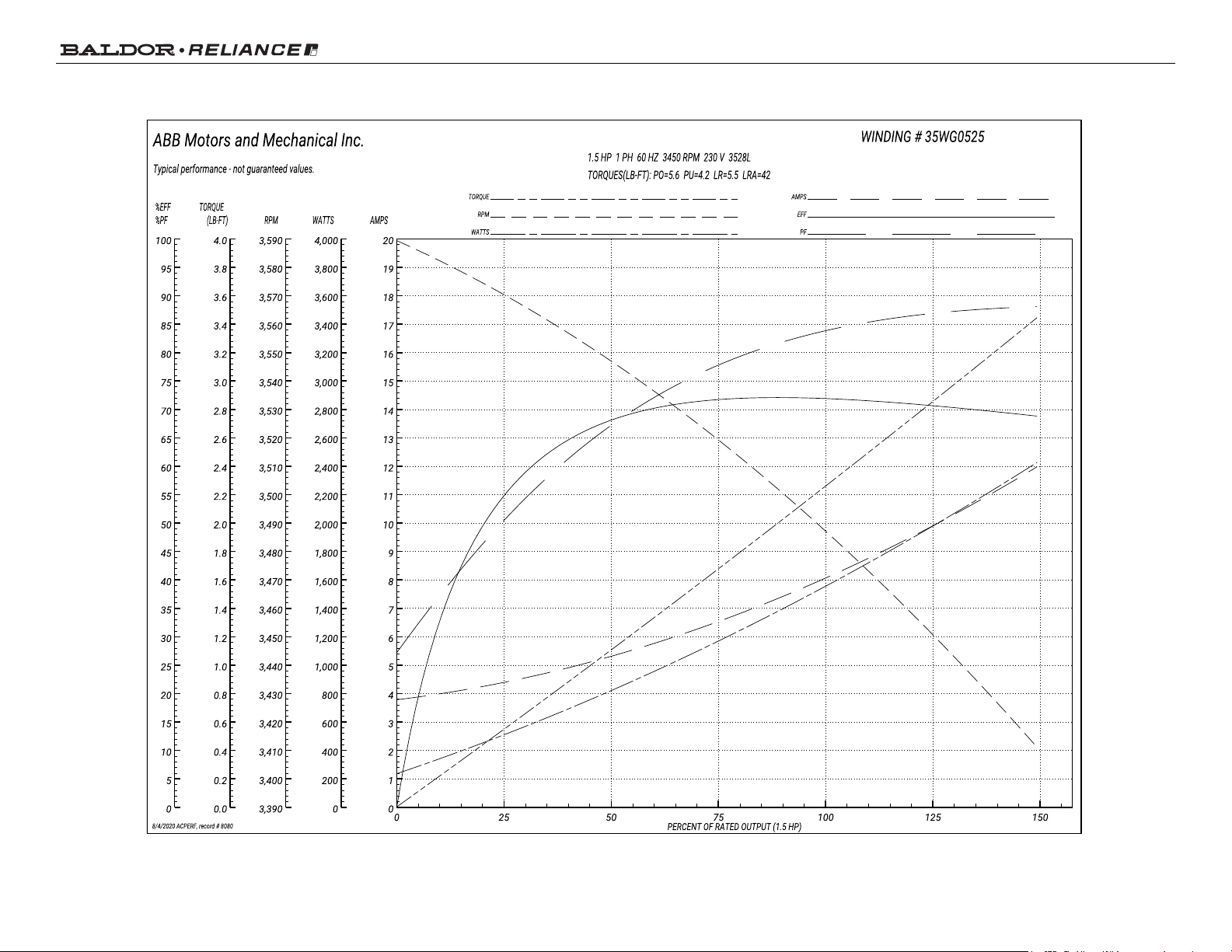

Performance Graph at 230V, 60Hz, 1.5HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: CJL3513A - 1.5HP,3450RPM,1PH,60HZ,3528L,N
6.49
4.500
4.497
510 - 520 = 12.72
521 - 528 = 13.72
529 - 535 = 14.60
536 - 546 = 15.97
.6250
.6245
.16
(MAX)
.13
2.56
1.91
1.85
.72
.66
7.19
.04 X 45°
.66
4.32
3.00 2.57
3.75
NAMEPLATE
CHECK WITH
GAGE T-6338
4 SLOTS
.34 WIDE
PLUG
.09
SLOT
ROTATION
LABEL
.44-20 UNF-2A
R.H. THREADS
3.50
3.44
5.55
45° 45°
6.61
2.47 2.47
3.31
6.62
4.63
5.75
LEAD HOLE
.88
4 HOLES
.38-.16 TAP ON
5.88 B.C.
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
35LYZ185
B
HOR 56J TEFC 35L 2 POLE "W" BASE 35BA4010
REV. DESC:
REV:
BY:
REVISED:
MODEL NO.
VERSION:
TDR:
REF:
35LYZ185
LOADING OF SWD DWG FOR 2D TO 3D CONVERSION PKG 15
ENALEM0
C
09:21:50 01/22/2019
-
000001096905
03
35LYZ185
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
BALDOR - RELIANCE
®
SH 1 of 1
Page 9 of 10
Product Information Packet: CJL3513A - 1.5HP,3450RPM,1PH,60HZ,3528L,N
Page 10 of 10
