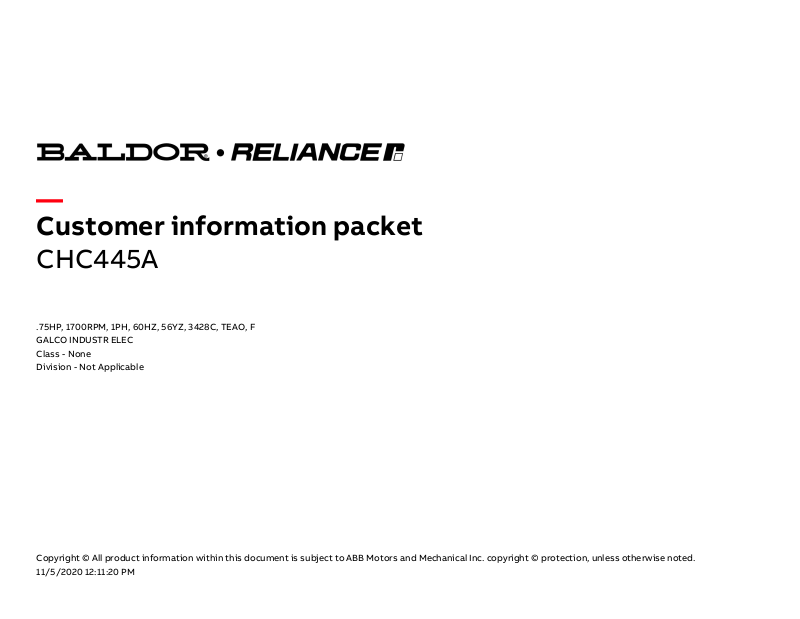

Customer information packet
CHC445A
.75HP, 1700RPM, 1PH, 60HZ, 56YZ, 3428C, TEAO, F
GALCO INDUSTR ELEC
Class - None
Division - Not Applicable
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
11/5/2020 12:11:20 PM
Enclosure
Frame
Frame Material
Frequency
Output @ Frequency
Phase
Synchronous Speed @ Frequency
Voltage @ Frequency
XP Class and Group
XP Division
Agency Approvals
Ambient Temperature
Auxillary Box
Auxillary Box Lead Termination
Base Indicator
Bearing Grease Type
Blower
Current @ Voltage
Drip Cover
Duty Rating
Efficiency @ 100% Load
Electrically Isolated Bearing
Feedback Device
Front Face Code
Front Shaft Indicator
Heater Indicator
High Voltage Full Load Amps
Insulation Class
Inverter Code
Specifications
TEAO
56YZ
Steel
60.00 Hz
.750 HP @ 60 HZ
1
1800 RPM @ 60 HZ
115.0 V @ 60 HZ
230.0 V @ 60 HZ
None
Not Applicable
UR
CSA
40 °C
No Auxillary Box
None
Resilient
Polyrex EM (-20F +300F)
None
3.700 A @ 230.0 V
7.400 A @ 115.0 V
No Drip Cover
CONT
74.0 %
Not Electrically Isolated
NO FEEDBACK
Resilient Mount
None
No Heater
3.7 a
B
Not Inverter
Revision
Type
Mech. spec.
Base
Status
Elec. spec.
Layout
Eff. date
CD Diagram
Poles
Leads
Proprietary
Created date
Part detail
L
AC
34M244
PRD/A
34WGR059
34LYM244
11-12-2018
CD0381
04
7#18
False
05-22-2013
CUSTOMER INFORMATION PACKET CHC445A - .75HP, 1700RPM, 1PH, 60HZ, 56YZ, 3428C, TEAO, F
Page 2 of 10
Duty Rating
Efficiency @ 100% Load
Electrically Isolated Bearing
Feedback Device
Front Face Code
Front Shaft Indicator
Heater Indicator
High Voltage Full Load Amps
Insulation Class
Inverter Code
KVA Code
Lifting Lugs
Locked Bearing Indicator
Motor Lead Exit
Motor Lead Quantity/Wire Size
Motor Lead Termination
Motor Standards
Motor Type
Mounting Arrangement
Number of Poles
Overall Length
Power Factor
Product Family
Pulley End Bearing Type
Pulley Face Code
Pulley Shaft Indicator
Rodent Screen
RoHS Status
Service Factor
Shaft Diameter
Shaft Extension Location
Shaft Ground Indicator
Shaft Rotation
Shaft Slinger Indicator
Speed
Speed Code
Starting Method
Thermal Device - Bearing
Thermal Device - Winding
Vibration Sensor Indicator
Winding Thermal 1
Winding Thermal 1 Location
CONT
74.0 %
Not Electrically Isolated
NO FEEDBACK
Resilient Mount
None
No Heater
3.7 a
B
Not Inverter
G
No Lifting Lugs
No Locked Bearing
Terminal Panel Or Lead Hole
7 @ 18 AWG
None
NEMA
3428C
F1
4
13.58 IN
92
General Purpose
Ball
Resilient Mount
Standard
None
ROHS COMPLIANT
1.15
0.625 IN
Pulley End
No Shaft Grounding
Reversible: Connected Standard
No Slinger
1700 rpm
Single Speed
Direct on line
None
None
No Vibration Sensor
Automatic Thermal Overload
EP
CUSTOMER INFORMATION PACKET CHC445A - .75HP, 1700RPM, 1PH, 60HZ, 56YZ, 3428C, TEAO, F
Page 3 of 10
Nameplate
NP1257L
CAT.NO. CHC445A
SPEC. 34M244R059G1
HP .75
VOLTS 115/230
AMP 7.4/3.7
RPM 1700
FRAME 56YZ HZ 60 PH 1
SER.F. 1.15 CODE G DES - CL B
NEMA-NOM-EFF 74 PF 92
RATING 40C AMB-CONT
CC USABLE AT 208V
DE 6203 ODE 6203
ENCL TEAO SN
CUSTOMER INFORMATION PACKET CHC445A - .75HP, 1700RPM, 1PH, 60HZ, 56YZ, 3428C, TEAO, F
Page 4 of 10
Part number Quantity
SA263509 1.000 ea
RA250226 1.000 ea
OC3050F09SP 1.000 ea
11XW0832G06 1.000 ea
LD5000A52 1.000 ea
11XT1032A06 2.000 ea
34EP3204A01SP 1.000 ea
WD4100A01 1.000 ea
RM1001A01 1.000 ea
51XW0832A07 3.000 ea
RM1000A03 1.000 ea
HA6004A01A 1.000 ea
51XB1016A05 2.000 ea
HW5100A03 1.000 ea
34EP3205B01 1.000 ea
RM1000A03 1.000 ea
HA6004A01A 1.000 ea
XY0832A02 4.000 ea
34CB4501SP 1.000 ea
34GS1005 1.000 ea
51XW0832A07 2.000 ea
HW2501D13 1.000 ea
HA7000A04 1.000 ea
HW1000A08 8.000 ea
WD1000A16 7.000 ea
MG1000G27 0.014 ga
85XU0407S04 2.000 ea
34BA4003G01 1.000 ea
SP5076SP 1.000 ea
34GS5003A01 1.000 ea
33CB4800A02 1.000 ea
Parts list
Description
SA 34M244R059G1
RA 34M244R059G1
CAPACITOR 50 MFD 370 VAC
#8-32 X 3/8, TAPTITE II, HEX WSHR SLTD
LEAD ASSY W/INTERNAL STAR RING TERMINALS
10-32 X 3/8 HX WSHR HD SLTD TYPE 23
FR ENDPLATE, MACH
DP-875 HEYCO PLUG OR 62MP0875 MICRO PLAS
GROMMET "MIDSTATES"
8-32 X .44, TAPTITE II, HEX WSHR SLTD SE
CUSHION RING, MDL 17-33-34
CLAMP CUSHION RING ASSY
10-16X5/16HX WA SL SR TYB (F/S)
WAVY WASHER (W1543-017)
PU ENDPLATE, MACH
CUSHION RING, MDL 17-33-34
CLAMP CUSHION RING ASSY
8-32 HEX NUT
TERMINAL BOX LID, STAMPED X (PLATED)
GASKET, TERM PLATE LID
8-32 X .44, TAPTITE II, HEX WSHR SLTD SE
KEY, 3/16 SQ X 1.375
KEY RETAINER 0.625 DIA SHAFTS
#8 SAE FLAT WASHER
2-520128-2 AMP FLAG TERM (4M/RL) 22-18
MED CHARCOAL METALLIC GREY 400-0096
4X1/4 U DRIVE PIN STAINLESS
RESILIENT BASE
MODEL 34 TERMINAL PANEL WITH QUICK CONNE
FOAM SLEEVE, ID = 2 1/16" X 4 3/8"
CAPACITOR COVER, STAMPED
CUSTOMER INFORMATION PACKET CHC445A - .75HP, 1700RPM, 1PH, 60HZ, 56YZ, 3428C, TEAO, F
Page 5 of 10
Part number Quantity
SA263509 1.000 ea
RA250226 1.000 ea
OC3050F09SP 1.000 ea
11XW0832G06 1.000 ea
LD5000A52 1.000 ea
11XT1032A06 2.000 ea
34EP3204A01SP 1.000 ea
WD4100A01 1.000 ea
RM1001A01 1.000 ea
51XW0832A07 3.000 ea
RM1000A03 1.000 ea
HA6004A01A 1.000 ea
51XB1016A05 2.000 ea
HW5100A03 1.000 ea
34EP3205B01 1.000 ea
RM1000A03 1.000 ea
HA6004A01A 1.000 ea
XY0832A02 4.000 ea
34CB4501SP 1.000 ea
34GS1005 1.000 ea
51XW0832A07 2.000 ea
HW2501D13 1.000 ea
HA7000A04 1.000 ea
HW1000A08 8.000 ea
WD1000A16 7.000 ea
MG1000G27 0.014 ga
85XU0407S04 2.000 ea
34BA4003G01 1.000 ea
SP5076SP 1.000 ea
34GS5003A01 1.000 ea
33CB4800A02 1.000 ea
35GS3001A02 1.000 ea
HA3169A16 4.000 ea
LB1118 1.000 ea
MN416A01 1.000 ea
LC0052 1.000 ea
NP1257L 1.000 ea
36PA1000 1.000 ea
Parts list
Description
SA 34M244R059G1
RA 34M244R059G1
CAPACITOR 50 MFD 370 VAC
#8-32 X 3/8, TAPTITE II, HEX WSHR SLTD
LEAD ASSY W/INTERNAL STAR RING TERMINALS
10-32 X 3/8 HX WSHR HD SLTD TYPE 23
FR ENDPLATE, MACH
DP-875 HEYCO PLUG OR 62MP0875 MICRO PLAS
GROMMET "MIDSTATES"
8-32 X .44, TAPTITE II, HEX WSHR SLTD SE
CUSHION RING, MDL 17-33-34
CLAMP CUSHION RING ASSY
10-16X5/16HX WA SL SR TYB (F/S)
WAVY WASHER (W1543-017)
PU ENDPLATE, MACH
CUSHION RING, MDL 17-33-34
CLAMP CUSHION RING ASSY
8-32 HEX NUT
TERMINAL BOX LID, STAMPED X (PLATED)
GASKET, TERM PLATE LID
8-32 X .44, TAPTITE II, HEX WSHR SLTD SE
KEY, 3/16 SQ X 1.375
KEY RETAINER 0.625 DIA SHAFTS
#8 SAE FLAT WASHER
2-520128-2 AMP FLAG TERM (4M/RL) 22-18
MED CHARCOAL METALLIC GREY 400-0096
4X1/4 U DRIVE PIN STAINLESS
RESILIENT BASE
MODEL 34 TERMINAL PANEL WITH QUICK CONNE
FOAM SLEEVE, ID = 2 1/16" X 4 3/8"
CAPACITOR COVER, STAMPED
GASKET, CA.COVER, 5.38 LONG .06 CS301
THRUBOLT #8-32 THDS X 9.937"LG TDR#1
LABEL,WARNING (ROLL LABEL)
TAG-INSTAL-MAINT no wire (1200/bx) 3/19
CONNECTION LABEL
ALUM UL CSA CC THERMAL REV MTG
PKG GRP, PRINT PK1016A06
CUSTOMER INFORMATION PACKET CHC445A - .75HP, 1700RPM, 1PH, 60HZ, 56YZ, 3428C, TEAO, F
Page 6 of 10
AC Induction Motor Performance Data
Record # 42884
Typical performance - not guaranteed values
Winding: 34WGR059-R001 Type: 3428C Enclosure: TEAO
Nameplate Data
230 V, 60 Hz:
High Voltage Connection
Rated Output (HP) .75 AIR OVER Full Load Torque 2.33 LB-FT
Volts 115/230 Start Configuration direct on line
Full Load Amps 7.4/3.7 Breakdown Torque 5.74 LB-FT
R.P.M. 1700 Pull-up Torque 1.56 LB-FT
Hz 60 Phase 1 Locked-rotor Torque 0.947 LB-FT
NEMA Design Code - KVA Code G Starting Current 18.4 A
Service Factor (S.F.) 1.15 No-load Current 1.7 A
NEMA Nom. Eff. 74 Power Factor 92 Line-line Res. @ 25ºC
4.1997 Ω A Ph
2.0705 Ω B Ph
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load
Load Characteristics 230 V, 60 Hz, 0.75 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 71 83 88 92 93 94 93
Efficiency 47 63.6 71 74.4 75.6 73.7 75.1
Speed 1783.6 1769.8 1755.4 1737.5 1719.4 1695.7 1727
Line amperes 1.93 2.42 2.98 3.66 4.36 5.23 4.08
CUSTOMER INFORMATION PACKET CHC445A - .75HP, 1700RPM, 1PH, 60HZ, 56YZ, 3428C, TEAO, F
Page 7 of 10
ABB Motors and Mechanical Inc.
Typical performance - not guaranteed values.
WINDING # 34WGR059
0.75 HP 1 PH 60 HZ 1700 RPM 230 V 3428C
TORQUES(LB-FT): PO=5.74 PU=1.56 LR=0.947 LRA=18.4
11/5/2020 ACPERF, record # 42884
TORQUE
RPM
WATTS
AMPS
EFF
PF
%EFF TORQUE
%PF RPM AMPSWATTS(LB-FT)
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
2.8
3.0
3.2
3.4
3.6
3.8
4.0
1,600
1,610
1,620
1,630
1,640
1,650
1,660
1,670
1,680
1,690
1,700
1,710
1,720
1,730
1,740
1,750
1,760
1,770
1,780
1,790
1,800
0
100
200
300
400
500
600
700
800
900
1,000
1,100
1,200
1,300
1,400
1,500
1,600
1,700
1,800
1,900
2,000
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
8.5
9.0
9.5
10.0
PERCENT OF RATED OUTPUT (0.75 HP)
0 25 50 75 100 125 150
