Product Information Packet: CHC364A - .5 AIR OVERHP,1100RPM,1PH,60HZ,48Z,3428C
Part Detail
Revision: F Status: PRD/A Change #: Proprietary: No
Type: AC Prod. Type: 3428C Elec. Spec: 34WGR040 CD Diagram: CD0804

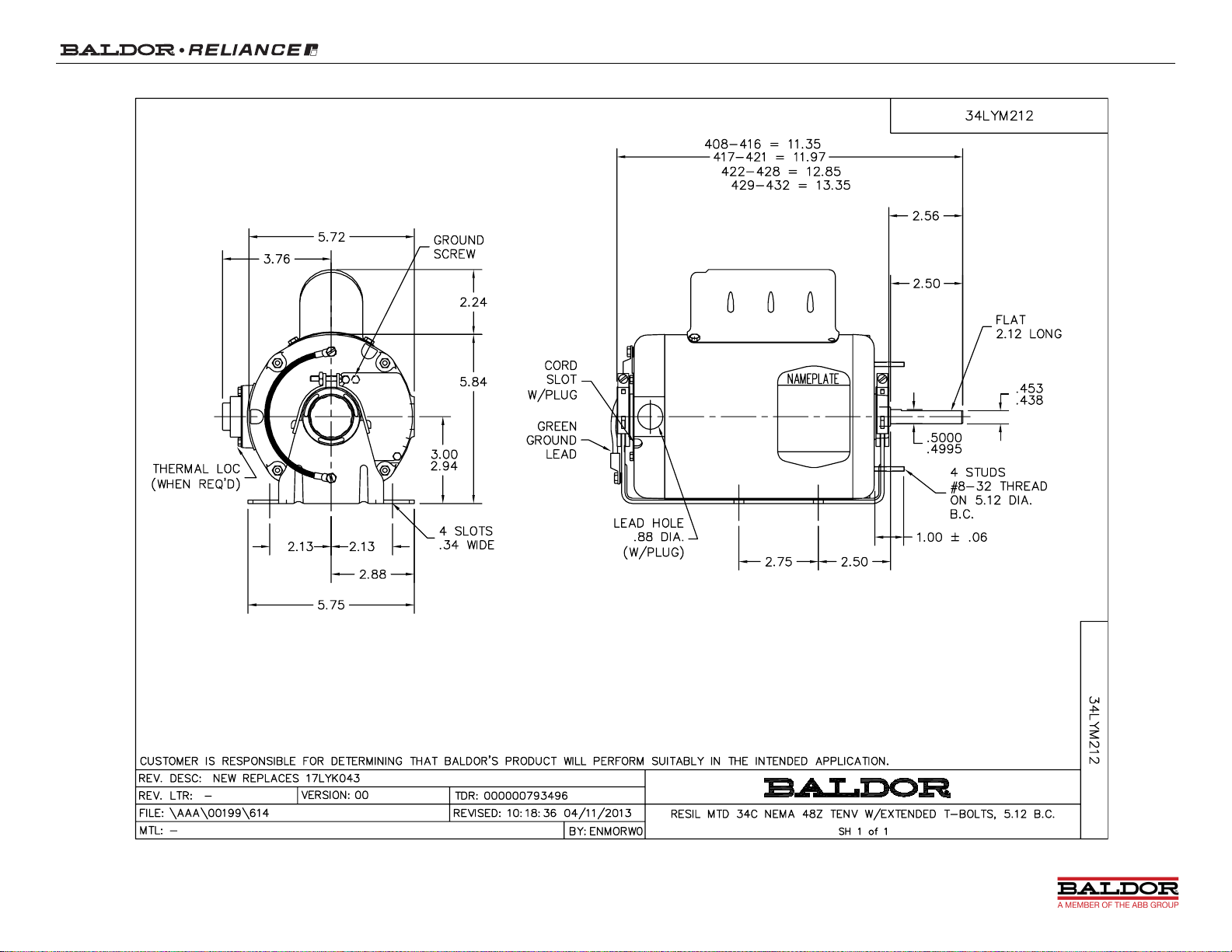

Enclosure: TEAO Mfg Plant: Mech. Spec: 34M212 Layout: 34LYM212
Frame: 48Z Mounting: F1 Poles: 06 Created Date: 05-23-2013
Base: RS Rotation: RS Insulation: B Eff. Date: 04-08-2016
Leads: 7#18 Replaced By:
Literature: Elec. Diagram:
Page 2 of 9
Product Information Packet: CHC364A - .5 AIR OVERHP,1100RPM,1PH,60HZ,48Z,3428C
Nameplate NP1257L
CAT.NO.
SPEC. 34M212R040G1
HP .5 AIR OVER
VOLTS 115/230
AMP 6.6/3.3
RPM 1100
FRAME 48Z HZ 60 PH 1
SER.F. 1.15 CODE E DES - CL B
NEMA-NOM-EFF 64 PF 75
RATING 40C AMB-CONT
CC USABLE AT 208V 3.5
DE 6203 ODE 6203
ENCL TEAO SN
Page 3 of 9
Product Information Packet: CHC364A - .5 AIR OVERHP,1100RPM,1PH,60HZ,48Z,3428C
AC Induction Motor Performance Data
Record # 42885 - Typical performance - not guaranteed values
Winding: 34WGR040-R001 Type: 3428C Enclosure: TEAO
Nameplate Data
230 V, 60 Hz:
High Voltage Connection
Rated Output (HP) .5 AIR OVER Full Load Torque 2.39 LB-FT
Volts 115/230 Start Configuration direct on line
Full Load Amps 6.6/3.3 Breakdown Torque 4.62 LB-FT
R.P.M. 1100 Pull-up Torque 0.763 LB-FT
Hz 60 Phase 1 Locked-rotor Torque 1.03 LB-FT
NEMA Design Code - KVA Code E Starting Current 10.3 A
Service Factor (S.F.) 1.15 No-load Current 2.35 A
NEMA Nom. Eff. 64 Power Factor 75 LinelineRes.@25ºC
5.7389ΩAPh
7.4049ΩBPh
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load
Load Characteristics 230 V, 60 Hz, 0.5 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 46 59 69 75 80 84 78
Efficiency 38.3 55.1 63.3 65.8 64.7 61.3 65.1
Speed 1179.4 1161.9 1140.5 1116.3 1088.3 1046.9 1100
Line amperes 2.43 2.63 2.91 3.33 3.87 4.51 3.65
Page 6 of 9
Product Information Packet: CHC364A - .5 AIR OVERHP,1100RPM,1PH,60HZ,48Z,3428C
Page 8 of 9
Product Information Packet: CHC364A - .5 AIR OVERHP,1100RPM,1PH,60HZ,48Z,3428C
Page 9 of 9
