Product Information Packet
CESSWDM3554T-5
1.5HP,1760RPM,3PH,60HZ,145TC,3528M,TEFC
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: CESSWDM3554T-5 - 1.5HP,1760RPM,3PH,60HZ,145TC,3528M,TEFC
Part Detail
Revision: S Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 35WGM811 CD Diagram: CD0006 Mfg Plant:
Mech. Spec: 35VV818 Layout: 35LYVV818 Poles: 04 Created Date: 06-22-2010
Base: RG Eff. Date: 08-12-2019 Leads: 3#18
Specs
Catalog Number: CESSWDM3554T-5
Enclosure: TEFC
Frame: 145TC
Frame Material: Stainless Steel
Output @ Frequency: 1.500 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 575.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 1.700 A @ 575.0 V
KVA Code: L
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Finish: UNPAINTED
Motor Lead Quantity/Wire Size: 3 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3528M
Mounting Arrangement: F1
Power Factor: 74
Product Family: Wash Down All Stainless Steel
Pulley End Bearing Type: Sealed Bearing
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Design Code: B
Shaft Rotation: Reversible
Page 2 of 10
Product Information Packet: CESSWDM3554T-5 - 1.5HP,1760RPM,3PH,60HZ,145TC,3528M,TEFC
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Inverter Ready
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: CESSWDM3554T-5 - 1.5HP,1760RPM,3PH,60HZ,145TC,3528M,TEFC
Nameplate NP1951A05
CAT.NO. CESSWDM3554T-5
SPEC. 35VV818M811G1
HP 1.5
VOLTS 575
AMP 1.7
RPM 1760
FRAME 145TC HZ 60 PH 3
SER.F. 1.15 CODE L DES B CLASS F
NEMA-NOM-EFF 87.5 PF 74
RATING 40C AMB-CONT
CC 010A USABLE AT 208V
DE 6205 ODE 6203
ENCL TEFC SN
Page 4 of 10
Product Information Packet: CESSWDM3554T-5 - 1.5HP,1760RPM,3PH,60HZ,145TC,3528M,TEFC
Parts List
Part Number Description Quantity
SA199206 SA 35VV818M811G1 1.000 EA
RA186544 RA 35VV818M811G1 1.000 EA
34FN3002B01 EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ 1.000 EA
NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA
35CB5001A17 KOBX KIT, (ALL STAINLESS) W/ .75 NPT 1.000 EA
HA5027A02 HA4054 T-DRAIN X2 BAGGED WITH LABEL 1.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
35FE1913A02 FR ENDPLATE ASSY 1.000 EA
HW4606A01 JM CLIPPER/SEAL (WDE-0667-1064-BH49) 1.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
35PE1914A02 PU EP ASSY. FOR LOCKED BRG 1.000 EA
HW4606A02 JM CLIPPER/SEAL (LWE-0938-1624-AL23) 1.000 EA
12XN1032S22 10-32 X 1 3/8 SLOT HEX, STAINLESS STEEL 2.000 EA
HA1049A01 DUBO LOK WASHER SIZE 10 (NYLON LOCK SEAL 2.000 EA
HA1049A01 DUBO LOK WASHER SIZE 10 (NYLON LOCK SEAL 4.000 EA
51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA
35FH4005A39 IEC FH NO GREASER DEBURR/CLEAN - SS 1.000 EA
10XN1032S06 HEX HD CAP SCREW, SS 3.000 EA
HW2502D13 SS KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
MJ5001A02 732 CL SEALANT 3 OZ DIXIE BEARING 289100 0.001 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
Page 5 of 10
Product Information Packet: CESSWDM3554T-5 - 1.5HP,1760RPM,3PH,60HZ,145TC,3528M,TEFC
Parts List (continued)
Part Number Description Quantity
HA3100S14 THRUBOLT 10X32 X 8.875 302 OR 303 SS 4.000 EA
36PA1000 PKG GRP, PRINT PK1016A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 10
Product Information Packet: CESSWDM3554T-5 - 1.5HP,1760RPM,3PH,60HZ,145TC,3528M,TEFC
AC Induction Motor Performance Data
Record # 31562 - Typical performance - not guaranteed values
Winding: 35WGM811-R001 Type: 3528M Enclosure: TEFC
Nameplate Data
575 V, 60 Hz:
Single Voltage Motor
Rated Output (HP) 1.5 Full Load Torque 4.46 LB-FT
Volts 575 Start Configuration direct on line
Full Load Amps 1.7 Breakdown Torque 18.7 LB-FT
R.P.M. 1760 Pull-up Torque 12.3 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 13.3 LB-FT
NEMA Design Code B KVA Code L Starting Current 14.9 A
Service Factor (S.F.) 1.15 No-load Current 1.02 A
NEMA Nom. Eff. 87.5 Power Factor 74 LinelineRes.@25ºC 15.2Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 54°C
S.F. Amps Temp. Rise @ S.F. Load 65°C
Locked-rotor Power Factor 48
Rotor inertia 0.165 LB-FT2
Load Characteristics 575 V, 60 Hz, 1.5 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 33 52 66 74 80 83 78
Efficiency 77.6 85.9 87.6 87.7 87.3 86 87.5
Speed 1791 1781 1770 1759 1746 1733 1751
Line amperes 1.08 1.23 1.44 1.72 2.01 2.35 1.89
Page 7 of 10
Product Information Packet: CESSWDM3554T-5 - 1.5HP,1760RPM,3PH,60HZ,145TC,3528M,TEFC

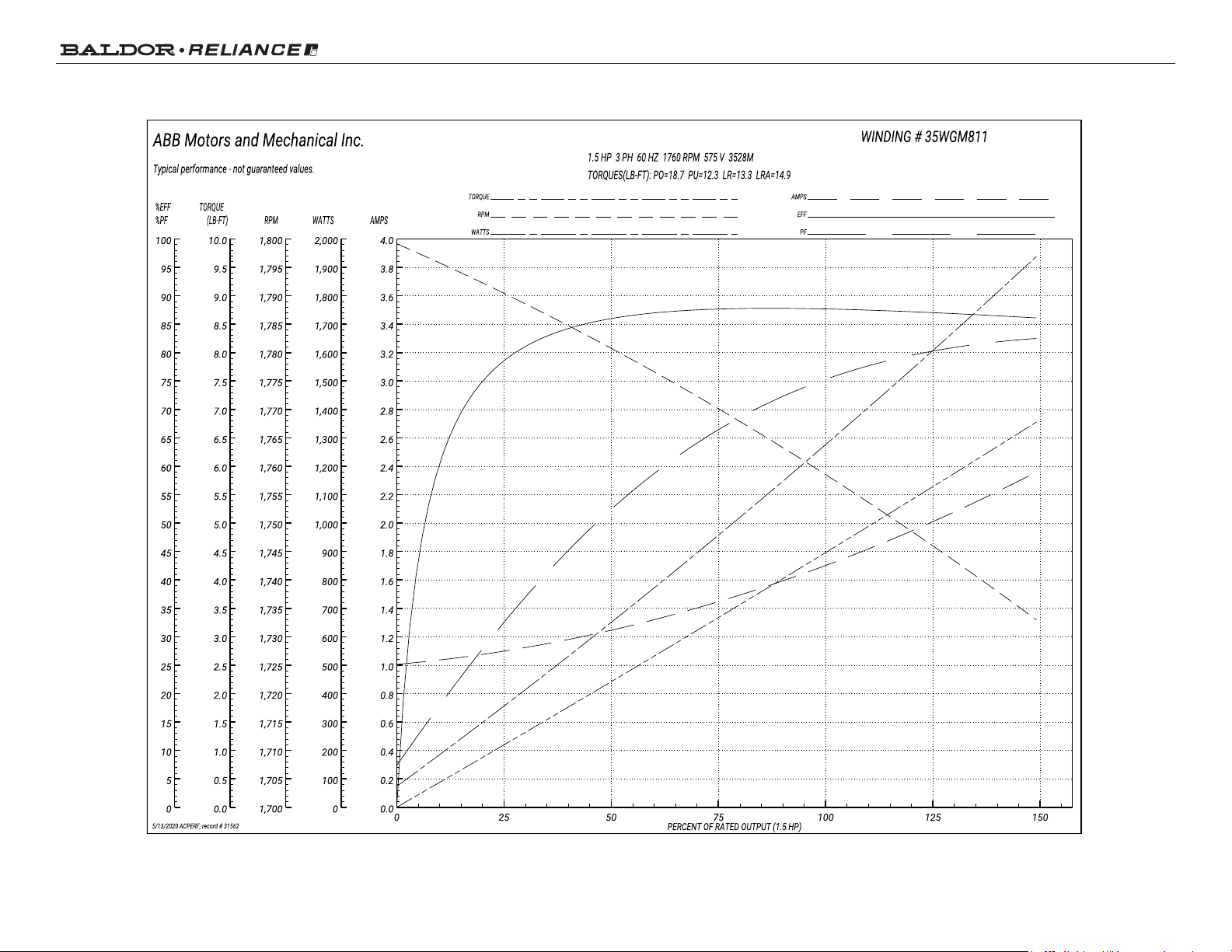

Performance Graph at 575V, 60Hz, 1.5HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: CESSWDM3554T-5 - 1.5HP,1760RPM,3PH,60HZ,145TC,3528M,TEFC
4 500
4 497
2 12
13
510-528 = 13 41
529-535 = 14 28
536-546 = 15 66
7 19
4 00 2 75
5 00 50
5 94
8750
8745
13
6 50
3 88
LASER ETCHED
WARNING LABEL
LASER ETCHED
NAMEPLATE
6 HOLES
Ø 38
4 HOLES
3 W/PLUGS
(EACH END)
LEAD HOLE
75 N P T
19 KEY
1 38 LONG
2 75 2 75
4 68 3 25
6 50
3 50
3 44
6 83
5 77
45° 45°
6 62
4 HOLES
38-16 TAP ON
Ø5 88 B C
TOP OF NP
& WARNING
LABEL
PULLEY END DETAIL
JM CLIPPER
SEALS
(EACH END)
FRONT END DETAIL
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
35LYVV818
B
STD HORZ 143-5TC TEFC 35M WD4 W/ .75 NPT LEAD HOLE
SH 1 of 1
REV. DESC
REV
BY
REVISED
MODEL NO.
VERSION
TDR
REF
35LYVV818
LOADING OF SWD DWG FOR 2D TO 3D CONVERSION - PKG13
ENALEM0
B
01 02 27 12/19/2018
-
000001094435
02
35LYVV818
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
BALDOR - RELIANCE
®
Page 9 of 10
