Product Information Packet
CEM7071T
1.5//2HP,2890//3490RPM,3PH,50//60HZ,145T
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: CEM7071T - 1.5//2HP,2890//3490RPM,3PH,50//60HZ,145T
Part Detail
Revision: N Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 35WGM774 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 35E377 Layout: 35LYE377 Poles: 02 Created Date: 07-26-2010
Base: RG Eff. Date: 06-11-2018 Leads: 9#18
Specs
Catalog Number: CEM7071T
Enclosure: XPFC
Frame: 145TC
Frame Material: Steel
Output @ Frequency: 1.500 HP @ 50 HZ
2.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 230.0 V @ 60 HZ
190.0 V @ 50 HZ
460.0 V @ 60 HZ
380.0 V @ 50 HZ
XP Class and Group: CLI GP D; CLII GP F,G
XP Division: Division I
Agency Approvals: CSA
CSA EEV
UR
Auxillary Box: No Auxillary Box
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: B
Inverter Code: Not Inverter
KVA Code: M
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: X3526M
Mounting Arrangement: F1
Power Factor: 88
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Auxillary Box Lead Termination: None
Rodent Screen: None
Page 2 of 12
Product Information Packet: CEM7071T - 1.5//2HP,2890//3490RPM,3PH,50//60HZ,145T
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Current @ Voltage: 5.300 A @ 208.0 V
5.000 A @ 230.0 V
4.800 A @ 190.0 V
2.500 A @ 460.0 V
2.400 A @ 380.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
RoHS Status: ROHS COMPLIANT
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: Normally Closed Thermostat
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
XP Temp Code: T3C
Page 3 of 12
Product Information Packet: CEM7071T - 1.5//2HP,2890//3490RPM,3PH,50//60HZ,145T
Nameplate NP1426XPSLEV
NO. CC 010A
SER.
SPEC. 35E377M774G2
CAT.NO. CEM7071T
HP 1.5//2 T. CODE T3C
VOLTS 190/380//230/460
AMPS 4.8/2.4//5/2.5
RPM 2890//3490
HZ 50//60 PH 3 CL B
SER.F. 1.00 DES B CODE M
RATING 40C AMB-CONT
FRAME 145TC NEMA-NOM-EFF 85.5
USABLE AT 208V 5.3 PF 88
BLANK
Page 4 of 12
Product Information Packet: CEM7071T - 1.5//2HP,2890//3490RPM,3PH,50//60HZ,145T
Parts List
Part Number Description Quantity
SA200338 SA 35E377M774G2 1.000 EA
RA187652 RA 35E377M774G2 1.000 EA
35CB3001A02SP EXPL PROOF CONDUIT BOX, 3/4"PIPE TAP LEA 1.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
35EP3700A01SP FR ENDPLATE, XPFC 1.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
35EP3702A01SP PU EP-205 BRG-35X-56C-143-5TC 1.000 EA
84XN1032J20 SCREW, SOC 10-32 X 1 1/4"BMH4602 2.000 EA
HA3013A01 1/2-20X5/8 SPL.HX BOLT 2.000 EA
HW3021C06 3/32 DI X .625 PIN (F/S) 2.000 EA
XY3118A12 5/16-18 HEX NUT DIRECTIONAL SERRATION 4.000 EA
35FH4005A01SP IEC FH NO GREASER W/PRIMED 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
35CB3500A01SP CONDUIT BOX LID, MACH 1.000 EA
51XN2520A16 SCREW, HEX WS SLT, ZN, 1/4-20 X 1.00 4.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 6.000 EA
NP0018F ALUM UL XP CONDUIT BOX NAMEPLATE 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
35FN3002A05SP EXFN, PLASTIC, 6.376 OD, .638 ID 1.000 EA
51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA
MG1025G29 WILKOFAST, 789.229, DARK CHARCOAL GRAY 0.014 GA
Page 5 of 12
Product Information Packet: CEM7071T - 1.5//2HP,2890//3490RPM,3PH,50//60HZ,145T
Parts List (continued)
Part Number Description Quantity
HA3104A08 THRUBOLT-5/16-18X9.375 X X 4.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
LB1119N WARNING LABEL 1.000 EA
LC0145B01 CONNECTION LABEL 1.000 EA
NP1426XPSLEV SS XP UL CSA-EEV CC CL-I GP-D 1.000 EA
G7PA1000 PKG GRP, PRINT PK1034A06 1.000 EA
Page 6 of 12
Product Information Packet: CEM7071T - 1.5//2HP,2890//3490RPM,3PH,50//60HZ,145T
AC Induction Motor Performance Data
Record # 31998 - Typical performance - not guaranteed values
Winding: 35WGM774-R003 Type: 3526M Enclosure: XPFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 1.5//2 Full Load Torque 2.98 LB-FT
Volts 190/380//230/460 Start Configuration direct on line
Full Load Amps 4.8/2.4//5/2.5 Breakdown Torque 14.2 LB-FT
R.P.M. 2890//3490 Pull-up Torque 6.33 LB-FT
Hz 50//60 Phase 3 Locked-rotor Torque 11.2 LB-FT
NEMA Design Code B KVA Code M Starting Current 25.9 A
Service Factor (S.F.) 1 No-load Current 0.912 A
NEMA Nom. Eff. 85.5 Power Factor 88 LinelineRes.@25ºC 6.9119Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 44°C
Locked-rotor Power Factor 50
Rotor inertia 0.0719 LB-FT2
Load Characteristics 460 V, 60 Hz, 2 HP
% of Rated Load 25 50 75 100 125 150
Power Factor 55 75 84 88 90 91
Efficiency 74.3 83.5 85.9 86.4 85.9 84.8
Speed 3571.7 3546.5 3520.2 3492.1 3460.7 3425.5
Line amperes 1.1 1.47 1.93 2.44 3 3.61
Page 7 of 12
Product Information Packet: CEM7071T - 1.5//2HP,2890//3490RPM,3PH,50//60HZ,145T

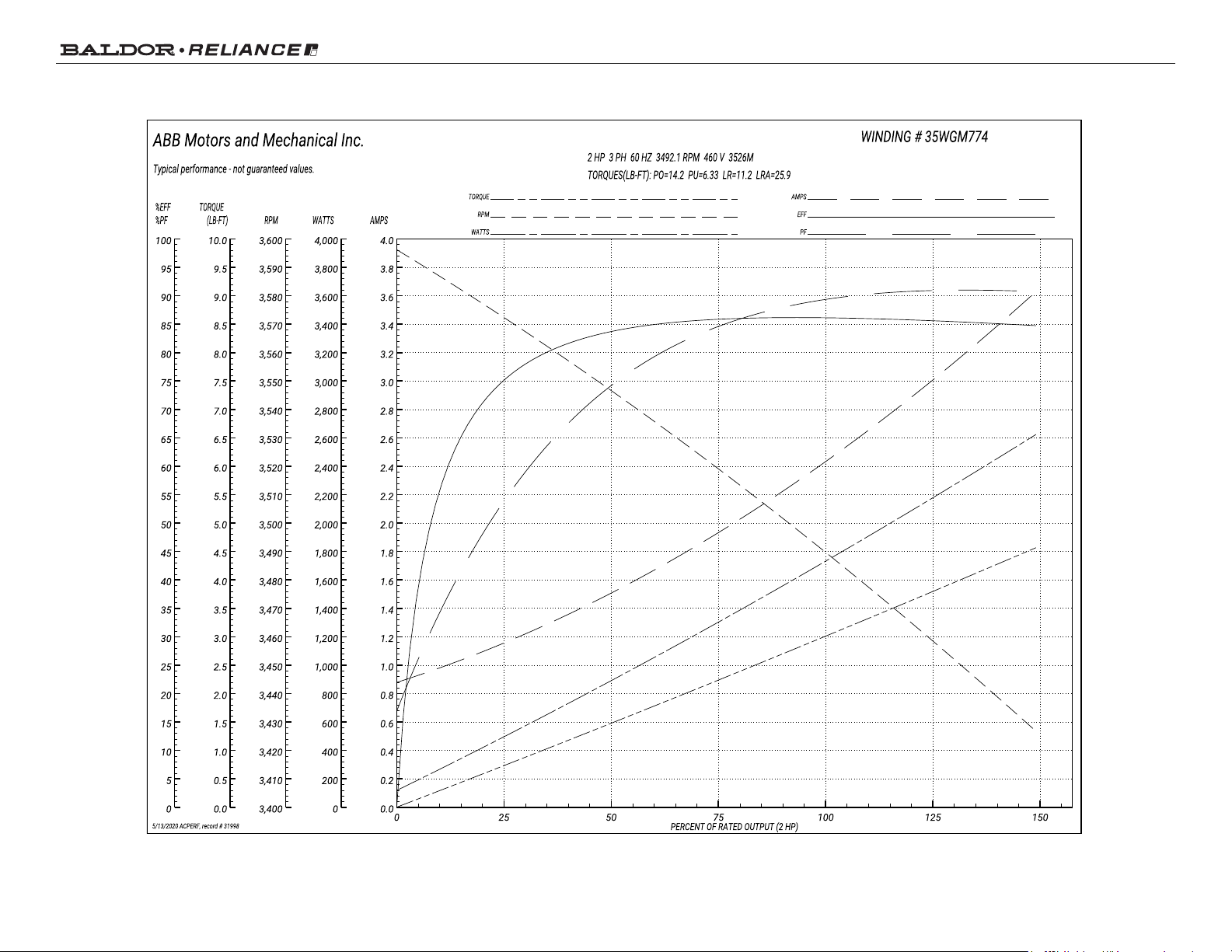

Performance Graph at 460V, 60Hz, 2.0HP Typical performance - Not guaranteed values
Page 8 of 12
Product Information Packet: CEM7071T - 1.5//2HP,2890//3490RPM,3PH,50//60HZ,145T
AC Induction Motor Performance Data
Record # 31999 - Typical performance - not guaranteed values
Winding: 35WGM774-R003 Type: 3526M Enclosure: XPFC
Nameplate Data
380 V, 50 Hz:
High Voltage Connection
Rated Output (HP) 1.5//2 Full Load Torque 2.69 LB-FT
Volts 190/380//230/460 Start Configuration direct on line
Full Load Amps 4.8/2.4//5/2.5 Breakdown Torque 13.2 LB-FT
R.P.M. 2890//3490 Pull-up Torque 6.62 LB-FT
Hz 50//60 Phase 3 Locked-rotor Torque 11.7 LB-FT
NEMA Design Code B KVA Code M Starting Current 24.4 A
Service Factor (S.F.) 1 No-load Current 0.893 A
NEMA Nom. Eff. 85.5 Power Factor 88 LinelineRes.@25ºC 6.86Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 38°C
Locked-rotor Power Factor 56
Rotor inertia 0.0719 LB-FT2
Load Characteristics 380 V, 50 Hz, 1.5 HP
% of Rated Load 25 50 75 100 125 150
Power Factor 52 73 82 87 90 91
Efficiency 73.5 83.3 85.3 85.9 85.3 83.7
Speed 2974 2951 2927 2901 2872 2840
Line amperes 1.05 1.38 1.79 2.25 2.75 3.31
Page 9 of 12
Product Information Packet: CEM7071T - 1.5//2HP,2890//3490RPM,3PH,50//60HZ,145T

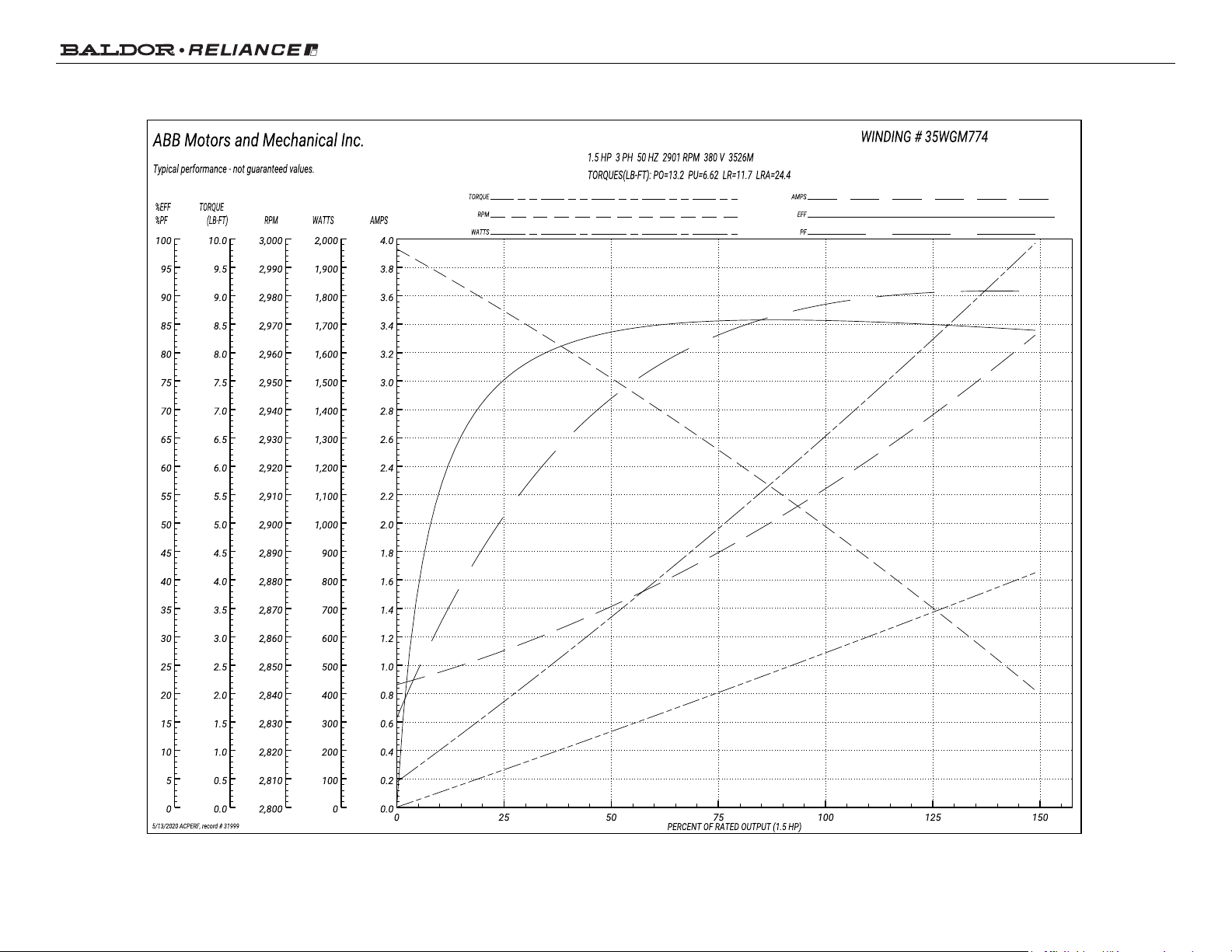

Performance Graph at 380V, 50Hz, 1.5HP Typical performance - Not guaranteed values
Page 10 of 12
Product Information Packet: CEM7071T - 1.5//2HP,2890//3490RPM,3PH,50//60HZ,145T
7 19
510-520 = 14 34
521-528 = 15 21
529-535 = 16 09
536-546 = 17 46
6 45
4 500
4 497
8750
8745
2 12
12
4 72 4 00
5 00
5 94
50
13
2 25
2 75
19 KEY
1 38 LONG
45° 45°
6 92
6 71
5 33
2 75
2 75
3 25
6 50
3 50
3 44
7 10
4 HOLES
38-16 TAP
56 DEEP
ON 5 88 DIA B C
LEAD HOLE
75 N P T
6 HOLES
34 WIDE
38
MIN
08
MIN
1 00
MIN
50
006
004
0015 MAX
CLEARANCE
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
35LYE377
B
STD HORZ NEMA 143-5TC XPFC X35M CL-I GP-D, CL-II GP-F&G
REV. DESC
REV
BY
REVISED
MODEL NO.
VERSION
TDR
REF
35LYE377
LOAD TO SOLIDWORKS
USBUFRA
M
02 24 36 08/29/2019
-
000001117187
02
35LYE377
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
BALDOR - RELIANCE
®
Page 11 of 12
