Baldor CEM4108T Product Information Sheet

Download

Product Information Packet

CEM4108T

30HP,3525RPM,3PH,60HZ,286TSC,1048M,TEFC

Product Information Packet: CEM4108T - 30HP,3525RPM,3PH,60HZ,286TSC,1048M,TEFC

Part Detail

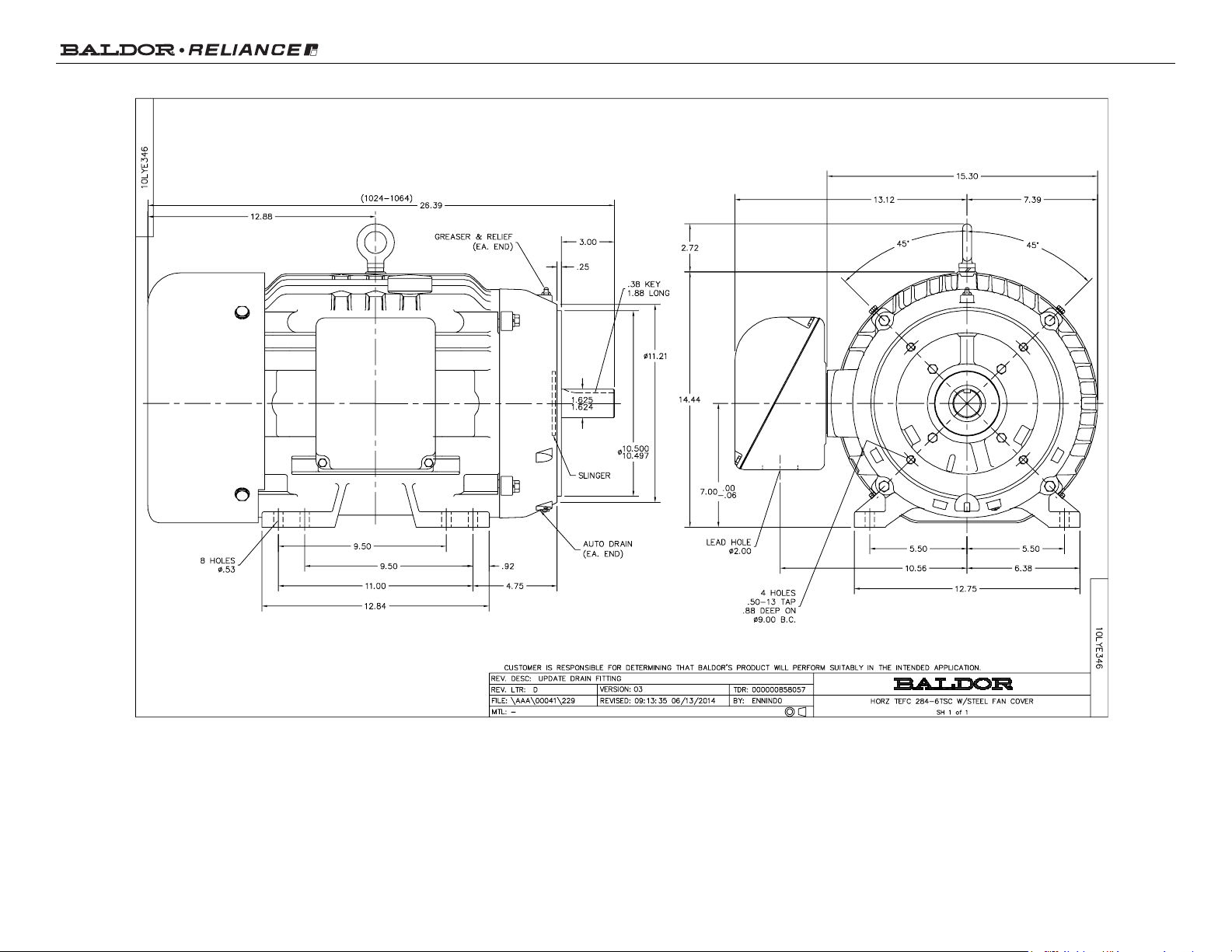

Revision: D Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 10WGZ501 CD Diagram: CD0180 Mfg Plant: Mech. Spec: 10E346 Layout: 10LYE346 Poles: 02 Created Date: 08-31-2017 Base: RG Eff. Date: 09-16-2019 Leads: 9#10

Specs

Catalog Number: CEM4108T Enclosure: TEFC Frame: 286TSC Frame Material: Iron Output @ Frequency: 30.000 HP @ 60 HZ Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ Voltage @ Frequency: 460.0 V @ 60 HZ

230.0 V @ 60 HZ XP Class and Group: None XP Division: Not Applicable Agency Approvals: CSA

CSA EEV

UR Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F)

Insulation Class: F Inverter Code: Inverter Duty KVA Code: G Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 10 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 1048M Mounting Arrangement: F1 Power Factor: 90 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: C-Face Pulley Shaft Indicator: Standard Rodent Screen: None Shaft Extension Location: Pulley End

Blower: None

Shaft Ground Indicator: No Shaft Grounding

Page 2 of 12

Product Information Packet: CEM4108T - 30HP,3525RPM,3PH,60HZ,286TSC,1048M,TEFC

Current @ Voltage: 34.000 A @ 460.0 V

68.000 A @ 230.0 V Design Code: B Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater

Shaft Rotation: Reversible Shaft Slinger Indicator: Shaft Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None

Page 3 of 12

Product Information Packet: CEM4108T - 30HP,3525RPM,3PH,60HZ,286TSC,1048M,TEFC

Nameplate NP3443LUA

CAT.NO. CEM4108T CUST. P/N ENCL TEFC

SPEC. 10E346Z501G1 CC 010A FRAME 286TSC SER.NO.

HP 30 CLASS F HZ 60

R.P.M. 3525 PH. 3 DES. B

VOLTS 230/460 CODE G ODE BRG 6309 DE BRG 6311

AMPS 68/34 USABLE AT 208V

RATING 40C AMB-CONT NEMA NOM. EFF. 91.7 GREASE POLYREX EM

P.F. 90 SER.F. 1.15 CT6-60H(10:1)VT3-60H(20:1

USABLE AT 50Hz 30HP 190/380V 82/41A SF1.0

VOLTS AMPS MAX. SPACE HEATER TEMP.

Page 4 of 12

Product Information Packet: CEM4108T - 30HP,3525RPM,3PH,60HZ,286TSC,1048M,TEFC

Parts List

Part Number Description Quantity SA344098 SA 10E346Z501G1 1.000 EA RA332574 RA 10E346Z501G1 1.000 EA 37FN3002B03 EXFN, PLASTIC, 7.50 OD, 1.690 ID 1.000 EA 10CB3000SP KOBX, CAST W/2.00 LEAD HOLE 1.000 EA 09GS1000SP GASKET-CONDUIT BOX, 1/16 THICK LEXIDE 1.000 EA 10XN3118K12 5/16-18 X .75 GRADE 5, ZINC PLATED 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA 10XN3816K32 BOLT, 3/8-16X2 HH YZ(5) 4.000 EA WD1000B25 GND LUG, BURNDY L125HP OR T&B L125HP-BB 1.000 EA 19XW3118G08 .31-18X.50,HEX WSHR HD,TAPTITE 2,GREEN 1.000 EA 10EP1106A01 FR ENDPLATE, MACH 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA 10XN3816K28 3/8-16 X 1.75 HEX HD CAP SCREW, GRADE 5 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA HW5100A11 W3917-042 WVY WSHR (WB) 1.000 EA 10EP1305A01 PU ENDPLATE, MACH 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA 10XN2520K32 1/4-20 X 2.00 HX HD SCRW GRADE 5, ZINC P 2.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 2.000 EA 10XN3118K40 5/16-18 X 2.50" HEX HD, GRADE 5 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA 10FH4000 310 FAN HOUSING STAMPED 1.000 EA 51XF2520A08 SCREW, HEX SER SLT HD, ZN 1/4-20 X .50 L 4.000 EA

Page 5 of 12

Product Information Packet: CEM4108T - 30HP,3525RPM,3PH,60HZ,286TSC,1048M,TEFC

Parts List (continued)

Part Number Description Quantity HW4600B40 V-RING SLINGER 2.000 X 2.680 X .28 VITON 1.000 EA 10CB3500SP CONDUIT BOX LID, CAST 1.000 EA 51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 4.000 EA HW2501G17 KEY, 3/8 SQ X 1.875 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA HW4500A21 1618BALEMITE FITTING 825 UNIVERSAL 1.000 EA HA4017A01 1/8 X 4 GREASE EXT (F/S) 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.130 LB HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA 51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA 10GS1000SP GASKET, CONDUIT BOX LID 1.000 EA MG1000Y03 MUNSELL 2.53Y 6.70/ 4.60, GLOSS 20, 0.125 GA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 4.000 EA LB1119N WARNING LABEL 1.000 EA LC0181 CONNECTION LABEL 1.000 EA NP3443LUA SS SUPER-E UL CSA-EEV PREM CC 1.000 EA 10PA1000 PACKAGING GROUP COMBINED PRINT PK1023A06 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA FE-0000022 ZRTG FE ASSEMBLY 1.000 EA

Page 6 of 12

Product Information Packet: CEM4108T - 30HP,3525RPM,3PH,60HZ,286TSC,1048M,TEFC

AC Induction Motor Performance Data

Record # 55452 - Typical performance - not guaranteed values

Winding: 10WGZ501-R001 Type: 1048M Enclosure: TEFC

Nameplate Data

460 V, 60 Hz:

High Voltage Connection Rated Output (HP) 30 Full Load Torque 44.8 LB-FT Volts 230/460 Start Configuration direct on line Full Load Amps 68/34 Breakdown Torque 135 LB-FT R.P.M. 3520 Pull-up Torque 47 LB-FT Hz 60 Phase 3 Locked-rotor Torque 65.2 LB-FT NEMA Design Code B KVA Code G Starting Current 212 A Service Factor (S.F.) 1.15 No-load Current 8.74 A NEMA Nom. Eff. 91.7 Power Factor 90 LinelineRes.@25ºC 0.24052Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 69°C S.F. Amps Temp. Rise @ S.F. Load 85°C

Locked-rotor Power Factor 23.2

Load Characteristics 460 V, 60 Hz, 30 HP

% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 67 83 88 90 90 90 90 Efficiency 87 91.3 92 91.7 90.9 89.7 91.2 Speed 3583 3565.7 3547.3 3526.7 3504.4 3479.1 3513 Line amperes 12.4 18.7 26.1 34.1 43.1 52.5 39.5
