Product Information Packet
CEM3764T
3HP,1165RPM,3PH,60HZ,213TC,0736M,TEFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: CEM3764T - 3HP,1165RPM,3PH,60HZ,213TC,0736M,TEFC,F1
Part Detail
Revision: N Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 07WGX970 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 07H058 Layout: 07LYH058 Poles: 06 Created Date: 06-14-2010
Base: RG Eff. Date: 07-11-2019 Leads: 9#14
Specs
Catalog Number: CEM3764T
Enclosure: TEFC
Frame: 213TC
Frame Material: Iron
Output @ Frequency: 3.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1200 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR
CSA EEV
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Insulation Class: F
Inverter Code: Inverter Ready
KVA Code: K
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 14 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 0736M
Mounting Arrangement: F1
Power Factor: 71
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Rodent Screen: None
RoHS Status: ROHS COMPLIANT
Blower: None
Shaft Extension Location: Pulley End
Page 2 of 10
Product Information Packet: CEM3764T - 3HP,1165RPM,3PH,60HZ,213TC,0736M,TEFC,F1
Current @ Voltage: 4.500 A @ 460.0 V
9.000 A @ 208.0 V
9.000 A @ 230.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: CEM3764T - 3HP,1165RPM,3PH,60HZ,213TC,0736M,TEFC,F1
Nameplate NP3441LUA
CAT.NO. CEM3764T
SPEC 07H058X970G1
HP 3
VOLTS 230/460
AMPS 9/4.5
RPM 1165
FRAME 213TC HZ 60 PH 3
SF 1.15 CODE K DES B CLASS F
NEMA NOM. EFF 89.5 PF 71
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 9
ENCL TEFC SER
DE 6307 ODE 6206
VPWM INVERTER READY
CT6-60H(10:1)VT3-60H(20:1
50Hz 3HP 190/380V 10.4/5.2A SF1.0
Page 4 of 10
Product Information Packet: CEM3764T - 3HP,1165RPM,3PH,60HZ,213TC,0736M,TEFC,F1
Parts List
Part Number Description Quantity
SA199562 SA 07H058X970G1 1.000 EA
RA186894 RA 07H058X970G1 1.000 EA
37FN3002C01 EXFN, PLASTIC, 6.00 OD, 1.155 ID 1.000 EA
HW3201A05 3/8-16 EYEBOLT 1.000 EA
09CB3002SP CB W/1.38 LEAD HOLE FOR 37, 39, 307 & 30 1.000 EA
09GS1000SP GASKET-CONDUIT BOX, 1/16 THICK LEXIDE 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA
59XW2520G07 .25-20X.44,HEX SER WSHR,TAPTITE 2,GREEN 1.000 EA
37EP1100A41 FR ENDPLATE ASSEMBLY FOR ROUTING 1.000 EA
HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A06 W2420-025 WVY WSHR (WB) 1.000 EA
37PE1300A10 PUEP ASSEMBLY FOR ROUTING 1.000 EA
HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
10XN2520A30 HEX HD CAP SCREW-STD THD-.25 X 20 THD PE 4.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA
XY3118A12 5/16-18 HEX NUT DIRECTIONAL SERRATION 4.000 EA
51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA
07FH4007SP PRIMED 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
09CB3501SP CONDUIT BOX LID FOR 09CB3001 & 09CB3002 1.000 EA
09GS1013SP 09 GS FOR 09CB3501 LID - LEXIDE 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA
Page 5 of 10
Product Information Packet: CEM3764T - 3HP,1165RPM,3PH,60HZ,213TC,0736M,TEFC,F1
Parts List (continued)
Part Number Description Quantity
HW2501F21 KEY, 5/16 SQ X 2.375 1.000 EA
HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
HA3104A32 THRUBOLT- 5/16-18 X12.750 4.000 EA
MG1000Y03 MUNSELL 2.53Y 6.70/ 4.60, GLOSS 20, 0.036 GA
LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA
NP3441LUA ALUM SUPER-E VPWM INV READY UL CSA-EEV C 1.000 EA
07PA1011 PKG GRP, 07 CAST IRON PK1181 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 10
Product Information Packet: CEM3764T - 3HP,1165RPM,3PH,60HZ,213TC,0736M,TEFC,F1
AC Induction Motor Performance Data
Record # 53091 - Typical performance - not guaranteed values
Winding: 07WGX970-R023 Type: 0736M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 3 Full Load Torque 13.61 LB-FT
Volts 230/460 Start Configuration direct on line
Full Load Amps 9/4.5 Breakdown Torque 51.71 LB-FT
R.P.M. 1165 Pull-up Torque 25.77 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 31.08 LB-FT
NEMA Design Code B KVA Code K Starting Current 32.19 A
Service Factor (S.F.) 1.15 No-load Current 2.26 A
NEMA Nom. Eff. 89.5 Power Factor 71 LinelineRes.@25ºC 3Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 34°C
S.F. Amps Temp. Rise @ S.F. Load 41°C
Locked-rotor Power Factor 23.3
Rotor inertia 0.895 LB-FT2
Load Characteristics 460 V, 60 Hz, 3 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 35 54 65 72 75 76 73
Efficiency 82.8 88.3 89.7 89.6 89 87.3 89.4
Speed 1192 1184 1176 1166 1156 1143 1161
Line amperes 2.48 2.96 3.62 4.41 5.29 6.33 4.99
Page 7 of 10
Product Information Packet: CEM3764T - 3HP,1165RPM,3PH,60HZ,213TC,0736M,TEFC,F1

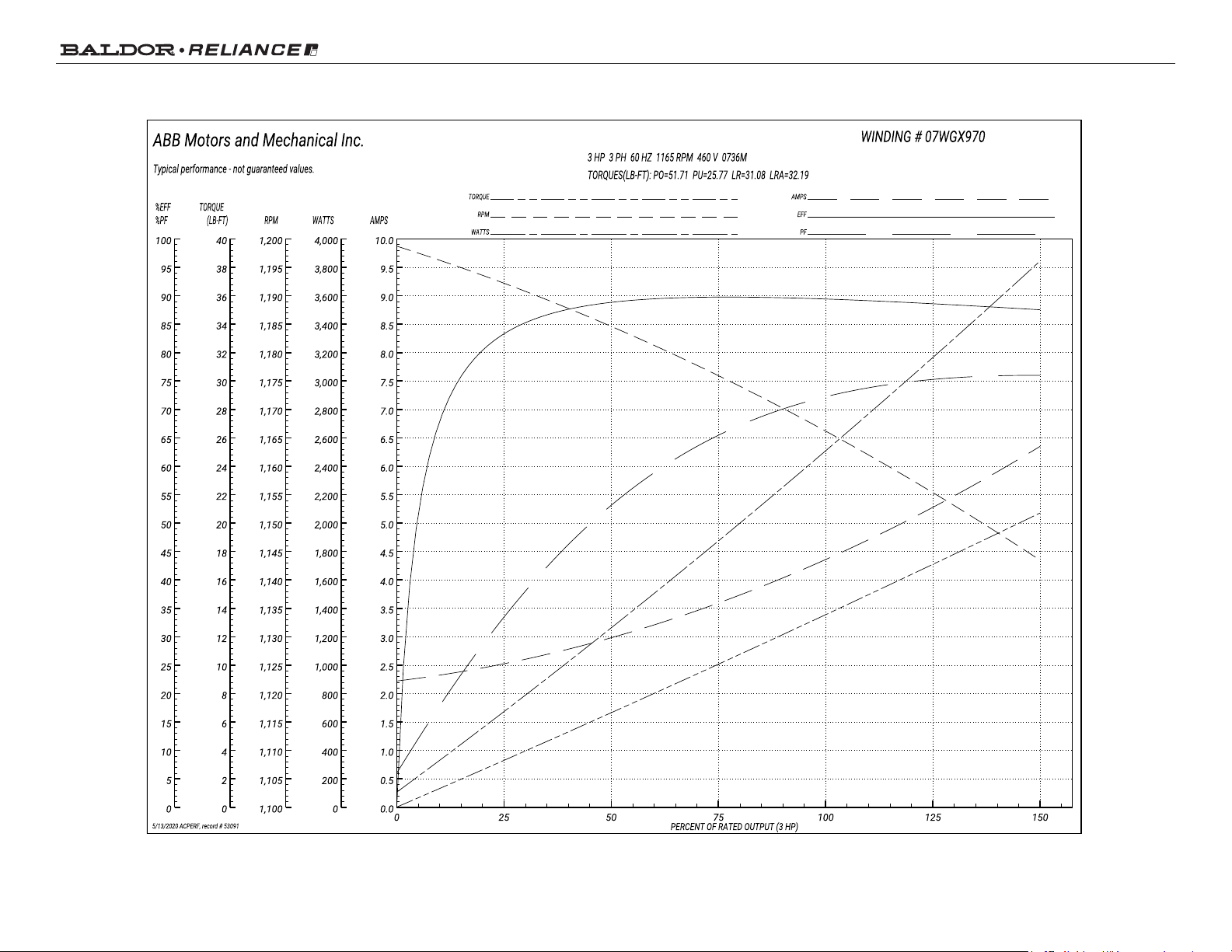

Performance Graph at 460V, 60Hz, 3.0HP Typical performance - Not guaranteed values
Page 8 of 10

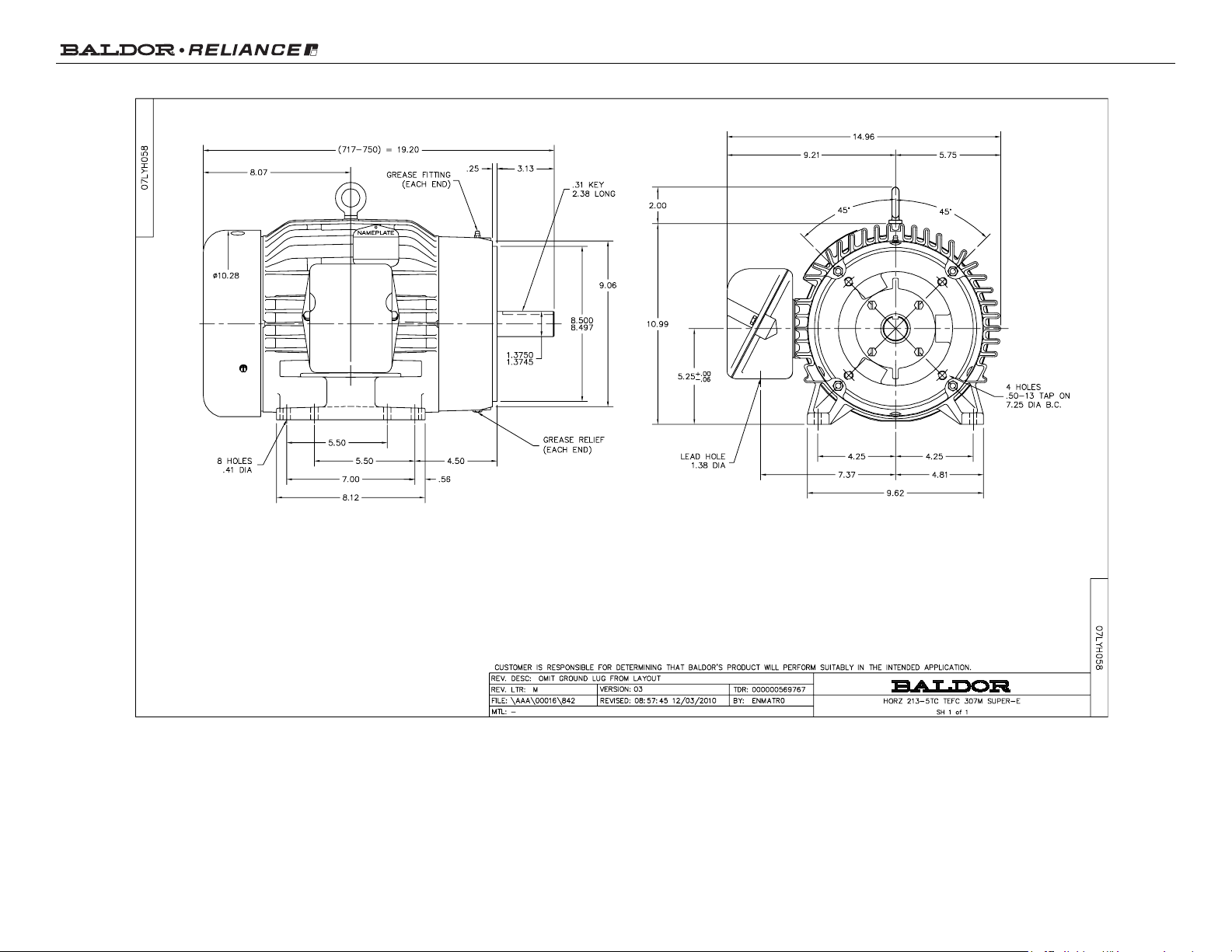

Product Information Packet: CEM3764T - 3HP,1165RPM,3PH,60HZ,213TC,0736M,TEFC,F1
Page 9 of 10
Product Information Packet: CEM3764T - 3HP,1165RPM,3PH,60HZ,213TC,0736M,TEFC,F1
Page 10 of 10
