Baldor CEM3713T-5 Product Information Sheet
Product Information Packet
CEM3713T-5
15HP,3500RPM,3PH,60HZ,215TC,3752M,TEFC,F
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: CEM3713T-5 - 15HP,3500RPM,3PH,60HZ,215TC,3752M,TEFC,F
Part Detail
Revision: F Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 37WGR248 CD Diagram: CD0006 Mfg Plant:

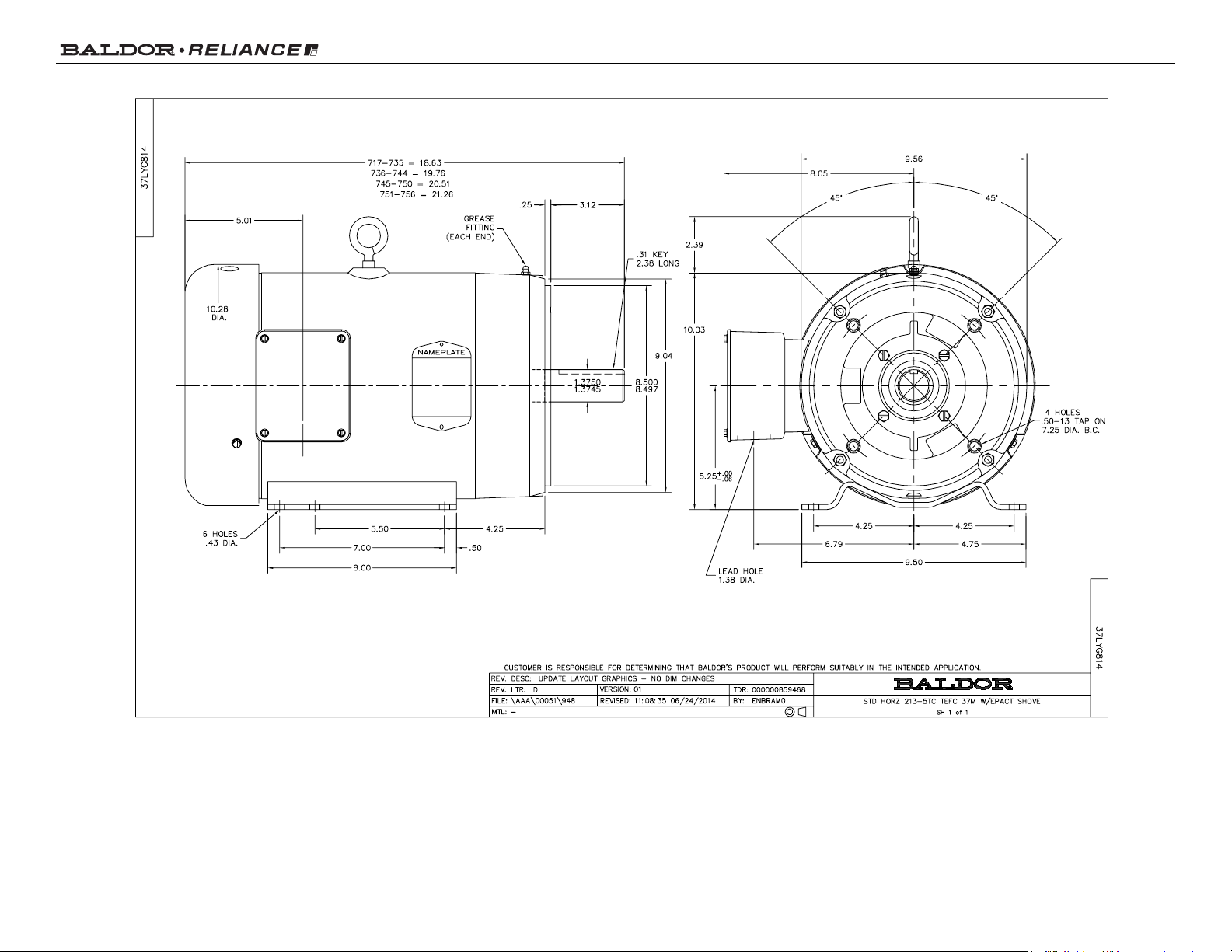

Mech. Spec: 37G814 Layout: 37LYG814 Poles: 02 Created Date: 03-01-2012
Base: RG Eff. Date: 07-03-2019 Leads: 3#14
Specs
Catalog Number: CEM3713T-5
Enclosure: TEFC
Frame: 215TC
Frame Material: Steel
Output @ Frequency: 15.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 575.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: CSA
CSA EEV
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Inverter Code: Inverter Ready
KVA Code: J
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 3 @ 14 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3752M
Mounting Arrangement: F1
Power Factor: 89
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Rodent Screen: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Current @ Voltage: 13.600 A @ 575.0 V
Shaft Rotation: Reversible
Page 2 of 10
Product Information Packet: CEM3713T-5 - 15HP,3500RPM,3PH,60HZ,215TC,3752M,TEFC,F
Design Code: A
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: F
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
