Product Information Packet
CEM3611T-5
3HP,1760RPM,3PH,60HZ,182TC,3632M,TEFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: CEM3611T-5 - 3HP,1760RPM,3PH,60HZ,182TC,3632M,TEFC,F1
Part Detail
Revision: F Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 36WGS582 CD Diagram: CD0006 Mfg Plant:
Mech. Spec: 36A002 Layout: 36LYA002 Poles: 04 Created Date: 09-24-2010
Base: RG Eff. Date: 05-10-2016 Leads: 3#16
Specs
Catalog Number: CEM3611T-5
Enclosure: TEFC
Frame: 182TC
Frame Material: Steel
Output @ Frequency: 3.000 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 575.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: CSA
CSA EEV
UR
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Blower: None
Inverter Code: Inverter Ready
KVA Code: K
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 3 @ 16 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3632M
Mounting Arrangement: F1
Power Factor: 75
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Rodent Screen: None
RoHS Status: ROHS COMPLIANT
Shaft Extension Location: Pulley End
Current @ Voltage: 3.300 A @ 575.0 V
Shaft Ground Indicator: No Shaft Grounding
Page 2 of 10
Product Information Packet: CEM3611T-5 - 3HP,1760RPM,3PH,60HZ,182TC,3632M,TEFC,F1
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Insulation Class: F
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: CEM3611T-5 - 3HP,1760RPM,3PH,60HZ,182TC,3632M,TEFC,F1
Nameplate NP3441L
CAT.NO. CEM3611T-5
SPEC. 36A002S582G1
HP 3
VOLTS 575
AMP 3.3
RPM 1760
FRAME 182TC HZ 60 PH 3
SER.F. 1.15 CODE K DES B CL F
NEMA-NOM-EFF 89.5 PF 75
RATING 40C AMB-CONT
CC 010A USABLE AT 208V
DE 6206 ODE 6205
ENCL TEFC SN
VPWM INVERTER READY
CT6-60H(10:1)VT3-60H(20:1
Page 4 of 10
Product Information Packet: CEM3611T-5 - 3HP,1760RPM,3PH,60HZ,182TC,3632M,TEFC,F1
Parts List
Part Number Description Quantity
SA203581 SA 36A002S582G1 1.000 EA
RA190842 RA 36A002S582G1 1.000 EA
36FN3000C01SP EXFN, PLASTIC, 5.25 OD, .912 ID 1.000 EA
36CB3004 36 CB CASTING W/1.09 DIA LEAD HOLE @ 6:0 1.000 EA
36GS1000SP GASKET-CONDUIT BOX, .06 THICK #SV-330 LE 1.000 EA
51XB1016A08 10-16X 1/2HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
36EP3104A01 FREP MACH ASSEMBLY FOR ROUTING 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A05 WVY WSHR F/205 & 304 BRGS 1.000 EA
36PE3301A23 PUEP ASSEMBLY FOR ROUTING PURPOSES 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
10XN2520A28 1/4-20X 1 3/4 HEX HD 4.000 EA
HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA
51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA
36FH4009A102 IEC FH GREASER PRIMED 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
36CB4516 36 LIPPED CB LID - GALVANNEAL 1.000 EA
37GS1001SP GASKET, CONDUIT BOX LID, .06 THICK LEXID 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW2501E16 KEY, 1/4 SQ X 1.750 1.000 EA
HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
Page 5 of 10
Product Information Packet: CEM3611T-5 - 3HP,1760RPM,3PH,60HZ,182TC,3632M,TEFC,F1
Parts List (continued)
Part Number Description Quantity
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1000Y03 MUNSELL 2.53Y 6.70/ 4.60, GLOSS 20, 0.022 GA
HA3101A25 THRUBOLT 1/4-20 X 11.000 OHIO ROD 4.000 EA
LB1119N WARNING LABEL 1.000 EA

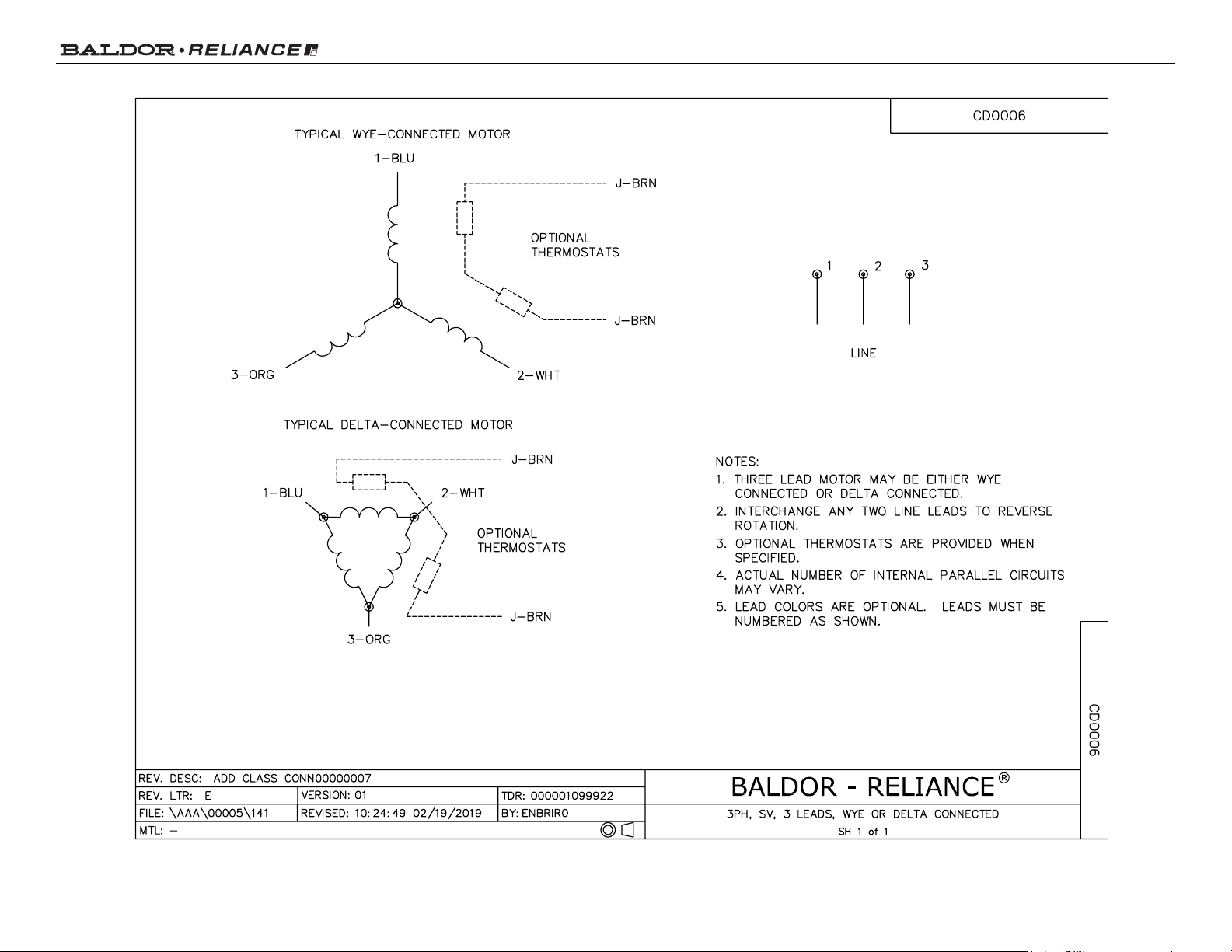

LC0006 CONNECTION LABEL 1.000 EA
NP3441L ALUM SUPER-E VPWM INVERTER READY UL 1.000 EA
36PA1001 PKG GRP, PRINT PK1017A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 10
Product Information Packet: CEM3611T-5 - 3HP,1760RPM,3PH,60HZ,182TC,3632M,TEFC,F1
AC Induction Motor Performance Data
Record # 32437 - Typical performance - not guaranteed values
Winding: 36WGS582-R001 Type: 3631M Enclosure: TEFC
Nameplate Data
575 V, 60 Hz:
Single Voltage Motor
Rated Output (HP) 3 Full Load Torque 8.88 LB-FT
Volts 575 Start Configuration direct on line
Full Load Amps 3.3 Breakdown Torque 33.9 LB-FT
R.P.M. 1760 Pull-up Torque 19.5 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 23 LB-FT
NEMA Design Code B KVA Code K Starting Current 25.9 A
Service Factor (S.F.) 1.15 No-load Current 1.9 A
NEMA Nom. Eff. 89.5 Power Factor 75 LinelineRes.@25ºC 6Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 40°C
S.F. Amps Temp. Rise @ S.F. Load 48°C
Locked-rotor Power Factor 43
Rotor inertia 0.289 LB-FT2
Load Characteristics 575 V, 60 Hz, 3 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 33 54 67 75 79 82 77
Efficiency 80.5 87.7 89.5 89.5 88.9 87.6 89.1
Speed 1791 1782 1772 1762 1750 1738 1755
Line amperes 2.03 2.34 2.77 3.34 3.97 4.66 3.72
Page 7 of 10
Product Information Packet: CEM3611T-5 - 3HP,1760RPM,3PH,60HZ,182TC,3632M,TEFC,F1

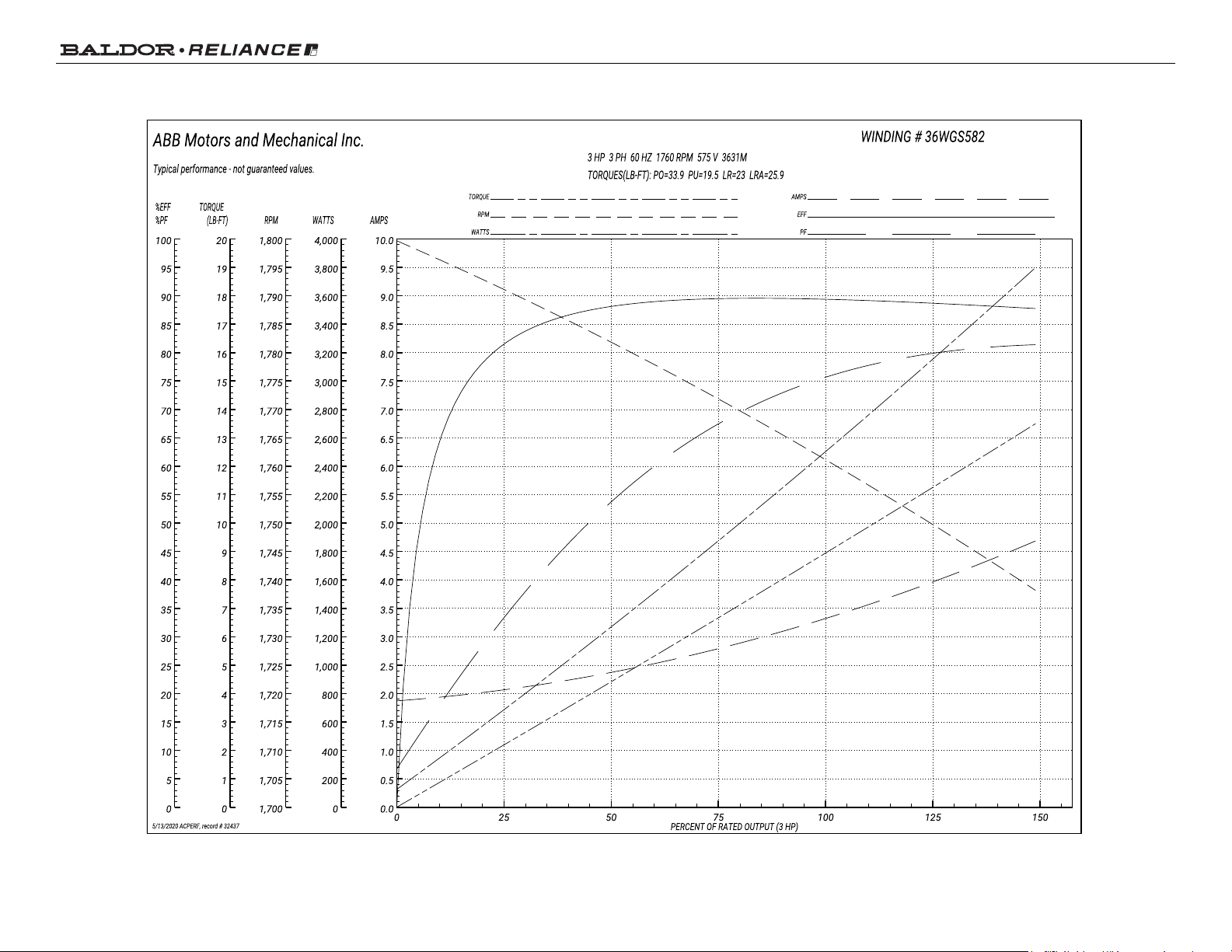

Performance Graph at 575V, 60Hz, 3.0HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: CEM3611T-5 - 3HP,1760RPM,3PH,60HZ,182TC,3632M,TEFC,F1
4 50
5 50
6 50
50
8 500
8 497
8 85
4 27
25
2 62
614-623 = 15 17
624-634 = 16 54
635-646 = 18 04
1 1250
1 1245
8 60
3 50
2 75
NAMEPLATE
6 HOLES
Ø 41
25 KEY
1 75 LONG
GREASE FITTING
(EACH END)
(635-646 ONLY)
3 75 3 75
5 76 4 31
8 63
4 50
4 44
6 89
45°
45°
7 86
8 43
2 24
4 HOLES
50-13 TAP ON
Ø7 25 B C
LEAD HOLE
Ø1 09
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
36LYA002
B
STD HORZ FACE MTD 182-4TC TEFC 36M
REV. DESC
REV
BY
REVISED
MODEL NO.
VERSION
TDR
REF
36LYA002
LOAD INOPC CREATED SWD DRG INTO BUS - PACKAGE 37
ENSTEK0
L
04 26 16 09/20/2019
-
000001120280
05
36LYA002
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
BALDOR - RELIANCE
®
Page 9 of 10
Product Information Packet: CEM3611T-5 - 3HP,1760RPM,3PH,60HZ,182TC,3632M,TEFC,F1
Page 10 of 10
