CEM3550T
1.5HP,3500RPM,3PH,60HZ,143TC,3520M,TEFC
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: CEM3550T - 1.5HP,3500RPM,3PH,60HZ,143TC,3520M,TEFC
Part Detail
Revision: U Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 35WGM760 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 35TT856 Layout: 35LYTT856 Poles: 02 Created Date: 08-03-2010
Base: RG Eff. Date: 02-27-2019 Leads: 9#18
Specs
Catalog Number: CEM3550T
Enclosure: TEFC
Frame: 143TC
Frame Material: Steel
Output @ Frequency: 1.500 HP @ 60 HZ
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR
CSA EEV
CSA
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Insulation Class: F
Inverter Code: Inverter Ready
KVA Code: L
Lifting Lugs: No Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 18 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3520M
Mounting Arrangement: F1
Power Factor: 85
Product Family: General Purpose
Pulley End Bearing Type: Ball
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Rodent Screen: None
RoHS Status: ROHS COMPLIANT
Blower: None
Shaft Extension Location: Pulley End
Page 2 of 10
Product Information Packet: CEM3550T - 1.5HP,3500RPM,3PH,60HZ,143TC,3520M,TEFC
Current @ Voltage: 1.900 A @ 460.0 V
3.800 A @ 230.0 V
4.000 A @ 208.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Heater Indicator: No Heater
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: CEM3550T - 1.5HP,3500RPM,3PH,60HZ,143TC,3520M,TEFC
Nameplate NP3441LUA
CAT.NO. CEM3550T
SPEC 35TT856M760G1
HP 1.5
VOLTS 230/460
AMPS 3.8/1.9
RPM 3500
FRAME 143TC HZ 60 PH 3
SF 1.15 CODE L DES B CLASS F
NEMA NOM. EFF 84 PF 85
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 4
ENCL TEFC SER
DE 6205 ODE 6203
VPWM INVERTER READY
CT6-60H(10:1)VT3-60H(20:1
50Hz 1.5HP 190/380V 4.6/2.3A SF1.0
Page 4 of 10
Product Information Packet: CEM3550T - 1.5HP,3500RPM,3PH,60HZ,143TC,3520M,TEFC
Parts List
Part Number Description Quantity
SA201300 SA 35TT856M760G1 1.000 EA
RA188601 RA 35TT856M760G1 1.000 EA
34FN3002B01 EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ 1.000 EA
NS2512A01 INSULATOR, CONDUIT BOX X 1.000 EA
35CB3009 35 CB W/1.09 DIA. LEAD HOLE @ 6: 1.000 EA
36GS1000SP GASKET-CONDUIT BOX, .06 THICK #SV-330 LE 1.000 EA
51XB1016A07 10-16 X 7/16 HXWSSLD SERTYB 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
35EP3122A00 MASTER ODE,203 BRG,.683SH,#26 DRN,GRSR,F 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
HW5100A03 WAVY WASHER (W1543-017) 1.000 EA
35EP3307D00 MASTER DE,205 BRG,.998SH,#26 DRN,GRSR 1.000 EA
HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA
51XN1032A20 10-32 X 1 1/4 HX WS SL SR 2.000 EA
35FH4005A84SP IEC FH W/GRSR, NO DIMPLES PRIMED 1.000 EA
51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA
35CB4521 35 LIPPED CB LID (GALV & PHOSPH) 1.000 EA
35GS1030 35 GS FOR CB LID - LEXIDE 1.000 EA
51XW0832A07 8-32 X .44, TAPTITE II, HEX WSHR SLTD SE 4.000 EA
HW2501D13 KEY, 3/16 SQ X 1.375 1.000 EA
HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
Page 5 of 10
Product Information Packet: CEM3550T - 1.5HP,3500RPM,3PH,60HZ,143TC,3520M,TEFC
Parts List (continued)
Part Number Description Quantity
MG1000Y03 MUNSELL 2.53Y 6.70/ 4.60, GLOSS 20, 0.017 GA
HA3100A15 THRUBOLT 10-32 X 8.375 4.000 EA
LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA
NP3441LUA ALUM SUPER-E VPWM INV READY UL CSA-EEV C 1.000 EA
36PA1000 PKG GRP, PRINT PK1016A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
FE-0000001 ZRTG FE ASSEMBLY 1.000 EA
PE-0000001 ZRTG PE ASSEMBLY 1.000 EA
Page 6 of 10
Product Information Packet: CEM3550T - 1.5HP,3500RPM,3PH,60HZ,143TC,3520M,TEFC
AC Induction Motor Performance Data
Record # 61761 - Typical performance - not guaranteed values
Winding: 35WGM760-R069 Type: 3520M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 1.5 Full Load Torque 2.22 LB-FT
Volts 230/460 Start Configuration direct on line
Full Load Amps 3.8/1.9 Breakdown Torque 9.49 LB-FT
R.P.M. 3500 Pull-up Torque 3.61 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 7.35 LB-FT
NEMA Design Code B KVA Code L Starting Current 17.9 A
Service Factor (S.F.) 1.15 No-load Current 0.932 A
NEMA Nom. Eff. 84 Power Factor 85 LinelineRes.@25ºC 12.2Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 43°C
S.F. Amps Temp. Rise @ S.F. Load 50°C
Locked-rotor Power Factor 60.1
Rotor inertia 0.0553 LB-FT2
Load Characteristics 460 V, 60 Hz, 1.5 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 45 67 79 85 89 90 87
Efficiency 72.3 82.2 84.4 84.8 84.3 82.8 84.5
Speed 3575 3551 3526 3498 3466 3433 3479
Line amperes 1.03 1.25 1.55 1.91 2.31 2.79 2.15
Page 7 of 10
Product Information Packet: CEM3550T - 1.5HP,3500RPM,3PH,60HZ,143TC,3520M,TEFC
Performance Graph at 460V, 60Hz, 1.5HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: CEM3550T - 1.5HP,3500RPM,3PH,60HZ,143TC,3520M,TEFC
4 00
5 00 50
5 94
3 75
13
2 12
4 500
4 497
6 49
8750
8745
510-528 = 13 29
529-535 = 14 17
536-546 = 15 54
7 19
2 75
13
6 HOLES
38 DIA
GREASE FITTING
(EACH END)
19 KEY
1 38 LONG
NAMEPLATE
2 75 2 75
4 56 3 25
6 50
3 50
3 44
6 81
5 68
6 61
45° 45°
LEAD HOLE
Ø1 09
4 HOLES
38-16 TAP
ON Ø5 88 B C
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1

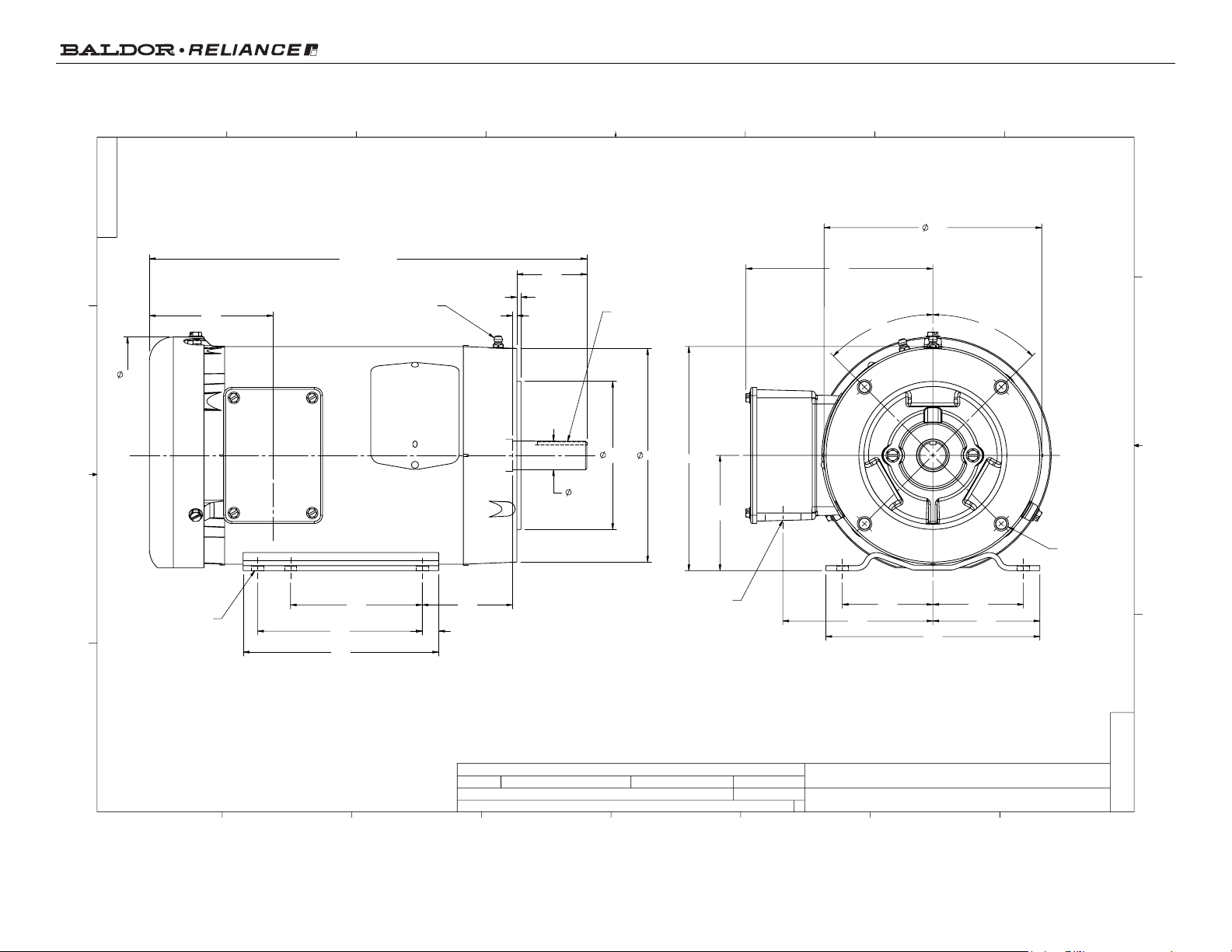

35LYTT856
B
HORZ 143-5TC TEFC 35M W/1.09 LEAD HOLE & 2 POLE "W" BASE
SH 1 OF 1
REV. DESC
REV
BY
REVISED
MODEL NO.
VERSION
TDR
REF
35LYTT856
LOADING OF SWD DWG FOR 2D TO 3D CONVERSION - PKG11
ENSTEK0
D
03 57 57 11/30/2018
-
000001092572
04
35LYTT856
CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT THE PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
BALDOR - RELIANCE
®
Page 9 of 10
Product Information Packet: CEM3550T - 1.5HP,3500RPM,3PH,60HZ,143TC,3520M,TEFC
