Product Information Packet
CEDM3710T
7.5HP,1770RPM,3PH,60HZ,213TC,3738M,TEFC
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: CEDM3710T - 7.5HP,1770RPM,3PH,60HZ,213TC,3738M,TEFC
Part Detail
Revision: F Status: PRD/A Change #: Proprietary: No
Type: AC Elec. Spec: 37WGR872 CD Diagram: CD0005 Mfg Plant:
Mech. Spec: 37N854 Layout: 37LYN854 Poles: 04 Created Date: 04-14-2016
Base: RG Eff. Date: 07-18-2019 Leads: 9#14
Specs
Catalog Number: CEDM3710T
Enclosure: TEFC
Frame: 213TC
Frame Material: Steel
Output @ Frequency: 7.500 HP @ 60 HZ
Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group: None
XP Division: Not Applicable
Agency Approvals: UR
CSA EEV
CCSA US
Auxillary Box: No Auxillary Box
Auxillary Box Lead Termination: None
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Inverter Ready
KVA Code: J
Lifting Lugs: Standard Lifting Lugs
Locked Bearing Indicator: Locked Bearing
Motor Lead Quantity/Wire Size: 9 @ 14 AWG
Motor Lead Exit: Ko Box
Motor Lead Termination: Flying Leads
Motor Type: 3738M
Mounting Arrangement: F1
Power Factor: 80
Product Family: Dirty Duty Plus
Pulley End Bearing Type: Sealed Bearing
Pulley Face Code: C-Face
Pulley Shaft Indicator: Standard
Rodent Screen: None
Blower: None
RoHS Status: ROHS COMPLIANT
Page 2 of 10
Product Information Packet: CEDM3710T - 7.5HP,1770RPM,3PH,60HZ,213TC,3738M,TEFC
Constant Torque Speed Range: 6
Current @ Voltage: 19.000 A @ 230.0 V
20.000 A @ 208.0 V
9.500 A @ 460.0 V
Design Code: A
Drip Cover: No Drip Cover
Duty Rating: CONT
Electrically Isolated Bearing: Not Electrically Isolated
Feedback Device: NO FEEDBACK
Front Face Code: Standard
Front Shaft Indicator: None
Shaft Extension Location: Pulley End
Shaft Ground Indicator: No Shaft Grounding
Shaft Rotation: Reversible
Shaft Slinger Indicator: No Slinger
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
Thermal Device - Bearing: None
Thermal Device - Winding: None
Vibration Sensor Indicator: No Vibration Sensor
Winding Thermal 1: None
Winding Thermal 2: None
Page 3 of 10
Product Information Packet: CEDM3710T - 7.5HP,1770RPM,3PH,60HZ,213TC,3738M,TEFC
Nameplate NP3504E
CAT NO CEDM3710T
SPEC. 37N854R872G1 ENCL TEFC
FRAME 213TC HP 7.5
VOLTS 230/460
FLA 19/9.5 I.P. 56
RPM 1770 RPM MAX 2700
HZ 60 PH 3 CLASS F
SER.F. 1.15 DES A CC 010A
NEMA-NOM-EFF 91.7
RATING 40C AMB-CONT
DE BRG 6307 ODE BRG 6206
GREASE POLYREX EM
C HP FR 60 C HP TO 90
CT HZ FROM 6 CT HZ TO 60 VT HZ FROM 6 VT HZ TO 60
SER.NO
50C AT 1.0 SF
Page 4 of 10
Product Information Packet: CEDM3710T - 7.5HP,1770RPM,3PH,60HZ,213TC,3738M,TEFC
Parts List
Part Number Description Quantity
SA319732 SA 37N854R872G1 1.000 EA
RA307441 RA 37N854R872G1 1.000 EA
HW3200A01 3/8-16X3/4 I-BLT WELDED F/S 1.000 EA
37CB1000A17E 37 KOBX .75 NPT @ 6:00 (E-COAT) 1.000 EA
37GS1016B01 SANTOPRENE KOBX GASKET W/LIP (BLACK) 1.000 EA
51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA
11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA
HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA
37EP1100E37EP5 FRONT TEFC 206 BRG W/CLIPPER 1.000 EA
HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA
HW4606A03 JM CLIPPER/SEAL (LWE-1156-1875-AL44) 1.000 EA
HW4500A33 1/8 NPT STAINLESS,HOLO-KROME #13002,PRES 3.000 EA
HW5100A06 W2420-025 WVY WSHR (WB) 1.000 EA
37EP1300B75E PULLEY 213-5TC ENCL 307 BRG (E-COAT) 1.000 EA
HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA
HW4606A04 JM CLIPPER/SEAL (LWE-1376-2125-AL45) 1.000 EA
HW4500A33 1/8 NPT STAINLESS,HOLO-KROME #13002,PRES 3.000 EA
10XN2520S28 1/4-20X 1 3/4 HEX HD SS X 4.000 EA
XY3118S12 5/16-18 HEX NUT, STAINLESS STEEL 4.000 EA
51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA
07FH4011EP5 FH CAST - POWDER COAT PRIMER 5 MILS 1.000 EA
10XN1032S08 10-32X1/2 HEX HEAD S STL 3.000 EA
36CB4518E 36 LIPPED CB LID E-COATING 1.000 EA
37GS1003 1/16 NEOPRENE GASKET-BLACK, CONDUIT BOX 1.000 EA
Page 5 of 10
Product Information Packet: CEDM3710T - 7.5HP,1770RPM,3PH,60HZ,213TC,3738M,TEFC
Parts List (continued)
Part Number Description Quantity
59XN0832S07 8/32 X 7/16 HX WS HD SER X 4.000 EA
HW2502F21 #303 SS,SQ KEY 5/16 X 2.375 1.000 EA
HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA
MJ5001A02 732 CL SEALANT 3 OZ DIXIE BEARING 289100 0.001 EA
85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA
LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA
LB1164 LABEL,WARNING AND DRAIN 1.000 EA
MJ5001A23 P.D. GEORGE B-276 AIR DRY VARNISH 0.001 GA
LB1000 LABEL, DIRTY DUTY 1.000 EA
WD1000D21 TRM,T&B #B71M,RING,18-14,.25,NON-INSL 9.000 EA
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB
MG1500Y02 WILKOPON (use 004824003CAH) 0.010 GA
MG1025L01 WILKOFAST FD, 786.04, BLACK 0.010 GA
36FN3000C02SP EXFN, PLASTIC, 5.25 OD, 1.175 ID 1.000 EA
HA3104S17 THRUBOLT 13.250LG SS 4.000 EA
LC0005 CONN.DIA.,TY M,9-LD,DUAL VOLT,REVERSING 1.000 EA
NP3504E SS DIRTY DUTY PLUS INV UL CSA-C US EEV 1.000 EA
37PA1039 PALLET PACK GRP, PRINT PK1026A06 1.000 EA
MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA
Page 6 of 10
Product Information Packet: CEDM3710T - 7.5HP,1770RPM,3PH,60HZ,213TC,3738M,TEFC
AC Induction Motor Performance Data
Record # 55756 - Typical performance - not guaranteed values
Winding: 37WGR872-R013 Type: 3738M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection
Rated Output (HP) 7.5 Full Load Torque 22.2 LB-FT
Volts 230/460 Start Configuration direct on line
Full Load Amps 19/9.5 Breakdown Torque 70.9 LB-FT
R.P.M. 1770 Pull-up Torque 32.6 LB-FT
Hz 60 Phase 3 Locked-rotor Torque 43 LB-FT
NEMA Design Code A KVA Code J Starting Current 70.9 A
Service Factor (S.F.) 1.15 No-load Current 4.31 A
NEMA Nom. Eff. 91.7 Power Factor 80 LinelineRes.@25ºC 1.41Ω
Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 63°C
S.F. Amps Temp. Rise @ S.F. Load 78°C
Locked-rotor Power Factor 37.2
Rotor inertia 0.934 LB-FT2
Load Characteristics 460 V, 60 Hz, 7.5 HP
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 42 64 75 80 83 84 82
Efficiency 87.1 91.6 92 92 91.1 89.8 91.5
Speed 1793 1786 1778 1770 1760 1750 1764
Line amperes 4.83 6.02 7.6 9.5 11.6 13.9 10.8
Page 7 of 10
Product Information Packet: CEDM3710T - 7.5HP,1770RPM,3PH,60HZ,213TC,3738M,TEFC

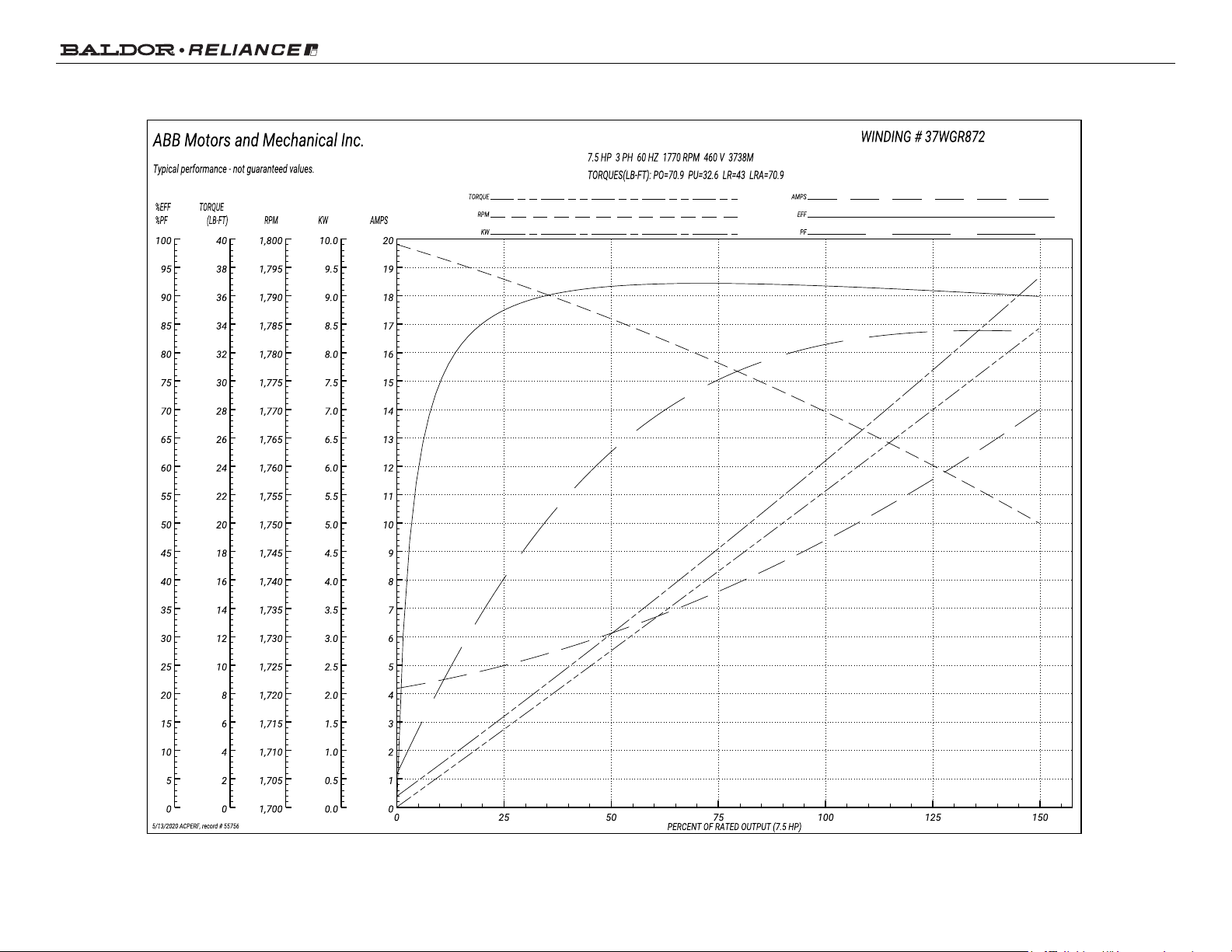

Performance Graph at 460V, 60Hz, 7.5HP Typical performance - Not guaranteed values
Page 8 of 10
Product Information Packet: CEDM3710T - 7.5HP,1770RPM,3PH,60HZ,213TC,3738M,TEFC
Page 9 of 10
Product Information Packet: CEDM3710T - 7.5HP,1770RPM,3PH,60HZ,213TC,3738M,TEFC
Page 10 of 10
