Product Information Packet
CECP83764T-4
3HP,1165RPM,3PH,60HZ,213TC,0736M,TEFC,F1
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: CECP83764T-4 - 3HP,1165RPM,3PH,60HZ,213TC,0736M,TEFC,F1
Part Detail
Revision: R Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 07WGX816 CD Diagram: CD0006 Mfg Plant: Mech. Spec: 07M320 Layout: 07LYM320 Poles: 06 Created Date: 11-18-2013 Base: RG Eff. Date: 02-07-2020 Leads: 3#14
Specs
Catalog Number: CECP83764T-4 Enclosure: TEFC Frame: 213TC Frame Material: Iron Output @ Frequency: 3.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1200 RPM @ 60 HZ Voltage @ Frequency: 460.0 V @ 60 HZ XP Class and Group: CLI GP A,B,C,D XP Division: Division II Agency Approvals: UR
CSA EEV
CSA Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None
Inverter Code: Inverter Duty KVA Code: K Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 3 @ 14 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 0736M Mounting Arrangement: F1 Power Factor: 70 Product Family: Chem Process S/P 32-8 IEEE 841 Pulley End Bearing Type: Ball Pulley Face Code: C-Face Pulley Shaft Indicator: Standard Rodent Screen: None Shaft Extension Location: Pulley End Shaft Ground Indicator: No Shaft Grounding
Constant Torque Speed Range: 1.7
Shaft Rotation: Reversible
Product Information Packet: CECP83764T-4 - 3HP,1165RPM,3PH,60HZ,213TC,0736M,TEFC,F1
Current @ Voltage: 4.500 A @ 460.0 V Design Code: B Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater Insulation Class: F
Shaft Slinger Indicator: Shaft Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None XP Temp Code: T3C
Product Information Packet: CECP83764T-4 - 3HP,1165RPM,3PH,60HZ,213TC,0736M,TEFC,F1
Nameplate NP3235E
CAT.NO. CECP83764T-4
SPEC. 07M320X816G2
HP 3 TE IP 56
VOLTS 460
AMPS 4.5
R.P.M. 1165
FRAME 213TC HZ 60 PH 3
SER.F. 1.15 CODE K DES. B CLASS F
RATING 40C AMB-CONT
SN DE 6307 ODE 6307
NEMA NOM. EFF. 89.5 P.F. 70
GUAR. MIN. EFF. 87.5 CC 010A
T. CODE T3C TEMP= 160
Product Information Packet: CECP83764T-4 - 3HP,1165RPM,3PH,60HZ,213TC,0736M,TEFC,F1
Nameplate NP3186E
SPEC. 07M320X816G2
D.E. BRG. 35BC03X30X
O.D.E. BRG. 35BC03X30X
GREASE POLYREX EM
WEIGHT 211 # OF ROTOR BARS 27 # OF STATOR SLOTS 36
RPM MAX 1800 MAX. KVAR 1.34
BLANK
INV.TYPE PWM
T= 160
C HP FR 60 C HP TO 90 CT HZ FROM 1.7 CT HZ TO 60 VT HZ FROM 0- VT HZ TO 60
HTR-VOLTS N/A HTR-AMPS N/A
HTR-WATTS MAX. SPACE HEATER TEMP. N/A
Product Information Packet: CECP83764T-4 - 3HP,1165RPM,3PH,60HZ,213TC,0736M,TEFC,F1
Parts List
Part Number Description Quantity SA272407 SA 07M320X816G2 1.000 EA RA259016 RA 07M320X816G2 1.000 EA 37FN3002C01 EXFN, PLASTIC, 6.00 OD, 1.155 ID 1.000 EA HW3201A05 3/8-16 EYEBOLT 1.000 EA 09CB1002A05G CONDUIT BOX, 1.00 N.P.T. (GRAY) 1.000 EA RM1017 LEAD SEPERATOR GASKET MODEL 307 1/8" THK 1.000 EA 19XW2520A16 SCREW,1/4-20X1 TAPTITE-II OR ROLOC 91 2.000 EA 11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA HW3001B01 BRASS CUP WASHER, FOR #10 SCREW 1.000 EA 10XN2520S06 1/4 20X3/8 HX HD CAP S.S. 2.000 EA WD1000B16 T&B CX70TN OR L70P TERMINAL LUG 1.000 EA 07EP1119A02G 206 BRG,C.I.FH,GRSR,RLF,DRAIN FITTING,IN 1.000 EA HW4601B25 INPRO SEAL, 307 BRG, MINI66 1.000 EA 10XN2520A26 1/4-20X 1 5/8 HEX HD 4.000 EA HW4500A32 FIT./EXT 1698-B (ALEMITE)GREASE FITTING 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4010A01 T-DRAIN PLUG,416 S.S.,W/ 1/4-28 THD & .0 1.000 EA HW5100A08 W3118-035 WVY WSHR (WB) 1.000 EA 37EP1314A01G PU ENDPLATE, MACH GRAY 1.000 EA HW4601B25 INPRO SEAL, 307 BRG, MINI66 1.000 EA HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA
Product Information Packet: CECP83764T-4 - 3HP,1165RPM,3PH,60HZ,213TC,0736M,TEFC,F1
Parts List (continued)
Part Number Description Quantity HA4002A03 #304 S.S. DRAIN FITTING, .125 NPT (.44 H 1.000 EA 10XN2520A30 HEX HD CAP SCREW-STD THD-.25 X 20 THD PE 2.000 EA XY3118A12 5/16-18 HEX NUT DIRECTIONAL SERRATION 4.000 EA 07FH1001A01G SPL FAN HOUSING, 307, W/GREASER, GRAY EP 1.000 EA 10XN2520A28 1/4-20X 1 3/4 HEX HD 3.000 EA WD4100A02 DP-1000 HEYCO PLUG OR 62MP1000 MICRO PL 1.000 EA 12CB1503G CONDUIT BOX CAST. (GRAY) 1.000 EA 09GS1013A01 09 GS FOR 09CB3501 LID - BLACK NEOPRENE 1.000 EA 10XN2520A12 1/4-20 X 3/4 HEX HEAD CAP 2.000 EA MJ5004A59 ADHESIVE LOCTITE #401 SURFACE INSENSITIV 0.010 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 2.000 EA HW2501F21 KEY, 5/16 SQ X 2.375 1.000 EA HA7000A02 KEY RETAINER RING, 1 1/8 DIA, 1 3/8 DIA 1.000 EA MJ5001A27 32220KN GRAY SEALER *MIN BUY 4 QTS=1GAL 0.001 QT MJ1000A73 INPRO P-80 ASSEMBLY LUB./ 1 QT. CONTAINE 0.001 QT 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 4.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA LT0019A00 MOTOR NO-LOAD PERFORMANCE DATA SHEET 1.000 EA WD1000D21 TRM,T&B #B71M,RING,18-14,.25,NON-INSL 3.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.050 LB HA3104A32 THRUBOLT- 5/16-18 X12.750 4.000 EA 51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA MG1025N19 WILKOFAST, 778.50, RELIANCE BLUE-GREEN 0.036 GA LB1119N WARNING LABEL 1.000 EA
Product Information Packet: CECP83764T-4 - 3HP,1165RPM,3PH,60HZ,213TC,0736M,TEFC,F1
LB1449 DIV-2/NEC WARNING LABEL 1.000 EA LC0006 CONNECTION LABEL 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA NP3235E SS IEEE841 DIV-2 UL CSA-C US EEV PREM 1.000 EA NP3186E SS IEEE841 INV AUX DATA INFORMATION 1.000 EA 07PA1011 PKG GRP, 07 CAST IRON PK1181 1.000 EA 10XL3808A28 3/8 X 1 3/4" LAG SCREW 2.000 EA
Product Information Packet: CECP83764T-4 - 3HP,1165RPM,3PH,60HZ,213TC,0736M,TEFC,F1
AC Induction Motor Performance Data
Record # 47122 - Typical performance - not guaranteed values
Winding: 07WGX816-R019 Type: 0736M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
Single Voltage Motor Rated Output (HP) 3 Full Load Torque 13.5 LB-FT Volts 460 Start Configuration direct on line Full Load Amps 4.5 Breakdown Torque 48.9 LB-FT R.P.M. 1165 Pull-up Torque 23 LB-FT Hz 60 Phase 3 Locked-rotor Torque 30 LB-FT NEMA Design Code B KVA Code K Starting Current 31.5 A Service Factor (S.F.) 1.15 No-load Current 2.39 A NEMA Nom. Eff. 89.5 Power Factor 70 LinelineRes.@25ºC 2.67Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 30°C S.F. Amps Temp. Rise @ S.F. Load 36°C
Locked-rotor Power Factor 22.6
Rotor inertia 0.895 LB-FT2
Load Characteristics 460 V, 60 Hz, 3 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 34 53 64 70 74 75 72 Efficiency 82.2 88.3 89.3 89.8 88.7 87.5 89.3 Speed 1193 1186 1178 1170 1159 1148 1163 Line amperes 2.58 3.07 3.72 4.46 5.35 6.37 4.99
Product Information Packet: CECP83764T-4 - 3HP,1165RPM,3PH,60HZ,213TC,0736M,TEFC,F1
Performance Graph at 460V, 60Hz, 3.0HP Typical performance - Not guaranteed values
Page 10 of 12

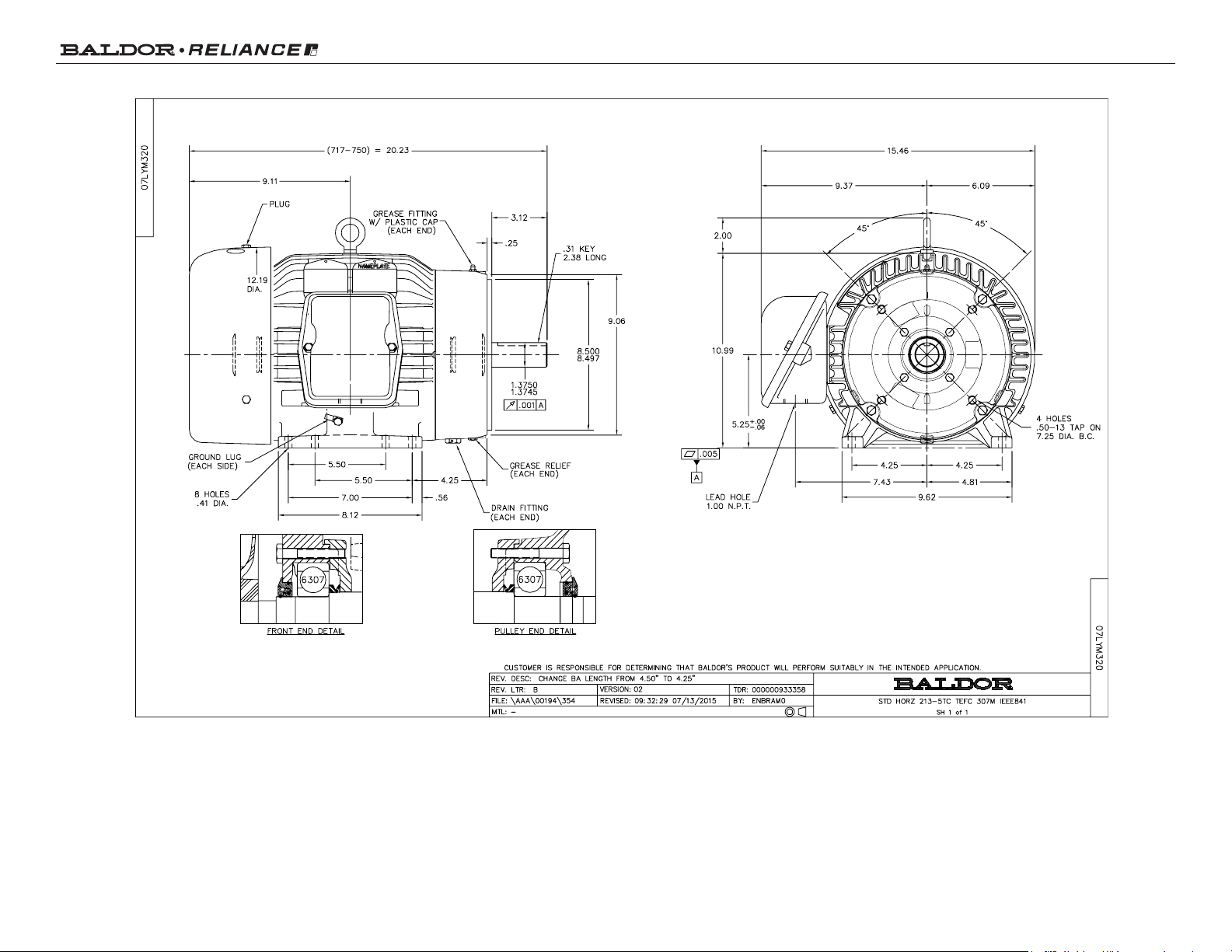

Product Information Packet: CECP83764T-4 - 3HP,1165RPM,3PH,60HZ,213TC,0736M,TEFC,F1
Page 11 of 12
Product Information Packet: CECP83764T-4 - 3HP,1165RPM,3PH,60HZ,213TC,0736M,TEFC,F1
Page 12 of 12
