CECP4117T
Product Information Sheet
12 pgs301.68 Kb0

Baldor CECP4117T Product Information Sheet

Download
Product Information Packet
CECP4117T
30HP,1180RPM,3PH,60HZ,326TC,1264M,TEFC,F
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: CECP4117T - 30HP,1180RPM,3PH,60HZ,326TC,1264M,TEFC,F
Part Detail
Revision: H Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 12WGY812 CD Diagram: CD0005 Mfg Plant: Mech. Spec: 12G214 Layout: 12LYG214 Poles: 06 Created Date: 09-17-2014 Base: RG Eff. Date: 08-25-2017 Leads: 9#8
Specs
Catalog Number: CECP4117T Enclosure: TEFC Frame: 326TC Frame Material: Iron Output @ Frequency: 30.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1200 RPM @ 60 HZ Voltage @ Frequency: 460.0 V @ 60 HZ
230.0 V @ 60 HZ XP Class and Group: CLI GP A,B,C,D XP Division: Division II Agency Approvals: UR
CSA EEV
CSA Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F)
Insulation Class: F Inverter Code: Inverter Duty KVA Code: H Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 9 @ 8 AWG Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Type: 1264M Mounting Arrangement: F1 Power Factor: 78 Product Family: Super-E Chemical Processing Pulley End Bearing Type: Ball Pulley Face Code: C-Face Pulley Shaft Indicator: Standard Rodent Screen: None Shaft Extension Location: Pulley End
Blower: None
Shaft Ground Indicator: No Shaft Grounding
Product Information Packet: CECP4117T - 30HP,1180RPM,3PH,60HZ,326TC,1264M,TEFC,F
Constant Torque Speed Range: 1 Current @ Voltage: 39.000 A @ 460.0 V
78.000 A @ 230.0 V Design Code: A Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater
Shaft Rotation: Reversible Shaft Slinger Indicator: Shaft Slinger Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: None Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None XP Temp Code: T3
Product Information Packet: CECP4117T - 30HP,1180RPM,3PH,60HZ,326TC,1264M,TEFC,F
Nameplate NP3241
CAT.NO. CECP4117T P/N ENCLOSURE TEFC
SPEC. 12G214Y812G1 CC 010A FRAME 326TC S/N
HP 30 CLASS F HZ 60 DES A
RPM 1180 RPM MAX 1800 PH 3 KVA-CODE H
VOLT 230/460 MOTOR WEIGHT 540
AMP 78/39 SER.F. 1.15 PF 78 ODE BRG 6312 DE BRG 6312
RATING 40C AMB-CONT NEMA-NOM-EFF 93 GREASE POLYREX EM
INV.TYPE PWM
TEMP CODE T3 INVERTER-TEMP-CODE 200
TEMP = 200 C HP FR 60 C HP TO 90
CT HZ FROM 1 CT HZ TO 60
HTR-VOLTS HTR-AMPS HTR-WATTS MAX. SPACE HEATER TEMP. VT HZ FROM O VT HZ TO 60
Product Information Packet: CECP4117T - 30HP,1180RPM,3PH,60HZ,326TC,1264M,TEFC,F
Parts List
Part Number Description Quantity SA287140 SA 12G214Y812G1 1.000 EA RA273356 RA 12G214Y812G1 1.000 EA 09FN3001B03SP EXTERNAL FAN, PLASTIC 1.000 EA 10CB1000A203P KOBX W/2.00 NPT & .31 GND MTG, EPOXY PRI 1.000 EA 09GS1010 GASKET, DWG, LEADWIRE SEPERATOR 1.000 EA 10XN3118K16 5/16-18 X 1' GRADE #5, STL, ZINC PLATE 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA WD1000B25 GND LUG, BURNDY L125HP OR T&B L125HP-BB 1.000 EA 19XW3118G08 .31-18X.50,HEX WSHR HD,TAPTITE 2,GREEN 1.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 1.000 EA HA4017A02 .125X2.50 GREASER EXTENS.F/S 1.000 EA HW4019A01 PIPE COUPLING 1/8 NPT,STEEL,ZINC COATING 1.000 EA HA4017A01 1/8 X 4 GREASE EXT (F/S) 1.000 EA HW4500A20 1/8NPT SL PIPE PLUG 1.000 EA HA3400A13 STUD, 1/2-13 X 7" WELKER 4.000 EA HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 4.000 EA HW4600B41 V-RING SLINGER 2.125 X 2.880 X 0.280 1.000 EA HW5100A15 W4997-050 WVY WSHR (WB) 1.000 EA 10XN3118K40 5/16-18 X 2.50" HEX HD, GRADE 5 2.000 EA 12EP1105A97P PU EP, MACH, PLS W/EPOXY PRIMER 1.000 EA 10XN5013K28 1/2-13 X 1.75 HEX HEAD MACH SCREW,GRAD 4.000 EA HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 4.000 EA HW4600B41 V-RING SLINGER 2.125 X 2.880 X 0.280 1.000 EA HW4500A20 1/8NPT SL PIPE PLUG 1.000 EA
Product Information Packet: CECP4117T - 30HP,1180RPM,3PH,60HZ,326TC,1264M,TEFC,F
Parts List (continued)
Part Number Description Quantity 10XN3118K44 5/16-18 X 2.75" HEX HD, GRADE 5 4.000 EA 12FH1002A59P FAN COVER, MACH W/EPOXY PRIMER 1.000 EA XY5013A12 NUT,1/2-13,HEX,STEEL,ZINCPLATED 4.000 EA HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 4.000 EA 10CB1503A01P CONDUIT BOX LIPPED LID, MACH W/EPXY PRMR 1.000 EA 14GS1003 GASKET CONDUIT BOX LID, NEOP 1.000 EA 10XN2520K16 1/4-20 X 1" HX HD SCRW GRADE 5, ZINC P 4.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 4.000 EA HW2501H33 KEY, 1/2 SQ X 3.875 1.000 EA MJ5001A27 32220KN GRAY SEALER *MIN BUY 4 QTS=1GAL 0.031 QT MJ5001A14 DYNAPRO SEALANT, CP MTR VC#2508050 (603 0.030 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA 12EP1111A57GP6 FR ENDPLATE, MACH W/EPOXY PRIMER & RELIA 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HW4500A21 1618BALEMITE FITTING 825 UNIVERSAL 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.200 LB HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA 51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA
Product Information Packet: CECP4117T - 30HP,1180RPM,3PH,60HZ,326TC,1264M,TEFC,F
MG1025N19 WILKOFAST, 778.50, RELIANCE BLUE-GREEN 0.080 GA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 4.000 EA LB1119N WARNING LABEL 1.000 EA LC0005 CONN.DIA.,TY M,9-LD,DUAL VOLT,REVERSING 1.000 EA NP3241 SS SUPER-E INV UL CSA-EEV PREM CC 1.000 EA 12PA1000 PACKAGING GROUP PRINT PK1024A06 1.000 EA LB1449 DIV-2/NEC WARNING LABEL 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA LB1002N LABEL,MARINE DUTY (ON ROLLS) 1.000 EA
Product Information Packet: CECP4117T - 30HP,1180RPM,3PH,60HZ,326TC,1264M,TEFC,F
AC Induction Motor Performance Data
Record # 47164 - Typical performance - not guaranteed values
Winding: 12WGY812-R001 Type: 1264M Enclosure: TEFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection Rated Output (HP) 30 Full Load Torque 133 LB-FT Volts 230/460 Start Configuration direct on line Full Load Amps 78/39 Breakdown Torque 370 LB-FT R.P.M. 1180 Pull-up Torque 179 LB-FT Hz 60 Phase 3 Locked-rotor Torque 217 LB-FT NEMA Design Code A KVA Code H Starting Current 245 A Service Factor (S.F.) 1.15 No-load Current 17.2 A NEMA Nom. Eff. 93 Power Factor 78 LinelineRes.@25ºC 0.22799Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 56°C S.F. Amps Temp. Rise @ S.F. Load 68°C
Load Characteristics 460 V, 60 Hz, 30 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 42 63 73 78 80 80 79 Efficiency 89 92.7 93.4 93.1 92.4 91.4 92.7 Speed 1196.5 1191.9 1188.3 1183.2 1178.2 1171.8 1180 Line amperes 19.2 24.1 31 38.7 47.5 57.3 44
Product Information Packet: CECP4117T - 30HP,1180RPM,3PH,60HZ,326TC,1264M,TEFC,F

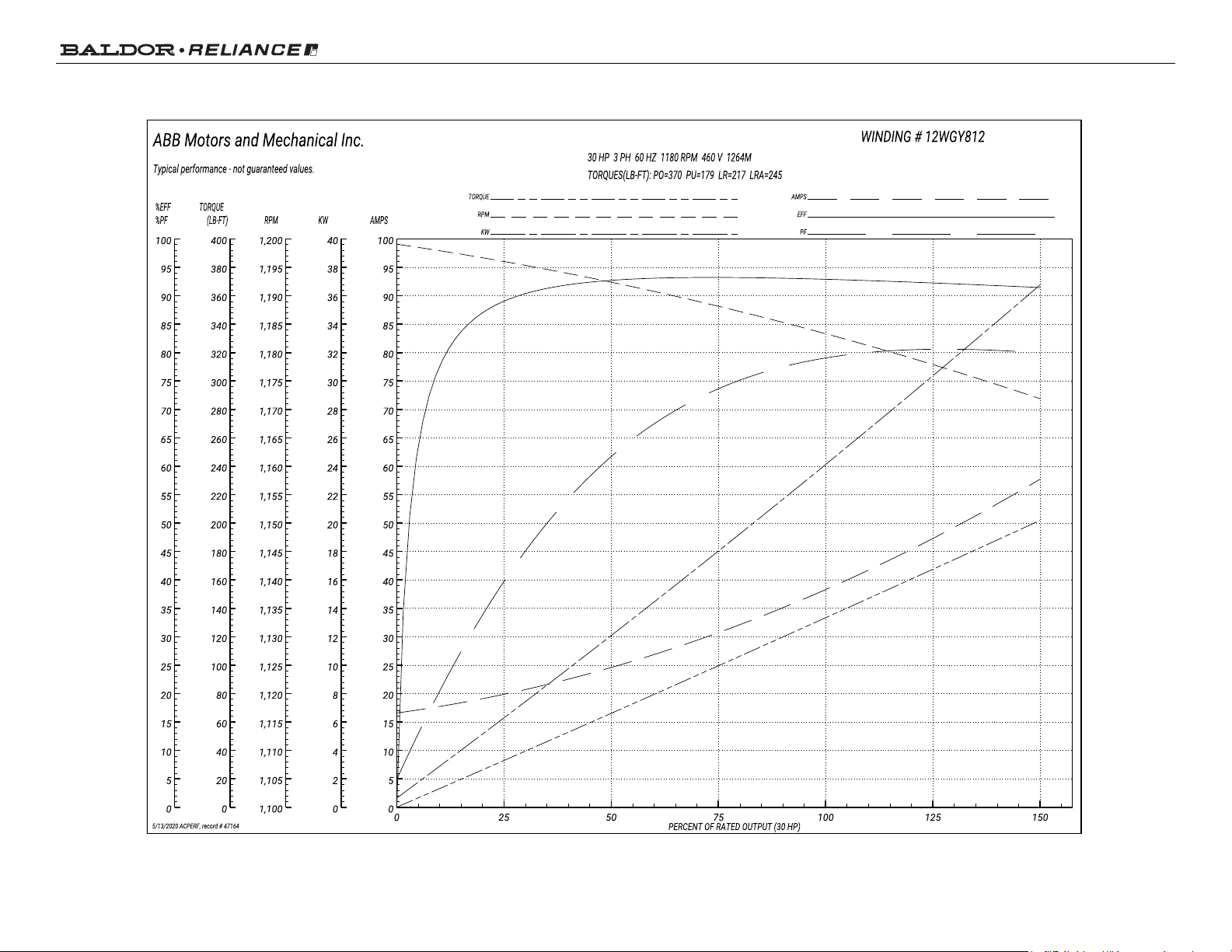

Performance Graph at 460V, 60Hz, 30.0HP Typical performance - Not guaranteed values
Product Information Packet: CECP4117T - 30HP,1180RPM,3PH,60HZ,326TC,1264M,TEFC,F
Page 10 of 12
Product Information Packet: CECP4117T - 30HP,1180RPM,3PH,60HZ,326TC,1264M,TEFC,F
Page 11 of 12
Product Information Packet: CECP4117T - 30HP,1180RPM,3PH,60HZ,326TC,1264M,TEFC,F
Marketing maintained PDF of MN416:
MN416?ManNumber=MN416
Page 12 of 12
