Product Information Packet

CDRX36644T

60HP,1780RPM,3PH,60HZ,364TC,TEFC,F1

Product Information Packet: CDRX36644T - 60HP,1780RPM,3PH,60HZ,364TC,TEFC,F1

Part Detail

Revision: - Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: A36WG0261 CD Diagram: 416820-002 Mfg Plant: Mech. Spec: Layout: 611742-780 Poles: 04 Created Date: 05-21-2019 Base: Eff. Date: 05-29-2019 Leads: 3#4,6#6

Specs

Catalog Number: CDRX36644T Enclosure: TEFC Frame: 364TC Frame Material: Iron Output @ Frequency: 60.000 HP @ 60 HZ Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 460.0 V @ 60 HZ

230.0 V @ 60 HZ XP Class and Group: CLI GP C,D XP Division: Division I Agency Approvals: CCSA US

CSA CSA EEV

UL Auxillary Box: No Auxillary Box Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F)

Feedback Device: NO FEEDBACK Heater Indicator: No Heater Insulation Class: F Inverter Code: Inverter Ready IP Rating: NONE KVA Code: G Lifting Lugs: Standard Lifting Lugs Motor Lead Quantity/Wire Size: 3 @ 4 AWG Motor Type: A36062M Mounting Arrangement: F1 Power Factor: 87 Product Family: General Industrial Pulley End Bearing Type: Ball Pulley Face Code: C-Face Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: Shaft Slinger

Constant Torque Speed Range: 6-60

Speed Code: Single Speed

Page 2 of 18

Product Information Packet: CDRX36644T - 60HP,1780RPM,3PH,60HZ,364TC,TEFC,F1

Current @ Voltage: 68.000 A @ 460.0 V

136.000 A @ 230.0 V Design Code: B Drip Cover: No Drip Cover Duty Rating: CONT

Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: Normally Closed Thermostat XP Temp Code: T3C

Page 3 of 18

Product Information Packet: CDRX36644T - 60HP,1780RPM,3PH,60HZ,364TC,TEFC,F1

Nameplate NP2496L

MOBIL POLYREX EM

Page 4 of 18

Product Information Packet: CDRX36644T - 60HP,1780RPM,3PH,60HZ,364TC,TEFC,F1

Nameplate 000692000FX

Page 5 of 18

Product Information Packet: CDRX36644T - 60HP,1780RPM,3PH,60HZ,364TC,TEFC,F1

Nameplate 000613006PC

CLASS I GROUP C D X NO.

CLASS II GROUP X X X

OPERATING TEMP CODE T3C

Page 6 of 18

Product Information Packet: CDRX36644T - 60HP,1780RPM,3PH,60HZ,364TC,TEFC,F1

Nameplate NP3140L

SPEC NO. A36-7647-0261 CAT.NO. CDRX36644T FRAME 364TC

HP 60 VOLTS 230/460 PHASE 3 DESIGN B TYPE P

RPM 1780 AMPS 136/68 HZ 60 AMB 40 SF 1.00

DRIVE END BEARING 65BC03J30X DUTY CONT INSUL.CLASS F

OPP D.E. BEARING 65BC03J30X ENCL TEFC CODE G

SF 1.15 WK2 14.524 MAG CUR 20.1 RPM MAX 3600

CT HZ 6-60 VT HZ 0-60 CHP HZ 60-90 NEMA-NOM-EFF 95

SUIT FOR 55C AMB AT 1.00 SF IP55

SER.NO. MOTOR WEIGHT 910

Page 7 of 18

Product Information Packet: CDRX36644T - 60HP,1780RPM,3PH,60HZ,364TC,TEFC,F1

Parts List

Part Number Description Quantity SA369780 SA A36-7647-0261 1.000 EA RA359377 RA A36-7647-0261 1.000 EA 421948032 LABEL, MYLAR 1.000 EA NP2496L MOTOR LUBE NAMEPLATE 1.000 EA 000692000JF CAUTION LABEL TO PREVENT IGNITION 1.000 EA 000692000VD LABEL WARNING 1.000 EA 000692000FX UL LISTED LOGO LABEL 2.53 X 0.75 X .018 1.000 EA 000613006PC N/P U/L (REL QTY 500) 1.000 EA NP3140L INVERTER DUTY, SS, CC, CSA-C US, CSA EEV 1.000 EA 609158001B SLGR - 360 1.000 EA 603284001S SLGR - 360 1.000 EA 087793050B BRKT 360 087793050WCB 1.000 EA 415072001B CLAMP 1.000 EA 078559001A +FANCV - 360 1.000 EA 034180012DA KEY 1X4X1/4X1-1/2 L 1.000 EA HW4505A02 BREATHER/DRAIN-EXP PROOF-.250-18 PTF AIS 1.000 EA 078548001K FAN KB 100/30 (70) 360 1.000 EA 004824015A GREASE POLYREX EM 0.540 LB 032018008AK HHCS 1/4-20X1 PLATED 4.000 EA 032018018CK HHCS 3/8-16X2-1/4 PLTD. 2.000 EA 415096002A CPLG 1/8 HEX TYPE 1.000 EA 415045002E SLGR 1.000 EA 410700004F WSHR 1.000 EA 034017016AB LCKW 1/2" PLATED 4.000 EA

Page 8 of 18

Product Information Packet: CDRX36644T - 60HP,1780RPM,3PH,60HZ,364TC,TEFC,F1

Parts List (continued)

Part Number Description Quantity 034017012AB LCKW 1/4 STD. PLATED 034017012AF 4.000 EA 032130020DB HSHCS 1/2-13X2-1/2 PLTD. 4.000 EA 034017014AB LCKW 3/8 STD. PLATED 2.000 EA 034530056AC P/NIP 1/8X7L GALV-365 1.000 EA 034690002AB PPLG 1/4" PLTD. 1.000 EA 034690002AB PPLG 1/4" PLTD. 1.000 EA 087793166 BRKT E360 FCXP 6313 C-FACE/FIN TURN 1.000 EA 032018018CK HHCS 3/8-16X2-1/4 PLTD. 2.000 EA 415045002E SLGR 1.000 EA 034017016AB LCKW 1/2" PLATED 4.000 EA 034017014AB LCKW 3/8 STD. PLATED 2.000 EA 032130020DB HSHCS 1/2-13X2-1/2 PLTD. 4.000 EA 073646000E C/B 320 WA073646000 1.000 EA 064069000A C/BC320/360 X 064069000B 1.000 EA 418150003A GREASE FITTING CAP 1.000 EA 032018014DK HHCS 1/2-13X1-3/4 PLTD 4.000 EA 063916001DE +P/NIP 3X2-5/8 DIMPL-360 1.000 EA 406055001C GRFTG 1.000 EA 034017016AB LCKW 1/2" PLATED 4.000 EA 035000001A ALFTG 1/8" 1610-BL 1.000 EA 415000103A T/LUG #14AWG-#4AWG W/HOLE FOR .250 BOLT 1.000 EA 406099000A PLUG - FAN COVER 320-440 1.000 EA 032018004AM HHCS 1/4-20X1/2PLTD GREN 1.000 EA 034036012AB LCKW EXTERNAL TOOTH 1/4" 1.000 EA

Page 9 of 18

Product Information Packet: CDRX36644T - 60HP,1780RPM,3PH,60HZ,364TC,TEFC,F1

406055001C GRFTG 1.000 EA 035000001A ALFTG 1/8" 1610-BL 1.000 EA 418150003A GREASE FITTING CAP 1.000 EA 004824003CEH WILKO PAINT 789.229 DARK GREY CHARCOAL T 0.250 GA 033775004EA DRSCR #6-1/4 304 S.S. 8.000 EA 034180034HA KEY 5/8X5/8X4-1/4 L 1.000 EA 14PA1000 PACKAGING 314 GROUP COMBINED PRINT 1.000 EA HW1000A32 5/16 FL WASHER WIDE,ID=.344,OD=1.125 3.000 EA 032509020C CARRIAGE BOLT - 360 3.000 EA

Page 10 of 18

Product Information Packet: CDRX36644T - 60HP,1780RPM,3PH,60HZ,364TC,TEFC,F1

364TC 60 P 3/60 1780 230/460

136/68 CONT 40/F 1.00 B G TEFC

492281 418141035YE --- --- .0277/.110

0 20.1 1800 4.67 0

15.0 25.8 1795 58.6 93.0

30.0 37.5 1791 78.7 95.2

45.0 51.9 1786 85.0 95.3

60.0 68.0 1781 87.0 95.0

75.0 85.1 1775 87.5 94.3

LB.-FT.

0 181 320 430

720 161 285 395

1703 251 445 244

1781 100 177 68.0

460. VOLT

TYPICAL DATA

XE MOTOR-NEMA NOM. EFF. 95.0 %

GUARANTEED MIN. EFF. 94.1%

D. M. BYRD

J. P. TSAO

A36WG0261-R007

E.J.CHRISTIAN

10/10/91

05/21/19

Printed on 5/21/19 14:12 @ bengap01.baldor.com

REL.

S.O.

FRAME HP TYPE

PHASE/

HERTZ

RPM VOLTS

AMPS DUTY

AMB

C/

INSUL.

S.F.

NEMA

DESIGN

CODE

LETTER

ENCL.

E/S ROTOR

TEST

S.O.

TEST

DATE

STATOR RES.@25

C

OHMS (BETWEEN LINES)

PERFORMANCE

LOAD HP AMPERES RPM

%

POWER FACTOR

%

EFFICIENCY

NO LOAD

1/4

2/4

3/4

4/4

5/4

SPEED TORQUE

RPM

TORQUE

% FULL LOAD

TORQUE

AMPERES

LOCKED ROTOR

PULL UP

BREAKDOWN

FULL LOAD

AMPERES SHOWN FOR CONNECTION. IF OTHER VOLTAGE CONNECTIONS ARE AVAILABLE, THE

AMPERES WILL VARY INVERSELY WITH THE RATED VOLTAGE

REMARKS:

DR. BY

CK. BY

APP. BY

DATE

A-C MOTOR

PERFORMANCE

DATA

ISSUE DATE

Rotext2(0)

Page 11 of 18

Product Information Packet: CDRX36644T - 60HP,1780RPM,3PH,60HZ,364TC,TEFC,F1

1780 1.00 418141035YE

364TC 230/460 B TYPICAL DATA

60 136/68 G ---

P CONT TEFC .0277/.110

3/60 40/F 492281

Printed on 5/21/19 14:12 @ bengap01.baldor.com

REL S.O.

FRAME

HP

TYPE

PHASE/HERTZ

RPM

VOLTS

AMPS

DUTY

AMB

C/INSUL

S.F.

NEMA DESIGN

CODE LETTER

ENCLOSURE

E/S

ROTOR

TEST S.O.

TEST DATE

STATOR RES.@ 25

C

OHMS (BETWEEN LINES)

A-C MOTOR

PERFORMANCE

CURVES

DR. BY

CK. BY

APP. BY

DATE

ISSUE DATE

AMPERES SHOWN FOR

AMPERES WILL VARY INVERSELY WITH THE RATED VOLTAGE.

CONNECTION, IF OTHER VOLTAGE CONNECTIONS ARE AVAILABLE, THE

Rotext2(0)

460 VOLT

D. M. BYRD

J. P. TSAO

E.J.CHRISTIAN

10/10/91

A36WG0261-R007

05/21/19

0 200 400 600 800 1000 1200 1400 1600 1800

SPEED IN RPM,(FLT = 177 LB. FT.)

0 100 200 300 400 500 600

AMPS AT 460 VOLTS (1)

0 100 200 300 400 500 600

TORQUE IN LB. FT. (2)

1

2

0 10 20 30 40 50 60 70 80 90 100 110

HORSEPOWER

0 20 40 60 80 100 120 140 160

AMPS AT 460 VOLTS (1)

0 20 40 60 80 100

P.F.(2) & EFF.(3) IN %

1768 1772 1776 1780 1784 1788 1792 1796 1800

SPEED IN RPM (4)

1

2

3

4

FL

XE MOTOR-NEMA NOM. EFF. 95.0 %

GUARANTEED MIN. EFF. 94.1%

Page 12 of 18

Product Information Packet: CDRX36644T - 60HP,1780RPM,3PH,60HZ,364TC,TEFC,F1

1780 1.00 418141035YE

364TC 230/460 B TYPICAL DATA

60 136/68 G ---

P CONT TEFC .0277/.110

3/60 40/F 492281

Printed on 5/21/19 14:12 @ bengap01.baldor.com

REL. S.O.

FRAME

HP

TYPE

PHASE/HERTZ

RPM

VOLTS

AMPS

DUTY

AMB

C/INSUL

S.F.

NEMA DESIGN

CODE LETTER

ENCLOSURE

E/S

ROTOR

TEST S.O.

TEST DATE

STATOR RES.@ 25

C

OHMS (BETWEEN LINES)

A-C MOTOR

PERFORMANCE

CURVES

REMARKS:

DR. BY

CK. BY

APP. BY

DATE

ISSUE DATE

AMPERES SHOWN FOR

AMPERES WILL VARY INVERSELY WITH THE RATED VOLTAGE.

VOLT CONNECTION, IF OTHER VOLTAGE CONNECTIONS ARE AVAILABLE, THE

1

2

3

4

56789

1

2

3

4

56789

1

2

3

4

56789

10

Rotext2(0)

0 100 200 300 400 500 600 700

% FULL LOAD CURRENT

TIME IN SEC.

0

00

OVERLOAD

ACCELERATION

LOCKED-ROTOR

LOCKED-ROTOR, 40.C

MOTOR INITIAL TEMPERATURE:

95

C FOR OVERLOAD AND ACC.

95 C FOR LOCKED-ROTOR

THERMAL LIMIT CURVE

XE MOTOR-NEMA NOM. EFF. 95.0 %

GUARANTEED MIN. EFF. 94.1%

460

D. M. BYRD

J. P. TSAO

E.J.CHRISTIAN

10/10/91

A36WG0261-R007

05/21/19

Page 13 of 18

Product Information Packet: CDRX36644T - 60HP,1780RPM,3PH,60HZ,364TC,TEFC,F1

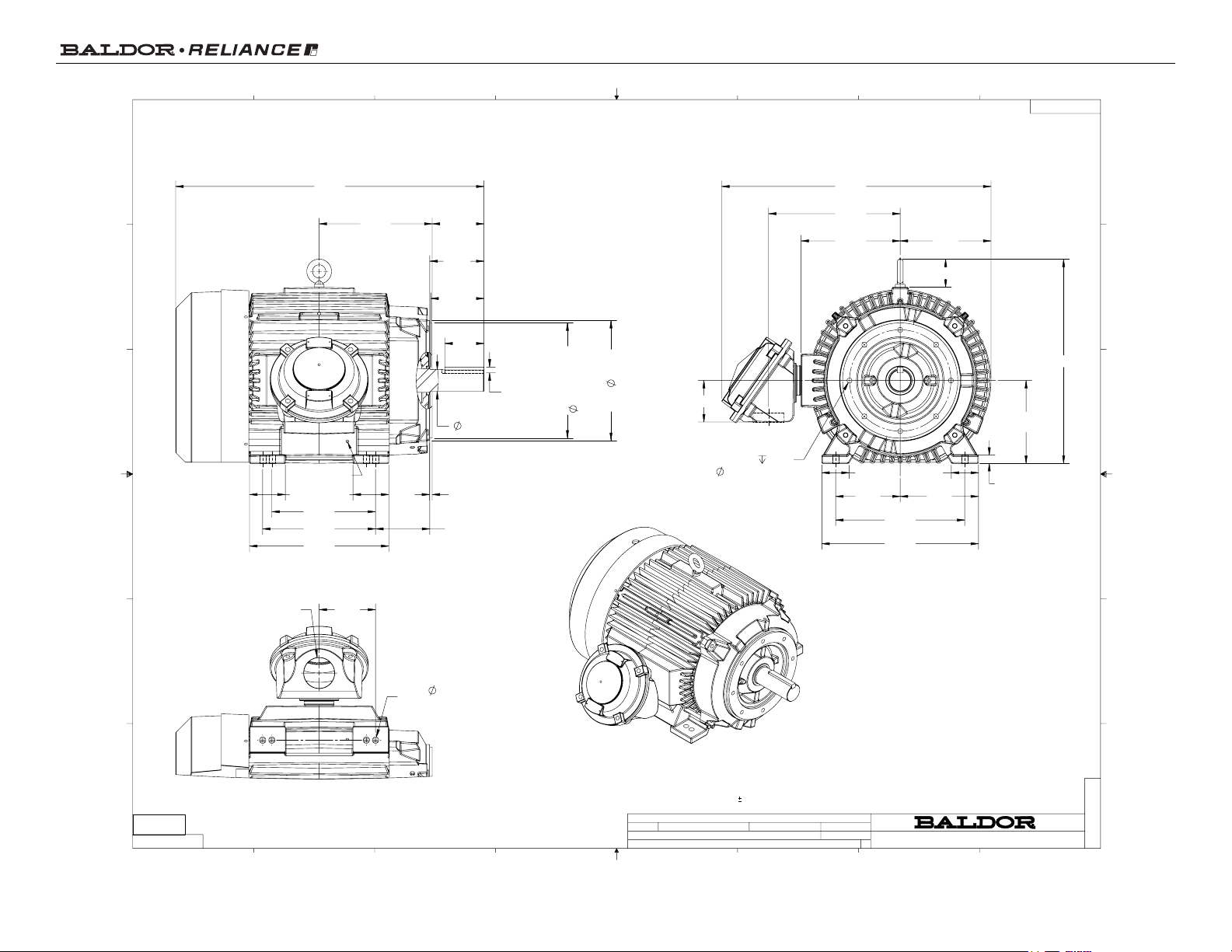

1 OF 1

SHEET NUMBER

7.00

.90

14.00

17.00

9.00

+-.00

.06

29.21

10.75

4.50

9.85

2.96 2.96

8.50

14.28

8X

5/8-11 UNC - 2B

1.00

ON

11.00 B.C.

22.17

3.06

11.25

12.25

15.11

3.88 3.88

3/8-16 UNC

(GROUND TAP)

BB=.28

AK=

12.500

+

-

.000

.005

BD=

13.03

12.26

BA=5.88

AH=

5.62±.03

33.45

4.25

K'WAY

.625

SQ. KEY

2.375

+-.000

.001

V=5.76

N-W=

5.88

3 NPT

6.12

8X

.69 THRU

(FOOT MOUNTING)

DUTY MASTER ALTERNATING CURRENT MOTORS

SQUIRREL-CAGE INDUCTION

E365TC/E364TC FRAME MOUNTING HOLES

FACE RUNOUT & ECCENTRICITY = .007 MAX. T.I.R. IF MOUNTING CLEARANCE DETAILS ARE REQUIRED, CONSULT FACTORY. MAX PERMISSIBLE SHAFT RUNOUT WHEN MEASURED AT END OF STANDARD SHAFT EXTENSION IS .003" T.I.R.

DIMENSIONS ARE IN INCHES. MOTOR WEIGHT (LBS)= 944

15% DEPENDING RATING.

CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT MOTOR PERFORMANCE IS SUITABLE IN THE APPLICATION.

ENCLOSURE: TOTALLY ENCLOSED

MOUNTING: FOOT, F-1

UNDERWRITER MOTOR

COOLING: FAN COOLED EXPLOSION PROOF

D

C

B

A

B

C

D

1

2

3

4

5

6

7

8

7

6

5

4

3

2

1

E

F

E

F

C

611742-780

00

000001109209

611742-780

02:26:38 05/21/2019

-

USJEDIL

NEW DRAWING

611742-780

TDR:

VERSION:

MODEL NO.

REVISED:

BY:

REV:

REV. DESC:

E365/364TC FCXP F1 FOOT CAST IRON BOX/GROUP C & D/GROUND TAP

Page 14 of 18

Product Information Packet: CDRX36644T - 60HP,1780RPM,3PH,60HZ,364TC,TEFC,F1

Page 15 of 18

Product Information Packet: CDRX36644T - 60HP,1780RPM,3PH,60HZ,364TC,TEFC,F1

Page 16 of 18

Product Information Packet: CDRX36644T - 60HP,1780RPM,3PH,60HZ,364TC,TEFC,F1

Marketing maintained PDF of MN408:

http://www.baldor.com/support/Literature/Load.ashx/MN408?ManNumber=MN408

Page 17 of 18

Product Information Packet: CDRX36644T - 60HP,1780RPM,3PH,60HZ,364TC,TEFC,F1

Marketing maintained PDF of MN416:

http://www.baldor.com/support/Literature/Load.ashx/MN416?ManNumber=MN416

Page 18 of 18
