CDRX25244T
Product Information Sheet
14 pgs420.4 Kb0

Baldor CDRX25244T Product Information Sheet

Download
Product Information Packet
CDRX25244T
20HP,1770//1470RPM,3PH,60/50HZ,256TC,XPF
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: CDRX25244T - 20HP,1770//1470RPM,3PH,60/50HZ,256TC,XPF
Part Detail
Revision: B Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 09WGT459 CD Diagram: CD0180 Mfg Plant: Mech. Spec: Layout: 09LYF368 Poles: 04 Created Date: 06-04-2019 Base: Eff. Date: 05-18-2020 Leads: 9#10
Specs
Catalog Number: CDRX25244T Enclosure: XPFC Frame: 256TC Frame Material: Iron Output @ Frequency: 20.000 HP @ 60 HZ
15.000 HP @ 50 HZ Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ Voltage @ Frequency: 190.0 V @ 50 HZ
230.0 V @ 60 HZ
380.0 V @ 50 HZ
460.0 V @ 60 HZ XP Class and Group: CLI GP C,D XP Division: Division I Agency Approvals: UR
CSA EEV CSA
Auxillary Box: No Auxillary Box
Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Heater Indicator: No Heater Insulation Class: F Inverter Code: Inverter Duty IP Rating: NONE KVA Code: J Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Termination: Flying Leads Motor Type: 0960M Mounting Arrangement: F1 Power Factor: 83 Product Family: Hazardous Location Motor Pulley Face Code: C-Face
Auxillary Box Lead Termination: None
Rodent Screen: None
Product Information Packet: CDRX25244T - 20HP,1770//1470RPM,3PH,60/50HZ,256TC,XPF
Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None Constant Torque Speed Range: 6 Current @ Voltage: 52.000 A @ 208.0 V
48.000 A @ 230.0 V
44.000 A @ 190.0 V
24.000 A @ 460.0 V
22.000 A @ 380.0 V Design Code: A
Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line Thermal Device - Bearing: None Thermal Device - Winding: Normally Closed Thermostat Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None XP Temp Code: T3C
Product Information Packet: CDRX25244T - 20HP,1770//1470RPM,3PH,60/50HZ,256TC,XPF
Nameplate NP1401XPSLEV
NO. CC 010A
S/N TEMP CODE T3C
SPEC. 09-0000-1449 INV.TYPE PWM
CAT.NO. CDRX25244T C HP FR 60 C HP TO 90
HP 20//15 CT HZ FROM 6 CT HZ TO 60
VOLTS 230/460//190/380 VT HZ FROM 6 VT HZ TO 60
AMPS 48/24//44/22 MAG CUR 20.8/10.4
RPM 1770//1470 MX RPM 2700
HZ 60//50 PH 3 CL F NOM.EFF. 93
SER.F. 1.00 DES A SL HZ 1 WK2 2.62
FRAME 256TC RATING 40C AMB-CONT
55C AMB @ 1.0 SF, 60C RISE
1.15SF ON SINEWAVE NEMA MG-1 PT.5,IP55
Product Information Packet: CDRX25244T - 20HP,1770//1470RPM,3PH,60/50HZ,256TC,XPF
Parts List
Part Number Description Quantity SA370315 SA 09-0000-1449 1.000 EA RA359960 RA 09-0000-1449 1.000 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA LB1119N WARNING LABEL 1.000 EA LC0181 CONNECTION LABEL 1.000 EA NP1401XPSLEV SS XP INV UL CSA-EEV CC CL-I GP-C&D 1.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 4.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA LB1081Z ALUM XP CAUTION LABEL (ZK PLANT ONLY- 1.000 EA HW3201A01 1/2-13 EYEBOLT 1.000 EA HW1002A63 0ASHER, 5/8 HI-COLLAR SPRLCKWASHER 1.000 EA 09FH1004A08P FAN COVER, MACH W/EPOXY PRIMER 1.000 EA HW1001A25 LOCKWASHER 1/4, ZINC PLT .493 OD, .255 I 3.000 EA 10XN2520K14 1/4-20 X .88 HEX GRD 5 (20001) 3.000 EA 09FN3001D01SP EXTERNAL FAN, PLASTIC 1.000 EA HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA 51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.080 LB 09EP1700A65PP15 FR ENDPLATE, MACH, XPFC W/DRN HW4505A02 1.000 EA 10XN3816K28 3/8-16 X 1.75 HEX HD CAP SCREW, GRADE 5 4.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA HA2065A03 SLINGER, ALUM. 1.000 EA 80XN1032A07 SET SCREW, HEX XOCK, ZN 1.000 EA
Product Information Packet: CDRX25244T - 20HP,1770//1470RPM,3PH,60/50HZ,256TC,XPF
Parts List (continued)
Part Number Description Quantity HW5100A08 W3118-035 WVY WSHR (WB) 1.000 EA HA4017A03 .125 X 1.75 GREASE EXT (F/S) 1.000 EA HA4017A08 .125X3.50 GREASER EXTEN. 1.000 EA HW4019A01 PIPE COUPLING 1/8 NPT,STEEL,ZINC COATING 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HW4500A21 1618BALEMITE FITTING 825 UNIVERSAL 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HW4505A02 BREATHER/DRAIN-EXP PROOF-.250-18 PTF AIS 1.000 EA HW3023E06 .125 X .625 SPIRAL SPRING PIN 1.000 EA 09EP1708A19P PUEP, MACH W/METAL SLINGER & HW4505A02 W 1.000 EA HW1001A38 LOCKWASHER 3/8, ZINC PLT .688 OD, .382 I 4.000 EA 10XN3816K28 3/8-16 X 1.75 HEX HD CAP SCREW, GRADE 5 4.000 EA HA2066A01 SLINGER, ALUM (AUTO) 1.000 EA 80XN1032A07 SET SCREW, HEX XOCK, ZN 1.000 EA 10XN2520K36 1/4-20 X 2.25" HX HD SCRWGRADE 5, ZINC P 4.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HW4505A02 BREATHER/DRAIN-EXP PROOF-.250-18 PTF AIS 1.000 EA HW3023E06 .125 X .625 SPIRAL SPRING PIN 1.000 EA 09CB1003A01P KOBX, MACH 1.25 NPT GROUP C MTRS PRIMED 1.000 EA 10XN3118K24 5/16-18 X 1.50" HEX HD, GRADE 5 4.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 4.000 EA WD1000B25 GND LUG, BURNDY L125HP OR T&B L125HP-BB 1.000 EA
Product Information Packet: CDRX25244T - 20HP,1770//1470RPM,3PH,60/50HZ,256TC,XPF
10XN3118K12 5/16-18 X .75 GRADE 5, ZINC PLATED 1.000 EA HW1001A31 LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I 1.000 EA 09CB1502A01P CONDUIT BOX LID MACH. GROUP C MTRS W/EP 1.000 EA 84XN5013J24 1/2-13 X 1-1/2 HEX SOCKET HD CAP SCREW 6.000 EA HW1001A50 LOCKWASHER 1/2, ZINC PLT,.879 OD, .509 I 6.000 EA MG1025G29 WILKOFAST, 789.229, DARK CHARCOAL GRAY 0.070 GA 40PA1005 PACKAGING GROUP, 09 STD 1.000 EA HW2501G25 KEY, 3/8 SQ X 2.875 1.000 EA MJ5000A09 EFI KIT #1578 (400 ML CARTRIDGE OF EFI 0.031 EA MJ5001A27 32220KN GRAY SEALER *MIN BUY 4 QTS=1GAL 0.001 QT
Product Information Packet: CDRX25244T - 20HP,1770//1470RPM,3PH,60/50HZ,256TC,XPF
AC Induction Motor Performance Data
Record # 68068 - Typical performance - not guaranteed values
Winding: 09WGT459-R009 Type: 0960M Enclosure: XPFC
Nameplate Data
460 V, 60 Hz:
High Voltage Connection Rated Output (HP) 20 Full Load Torque 59.27 LB-FT Volts 230/460 Start Configuration direct on line Full Load Amps 48/24 Breakdown Torque 232 LB-FT R.P.M. 1770 Pull-up Torque 126 LB-FT Hz 60 Phase 3 Locked-rotor Torque 141 LB-FT NEMA Design Code A KVA Code J Starting Current 198 A Service Factor (S.F.) 1 No-load Current 10.4 A NEMA Nom. Eff. 93 Power Factor 83 LinelineRes.@25ºC 0.33814Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 58°C
Locked-rotor Power Factor 26.5
Load Characteristics 460 V, 60 Hz, 20 HP
% of Rated Load 25 50 75 100 125 150 Power Factor 45 67 78 83 86 87 Efficiency 89.2 93 93.7 93.6 93.1 92.4 Speed 1793.2 1786.4 1779.1 1771.9 1763.7 1755.3 Line amperes 11.8 15 19.2 24 29.3 34.9
Product Information Packet: CDRX25244T - 20HP,1770//1470RPM,3PH,60/50HZ,256TC,XPF
Performance Graph at 460V, 60Hz, 20.0HP Typical performance - Not guaranteed values
Product Information Packet: CDRX25244T - 20HP,1770//1470RPM,3PH,60/50HZ,256TC,XPF
AC Induction Motor Performance Data
Record # 75710 - Typical performance - not guaranteed values
Winding: 09WGT459-R033 Type: 0960M Enclosure: XPFC
Nameplate Data
380 V, 50 Hz:
High Voltage Connection Rated Output (HP) 20//15 Full Load Torque 53.39 LB-FT Volts 230/460//190/380 Start Configuration direct on line Full Load Amps 48/24//44/22 Breakdown Torque 224 LB-FT R.P.M. 1770//1470 Pull-up Torque 130 LB-FT Hz 60//50 Phase 3 Locked-rotor Torque 146 LB-FT NEMA Design Code A KVA Code J Starting Current 193 A Service Factor (S.F.) 1 No-load Current 10.15 A NEMA Nom. Eff. 93 Power Factor 83 LinelineRes.@25ºC 0.332Ω Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 50°C S.F. Amps Temp. Rise @ S.F. Load 60°C
Locked-rotor Power Factor 29.8
Rotor inertia 2.65 LB-FT2
Load Characteristics 380 V, 50 Hz, 15 HP
% of Rated Load 25 50 75 100 125 150 Power Factor 43 65 77 83 85 87 Efficiency 89.1 92.8 93.5 93.4 92.8 92.1 Speed 1494 1488 1481 1475 1467 1460 Line amperes 11.28 14 17.72 21.99 26.74 31.76
Page 10 of 14
Product Information Packet: CDRX25244T - 20HP,1770//1470RPM,3PH,60/50HZ,256TC,XPF

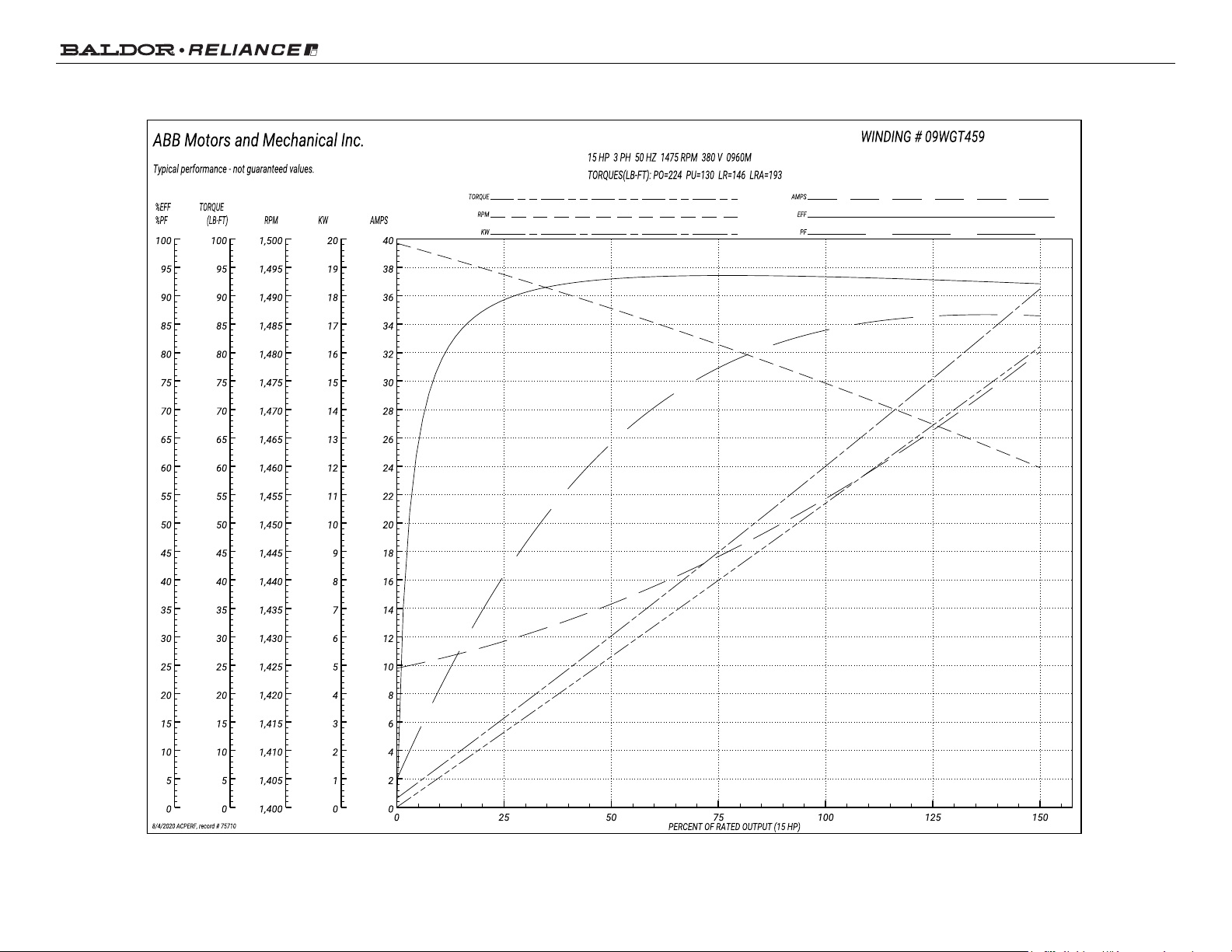

Performance Graph at 380V, 50Hz, 15.0HP Typical performance - Not guaranteed values
Page 11 of 14
Product Information Packet: CDRX25244T - 20HP,1770//1470RPM,3PH,60/50HZ,256TC,XPF
Page 12 of 14
Product Information Packet: CDRX25244T - 20HP,1770//1470RPM,3PH,60/50HZ,256TC,XPF
Page 13 of 14
Product Information Packet: CDRX25244T - 20HP,1770//1470RPM,3PH,60/50HZ,256TC,XPF
Marketing maintained PDF of MN416:
http://www.baldor.com/support/Literature/Load.ashx/MN416?ManNumber=MN416
Page 14 of 14
