09H154Z534G1
Product Information Sheet
11 pgs209.63 Kb0

Baldor 09H154Z534G1 Product Information Sheet

Download
Product Information Packet
09H154Z534G1
15KW,1465RPM,3PH,50HZ,D160L,0956M,TEFC,F
Copyright © All product information within this document is subject to ABB Motors and Mechanical Inc. copyright © protection, unless otherwise noted.
Product Information Packet: 09H154Z534G1 - 15KW,1465RPM,3PH,50HZ,D160L,0956M,TEFC,F
Part Detail

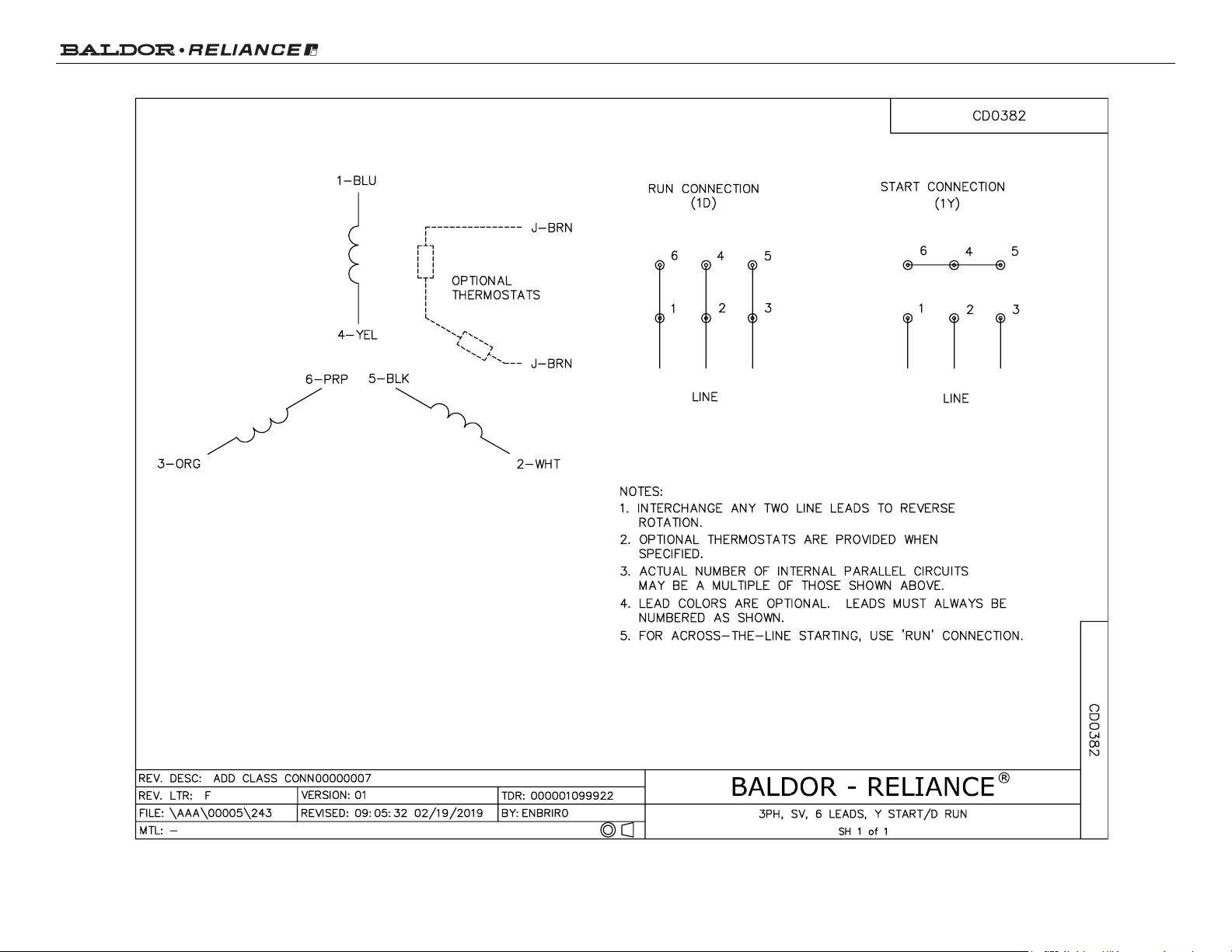

Revision: Z Status: PRD/A Change #: Proprietary: No Type: AC Elec. Spec: 09WGZ534 CD Diagram: CD0382 Mfg Plant: Mech. Spec: 09H154 Layout: 09LYH154 Poles: 04 Created Date: 10-28-2009 Base: RG Eff. Date: 07-02-2019 Leads: 6#12
Specs
Enclosure: TEFC Frame: D160L Frame Material: Iron Output @ Frequency: 15.000 KW @ 50 HZ Synchronous Speed @ Frequency: 1500 RPM @ 50 HZ Voltage @ Frequency: 415.0 V @ 50 HZ
380.0 V @ 50 HZ XP Class and Group: None XP Division: Not Applicable Agency Approvals: CE
CSA UR
WEEE Auxillary Box: No Auxillary Box Auxillary Box Lead Termination: None Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F)
Insulation Class: F Inverter Code: Not Inverter KVA Code: H Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Quantity/Wire Size: 6 @ 12 AWG Motor Lead Exit: Ko Box W/Term Block Motor Lead Termination: Terminal Block Motor Type: 0956M Mounting Arrangement: F2 Power Factor: 84 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: Standard Pulley Shaft Indicator: Standard Rodent Screen: None RoHS Status: ROHS COMPLIANT
Blower: None
Shaft Extension Location: Pulley End
Product Information Packet: 09H154Z534G1 - 15KW,1465RPM,3PH,50HZ,D160L,0956M,TEFC,F
Current @ Voltage: 28.000 A @ 415.0 V
29.000 A @ 380.0 V Design Code: N Drip Cover: No Drip Cover Duty Rating: CONT Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK Frame Prefix: D Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater
Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: Shaft Slinger Speed Code: Single Speed Motor Standards: IEC Starting Method: Wye Start - Delta Run Thermal Device - Bearing: None Thermal Device - Winding: Thermistor Vibration Sensor Indicator: No Vibration Sensor Winding Thermal 1: None Winding Thermal 2: None
Product Information Packet: 09H154Z534G1 - 15KW,1465RPM,3PH,50HZ,D160L,0956M,TEFC,F
Nameplate NP2157L
CAT NO
SPEC. 09H154Z534G1
KW 15 PH 3
VOLTS DELTA 380-415
AMP 29-28
R/MIN 1465 WEIGHT 141 KG
FRAME D160L HZ 50 I.P. 55
SER.F. 1.00 CODE H DES N CL F
IEC EFF 92.1 % (100%)
COS 0.84 RATING 40C AMB-CONT MTG F2 DE BRG 6309 ODE 6208
ENCL TEFC SN
BLANK IE3-92.6(75%)92.0(50%)
Product Information Packet: 09H154Z534G1 - 15KW,1465RPM,3PH,50HZ,D160L,0956M,TEFC,F
Parts List
Part Number Description Quantity SA187207 SA 09H154Z534G1 1.000 EA RA174975 RA 09H154Z534G1 1.000 EA 09FN3001C01 EXTERNAL FAN, PLASTIC 1.000 EA 10CB1000A192 CONDUIT BOX, MACH W/2 M40 X 1.5 TAP HLS 1.000 EA 09GS1000SP GASKET-CONDUIT BOX, 1/16 THICK LEXIDE 1.000 EA 10YN0080K025 BOLT, M8 X 1.25 X 25MM HHCS YZ 2.000 EA HW1021A08 WASHER DIAMETER = M8, SPRING STEEL, 2.000 EA WD1000B17 T&B CX35TN OR L35P TERMINAL LUG 1.000 EA 10YN0060K012 BOLT, M6X12 HHCS 8.8 ZINC1 W/ CR3 1.000 EA HW1021A06 WASHER DIAMETER = M6, SPRING STEEL, 1.000 EA HW2511C28 12MM X 8MM X 90MM LONG KEY W/ROUND ENDS 1.000 EA MJ5001A27 32220KN GRAY SEALER *MIN BUY 4 QTS=1GAL 0.031 QT WD5005A06 TERM BLK KIT W/WD1320A02 ELEC AMPS 0-63 1.000 EA HA6370A03 ADAPTER - WECO TERMINAL BOARD 309-318 1.000 EA WD1201A01 TERM. STRIP KL 16/12/PA DS ELECTROVERT 1.000 EA 84YN0030J012 SCREW SOCKET HD M3 X 12MM LG 2.000 EA HA6357A03 CONNECTOR MTG. BRACKET, VECTOR DRIVES 1.000 EA 19YW0040A012 SCREW, TAPTITE, ZN, M4 X 12MM LONG, 2.000 EA HW1001A08 WASHER, #8 SPLT LK, ZN 2.000 EA 09EP1100A14 FREP ASSM, (FOR INTRL ROUTING PURPOSE) 1.000 EA YZ3100A02 10MM FINISHED NUT 4.000 EA HW1021A10 WASHER DIAMETER = M10, SPRING STEEL, 4.000 EA HW5100A08 W3118-035 WVY WSHR (WB) 1.000 EA 10YN0060K040 M6-1 X 40MM LONG HEX HD MACH SCREW 2.000 EA
Product Information Packet: 09H154Z534G1 - 15KW,1465RPM,3PH,50HZ,D160L,0956M,TEFC,F
Parts List (continued)
Part Number Description Quantity 09EP1101A11SP PU ENDPLATE, MACH 1.000 EA 10YN0060K060 M6-1 X 60MM LONG HEX HD MACH SCREW 4.000 EA HW4600B44 V-RING SLINGER 1.500 X 1.810 X .28 VITON 1.000 EA HA3123A01 THRUBOLT 10MM X 422MM 4.000 EA YZ3100A02 10MM FINISHED NUT 4.000 EA HW1021A10 WASHER DIAMETER = M10, SPRING STEEL, 4.000 EA 09FH4000SP 309 FH - BLACK PRIMER 1.000 EA HA2081A05 SPACER TUBE, 309 FAN HSG, 2.00 LONG 4.000 EA YZ3100A02 10MM FINISHED NUT 4.000 EA HW1021A10 WASHER DIAMETER = M10, SPRING STEEL, 4.000 EA 10CB1500A01SP CONDUIT BOX LID, MACH 1.000 EA 14GS1001 GASKET, CONDUIT BOX LID 314 FRAME 1.000 EA 10YN0060K025 M6 X 1 X 25MM HX HD CP SCR, CL 8.8 4.000 EA HW1021A06 WASHER DIAMETER = M6, SPRING STEEL, 4.000 EA MJ5001A14 DYNAPRO SEALANT, CP MTR VC#2508050 (603 0.023 EA MJ5002A01 SILICON RUBBER SEALANT, 732CL 10.3 OZ TU 0.015 EA LB1115N LABEL,LIFTING DEVICE (ON ROLLS) 1.000 EA MN416A01 TAG-INSTAL-MAINT no wire (1200/bx) 3/19 1.000 EA WD1000B07 T&B C71, RING TERM 10-12 AWG, .25" STUD 6.000 EA HW4500A05 1669B ALEM/UNIV860 GR FTG X 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA HA4054 SHORT T-DRAIN FITTING, .125" N.P.T. 1.000 EA
Product Information Packet: 09H154Z534G1 - 15KW,1465RPM,3PH,50HZ,D160L,0956M,TEFC,F
MJ1000A02 GREASE, MOBIL POLYREX EM - 124047 0.080 LB HW4500A03 GREASE FITTING, .125 NPT 1610(ALEMITE) 8 1.000 EA HW4500A17 317400 ALEMITE GREASE RELIEF 1.000 EA HA4051A00 PLASTIC CAP FOR GREASE FITTING 1.000 EA HW2500A25 WOODRUFF KEY USA #1008 #BLOW CARBON STEE 1.000 EA 51XB1214A20 12-14X1.25 HXWSSLD SERTYB 1.000 EA MG1025G05 WILKOFAST, 789.227, MED. GRAY CHAR. MET. 0.050 GA 85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA LB1119N WARNING LABEL 1.000 EA LC0762 CONN LABEL, AC 1.000 EA NP2157L ALUM SUPER-E IEC IE3 UL CSA CE 1.000 EA 40PA1005 PACKAGING GROUP, 09 STD 1.000 EA LB1417 LABEL CARTON 6X4 PERFORATED BLANK ROLLS 1.000 EA LB1594 MYLAR WEEE WHEELIE BIN SYMBOL FOR CE MOT 1.000 EA PE-0000003 ZRTG PE ASSEMBLY 1.000 EA
Product Information Packet: 09H154Z534G1 - 15KW,1465RPM,3PH,50HZ,D160L,0956M,TEFC,F
AC Induction Motor Performance Data
Record # 30008 - Typical performance - not guaranteed values
Winding: 09WGZ534-R005 Type: 0956M Enclosure: TEFC
Nameplate Data
415 V, 50 Hz:
Single Voltage Motor Rated Output (HP) 20 Full Load Torque 71.4 LB-FT Volts 380-415 Start Configuration direct on line Full Load Amps 29-28 Breakdown Torque 398 LB-FT R.P.M. 1465 Pull-up Torque 120 LB-FT Hz 50 Phase 3 Locked-rotor Torque 182 LB-FT NEMA Design Code A KVA Code J Starting Current 212 A Service Factor (S.F.) 1.15 No-load Current 13.8 A NEMA Nom. Eff. 92.1 Power Factor 81 LinelineRes.@25ºC 0.324Ω Rating - Duty 50C AMB-CONT Temp. Rise @ Rated Load 78°C S.F. Amps Temp. Rise @ S.F. Load 94°C
Locked-rotor Power Factor 36.8
Rotor inertia 2.44 LB-FT2
Load Characteristics 415 V, 50 Hz, 20 HP
% of Rated Load 25 50 75 100 125 150 S.F. Power Factor 39 62 74 81 85 86 85 Efficiency 86.3 91 91.9 92.1 91.4 89.9 91.8 Speed 1494 1486 1477 1470 1461 1448 1462 Line amperes 15 18.3 22.9 27.7 33.6 41.3 31.9
Product Information Packet: 09H154Z534G1 - 15KW,1465RPM,3PH,50HZ,D160L,0956M,TEFC,F
Performance Graph at 415V, 50Hz, 20.0HP Typical performance - Not guaranteed values
Product Information Packet: 09H154Z534G1 - 15KW,1465RPM,3PH,50HZ,D160L,0956M,TEFC,F
Page 10 of 11
Product Information Packet: 09H154Z534G1 - 15KW,1465RPM,3PH,50HZ,D160L,0956M,TEFC,F
Page 11 of 11
