Index
Safety instructions 4. . . . . . . . . . . . .
Getting to know your appliance 6. .
Water softener 7. . . . . . . . . . . . . . . .
Filling in the Salt 8. . . . . . . . . . . . . . .
Adding rinse aid 9. . . . . . . . . . . . . . .
Not suitable for the dishwasher 10. .
Arranging crockery, glasses,
etc. in the dishwasher 11. . . . . . . . . .
Detergents 14. . . . . . . . . . . . . . . . . . .
auto 3in1 15. . . . . . . . . . . . . . . . . . . . .
Overview of programmes 17. . . . . . .
Washing dishes 18. . . . . . . . . . . . . . .
Additional functions 20. . . . . . . . . . . .
Maintenance and care 21. . . . . . . . . .
Fault finding 23. . . . . . . . . . . . . . . . . .
Customer Service 26. . . . . . . . . . . . .
Information 26. . . . . . . . . . . . . . . . . . .
Installation 27. . . . . . . . . . . . . . . . . . . .
Waste disposal 28. . . . . . . . . . . . . . . .
Page 4
en
4
Safety instructions
Delivery
Immediately check the packaging and
dishwasher for any damage which may
have been caused in transit. Do not use
a damaged appliance, but consult your
supplier.
Please dispose of packaging material
properly:
D
The corrugated cardboard consists
mainly of waste paper.
D
The polystyrene moulded parts
have been foamed without any
CFCs.
D
The polyethylene film (PE) consists
partly of secondary raw material.
D
The wooden frames (if fitted) are
made of residual wood and are
untreated.
D
The hoops (if fitted) consist of
polypropylene (PP).
Installation
Install and connect the appliance
according to the installation and
assembly instructions.
The dishwasher must NOT be
connected to the power supply during
installation.
Ensure that the protective conductor
system of the domestic electricity
supply has been installed correctly.
Electrical connection conditions must
correspond with the specifications on
the rating plate of the dishwasher.
If the dishwasher is to be installed
in a high-sided unit, ensure that the unit
is attached properly and also at the
rear.
Built-under and built-in appliances
should always be installed under a
continuous work surface which is
attached to the adjacent cupboards, in
order to ensure that the appliance is
entirely stable.
After the appliance has been installed,
the mains plug should still be easily
accessible.
Not on all models:
The plastic housing on the water input
contains an electrically operated valve.
The connecting wires are inside the
inlet hose. Do not cut through this hose
and do not immerse the plastic housing
in water.
Warning
For safety reasons, if the appliance is not
fitted in a recess, thereby making a side
wall accessible, the door hinge area
should be covered at the side.
(Risk of injury)
Covers are available as optional
accessories from customer services or
specialist stores.
Page 5
en
5
In daily use
Warning
Knives and other utensils with sharp points
must be placed in the baskets either flat or
with the points downwards.
Use the dishwasher only in the
household and only for its designed
purpose, i.e. for washing domestic
dishes.
Do not lean or sit on the open door.
The appliance could tip.
Please note that free-standing
appliances may tip over if the baskets
are overloaded.
The water in the appliance is not
drinking water.
Do not add any solvents to the washing
chamber. Danger of explosion!
Open the door carefully when the
programme is still running. Water could
spray out of the appliance.
To prevent injuries, e.g. caused by
stumbling, open the dishwasher only
briefly in order to load and unload the
dishwasher.
Read and observe the safety
information and instructions for use on
the packaging for cleaning and rinsing
agents.
Children in the household
Do not let infants play or operate the
dishwasher.
Keep cleaning and rinsing agents out of
the reach of infants. These may cause
chemical burns in the mouth, throat and
eyes or asphyxiation.
Keep infants away from the open
dishwasher. It could contain residue of
the cleaning agent.
If the appliance is installed at eye-level,
ensure when opening and closing the
door that children are not caught or
crushed between the appliance door
and the cupboard door situated below.
Child-proof lock*
* some models
Comply with the drawings in the back
of the envelope.

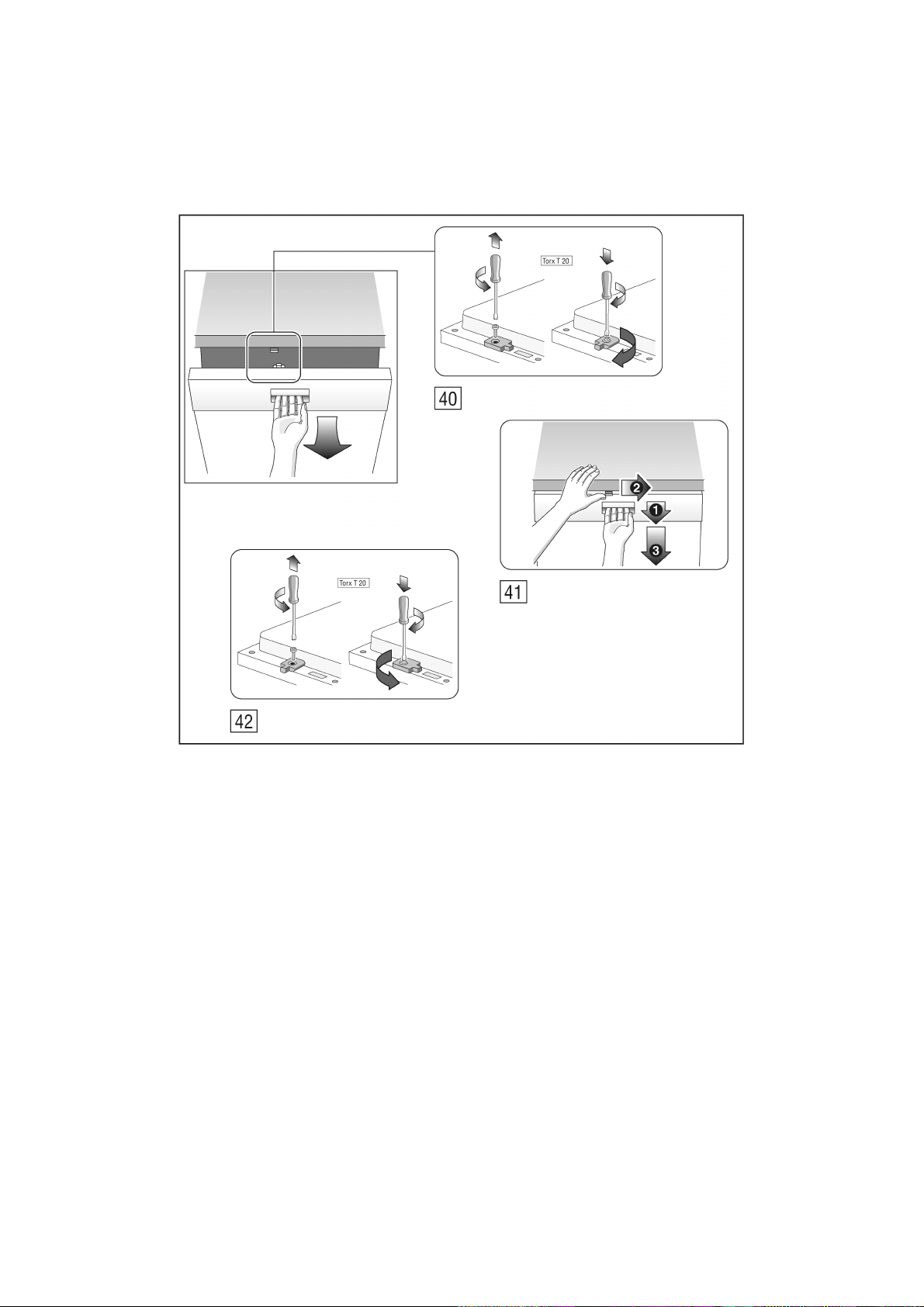

40
Switch on the child-proof lock
41
Open the door with child-proof lock
switched on
42
Switch off the child-proof lock
When the door is open, the child-proof
lock offers no protection.
If a fault occurs
Repairs or other work on the
dishwasher should only be carried out
by a qualified specialist.
The dishwasher must be disconnected
from the electricity supply before any
repairs or other work are started. Pull
the mains plug out of the wall socket or
switch off at the fuse box. Grasp the
plug to remove it from the socket; do
not tug on the cable. Turn the water off
at the tap.
When disposing of old
appliances
Appliances that have reached the end
of their service life should be rendered
inoperable in order to exclude the
possibility of subsequent accidents. Pull
the mains plug out of the wall socket,
cut through the connecting cable and
disable the door lock.
Take the appliance to a designated
waste disposal centre.
Warning
Children could get locked in the appliance
(risk of suffocation) or get stuck in other
positions.
Therefore: Remove the mains plug, cut the
mains wire and set aside. Damage the
door lock so that the door can no longer
be closed.
Page 6
en
6
Getting to know your
appliance
Diagrams of the control panel and the
interior of the appliance can be found
in the envelope at the front.
Individual positions are referred to in
the text.
Control panel
1
Main switch
2
Additional options *
3
Time delay
4
Salt refill indicator
5
Rinse-aid refill indicator
6
Programme buttons
7
Door opener
8
Digital display
9 Programme sequence indicator
Appliance interior
20
Upper basket with 2-tiered cup rack
21
Additional cutlery basket for the top
basket *
22
Upper spray arm
23
Lower spray arm
24
Container for special salt with level
indicator *
25
Filters
26
Cutlery basket
27
Lower basket
28
Lock for detergent dispenser
29
Container for rinse-aid, with level
indicator
30
Detergent compartment
31
Nameplate
* not on all models
You will need to purchase the
following before using the
dishwasher for the first time:
– special salt for use in dishwashers
– detergent
– rinse-aid
Only use products, which are suitable for
dishwashers.
Page 7
en
7
Water softener
In order to rinse dishes and glasses
satisfactorily, the dishwasher requires soft
water, i.e. containing little or no lime,
otherwise water stains will be left behind
on crockery and glasses, etc.
If the tap water exceeds a certain level of
hardness, it must be softened, i.e.
decalcified, so that it can be used in the
dishwasher.
This is achieved by adding a special salt
to the water softener inside the
dishwasher.
The water softener, that is the required
amount of salt, is set up according to how
hard the tap water is.
Setting up the water softener
Determine the level of hardness of your
tap water. Your local water company or
service agent can help you with this.
Identify setting from the following water
hardness table.
Water hardness table
Hold down programme button B and
switch on the
1
main switch, then
release both buttons.
The LED for button B flashes and the
digital display displays the factory
setting
.
To change the setting,
press programme button
B .
Each time the button is pressed, the set
value increases by 1; after
, the
setting goes back to .
Switch off the main switch 1.
The chosen setting has now been
stored.
Approx. 4 litres of water are required for
regenerating the water softening system.
The overall water consumption per load
can therefore be increased by between 0
and a maximum of 4 litres according to the
water hardness setting.
Page 8
en
8
Filling in the Salt
Open the screw-type cap of the
compartment
24 .
Warning
Before switching on the appliance for
the first time, pour approx. 1 litre of water
into the salt dispenser.
Then refill with salt (not cooking salt)
until the salt container is full
(max. 1.5 kg). When you refill the salt,
water is being displaced and drains off.
Refill with salt always just before switching
on the appliance in order to prevent
corrosion. As a result, any salt solution
which has run over will be immediately
diluted and flushed out.
Then clean the filling area of salt
residues and screw the compartment
lid back on without tilting the lid.
The LOW SALT indicator
4
on the front
panel will light up initially but will extinguish
again after a short period when the salt
solution has become sufficiently
concentrated.
Note
When the control is set to , it
is not necessary to fill up with salt
as none will be consumed while
the dishwasher is operating. The
LOW SALT indicator is switched
off. If the control is set between
and , then salt must be
added to the dispenser.
Do not pour detergent into the
container for special salt. This
would destroy the water
softener.
Salt refill indicator
As soon as the salt refill indicator
4
is lit
on the control panel, refill with salt
immediately before the next rinse cycle.
Depending on the washing frequency and
the hardness setting, the regeneration salt
may not have to be topped up for several
months.
Page 9
en
9
Adding rinse aid
The rinse aid is required for stain-free
utensils and clear glasses.
Use only rinse aid for domestic
dishwashers.

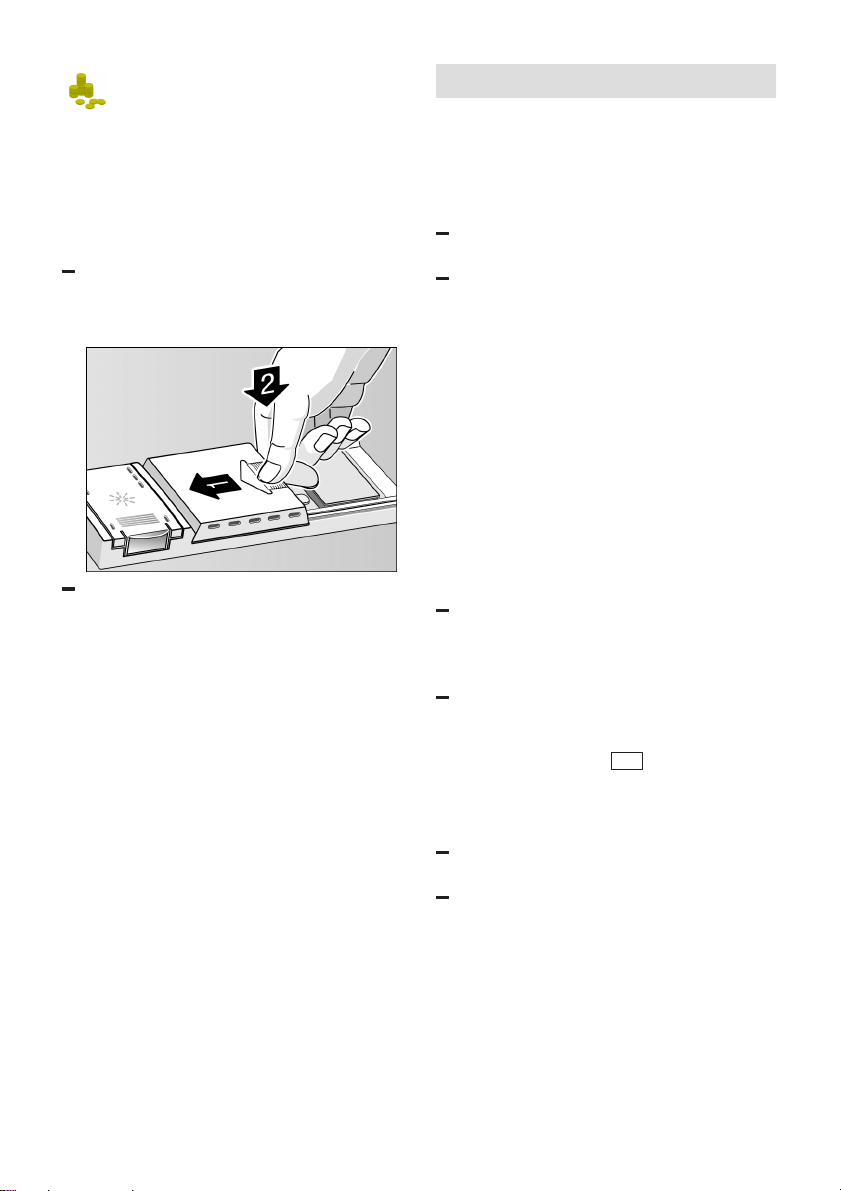

Open the cover on the rinse-aid
dispenser
29 . To do this, press the
mark (1
) on the cover and
simultaneously lift the cover on the
control plate (2
).
Carefully pour in the rinse aid to just
below the edge of the filler opening.
Close the lid, ensuring that you hear it
snap closed.
To prevent excessive foam formation
during the next rinse cycle, remove any
rinse aid which has run over with a cloth.
Adjusting the amount of
rinse-aid
The amount of rinse-aid added to the
water can be varied by adjusting the
stepless control. The rinse-aid control has
been set to ”4” in the factory.
Do not alter the setting of the rinse-aid
control unless streaks (turn knob towards
”–”) or water marks (turn knob towards ”+”)
are left on the dishes.
29
Rinse aid controller
Rinse-aid refill indicator
As soon as the rinse-aid refill indicator
lights up on the control panel
5
,
refill with rinse aid.
If using detergent products with integrated
rinse aid, the rinse-aid refill indicator
can be switched off (see “Switching
the rinse-aid refill indicator off and on”
in the “auto 3in1” chapter).
Page 10
en
10
Not suitable for
the dishwasher
The following should not be
cleaned in the dishwasher:
Wooden cutlery and utensils – these
will leach out and become unsightly;
even the utilised stickers are not
suitable for the temperatures which
occur.
Sensitive ornamental glasses, craft
utensil and vases, special antique
or irretrievable utensils. These
ornaments are not dishwasher-proof.
Plastic parts sensitive to hot water.
Copper and tin utensils.
Utensils which are soiled with ash, wax,
lubricating grease or ink.
Absorbent materials such as sponges
and cloths.
Aluminium and silver parts have
a tendency to discolour and fade during
the wash cycle. Even some types of glass
(e.g. crystal glass objects) may turn cloudy
after many wash cycles.
Recommendation:
In future buy utensils which are identified
as dishwasher-proof.
Damage to glassware and other
dishes
Possible causes:
type of glass or manufacturing process
chemical composition of detergent
water temperature and duration of
dishwasher programme.
Suggested remedy:
Use glassware or porcelain dishes that
have been marked ’dishwasher–proof’
by the manufacturer.
Use a mild detergent that is described
as ’kind to dishes’. If necessary, seek
further information from detergent
manufacturers.
Select a programme with as low a
temperature and as short a duration as
possible.
To prevent damage, take glass and
cutlery out of the dishwasher as soon
as possible after the programme has
ended.
Page 11
en
11

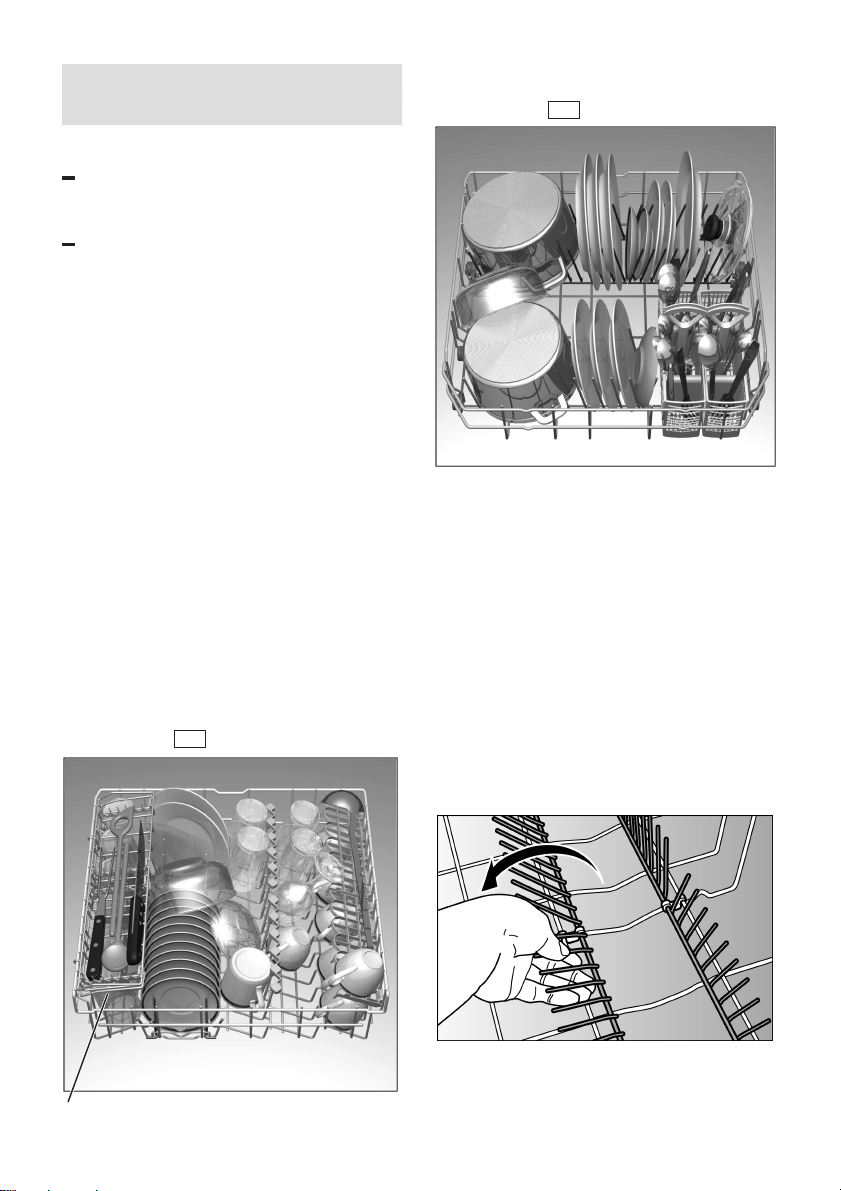

Arranging crockery , glasses,
etc. in the dishwasher
Loading the dishwasher
Scrape off any large amounts of
left-over food. It is not necessary to
rinse the dishes under running water.
Place objects in the dishwasher in such
a way that
D
items such as cups, glasses,
pots/pans, etc. are stood upside
down,
D
curved items, or those with
recesses, should be at a slant so
that water can run off,
D
they are stacked securely and
cannot tip over,
D
they do not prevent the spray arms
from rotating while washing takes
place.
Very small items should not be washed in
the dishwasher as they could easily fall out
of the baskets.
Removing the dishes
To prevent water dripping from the top
basket onto the dishes in the lower basket,
we recommend that you empty the lower
basket first and then the top basket.
Cups and glasses
Upper basket
20
* not included with all models
Pots and pans
Lower basket
27
Cutlery
Cutlery should be placed in the
dishwasher always unsorted and with the
eating surface pointing downwards. The
spray jet is then better able to reach the
individual parts.
To prevent injuries, place long, pointed
accessories and knives on the étagère
(some models) or on the knife shelf
(available as an accessory).
Folding spikes *
* on applicable models
To improve stacking of pots and pans, the
spikes can be folded down.
Page 12
en
12

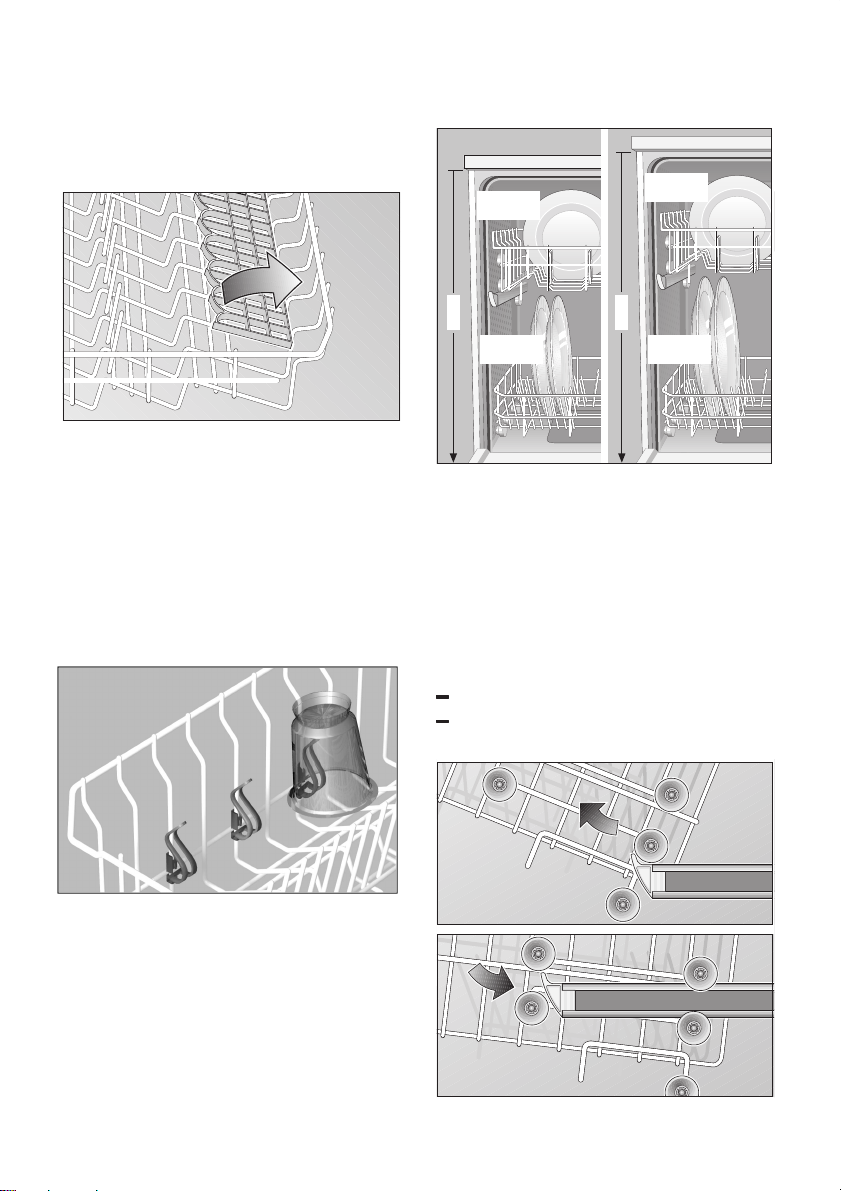

Shelf *
* not on all models
Lean tall glasses and those with long
stems against the shelf – not against other
items to be washed.
Long items, serving cutlery, salad servers
or knives should be placed on the shelf so
that they do not obstruct the rotation of the
spray arms. The shelf can be folded back
when not required for use.
Small accessories holder*
* some models
Light-weight plastic accessories, e.g. cups,
lids, etc. can be held securely in the small
accessories holder.
Adjusting position of basket *
* not on all models
86cm
81cm
Ø max.
30/*25cm
Ø max.
20/*25cm
Ø max.
34/*29cm
Ø max.
20/*25cm
If required, the height of the top basket can
be adjusted in order to create more space
for large utensils either in the top or bottom
basket.
Select one of the two following procedures
according to the design of the top basket
for your appliance model:
Top basket with upper
and lower roller pairs
Pull out the top basket.
Remove the top basket and re-attach it
to the upper or lower rollers.
Page 13
en
13
Top basket with side levers
(Rackmatic)
Pull out the top basket.
To lower the basket, press in
succession the two levers on the left
and right sides of the basket. Always
take hold of the side of the basket on
the upper edge, otherwise the basket
will not drop smoothly (and may
damage the utensils).
To raise the basket, take hold of the
basket on the upper edge and pull
upwards.
Before you re-insert the basket, ensure
that it is at the same height on both
sides. Otherwise, the appliance door
cannot be closed and the upper spray
arm will not connect to the water circuit.

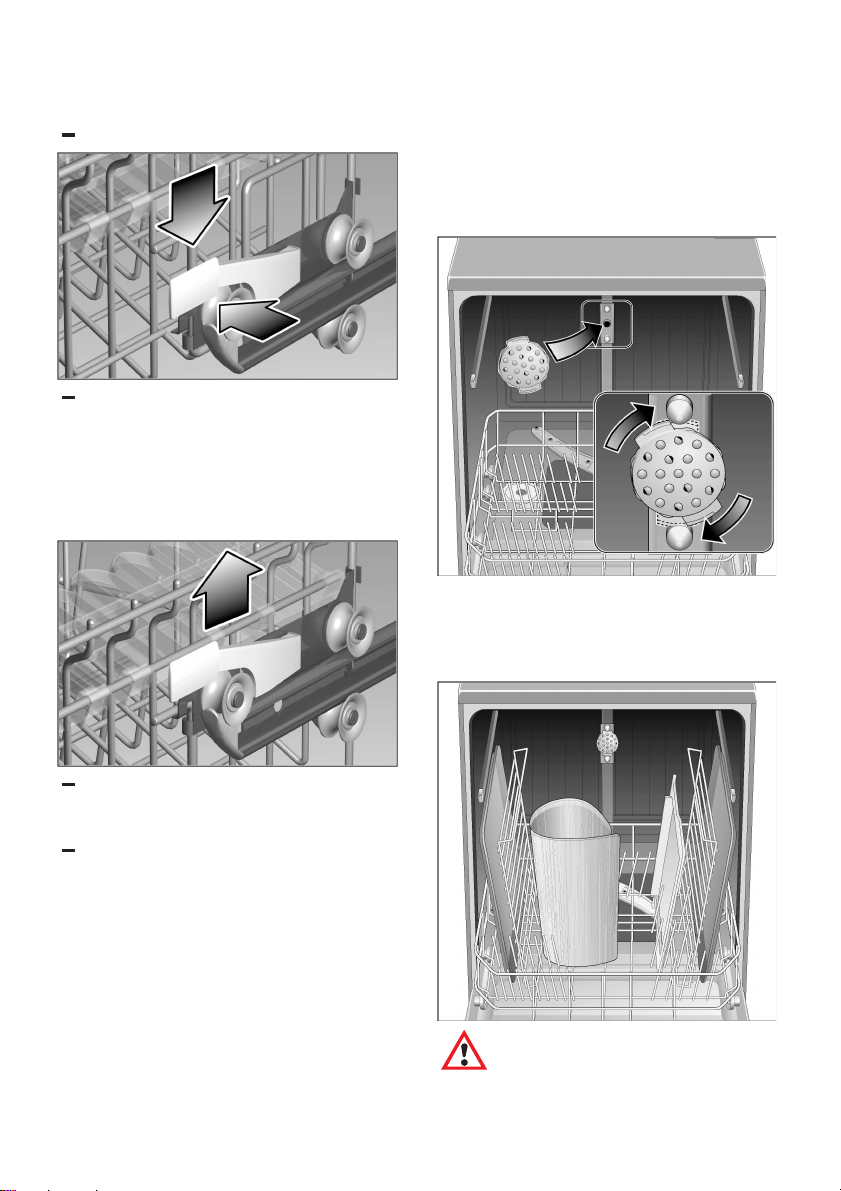

Baking sheet spray head *
* some models
You can clean large baking sheets or
grilles with the baking sheet spray head.
To do this, remove the top basket and
insert the spray head as illustrated in the
diagram.
To ensure that the spray jet can reach all
parts, arrange the baking sheets as
illustrated
(max. 4 baking sheets and 2 grilles).
Note
Never operate the dishwasher without the
top basket or baking sheet spray head!
Page 14
en
14
Detergents
Information about detergents
You can use any brand of liquid or powder
detergent, as well as tablets, that have
been specifically designed for use in
domestic dishwashers. (Do not use normal
washing-up liquid!)
Nowadays there are three types of
dishwasher detergent available:
1. those containing phosphates and
chlorine,
2. those containing phosphates but no
chlorine,
3. those containing neither phosphates
nor chlorine.
When a phosphate-free detergent is used
in conjunction with hard water, there is a
greater possibility that white marks will be
left behind on crockery and glasses, etc.
These can be avoided by pouring an
increased amount of detergent into the
dispenser.
Chlorine-free detergents have a reduced
bleaching effect. This can mean that tea
stains are not completely removed or
plastic items become discoloured.
This can be resolved by:
D
selecting a higher temperature
programme, or
D
increasing the amount of detergent,
or
D
using a detergent that contains
chlorine.
Check the label on the detergent
packaging to determine whether a
particular product is suitable for use with
silverware.
If you have any further questions, we
recommend that you contact the customer
advice departments of the various
detergent manufacturers.
Detergent compartment with
measuring marks

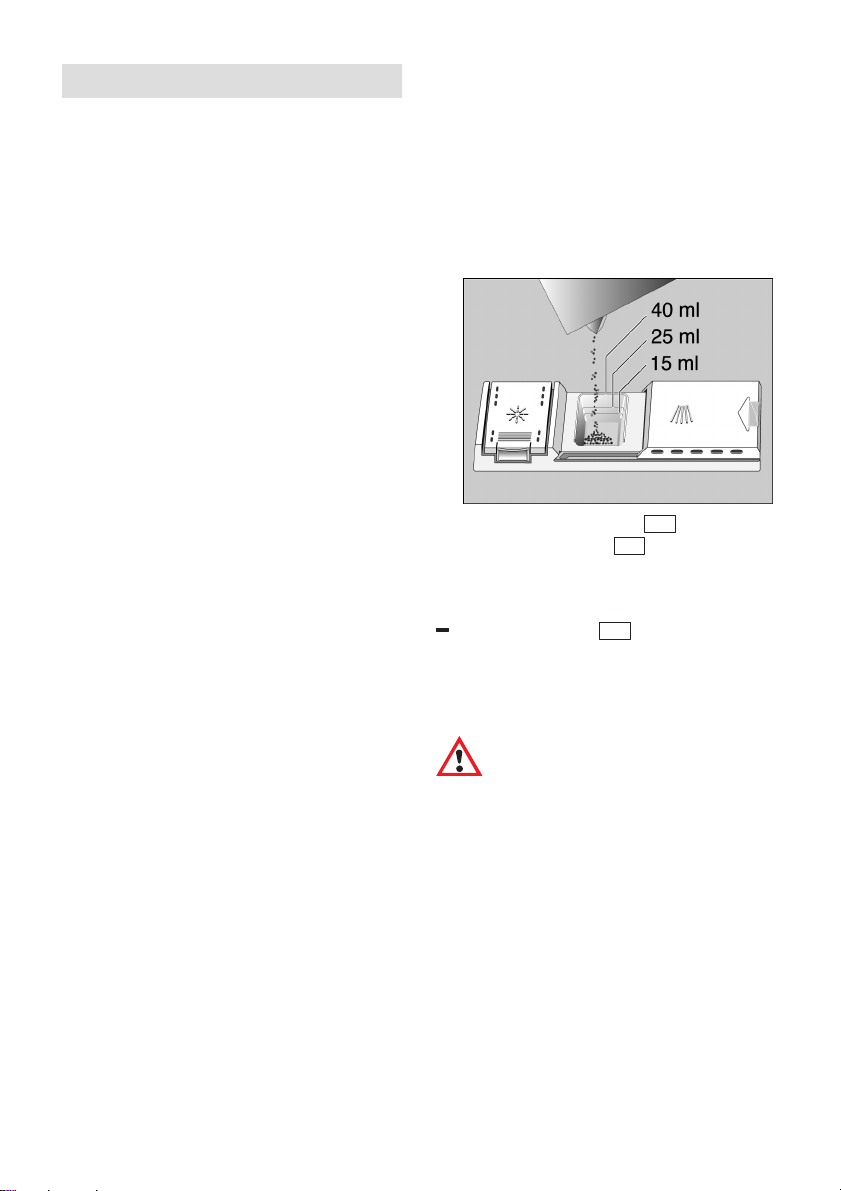

The side of the detergent compartment is
marked with lines to help you determine
how much powder to add.
The capacity of the detergent container is
15 ml up to the bottom line and 25 ml up to
the middle line. When the compartment is
full it contains 40 ml.
If the detergent dispenser 30 is still
closed, press the lock
28 to open the
detergent dispenser.
Adding detergent
Fill the dispenser 30 with detergent.
Please observe the manufacturer’s
instructions printed on the detergent
packaging when determining the
correct dosage.
Important
Due to the different solvency properties of
the detergent tablets supplied by various
manufacturers, the cleaning efficiency of
the detergent may not be fully utilised by
short programmes. It is recommended to
use washing powder for these
programmes.
When you select the INTENSIVE
programme, tip an extra 10–15 ml of
detergent onto the inside surface of the
door.
Page 15
en
15
Reduce costs!
If you are using the upper rack
only, or if your dishes are only
moderately dirty, it will normally
suffice to employ a reduced
amount of detergent than
otherwise recommended.
Close the lid on the detergent
compartment.
Press down the lid (1) until it clicks
shut (2).
If you are using detergent in tablet form,
read the manufacturer’s
recommendations on the packaging in
order to
determine where the tablets should be
placed inside the dishwasher (e.g. in
cutlery basket, detergent compartment,
etc.).
Make sure that the lid on the detergent
compartment is closed, even if you are
using tablets.
auto 3in1
The use of so-called combined detergent
products may make the use of rinse aid
and/or salt unnecessary.
There are currently several types of
combined detergent products available.
3in1: They contain detergent, rinse aid
and salt function.
2in1: They contain detergent and rinse
aid or salt function.
>>> Always check the type of detergent
or combined product which you
are using!
Always follow the operating instructions
or the information on the packaging.
The rinse programme is automatically
adjusted in order to obtain the best
possible rinsing and drying result.
Observe the following important
information if using combined cleaning
products:
Regeneration salt is not required up to
a water hardness of 21_ dH (37_ fH,
26_ Clarke, 3.7 mmol/l) only. No other
settings on the appliance are required.
Salt is still required if the water
hardness is above 21_ dH (37_ fH,
26_Clarke, 3.7 mmol/l). Fill the salt
dispenser with salt 24 and select
setting 6 on the water softening system.
If in doubt, please contact the detergent
manufacturer, especially if:
the utensils are very wet at the end
of the programme.
limescale forms.
Page 16
en
16
Note
Optimum rinsing and drying results can be
obtained by using standard detergents in
conjunction with separate application of
salt and rinse aid.
Observance of the operating instructions
or information on the packaging of the
combined detergents determines their
effectiveness.
Note
Even if the rinse aid and/or salt refill
indicator is lit, the rinse programme runs
correctly when 3in1 products are used.
If the rinse aid refill indicator
5
or salt
refill
4
indicator is defective and you
would like to switch it off, proceed as
follows:
Switching the rinse aid refill
indicator off and on
You can switch the rinse aid refill indicator
5
on or off. This function can be
changed as follows.
Hold down the programme button
3
and press the main switch 1 until the
digital display lights up, then release the
buttons.
8
is indicated on the digital display
(rinse aid refill indicator on).
By pressing the programme button
3
, you can switch off or switch
on
the rinse aid indicator.
Switch off the main switch 1;
the setting is saved.
Switching the salt refill
indicator / water softening
system off and on
Hold down the programme button B
and switch on the main switch
1
,
then release the buttons.
The illuminated button B and the
factory-set value
on the digital
display flash.
To change the setting: press the
programme button
B .
Each time the button is pressed, the set
value increases by one; when the value
is reached, the display jumps back
to
(the salt refill indicator / water
softening system has been switched
off).
Switch off the main switch 1.
The set value is stored within the
device.
Approx. 4 litres of water are required to
regenerate the water softening system.
As a result, the water consumption per
rinse cycle increases by 0 to maximum
4 litres depending on the water hardness
setting.
Note
If you use the detergent and rinse aid
separately or switch from combined
detergents to standard cleaning products,
ensure that the rinse aid refill indicator has
been switched on and the water softening
system has been set to the correct water
hardness.
Page 17
en
17
Overview of programmes
The max. possible number of programmes is illustrated in this overview. The corresponding
programmes for your appliance can be found on the fascia.
Rinse if the
utensils
have been
left several
days prior to
washing in
the
dishwasher.
Coffee,
cake, milk,
sausage,
cold drinks,
salads
Soups, soufflés,
potatoes, pastries,
rice, eggs, fried
food
Delicate
Type of dishes
e.g. porcelain
pans,
cutlery,
glasses,
etc.
Type of food
remnants e.g.
Programmesequence
The programme sequence
is optimised and adjusted
according to the degree of soiling
on the utensils.
Dry
Dry
Clean
65_
Interme-
diate rinse
Clean
50_
Prerinse
Clean
55_
Interme-
diate rinse
Clean
45_
Prerinse
Coffee,
cake, milk,
sausage,
cold drinks,
salads
Soups,
potatoes,
pastries,
rice, eggs,
fried food
Non-
sensitive
Mixed
Wash
programme
Very little
LittleLarge
High
NormalLightly Adhesive
Amount of food
remnants
State of food
remnant
Auto
65_–75_
Auto
55_–65_
Auto
35_–45_
Eco
50_
Quick
45_
Prerinse
Low
Normal
Mixed
Page 18
en
18
Washing dishes
Reduce costs!
If only a small number of
dishes have been loaded into
the dishwasher, selecting a
programme that operates at
the next lowest temperature
will usually suffice.
Programme data
The programme specifications can be
found in the summary of instructions.
Programme specifications refer to normal
conditions. Greater deviations may occur
due to:
different amounts of dishes
temperature of mains water supply
pressure of mains water supply
ambient temperature
fluctuations in mains voltage
machine-related factors (e.g.
temperature, water volume, ...).
Energy and water consumption is reduced
by up to 1/4 when dishes are washed in
the upper basket only.
Water consumption values are based on a
water hardness setting of 4.
Aqua sensor *
* on applicable models
The Aqua sensor is an optical measuring
device which measures the turbidity of the
rinsing water. A light barrier can detect
dissolved food remnants in the water, e.g.
egg, fat and oats.
The Aqua sensor is used according to
the programme. When the Aqua sensor
is active, ”clean” rinsing water may be
transferred into the next rinsing bath
and/or the temperature adjusted. If the
turbidity is greater, the water is drained
and is replaced with fresh water. In this
way the water consumption is reduced by
approx. 4 litres for utensils which are ”less”
dirty.
Switching the dishwasher ON
Turn on the tap.
Set main switch 1 to ON.
Indicators light up according to the last
programme that was selected.
This same programme will run again if
no other programme button
6
is
pressed
The numerical display 8 shows the
expected duration of the programme.
Close door.
The programme starts automatically.
Programme sequence indicator
9
Your dishes are being cleaned.
Your dishes are being dried.
Your dishes are being rinsed.
Optical indicator during
operation *
* With some models
During the rinse programme a light point
appears on the floor below the device’s
door. Only open the dishwasher door
when the light point has disappeared.
In the case of built-in dishwashers with
flush front the light point will not be visible.
Remaining running time display
When the appliance has started, the
expected programme running time is
displayed. The programmed running time
is affected by the water temperature, the
number of dishes, as well as the degree
of soiling. If these conditions are changed,
the running time (depending on the
selected programme) can vary greatly.
As the effect is not detected until a
programme is running, the time may
be longer or shorter than expected.
Page 19
en
19
Time delay *
* on applicable models
You can delay the start of the programme
in 1-hour steps up to 19 hours.
Switch on the appliance.
Press the timer programming button
3
until the digital display 8 jumps
to
.
Keep pressing the timer programming
button until the required time is
displayed.
To delete the timer programming,
keep pressing the button until
is displayed.
You can change your programme
selection at any time until the
programme starts.
End of programme
The end of the programme is indicated by
a buzzer. This function can be changed as
follows:–
Hold down Function button C
pressed and switch on main switch
1
, then let the buttons go.
Function Button
C flashes, and the
digital display indicates the value
which was set at the factory
(semi-loud).
To change the setting:
Press Function button
C .
Each depression of the button
increases the set value by one,
when
is reached, the display
jumps back to
(off).
Switch off the main switch 1.
The set value is stored in the appliance.
Switching the dishwasher OFF
Several minutes after the programme has
ended:
Open the door when the programme
has ended.
Set main switch 1 to OFF.
Turn the water tap off.
(Does not apply when Aqua-Stop unit
has been fitted)
Remove dishes, etc. when they have
cooled down.
Interrupting the programme
Open the door. Caution! There is a risk
of water squirting out from inside the
appliance. Do not open the door fully
until the spray arm has stopped
rotating.
Set main switch 1 to OFF.
Indicator lights extinguish. The
programme is retained in the dishwasher memory.
If the hot water was switched ON or the
appliance has already heated up and then
the appliance door opened, leave the door
ajar for several minutes and then close.
Otherwise, the appliance door may fly
open due to expansion.
In order to continue with the stored
programme, set the main switch to ON
again and close the door.
Cancel programme (Reset)
Only when the master switch is ON.
Press the
A and C buttons
simultaneously, and hold them pressed
for approx. 3 seconds.
The numerical display shows .
Close the door.
The programme continues for approx.
1 min.
When it has ended, set the main switch
1
to OFF.
Close the detergent compartment 30 .
To restart the dishwasher, set main switch
1
to ON again and select desired
programme.
Page 20
en
20
Changing the programme
It is possible to change the programme
within 2 minutes after you have switched
the dishwasher on.
Should it be necessary to change the
programme after this period, the
programme cycle that has already been
begun (e.g. washing) will be completed
first of all.
The new remaining time displayed is the
sum of the remaining time from the
preceding programme cycle and the
remaining time attributable to the new
programme that has been selected.
Intensive drying
If the “Intensive drying” function is
activated, the temperature of the final rinse
is increased in all programmes and you
will therefore receive an improved drying
result. (Note the higher temperature may
not be suitable for fragile utensils.)
Hold down the programme button A
and switch on the main switch.
Release both buttons.
The digital display
8
flashes (on)
or (off).
To change the setting, press the
programme button
A .
Switch off the main switch 1;
the setting is stored.
Additional functions
* on some models additional functions
2
can be set with the buttons.
Pre-Soak *
The Pre-Soak programme option serves to
perform a pre-soak cycle before the main
programme. This cycle enables cookware,
e.g. pans, bowls, etc. to be pre-soaked
and pre-rinsed in the lower rack. If you
wish to pre-soak the dishes, this
programme option must be selected by
pressing the “Pre-Soak” button before the
programme starts. The recommended
detergent amount is approx. 5 g poured
onto the inside of the door.
Time reduction/ time saving *
Pressing the “Time reduction/time saving”
button provides a short wash cycle by
curtailing the drying phase and the
washing time. The washing and drying
performance will be reduced with the Time
reduction/time saving programme option.
Washing contents of UPPER
RACK only *
If you have a small number of dishes to
wash in the upper rack (e.g. glasses, cups,
plates), switch on the UPPER RACK
function. If you select the UPPER RACK
function, the lower rack must be empty.
Add a reduced amount of detergent
compared to that which is recommended
for a full load.
Washing contents of
LOWER RACK only *
If you have a small number of dishes to
wash in the lower rack (e.g. plates, pans,
bowls), switch on the LOWER RACK
function. If you select the LOWER RACK
function, the upper rack must be empty.
Add a reduced amount of detergent
compared to that which is recommended
for a full load.
Page 21
en
21
Maintenance and care
A regular inspection and maintenance
of your machine will help to prevent faults.
This saves time and prevents problems.
Therefore you should occasionally have
a careful look inside your dishwasher.
Overall condition
of the machine
Check spray arm for grease and
limescale deposits.
If you find such deposits:
Fill the detergent dispenser with
detergent, start the appliance without
utensils in the programme which has
the highest wash temperature.
Clean the appliance with detergents/
appliance cleaners which are particularly
suitable for use with dishwashers.
Regularly wipe the door seal with
a damp cloth to remove deposits.
Never use a steam cleaner to clean your
dishwasher. The manufacturer is not liable
for any consequential damage.
Regularly wipe the front of the appliance
and panel with a damp cloth; water and
a little washing-up liquid will suffice.
Do not use sponges with a rough surface
or abrasive detergents, as these could
scratch the surfaces.
Attention!
Never use other chlorinated household
detergents! Health hazard!
Special dishwasher salt
Check the LOW SALT indicator 4.
Top up with salt, if required.
Rinse-aid
As soon as the rinse-aid refill indicator
lights up on the control panel
5
,
refill with rinse aid.

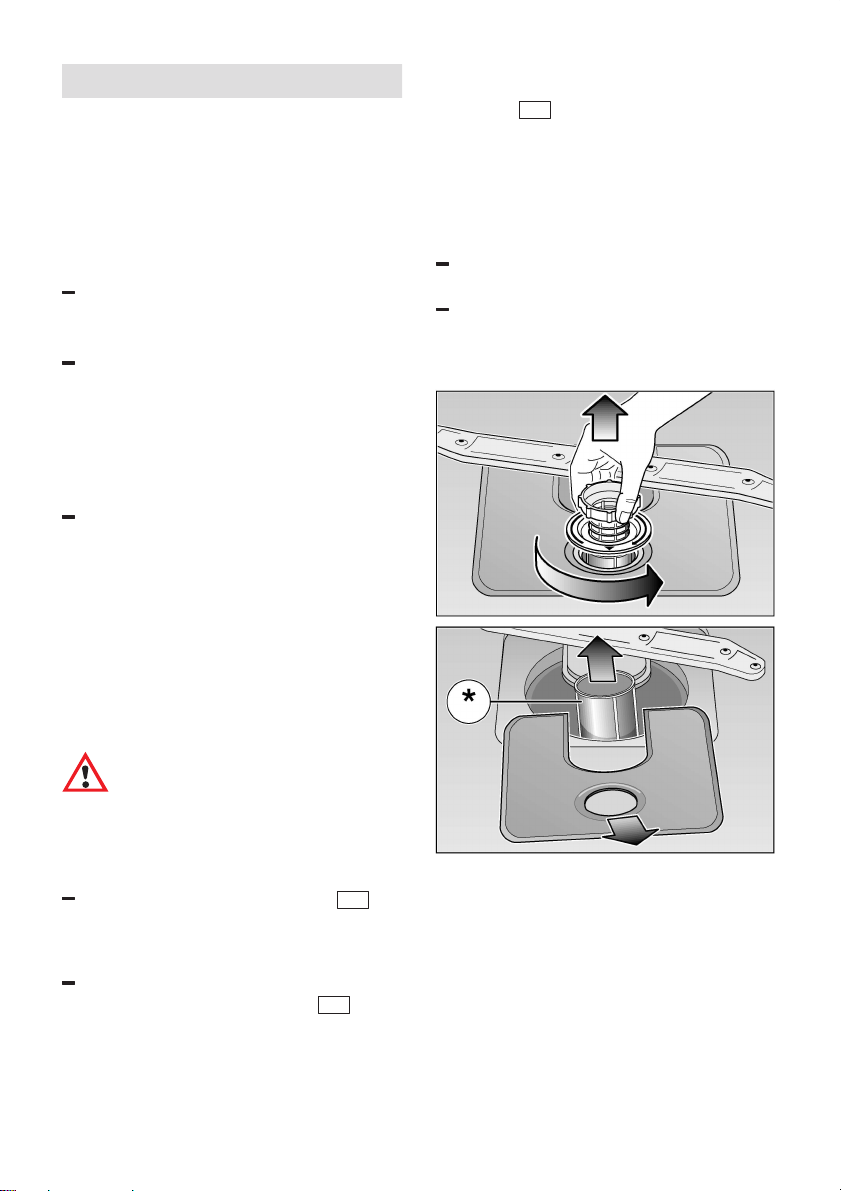

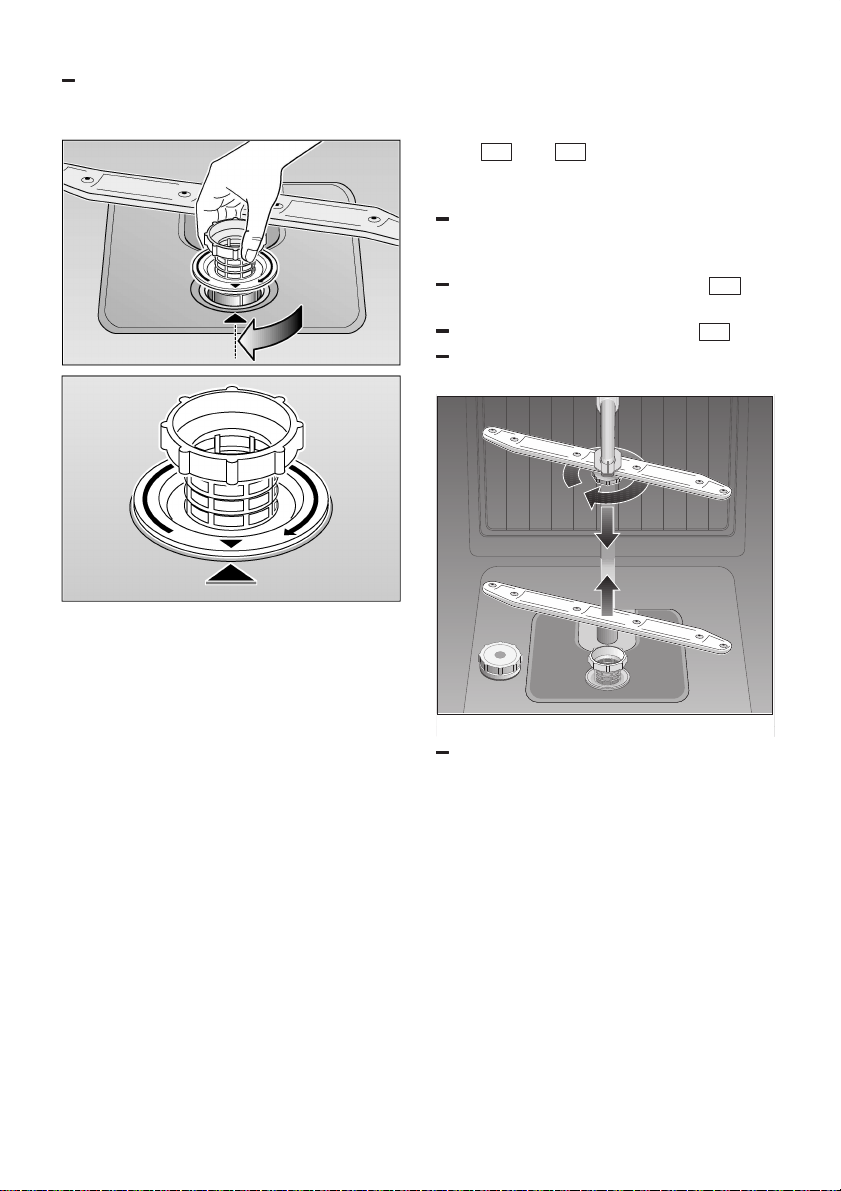

Filters
The filters
25 prevent larger remnants of
food or other objects from getting inside
the pump. This residue can occasionally
clog up the filters.
The filter system consists of a filter
cylinder, a flat fine filter and, depending on
the model, a microfilter (*).
Inspect the filters for obstructions every
time the dishwasher has been used.
By unscrewing the filter cylinder, you
can remove the filter system. Remove
any food remnants and clean the filters
under running water.
Page 22
en
22
Reassembly:
Insert the filter system and screw down
with the filter cylinder.
Spray arms
Lime and remnants of food in the washing
water can block the nozzles in the spray
arms
22 and 23 and the arm
mountings .
Inspect the nozzles in the spray arms
for blocked holes due to remnants of
food.
If necessary, pull the lower arm 23
upwards and lift it off.
Unscrew the upper spray arm 22 .
Clean both spray arms under running
water.
0
1
2
3
Refit the spray arms. Ensure that the
lower arm has locked into place and the
upper one is screwed tight.
Page 23
en
23

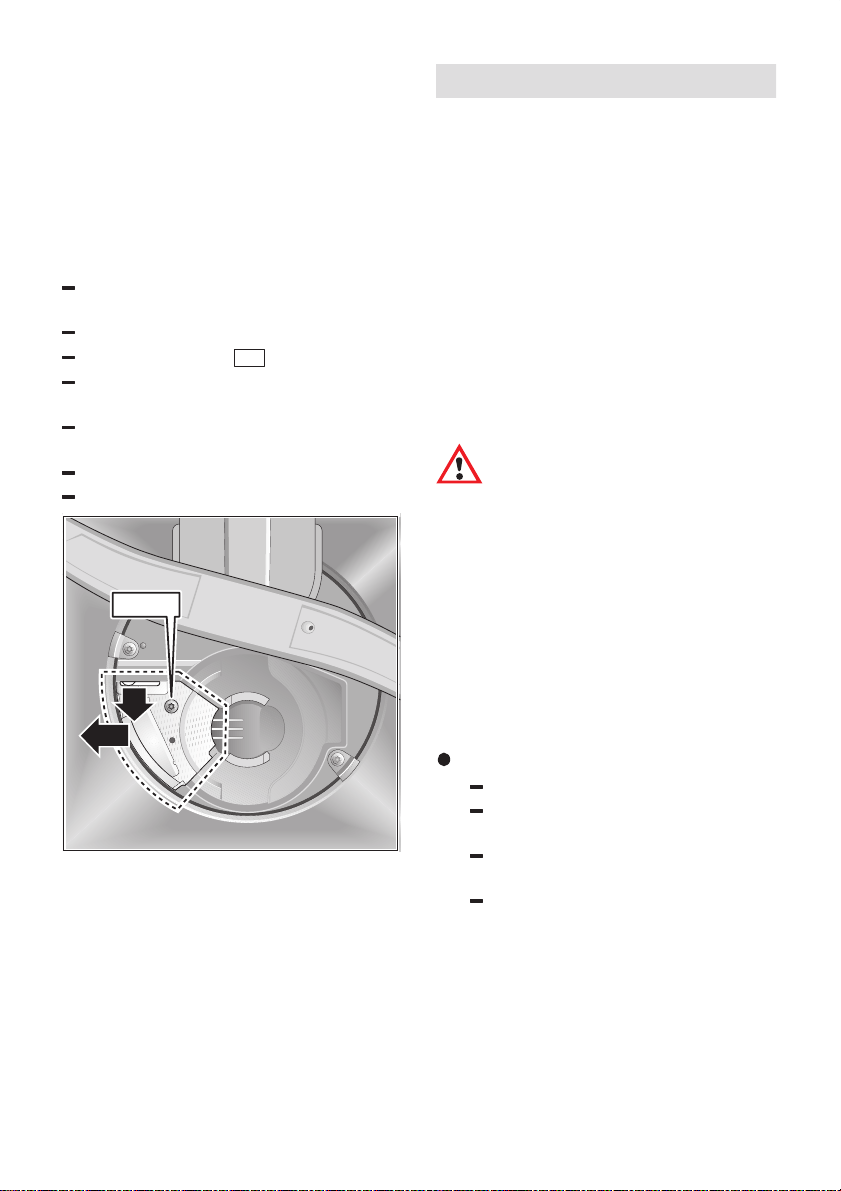

Pump *
* on applicable models
Larger remnants of food that have not
been trapped by the filters and have been
left in the water can cause a blockage in
the pump. The water is no longer pumped
out of the dishwasher and it can be seen
covering the filter.
Proceed as follows:
First, always disconnect the appliance
from the power supply.
Ladle out as much water as possible.
Remove the filters 25 .
Undo the screw in the cover (Torx T 20)
and remove the cover.
Inspect the inside and remove any
obstructions that you find.
Re-insert the cover and screw down.
Re-insert the filters and screw down.
Torx T20
2
1
Fault finding
Resolving minor problems
yourself
Experience has shown that you can
resolve most problems that arise during
normal daily usage yourself, without
having to call out a service engineer. Not
only does this save costs, but it also
means that the appliance is available for
use again that much sooner. The following
list of common occurrences and their
remedies should help you identify the
causes of most problems.
Problems ...
Attention
Remember: Repairs may be
carried out by a technician only.
If a component has to be replaced,
ensure that only original spare
parts are used. Improper repairs
or use of non-original spare parts
may cause considerable damage
and put the user at considerable
risk.
... when the appliance
is switched on
The appliance does not start.
The mains fuse has tripped.
The appliance plug has not been
inserted.
The appliance door has not been
shut properly.
The tap has not been turned on.
Page 24
en
24

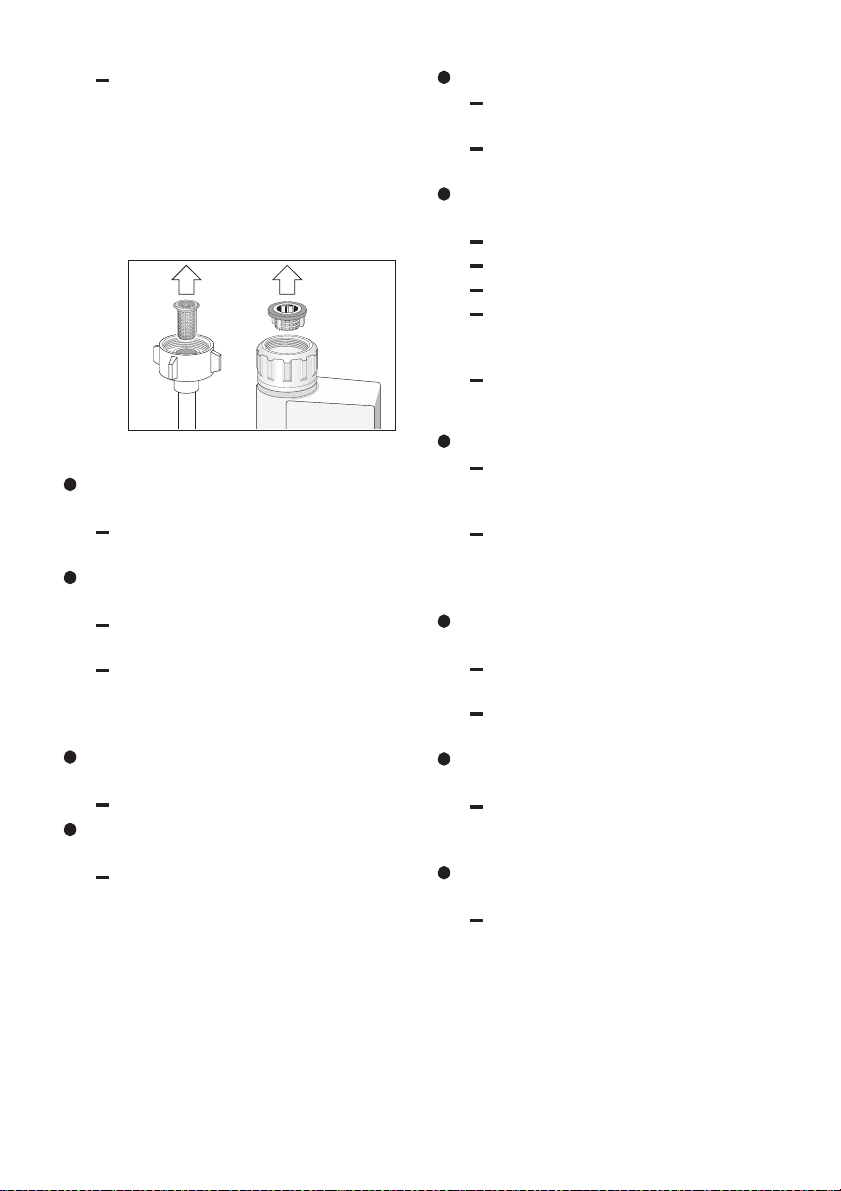

The filter on the water supply hose
is blocked.
Switch off the appliance and pull
out the mains plug. Turn off the
tap. Then clean the filter which is
situated at the connection of the
supply hose. Finally, restore the
power, turn on the tap and switch
on the appliance.
... with the appliance itself
Lower spray arm rotates with
difficulty
Spray arm is blocked by small
items or food remains.
Lid in detergent compartment
cannot be closed
Detergent compartment has been
overfilled.
Mechanism is clogged with
remnants of detergent.
Indicator lamps do not extinguish
after washing has finished.
Indicator lamps do not extinguish
after washing has finished
Main switch is still set to ON.
Remnants of detergent stuck inside
dispenser
Compartment was damp when it
was filled up with detergent.
Compartment must be dry before
detergent is added.
Refill display does not light up.
Rinse aid refill indicator switched
off. (see auto 3in1 chapter)
Salt refill indicator switched off.
(see auto 3in1 chapter)
Water remains inside appliance
after programme has ended
Blockage or kink in drainage hose.
Pump is jammed.
Filters are blocked.
The programme is still running.
Wait for the programme to end
(numerical display will indicate 0).
Perform “Reset” function.
... during washing
Unusual amount of foam is created
Normal washing up liquid has
been poured into the rinse-aid
container.
Remove any spilled rinse aid with
a cloth as it could otherwise lead
to excessive foaming during the
next washing cycle.
Appliance stops suddenly while
washing is taking place
Cut in electricity supply to
appliance.
Water supply has been
interrupted.
Knocking sound can be heard
while washing is taking place
A spray arm is knocking against
the dishes inside the appliance.
Rattling sound can be heard while
washing is taking place
Crockery has not been stacked
properly inside the appliance.
Page 25
en
25
Knocking sound coming from inlet
valves
This is caused by the way the
water pipes have been laid and it
has no effect upon the way the
appliance functions. There is no
remedy for this.
... with the dishes, cutlery, etc.
Remnants of food are stuck to the
dishes, cutlery, etc.
Dishwasher was not loaded
properly. Jets of water could not
reach all parts of the dishes, etc.
Too many items in the rack.
Items in the rack were touching
each other.
Not enough detergent was added
to dispenser.
Selected wash programme was
not intensive enough.
Rotation of spray arm was
obstructed by dish, etc.
Nozzles in spray arm are blocked
by remnants of food.
Filters are blocked.
Filters have been incorrectly fitted.
Waste-water pump is jammed.
Plastic items are discoloured
Not enough detergent was added
to dispenser.
White stains are left on crockery,
glasses have a milky appearance
Not enough detergent was added
to input compartment.
Amount of rinse-aid was set too
low.
Although water is quite hard, no
salt has been put in appliance.
Water softener was set too low.
Lid on salt container is not
screwed tight.
If you used a phosphate-free
detergent, try a detergent
containing phosphates and
compare results.
Dishes, cutlery, etc. have not been
dried
Selected programme did not
include drying function.
Amount of rinse-aid was set too
low.
Items were removed from
dishwasher too soon.
Glasses have a dull appearance
Amount of rinse-aid was set too
low.
Tea stains or traces of lipstick have
not been completely removed
Detergent does not have a
sufficient bleaching effect.
Washing temperature was set too
low.
Traces of rust on cutlery
Cutlery is not sufficiently rustproof.
Salt content in washing water is
too high.
Lid on salt container is not
screwed tight.
Too much salt was spilt while
filling container.
Glasses become clouded and
discoloured; coating cannot be
wiped off
Unsuitable detergent was used.
Glasses are not dishwasher-proof.
Smears left behind on glasses and
cutlery; glasses have acquired a
metallic appearance
Amount of rinse-aid set too high.
Page 26
en
26
Customer Service
Please call your local service agent, if you
are not able to resolve any problem
yourself. The name of your nearest service
agent is shown in the Customer Service
address list. When you call, please provide
details of the model number (1) and the
production (FD) number (2) which are
shown on the nameplate
31
on the
appliance door.
FD
1
2
Warning
Please note that a visit by the
customer service technician in
the event of a fault or one of
the problems previously
discussed is not free of charge
even during the warranty
period.
Information
Notes on comparison tests
You will find details of the conditions for
the comparison tests on the additional
”Notes on comparison tests” sheet. The
consumption values for the relevant
programmes are given in the introduction.
General
Built-under and integrated appliances
which are subsequently installed as
free-standing appliances must be
secured to prevent them from falling
over, e.g. by screwing them to the wall
or by installing them under a continuous
worktop which is screwed to the
adjoining units.
For Swiss version only:
The appliance can be installed without
difficulty between wooden and plastic
walls in a kitchen range. If the appliance
is not connected via a plug, the
installation side must feature an all-pole
disconnector with a contact gap of at
least 3 mm in order to satisfy the
relevant safety regulations.
Page 27
en
27
Installation
The dishwasher must be connected by
a qualified technician to ensure correct
operation. The specifications for supply,
drainage and connected load must fulfil
the required criteria as stated in the
following paragraphs or in the installation
instructions.
Install the appliance in the following
sequence:
– Check the delivery
– Install the appliance
– Connect the waste water
– Connect the fresh water
– Connect the power supply
Delivery
Your dishwasher was checked at the
factory to ensure that it was in perfect
working order. This may have left some
small water stains in the dishwasher.
These will disappear after the first rinse
cycle.
Installation
The required installation dimensions can
be found in the installation instructions.
Using the height-adjustable feet, adjust the
appliance until it is level. Ensure that the
appliance is standing firmly.
Waste water connection
See the installation instructions for the
required connection steps. If required,
attach a siphon with drainage spigot.
Using the enclosed parts, connect the
waste water hose to the drainage spigot
of the siphon.
Ensure that the drainage hose is not
kinked, crushed or twisted (ensure that
there is no sealing cover which prevents
the waster water from flowing away!).
Fresh water connection
Using the enclosed parts, connect the
fresh water connection to the tap
according to the installation instructions.
Ensure that the fresh water connection is
not kinked, crushed or twisted.
When replacing the appliance, always
connect a new water supply hose to the
water supply. The old supply hose must
not be re-used.
Water pressure:
Minimum 0,05 MPa (0,5 bar) – maximum
1 MPa (10 bar).
If the water pressure is higher, install a
pressure reducing valve.
Flow rate:
Minimum of 10 litres per minute.
Water temperature:
We recommend that you use cold water.
If you do use hot water, the temperature
should not exceed 60 °C.
Electrical connection
Connect the appliance only to 230 V
alternating current via a correctly installed
socket with protective conductor.
See rating plate for required fusing
31 .
The socket must be attached near the
dishwasher and be freely accessible.
The connection may be modified by an
electrician only.
Use only a residual-current-operated
circuit-breaker which features the
symbol. Only this circuit breaker
guarantees compliance with the currently
valid regulations.
Page 28
en
28
Removing the appliance
It is essential, when removing the
appliance, to observe the following
sequence: First, disconnect the appliance
from the power supply.
Pull out the mains plug.
Turn off the water supply.
Disconnect the waste water and fresh
water connections.
Loosen the fastening screws under the
worktop. If fitted, remove the base panel.
Pull out the appliance, carefully pulling the
hose behind.
Transporting the dishwasher
Drain water from the dishwasher. Secure
all loose parts. The appliance should only
be transported in an upright position.
If the appliance is not kept upright
during transport, any water left inside
may seep into the control module and
cause subsequent errors with
programme functions.
The appliance must be drained in the
following sequence:
Turn on the tap.
Set main switch to ON.
Select the B programme. The
programme duration in minutes is
shown in the numerical display.
Close the door.
Wait for approximately 4 minutes.
Terminate the programme by
pressing
A and C
simultaneously.
The time display changes to .
Close the door.
Wait a further minute and then
switch the appliance off.
Turn off the tap.
Protection from freezing
temperatures
If the appliance is installed in a location
where there is a risk of freezing
temperatures (e.g. in a holiday home), all
water must be completely drained out of
the interior (see “Transporting the
dishwasher”).
Turn OFF the tap, disconnect the supply
hose and allow to drain.
Waste disposal
Disposal
Old appliances are not worthless rubbish.
Valuable raw materials can be reclaimed
by recycling old appliances.
Pull out the mains plug of the redundant
appliance. Cut off the power cord and
discard with mains plug.
To prevent children from locking
themselves in the appliance and
suffocating, destroy the door lock
and childproof lock (if fitted).
You received your new appliance in
a protective shipping carton. All packaging
materials are environmentally friendly and
recyclable.
Please contribute to a better environment
by disposing of packaging materials in an
environmentally-friendly manner. All plastic
parts of the appliance are identified by
internationally standardised symbols
(e.g. >PS< polystyrene).
When the appliance is being disposed of,
the plastic waste can be sorted for
environmentally-friendly recycling.
Please ask your dealer or inquire at your
local authority about current means of
disposal.
Page 29
en
29
Disposal of the packaging
Please dispose of the packaging
material in an environmentally
friendly manner.
Keep children away from shipping
carton and packaging components.
Danger of suffocation from folding
cartons and plastic film.
D
Corrugated cardboard consists
mainly of wastepaper.
D
The moulded polystyrene parts do
not contain any
chlorofluorohydrocarbons.
D
The polyethylene film (PE) consists
partly of secondary raw materials.
D
The wooden frames (if fitted) are
made of untreated residual wood.
D
The hoops (if fitted) consist
of polypropylene (PP).
Disposal of redundant
appliances
Make redundant appliances unusable
to prevent subsequent accidents.
Dispose of the appliance in an
environmentally friendly manner.
Warning
Children could become locked in the
appliance (risk of suffocation) or find
themselves in other dangerous situations.
Therefore: Pull out the mains plug, sever
and dispose of the power cord.
Destroy the door lock so that the door
can no longer be closed.
This appliance is labelled in accordance
with European Directive 2002/96/EG
concerning used electrical and electronic
appliances (waste electrical and electronic
equipment – WEEE). The guideline
determines the framework for the return
and recycling of used appliances as
applicable throughout the EU.
Page 30
en
30
en Subjekt to modification
Page 31
Page 32
Balay (BYSE Electrodomésticos, S.A.)
BSH Electrodomésticos España S.A.
Avda. de la Industria, 49
50059 Zaragoza (Spain)
To contact us directly, use the tel. no or fax no. in the
enclosed customer service list.
Loading...
