Quick and easy:
everything you need to know
about your dishwasher...
You should, however, still
read the installation and
operating instructions before
you use the dishwasher for
the first time.
Inserting the water softening system *
Enter the hardness value ...
ask your
water supplier
Read off the setpoint value ... and enter it as shown below ...
Quick procedure ...
Press and hold
the ECO button
Hold the ECO button until
the required value appears
and the on/off
+
button
The ECO indicator lamp
and the setpoint value 4
flash
The required setpoint
value appears instead
of ”4”

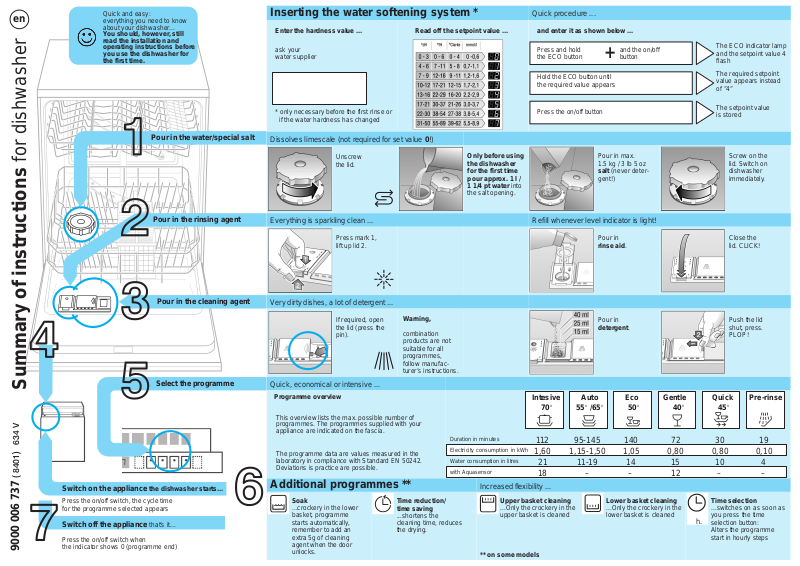

Summary of instructions for dishwasher
Switch on the appliance the dishwasher starts...
Press the on/off switch, the cycle time
for the programme selected appears
Switch off the appliance that’s it...
Press the on/off switch when
9000 006 737
the indicator shows 0 (programme end)
Pour in the water/special salt
Pour in the rinsing agent
Pour in the cleaning agent
Select the programme
* only necessary before the first rinse or
if the water hardness has changed
Press the on/off button
Dissolves limescale (not required for set value 0!)
Unscrew
the lid.
Only before using
the dishwasher
for the first time
pour approx. 1 l /
1 1/4 pt water into
the salt opening.
Pour in max.
1.5 kg / 3 lb 5 oz
salt (never detergent!)
Everything is sparkling clean ... Refill whenever level indicator is light!
Press mark 1,
lift up lid 2.
Pour in
rinse aid.
Very dirty dishes, a lot of detergent ...
If required, open
the lid (press the
pin).
Warning,
combination
products are not
suitable for all
programmes,
follow manufacturer’s instructions.
Pour in
detergent.
Quick, economical or intensive ...
Programme overview
This overview lists the max. possible number of
programmes. The programmes supplied with your
appliance are indicated on the fascia.
The programme data are values measured in the
laboratory in compliance with Standard EN 50242.
Deviations is practice are possible.
Additional programmes **
Soak
...crockery in the lower
basket, programme
starts automatically,
remember to add an
extra 5g of cleaning
agent when the door
unlocks.
Time reduction/
time saving
...shortens the
cleaning time, reduces
the drying.
Duration in minutes
Electricity consumption in kWh
Water consumption in litres
with Aquasensor
Increased flexibility ...
Upper basket cleaning
...Only the crockery in the
upper basket is cleaned
** on some models
112
1,60
21
18
AutoIntesive Eco Quick
95-145
1,15-1,50
11-19
–
140
1,05
14
–
Lower basket cleaning
...Only the crockery in the
lower basket is cleaned
Gentle
72
0,80
15
12
The setpoint value
is stored
Screw on the
lid. Switch on
dishwasher
immediately.
Close the
lid. CLICK!
Push the lid
shut, press.
PLOP!
455070 55 /65 40
30
0,80
10
–
Time selection
...switches on as soon as
you press the time
h.
selection button:
Alters the programme
start in hourly steps
Pre-rinse
19
0,10
4
–
Maintenance and care
Strainers ...
Check, if
required, clean
Rotate filter
cylinder, remove
filter system ...
For perfect rinsing results ...
rinse under
flowing water ...
Insert ... Screw in filter
system NOTE
MARK!
Cleaning the waste-water pump *
* With some models
– Ladle out water and remove filters
– Unscrew cover (Torx T20)
– Check area of fan impeller for foreign objects
– Screw in cover and insert filters
Spray arms ...
Remove
blockages/deposits
Pull lower arm
upwards ...
Eliminating minor faults yourself ...
Fault Possible Cause
Residual water in the device Waste-water pump blocked
Programme not yet ended
Device does not work/stops Supply fitting not open
Supply hose kinked
Supply fitting jammed or calcified
Plastic parts / parts of
dishes discoloured
Too little cleaning product
Discoloration caused by food colourings
(tomato sauce)
Unscrew upper
arm ...
... Self–help pays!
Remedy
Clean waste-water pump (see above).
Switch on appliance and close or
terminate programme (see Terminating
the programme).
Open supply fitting.
Lay supply hose without kinks.
1. Unscrew water connection.
2. Clean filter in the water connection.
3. Flow rate must be min. 9 l/min when
the water inlet is open.
If the flow rate is less, replace the
supply fitting.
Follow manufacturer’s specifications
(detergent).
Discoloration is quite safe; fades after
subsequent rinse cycles.
Clean spray nozzles
under flowing water
(perhaps with
toothpick) ...
Fault Possible Cause Remedy
Dishes not clean
Sand or grainy residues
on dishes
Stains and streaks
Milky residues on dishes
(can be removed)
Milky film, glasses cloudy /
dull (cannot be removed)
Insert lower arm ...
Screw in upper arm
Utensils are situated too close to each
other or on top of each other
Too little cleaning product
Unsuitable programme selected
Spray nozzles blocked
Filters dirty, not installed securely
Spray arms blocked
Rinse aid dosage too high / too low
Water softening system incorrectly set;
no special salt
Glasses not dishwasher-proof.
Spread out the utensils, avoid contact
between the utensils.
Follow manufacturer’s specifications
(detergent).
Select more intensive programme.
Clean spray arms (see above).
Clean the strainers (see above).
Arrange the utensils so that the spray
arms can rotate freely.
Streaks: Reduce dosage.
Water or limescale stains: Increase
dosage.
Set water softening system correctly.
Refill with special salt.
Use dishwasher-proof glasses.
Use glass-friendly cleaning products.
Cutlery rusty Cutlery not rust-proof
Hard knife blades are more susceptible
Extraneous rust
Use dishwasher-proof cutlery.
Never wash rusting parts in the
appliance.
Further advice can be found in the instruction manual
Stopping the programme ... Loading the dishwasher correctly ...
Press and hold the two
reset buttons simultaneously for
approximately 3 seconds while
the programme is running
(RESET)
”0” appears
The programme will stop
after 1 minute
Switch off the appliance.
Arrange dishwasher-proof utensils (having removed any ash, wax, grease, ink, sticky labels; remove,
large remnants of jam, dairy products and food) according to the operating instructions and check that
the spray arms can rotate freely.
