Balay 3BC8855B User Manual
PDQXDO
Extractor hood 3BC8855., 3BC8880.
Campana extractora 3BC8855., 3BC8880.
Exaustor 3BC8855., 3BC8880.
[en] Instruction manual . . . . . . . . . . . . . . . . . . . . 3
[es] Instrucciones de uso . . . . . . . . . . . . . . . . . 10
[pt] Instruções de serviço . . . . . . . . . . . . . . . . . 17
Ú Table of contents
[en]Instruction manual
Important safety information..................................................... 3
Environmental protection..........................................................5
Saving energy......................................................................................5
Environmentally-friendly disposal.....................................................5
Operating modes........................................................................5
Exhaust air mode................................................................................5
Circulating-air mode ...........................................................................5
Operating the appliance ............................................................6
: Important safety information
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
This appliance is intended for domestic use
and the household environment only. The
appliance is not intended for use outside.
Do not leave the appliance unattended
during operation. The manufacturer is not
liable for damage which is caused by
improper use or incorrect operation.
Setting the fan .....................................................................................6
Fan run-on time ...................................................................................6
Intensive setting ..................................................................................6
Lighting .................................................................................................6
Cleaning and maintenance........................................................7
Trouble shooting ........................................................................8
After-sales service .....................................................................9
This appliance is not intended for operation with an external clock timer or a remote control.
Danger of suffocation!
Packaging material is dangerous to children. Never allow children to play with packaging material.
Danger of death!

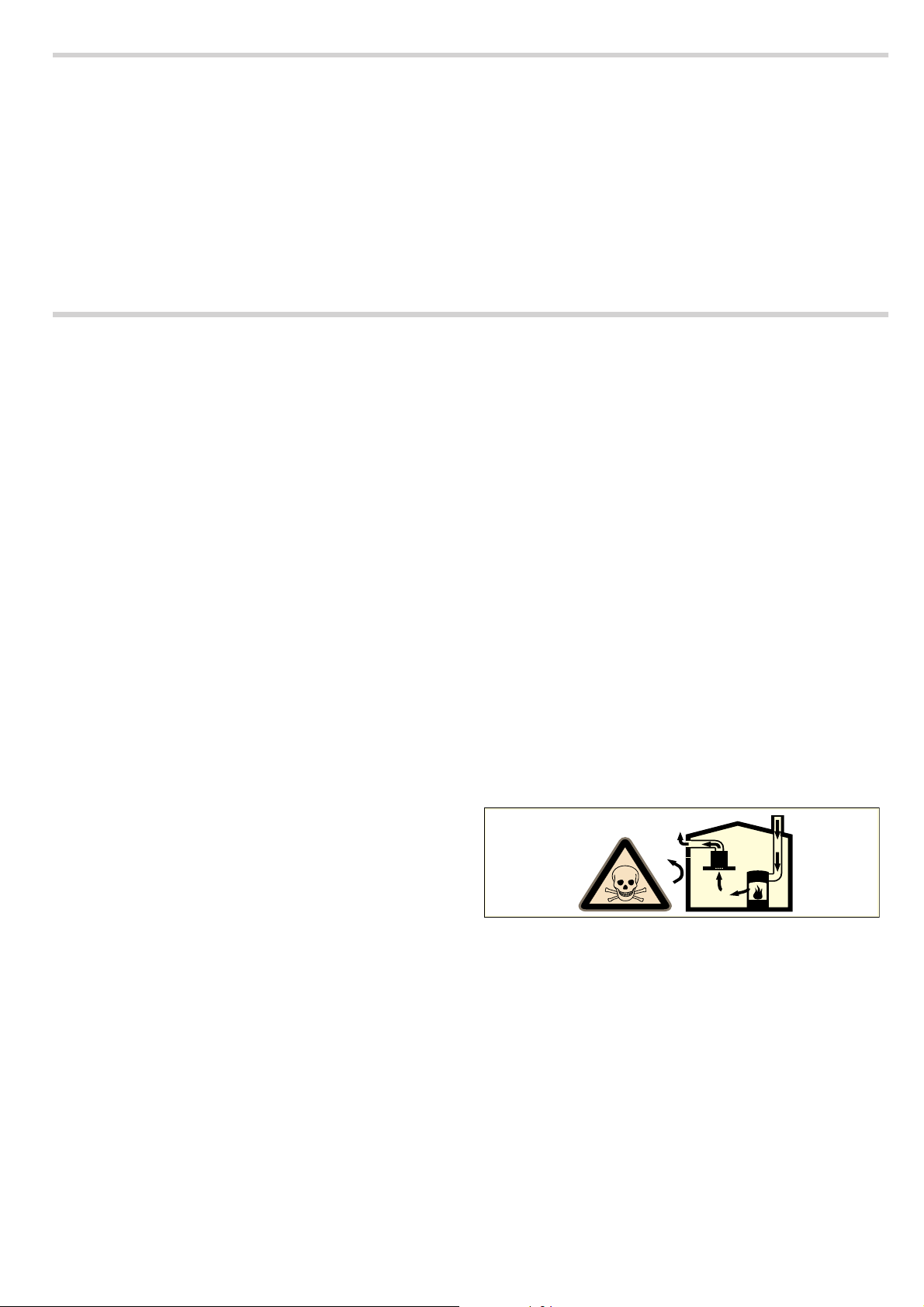

Risk of poisoning from flue gases that are drawn back in.
Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air-dependent heat-producing appliance is being operated.
This appliance is intended for use up to a maximum height of 2000 metres above sea level.
This appliance may be used by children
over the age of 8 years old and by persons
with reduced physical, sensory or mental
capabilities or by persons with a lack of
experience or knowledge if they are
supervised or are instructed by a person
responsible for their safety how to use the
appliance safely and have understood the
associated hazards.
Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
Room air-dependent heat-producing
appliances (e.g. gas, oil, wood or coaloperated heaters, continuous flow heaters
or water heaters) obtain combustion air
from the room in which they are installed
and discharge the exhaust gases into the
open air through an exhaust gas system
(e.g. a chimney).
In combination with an activated vapour
extractor hood, room air is extracted from
the kitchen and neighbouring rooms - a
partial vacuum is produced if not enough
fresh air is supplied. Toxic gases from the
chimney or the extraction shaft are sucked
back into the living space.
■
Adequate incoming air must therefore
always be ensured.
■
An incoming/exhaust air wall box alone
will not ensure compliance with the limit.
3
Safe operation is possible only when the
partial vacuum in the place where the heatproducing appliance is installed does not
exceed 4 Pa (0.04 mbar). This can be
achieved when the air needed for
combustion is able to enter through
openings that cannot be sealed, for
example in doors, windows, incoming/
exhaust air wall boxes or by other technical
means.
In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.
Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode.
Risk of fire!
■
Grease deposits in the grease filter may
catch fire.
Clean the grease filter at least every 2 months.
Never operate the appliance without the grease filter.
Risk of fire!
■
Grease deposits in the grease filter may
catch fire. Never work with naked flames
close to the appliance (e.g. flambéing). Do
not install the appliance near a heatproducing appliance for solid fuel (e.g.
wood or coal) unless a closed, nonremovable cover is available. There must
be no flying sparks.
Risk of fire!
■
Hot oil and fat can ignite very quickly.
Never leave hot fat or oil unattended.
Never use water to put out burning oil or
fat. Switch off the hotplate. Extinguish
flames carefully using a lid, fire blanket or
something similar.
Risk of fire!
■
When gas burners are in operation without
any cookware placed on them, they can
build up a lot of heat. A ventilation
appliance installed above the cooker may
become damaged or catch fire. Only
operate the gas burners with cookware on
them.
Risk of fire!
■
Operating several gas burners at the
same time gives rise to a great deal of
heat. A ventilation appliance installed
above the cooker may become damaged
or catch fire. Never operate two gas
burners simultaneously on the highest
flame for longer than 15 minutes. One
large burner of more than 5 kW (wok) is
equivalent to the power of two gas
burners.
Risk of burns!
The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance.
Risk of injury!
■
Components inside the appliance may
have sharp edges. Wear protective gloves.
Risk of injury!
■
Items placed on the appliance may fall
down. Do not place any objects on the
appliance.
Risk of electric shock!
■
A defective appliance may cause electric
shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in
the fuse box. Contact the after-sales
service.
Risk of electric shock!
■
Incorrect repairs are dangerous. Repairs
may only be carried out and damaged
power cables replaced by one of our
trained after-sales technicians. If the
appliance is defective, unplug the
appliance from the mains or switch off the
circuit breaker in the fuse box. Contact the
after-sales service.
Risk of electric shock!
■
Do not use any high-pressure cleaners or
steam cleaners, which can result in an
electric shock.
Causes of damage
Caution!
Risk of damage due to corrosion. Always switch on the
appliance while cooking to avoid condensation. Condensate
can produce corrosion damage.
Always replace faulty bulbs to prevent the remaining bulbs from
overloading.
Risk of damage due to ingress of humidity into the electronic
circuitry. Never clean operator controls with a wet cloth.
Surface damage due to incorrect cleaning. Clean stainless
steel surfaces in the direction of the grain only. Do not use any
stainless steel cleaners for operator controls.
Surface damage due to strong or abrasive cleaning agents.
Never use strong and abrasive cleaning agents.
Risk of damage from returning condensate. Install the exhaust
duct in such a way that it falls away from the appliance slightly
(1° slope).
4
Environmental protection
Your new appliance is particularly energy-efficient. Here you
can find tips on how to save even more energy when using the
appliance, and how to dispose of your appliance properly.
Saving energy
■ During cooking, ensure that there is a sufficient supply of air
so that the extractor hood can work efficiently and with a low
level of operating noise.
■ Adjust the fan speed to the intensity of the cooking fumes.
Only use intensive mode where this is required. A lower fan
speed means that less energy is consumed.
■ If there are intensive cooking fumes, select a higher fan
speed in good time. If cooking fumes have already spread in
the kitchen, the extractor hood must be operated for longer.
■ Switch off the extractor hood if you no longer require it.
Operating modes
This appliance can be used in exhaust-air mode or circulatingair mode.
Exhaust air mode
The air which is drawn in is cleaned by the
grease filters and conveyed to the exterior
by a pipe system.
■ Switch off the lighting if you no longer require it.
■ Clean and, if required, replace the filter at regular intervals in
order to increase the effectiveness of the ventilation system
and to prevent the risk of fire.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly manner.
This appliance is labelled in accordance with
European Directive 2012/19/EU concerning used
electrical and electronic appliances (waste
electrical and electronic equipment - WEEE). The
guideline determines the framework for the return
and recycling of used appliances as applicable
throughout the EU.
Circulating-air mode
The air which is drawn in is cleaned by the
grease filters and an activated carbon filter and
conveyed back into the kitchen.
Note: The exhaust air must not be conveyed into a functioning
smoke or exhaust gas flue or into a shaft which is used to
ventilate installation rooms which contain heat-producing
appliances.
■ Before conveying the exhaust air into a non-functioning
smoke or exhaust gas flue, obtain the consent of the heating
engineer responsible.
■ If the exhaust air is conveyed through the outer wall, a
telescopic wall box should be used.
Note: To bind odours in circulating-air mode, you must install
an activated carbon filter. The different options for operating the
appliance in circulating-air mode can be found in the brochure.
Alternatively, ask your dealer. The required accessories are
available from specialist outlets, from customer service or from
the Online Shop. The accessory numbers can be found at the
end of the instructions for use.
5
Operating the appliance
These instructions apply to several appliance variants. It is
possible that individual features are described which do not
apply to your appliance.
Note: Switch on the extractor hood when you start cooking and
switch it off again several minutes after you have finished
cooking. This is the most effective way of removing the kitchen
fumes.
Control panel
Explanation
Fan off
#
1 Fan speed 1
2 Fan speed 2
Fan run-on time
+
3 Fan speed 3
Intensive setting
g
Light On/Off
B
Intensive setting
You can use the intensive setting if there is a large build-up of
odours and fumes/vapours.
1. To activate the intensive setting, press and hold button 3 g
for 2 seconds.
Button 3 flashes to confirm activation.
2. To end the intensive setting early, press the # button.
Note: The intensive setting runs for 6 minutes. Once this time
has elapsed, the appliance returns to the fan speed previously
set.
Lighting
The lighting can be switched on and off independently of the
ventilation.
Press the
Setting the brightness
When switching on the lights, press and hold the
2 seconds. The brightness is reduced.
Note: When switching on the lights again, the brightness is set
to maximum once again.
@ button.
@ button for
Setting the fan
Note: Always adjust the fan strength to meet current conditions.
If there is a large build-up of steam or fumes, select a high fan
setting.
Switching on
Press button 1, 2 or 3.
The set fan speed lights up to confirm activation.
Switching off
Press the
#button.
Fan run-on time
Fan run-on is possible at any fan speed.
1. First, press the button corresponding to the desired fan
speed: 1, 2 or 3
2. To activate fan run-on, press and hold button 2+ for
2 seconds.
The set fan speed flashes to confirm activation.
3. Press the # button to end the fan run-on early.
Notes
■ The run-on time is 30 minutes for all fan speeds. Once this
time has elapsed, the ventilation and lights switch off
automatically.
■ The fan speed can be altered during the run-on time.
.
6
Cleaning and maintenance
: Risk of burns!
The appliance becomes hot during operation. Allow the
appliance to cool down before cleaning.
: Risk of electric shock!
Penetrating moisture may result in an electric shock. Clean the
appliance using a damp cloth only. Before cleaning, pull out the
mains plug or switch off the circuit breaker in the fuse box.
: Risk of electric shock!
Do not use any high-pressure cleaners or steam cleaners,
which can result in an electric shock.
: Risk of injury!
Components inside the appliance may have sharp edges. Wear
protective gloves.
Cleaning agents
Observe the information in the table to ensure that the different
surfaces are not damaged by using the wrong type of cleaning
agent. Do not use
■ harsh or abrasive cleaning agents,
■ cleaning agents with a high concentration of alcohol,
■ hard scouring pads or sponges,
■ high-pressure cleaners or steam cleaners.
Wash new sponge cloths thoroughly before use.
Follow all instructions and warnings included with the cleaning
agents.
Area Cleaning agents
Stainless steel Hot soapy water:
Painted surfaces Hot soapy water:
Aluminium and plastic
Glass Glass cleaner:
Operating controls Hot soapy water:
Clean with a dish cloth and dry with a
soft cloth.
Clean stainless steel surfaces in the
direction of the grain only.
Special stainless steel cleaning products are available from our after-sales
service or from specialist retailers.
Apply a very thin layer of the cleaning
product with a soft cloth.
Clean using a damp dish cloth and dry
with a soft cloth/towel.
Do not use any stainless steel cleaners.
Glass cleaner:
Clean with a soft cloth.
Clean with a soft cloth. Do not use a
glass scraper.
Clean using a damp dish cloth and dry
with a soft cloth.
Risk of damage to the electronics from
penetrating moisture. Never clean operator controls with a wet cloth.
Do not use any stainless steel cleaners.
Cleaning the metal mesh grease filters
These instructions apply to several appliance variants. It is
possible that individual features are described which do not
apply to your appliance.
: Risk of fire!
Grease deposits in the grease filter may catch fire.
Clean the grease filter at least every 2 months.
Never operate the appliance without the grease filter.
Notes
■ Do not use any aggressive, acidic or alkaline cleaning
agents.
■ When cleaning the metal mesh grease filters, also clean the
holder for the metal mesh grease filters in the appliance
using a damp cloth.
■ The metal mesh grease filters can be cleaned in the
dishwasher or by hand.
By hand:
Note: You can use a special grease solvent for stubborn dirt. It
can be ordered via the Online Shop.
■ Soak the metal mesh grease filters in a hot soapy solution.
■ Clean the filters with a brush and then rinse them thoroughly.
■ Leave the metal mesh grease filters to drain.
In the dishwasher:
Note: If the metal mesh grease filters are cleaned in the
dishwasher, slight discolouration may occur. This has no effect
on the function of the metal mesh grease filters.
■ Do not clean heavily soiled metal mesh grease filters together
with utensils.
■ Place the metal mesh grease filters loosely in the dishwasher.
The metal mesh grease filters must not be wedged in.
Removing metal grease filter
1. Fold the filter cover upwards.
Notes
■ The opening angle of the filter cover is restricted to approx.
80°. Do not open the filter cover any further, otherwise the
hinges may be damaged.
■ The filter cover locks in any position.
2. Remove the two metal grease filters under the filter cover and
the metal grease filter on the underside of the appliance.
Unfasten the lock, fold the metal filter forwards and remove it
from the bracket.
Note. Grease can accumulate at the bottom of the metal
grease filter. Hold the metal grease filter level, otherwise
grease will drip out.
3. Clean the metal grease filter.
4. After removing the filters, clean the inside of the appliance.
5. Clean the filter cover.
7
Installing the metal mesh grease filter
1. Insert the two metal grease filters under the filter cover with
the lock facing downwards.
Insert the metal grease filters on the underside of the
appliance.
2. Fold the metal grease filters inwards, locking them in place.
3. Close the filter cover.
Changing the activated charcoal filter (only in circulating-air mode)
In order to guarantee efficient odour filtration, the filter must be
serviced regularly.
The activated charcoal filters must be replaced at least every
4 months.
Notes
■ The activated charcoal filters are not included in the delivery.
The activated charcoal filters can be obtained from specialist
retailers, from our after-sales service or from the Online Shop.
■ The activated charcoal filters cannot be cleaned or
reactivated.
Trouble shooting
1. Remove metal grease filter: See above.
2. Turn the old activated charcoal filter and pull away from the
bracket.
3. Push the new activated charcoal filter onto the bracket and
turn.
¨
©
%$
4. Fit the metal grease filter: See above.
Malfunctions often have simple explanations. Please read the
following notes before calling the after-sales service.
: Risk of electric shock!
Incorrect repairs are dangerous. Repairs may only be carried
out and damaged power cables replaced by one of our trained
after-sales technicians. If the appliance is defective, unplug the
appliance from the mains or switch off the circuit breaker in the
fuse box. Contact the after-sales service.
Malfunction table
Problem Possible cause Solution
The appliance
does not work
The button illumination does
not work.
The lighting
does not work.
--------
The plug is not
plugged in.
Power cut Check whether other
Faulty fuse Check in the fuse box to
The control unit
is faulty.
The bulbs are
faulty.
Connect the appliance to
the electricity supply
kitchen appliances are
working
make sure that the fuse for
the appliance is OK
Call the aftersales service.
For information on changing the bulbs, see the
"Replacing Bulbs" section.
Replacing bulbs
: Risk of electric shock!
When changing the bulbs, the bulb socket contacts are live.
Before changing the bulb, unplug the appliance from the mains
or switch off the circuit breaker in the fuse box.
Important Only use a bulb of the same type and same power
(see also the bulb holder or rating plate).
Replacing halogen bulbs
Note: When inserting halogen bulbs, do not touch the glass
tube. Use a clean cloth to insert the halogen bulbs.
1. Carefully remove the bulb ring using a suitable tool.
2. Pull out the bulb and replace it with a bulb of the same type.
3. Insert the bulb cover.
4. Insert the mains plug or switch on the fuse again.
Replace the bulb with one of the same type:
Voltage: 12 V
Power: max. 20 W
Socket: G4
8
Loading...
