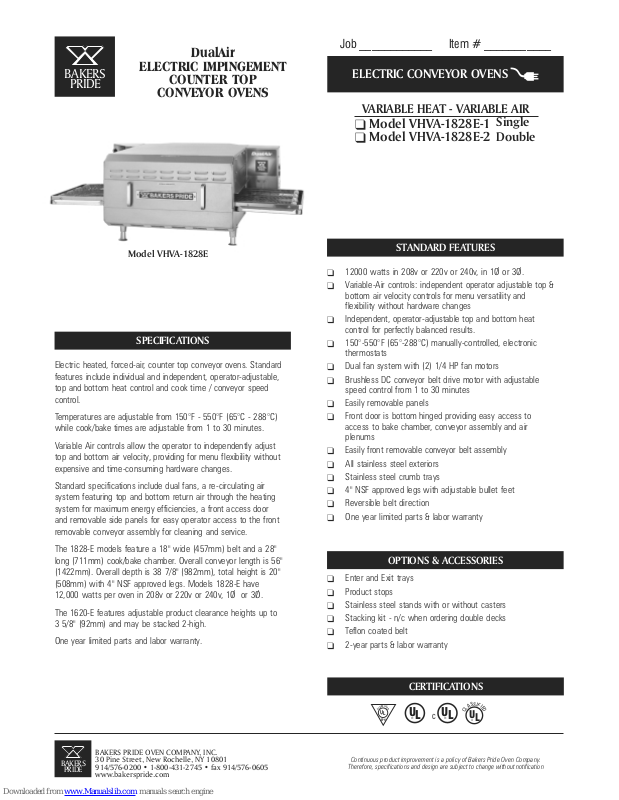

BAKERS
PRIDE
DualAir
ELECTRIC IMPINGEMENT
COUNTER TOP
CONVEYOR OVENS
Job ____________ Item # ___________
ELECTRIC CONVEYOR OVENS
VARIABLE HEAT - VARIABLE AIR
q Model VHVA-1828E-1
q Model VHVA-1828E-2
Single
Double
Model VHVA-1828E
SPECIFICATIONS
Electric heated, forced-air, counter top conveyor ovens. Standard
features include individual and independent, operator-adjustable,
top and bottom heat control and cook time / conveyor speed
control.
Temperatures are adjustable from 150°F - 550°F (65°C - 288°C)
while cook/bake times are adjustable from 1 to 30 minutes.
Variable Air controls allow the operator to independently adjust
top and bottom air velocity, providing for menu flexibility without
expensive and time-consuming hardware changes.
Standard specifications include dual fans, a re-circulating air
system featuring top and bottom return air through the heating
system for maximum energy efficiencies, a front access door
and removable side panels for easy operator access to the front
removable conveyor assembly for cleaning and service.
STANDARD FEATURES
q 12000 watts in 208v or 220v or 240v, in 1O
Variable-Air controls: independent operator adjustable top &
q
bottom air velocity controls for menu versatility and
flexibility without hardware changes
q
Independent, operator-adjustable top and bottom heat
control for perfectly balanced results.
q
150°-550°F (65°-288°C) manually-controlled, electronic
thermostats
q
Dual fan system with (2) 1/4 HP fan motors
Brushless DC conveyor belt drive motor with adjustable
q
speed control from 1 to 30 minutes
q
Easily removable panels
Front door is bottom hinged providing easy access to
q
access to bake chamber, conveyor assembly and air
plenums
q
Easily front removable conveyor belt assembly
q
All stainless steel exteriors
q
Stainless steel crumb trays
4" NSF approved legs with adjustable bullet feet
q
Reversible belt direction
q
One year limited parts & labor warranty
q
/
or 3O/.
The 1828-E models feature a 18" wide (457mm) belt and a 28"
long (711mm) cook/bake chamber. Overall conveyor length is 56"
(1422mm). Overall depth is 38 7/8" (982mm), total height is 20"
(508mm) with 4" NSF approved legs. Models 1828-E have
12,000 watts per oven in 208v or 220v or 240v, 1 or 3O/.O
The 1620-E features adjustable product clearance heights up to
3 5/8" (92mm) and may be stacked 2-high.
One year limited parts and labor warranty.
BAKERS PRIDE OVEN COMPANY, INC.
BAKERS
PRIDE
30 Pine Street, New Rochelle, NY 10801
914/576-0200 • 1-800-431-2745 • fax 914/576-0605
www.bakerspride.com
OPTIONS & ACCESSORIES
q
Enter and Exit trays
Product stops
/
q
Stainless steel stands with or without casters
q
Stacking kit - n/c when ordering double decks
q
Teflon coated belt
q
2-year parts & labor warranty
q
CERTIFICATIONS
S
I
F
S
I
F
S
I
A
E
L
D
C
U
L
®
U
L
C
®
EPH
Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification
S
I
E
A
D
L
C
U
U
L
®
L
®
38 3/4"
(984mm)
56"
(1442mm)
3 5/8"
(92mm)
(270mm)
1 1/2"
(38mm)
10 5/8"
38 3/4"
(984mm)
9 7/16"
(240mm)
19 1/4"
(488mm)
SIDE VIEW
16 5/8"
(422mm)
20 1/4"
(514mm)
6 1/2"
(165mm)
16"
(406mm)
POWER INLET LOCATION 1" NPT MAX.
7 5/8"
(194mm)
7 7/8"
(201mm)
20"
(508mm)
10 5/8"
(270mm)
28"
(711mm)
14"
(355mm)
4"
(102mm)
7 7/8"
(201mm)
28"
(712mm)
FRONT VIEW
POWER INLET LOCATION
1" NPT MAX.
14"
(355mm)
POWER INLET LOCATION
1" NPT MAX.
32 1/4"
(819mm)
18"
(457mm)
TOP VIEW
ALL DIMENSIONS NOMINAL • NOTE: Overall depth excludes 5/8" (16mm) rubber bumpers
SHIPPING INFORMATION
Shipping Wt Crate SizeCarton Dimensions
Model
1828-E
Under 500 lbs = Shipping Class # 85
Lbs.
360
Width Depth Height
Kilos
Inches
164
1143
SPECIFICATIONS
Belt
Model
1828-E
Width
Inches Inches Inches Inches
18 28 56 3 5/8457 711 1442 92
Cooking
Length
mm mm mm mm
Inches Inches
mm mm mm
1473 635
Conveyor
Length
Chamber
Height
Inches
*Height includes 4" (102mm) NSF approved legs with adjustable bullet feet
Cubic
Cubic
Feet
Meter
3845 58 25
1.07
Overall Dimensions
Width Depth Height*
56
Inches Inchesmm mm mm
38 7/8
POWER SUPPLY
Model
1828-E
1828-E
1828-E
1828-E
1828-E
1828-E
Each oven requires a separate electrical connection — 3 Phase and Export Voltages No Line Cord
20
987 5081442
VOLTAGEWATTS PHASE
208
12,000
208
12,000
220
12,000
220
12,000
240
12,000
240
12,000
Model 1828 available in non-convertable1O or 3O
MINIMUM CLEARANCES
Left Side
Right Side
Rear
1 Phase 3 Phase
59.6
1
3
1
3
1
3
Non-Combustible Construction Combustible Construction
—
—
41.2
—
56
—
36
51.7
—
—
35.7
//
Inches Inches
0
0
0
NEMA Plug #AMPS
USA Canada UK Europe
—
—
—
—
—
—
—
—
—
—
—
—
mm mm
0
0
0
0
0
0
—
—
—
—
———
———
—
—
——
——
0
0
0
BAKERS PRIDE OVEN COMPANY, INC.
BAKERS
PRIDE
30 Pine Street, New Rochelle, NY 10801
914/576-0200 • 1-800-431-2745 • fax 914/576-0605
www.bakerspride.com
Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification
1/05
