Bakers Pride T4-P12 User Manual

CINELLI

ESPERIA

CORPORATION

®

Manufacturers of

Quality Bakery Machinery

Since 1972.

Our Goal is Simple...

To Help You Reach Yours

G. CINELLI-ESPERIA CORPORATION®, the standard by which all will be judged

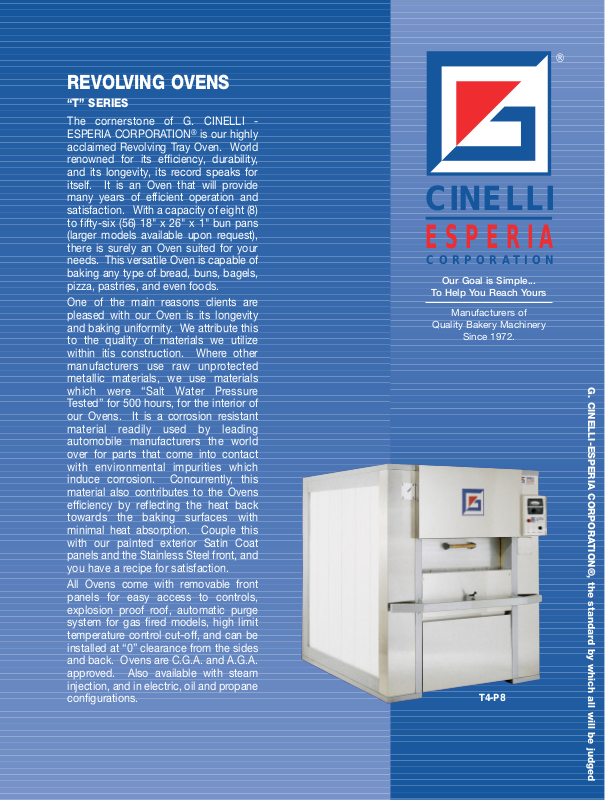

REVOLVING OVENS

“T” SERIES

The cornerstone of G. CINELLI ­ESPERIA CORPORATION

®

is our highly
acclaimed Revolving Tray Oven. World
renowned for its efficiency, durability,
and its longevity, its record speaks for
itself. It is an Oven that will provide
many years of efficient operation and
satisfaction. With a capacity of eight (8)
to fifty-six (56) 18" x 26" x 1" bun pans
(larger models available upon request),
there is surely an Oven suited for your
needs. This versatile Oven is capable of
baking any type of bread, buns, bagels,
pizza, pastries, and even foods.

One of the main reasons clients are
pleased with our Oven is its longevity
and baking uniformity. We attribute this
to the quality of materials we utilize
within itís construction. Where other
manufacturers use raw unprotected
metallic materials, we use materials
which were “Salt Water Pressure
Tested” for 500 hours, for the interior of
our Ovens. It is a corrosion resistant
material readily used by leading
automobile manufacturers the world
over for parts that come into contact
with environmental impurities which
induce corrosion. Concurrently, this
material also contributes to the Ovens
efficiency by reflecting the heat back
towards the baking surfaces with
minimal heat absorption. Couple this
with our painted exterior Satin Coat
panels and the Stainless Steel front, and
you have a recipe for satisfaction.

All Ovens come with removable front
panels for easy access to controls,
explosion proof roof, automatic purge
system for gas fired models, high limit
temperature control cut-off, and can be
installed at “0” clearance from the sides
and back. Ovens are C.G.A. and A.G.A.
approved. Also available with steam
injection, and in electric, oil and propane
configurations.

T4-P8

®

TECHNICAL DATA

REVOLVING OVENS ‘T’ SERIES

QUANTITY OF TRAY DATA WIDTH HEIGHT DEPTH WEIGHT VENT NATURAL

BUN PANS MODEL NO. NO. SIZE (approx.) SIZE GAS BTU s/HZ

18” x 26” x1” IMPERIAL (in.)

46 x 66 x 2.5cm METRIC (cm)

8 T4-P8 4 26 x 40 69 1/4 85 86 3/4 3,400 8 I.D. 120,000 - 400,000

66 x 102 176 216 220 1,542 20 I.D.

12 T4-P12 4 26 x 55 85 1/4 85 86 3/4 3,900 I.D. 120,000 - 400,000

66 x 140 216 216 220 1,770 20 I.D.

16 T4-P16 4 26 x 73 103 3/4 85 86 3/4 4,400 I.D. 120,000 - 400,000

66 x 185 264 216 220 1,996 20 I.D.

20 T4-P20 4 26 x 95 125 1/4 85 86 3/4 4,900 I.D. 120,000 - 400,000

66 x 241 318 216 220 2,222 20 I.D.

24 T4-P24 4 26 x 111 141 1/4 85 86 3/4 5,500 8 I.D. 120,000 - 400,000

66 x 282 359 216 220 2,495 20 I.D.

30 T6-P30 6 26 x 95 125 1/4 102 3/4 102 3/4 6,000 10 I.D. 120,000 - 400,000

66 x 241 318 261 261 2,722 25 I.D.

36 T6-P36 6 26 x 111 141 1/4 102 3/4 102 3/4 6,700 10 I.D. 120,000 - 400,000

66 x 282 359 261 261 3,039 25 I.D.

42 T6-P42 6 26 x 127 157 1/4 102 3/4 102 3/4 7,400 10 I.D. 120,000 - 700,000

66 x 323 400 261 261 3,357 25 I.D.

48 T8-P48 8 26 x 111 141 1/4 118 118 3/4 8,100 12 I.D. 200,000 - 700,000

66 x 282 359 300 301 3,682 30 I.D.

56 T8-P56 8 26 x 127 157 1/4 118 118 3/4 8,800 12 I.D. 200,000 - 700,000

66 x 323 400 300 301 4,000 30 I.D.

A minimum of 24” clearance on height is required on all models. Standard Voltage: 115V/1Ph/60Hz

Larger sizes available. Call for details.

G. CINELLI - ESPERIA CORPORATION®RESERVES THE RIGHT TO EFFECT CHANGES PRIOR TO NOTIFICATION. ALL DATA NOT BINDING.

CINELLI

®

ESPERIA

CORPORATION

380 Chrislea Road,

Woodbridge, Ontario

L4L 8A8 Canada

Tel: [phone]

Fax: [phone]

Web Site: www.gcinelli-esperia.com

Printed in Canada

® DESIGNATED TRADEMARK REGISTERED IN

CANADA, USA, MEXICO & RUSSIA

OWNED BY G. CINELLI - ESPERIA CORPORATION
