Bakers Pride Cyclone CO11-G Parts List

30 Pine Street • New Rochelle • New York • 10801

BAKERS

PRIDE

1 - 800 - 431 - 2745

www.bakerspride.com

Cyclone

SERIES

914 / 576 - 0200
914 / 576 - 0605

fax
US & Canada
web address

PARTS LIST

CO11-G

Full Size Gas Convection Oven

Model Number: CO11-G Type of Gas: Natural L.P. Other
Serial Number: Voltage/Phase: 115/1 208-240/1 230/1 (CE)

Page 1 of 4 U6003A 8/07 Note: When ordering, ALWAYS specify Part #, Model #, Serial #,Voltage/Phase & type of Gas.

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

CO11-G

914 / 576 - 0605

1 - 800 - 431 - 2745

Full Size Gas Convection Oven

www.bakerspride.com

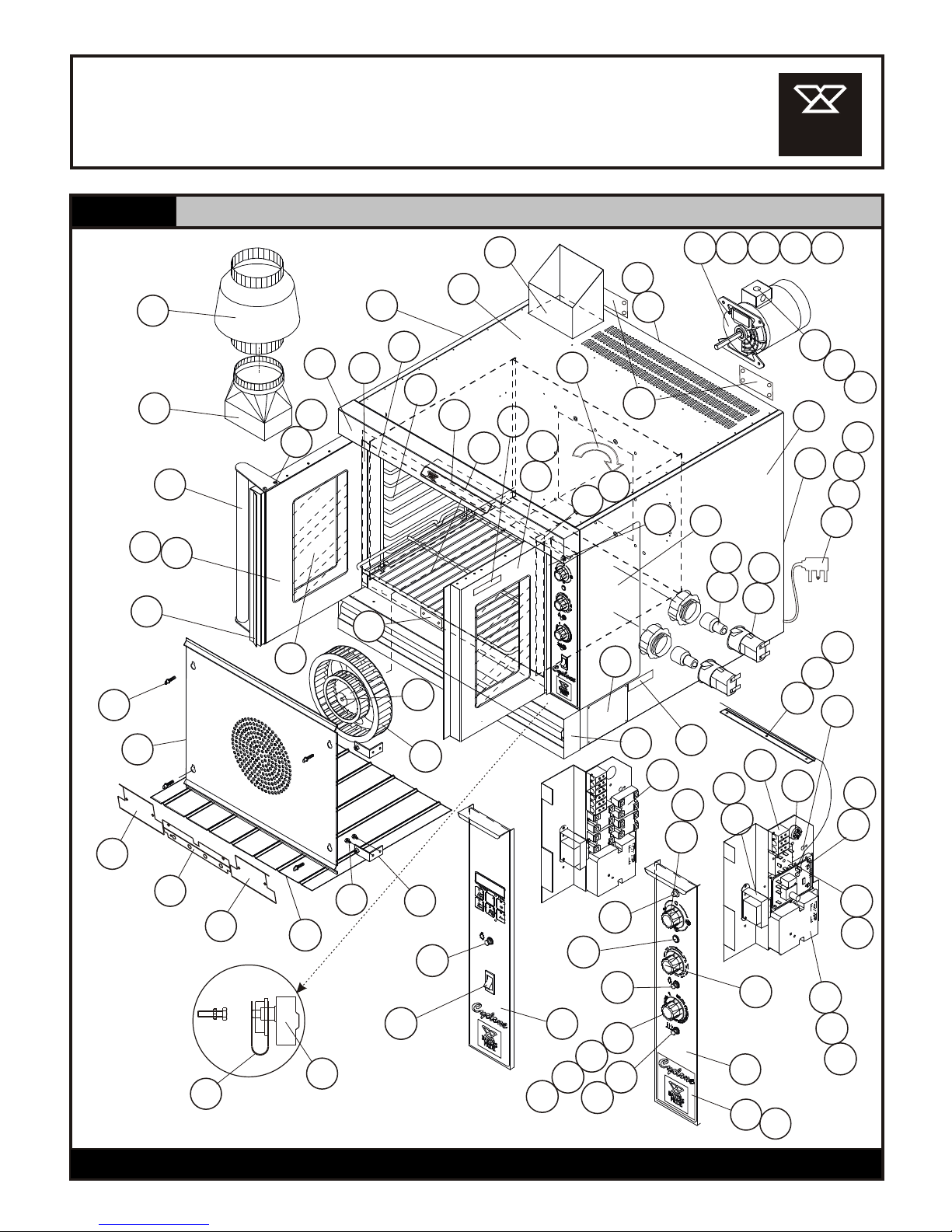

Figure A Exterior / Interior / Controls / Doors

fax
US & Canada
web address

BAKERS

PRIDE

25

18

3

35

34

4

17

23

83

84 85

55

56

88

12

36

10

8

45

16

81 82

1

2

44

90

89

6

5

37

B

B

A

A

K

K

E

E

RS

RS

42

19

20

21

21

22

22

7

7

11

54

52

53

51

91

R

R

I

I

DP

DP

E

E

9

50

49

48

47

46

93

72

41

71

87

70

73

78

43

80

57

74

69

24

86

13

75

79

68

60

29

28

31

D

30

27

92

S

w

r

i

t

o

o

c

h

32

76

26

58

75

39

64

61

63

59

62

58

40

58

38

14

75

94

95

65

66

67

15

Page 2 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial #,Voltage/Phase & type of Gas. U6003A 8/07

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

BAKERS

PRIDE

Item Part # Description Item Part # Description

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax
US & Canada
web address

CO11-G

Full Size Gas Convection Oven

Exterior / Interior / Controls / Doors

1 E3450X Door Seal, Top or Bottom, each (2) 49 P6007X Elec Line Cord, 250V (UK)
2 E3451K Door Seal, Sides, each (2) 50 N5048P Rear Pipe Connection
3 E3466U Door Closure Strip 51 P1144X Snap-In Light Assy (w/130V Bulb)
4 S1317U Door Handle 52 P1145X Snap-In Light Assy (w/240V Bulb)
5 Q1477A Screw, FH 10-32x1/2 (4) 53 P1146X Light Bulb (15W, 130V)
6 Q3047A #10 Lockwasher, Countersunk, Ext. (4) 54 P1147X Light Bulb (15W,240V)
7 E3487X Vertical Trim 55 P1082A Conduit BX, 3/8"
8 E3485K Outer Cover (Left) 56 P1084A Bushing, Anti-Short, 3/8"

9 E3486K Outer Cover (Right) 57 P1003X Terminal Block (3 Pole)
10 E3501K Outer Cover (Top) 58 M1049X Switch, Momentary (Light &/or Steam)
11 E3499X Access Cover (Side) 59 S1171A Plug Button, 7/16"
12 E3488X Top Trim 60 M1326X Switch, Rotary (EGO)
13 E3583U Bottom Apron 61 M1339A Pilot Light Amber (Thermostat)
14 E3498X Access Cover (Front) 62 M1340A Pilot Light Green (Power)
15 S3203K Latch Assy (Magnetic) 63 M1332X Timer, 60 Minutes (120V)
16 E3514X S/S Perforated Rear Panel 64 M1346X Timer, 60 Minutes (208/240V)
17 E3454X Door Assy Left (No Window) 65 M2138X Ignition Control Module (24V)
18 E3458X Door Assy Left (w/Window) 66 M1355A Ignition Control Module, CE (24V)
19 E3456X Door Assy Right (No Window) 67 M2139A Harness w/Terminals
20 E3460X Door Assy Right (w/Window) 68 M0110A T-stat, G6, FAST (Domestic)
21 S3229A Door Rod 69 M1553A T-stat, E6, FAST (CE)
22 Q4033A Roll Pin 1/4 x 1 1/4 70 M1555A Probe, RTD Temp
23 S1048X Window Assy 71 E3051K Clamp, Temperature Sensor (1)
24 E3053K Baffle Plate 72 P1042A Victor Clip, Temp Sensor (3)
25 Q2009A Thumb Screw, 1/4-20x1/2 (4) 73 M1176X Potentiometer
26 E3095X Baffle Plate Bracket Assy (4) 74 M1335X Bell Audiolarm
27 Q1414A Screw, Hex Hd, #10x3/4 (8) 75 S1311X Knob (3)
28 E3481X Combustion Chamber (Front Center) 76 M1352X Ckt Breaker, 120-240V, 15A
29 E3482X Combustion Chamber (Front Left) 77
30 E3511X Combustion Chamber (Front Right) 78 M1356A Solid State Relay, CE
31 E3471K Door Switch Actuator 79 M1145X Transformer (120V-24V)
32 M1102X Microswitch (Rotary) 80 M1174X Transformer (208/240V-24V)
33 81 M1157X Motor, 1/4HP, 2Spd, 115V, 60
34 R3166A Flue Adapter 7" (For Direct Venting Only) 82 M1217X Motor, 1/4HP, 2Spd, 200-230V,50-60
35 R3113A Flue Diverter (For Direct Venting) 83 Q3008A Flat Washer (4)
36 R3167A Flue Diverter (For Collection Hood) 84 Q3014A Lock Washer, Split (4)
37 U1043X Bakers Pride Name Plate (13 3/4") 85 Q2204A Nut, 5/16 HX, 5/16-18 (4)
38 U1290A Control Panel Overlay (Rotary) 86 S1195X Blower Wheel
39 U1437A Control Panel Overlay (FAST) 87 Q2302A Bolt, Wheel Puller 3/8-16x2 Hx (2)
40 U1296A Timer Overlay (50 cycle only) 88 P1108A Conduit Connector, 3/8"x1/2", 90 deg.
41 U1216A Rating Plate 89 E3225X Stacking Bracket,
42 U1055A Caution Hot Label 90 T3044A Rack Support
43 U1128A Supply Connection 91 T3043A Wire Rack
44 U1169A Motor Rotation Arrow 92 E3483K Flame Guard
45 U1210A Installation Warning 93 E3531K Door Limit Block
46 P6004X Elec Line Cord, 115V (US & Can) 94 M1175X Steam Timer, 115V
47 P6005X Elec Line Cord, 250V (US & Can) 95 M1231A Steam Timer, 208/240V (Export)
48 P6006X Elec Line Cord, 250V (Europe)

Conversion Kit (Natural to LP)

4 R3175A #57 Burner Orifice Spud, LP 4 R3180A #48 Burner Orifice Spud, Nat

1 M1233X LP Kit for Combination Valve 1 M1343X Natural Kit for Combination Valve

1 R3160X #78 Carry-over Orifice Hood, LP 1 R3161X #71 Carry-over Orifice Hood, Nat

Conversion Kit (LP to Natural)

CO11-G2 Only

(each)

Page 3 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial #,Voltage/Phase & type of Gas. U6003A 8/07

CO11-G

Full Size Gas Convection Oven

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200
914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax
US & Canada
web address

BAKERS

PRIDE

Figure B

29

26

27

25

28

16

Burners

34

Item Part # Description

1 S1050Y 30" Leg (Set of 4) 23 N3068P 1/8" Pressure Tap Nozzle Assy
2 Q4017V Leg Bolt, Set (For 4 Legs) 24 N3026A 1/2" Union
3 S1217Y 24 1/2" S/S Leg (Set/4) Used w/Casters 25 R3158A Carry-Over
4 S1252T 24 1/2" S/S Leg (each) Used w/Casters 26 L5090A Burner (3)
5 S1081X Casters, 4" (Set of 4) 27 L5091X Burner w/Ignitor Bracket (1)
6 S1022X Caster, 4" (No Lock), each 28 M1323X Flame Rod (Flame Sensor)
7 S1023X Caster, 4" (w/Lock), each 29 M2140X Igniter, 24V
8 K1357E Mounting Plate (for Casters) each 30 R3164X Combination Valve (Natural)

9 S1049Y 6" Bullet Legs (Set of 4) 31 R3165X Combination Valve (LP)
10 S1049A 6" Bullet Legs (each) 32 R3178P Combination Valve, CE (Natural)
11 E3148X
12 E3149X
13 T3051X
14 T3052X
15 T8075X
16 R3180A #48 Burner Orifice Spud (Nat) 38 S3227A Door Chain Rod (Long)
17 R3175A #57 Burner Orifice Spud (LP) 39 S3145X Sprocket
18 R3176A 1.15mm Burner Orifice Spud CE (LP) 40 S3112X Roller Chain #35
19 R3161X #71 Carry-Over Orifice Hood (Nat) 41 S3224A Chain Connection Link #41
20 R3160X #78 Carry-Over Orifice Hood (LP) 42 S3223A Turnbuckle 1/4-20x3"
21 M1233X LP Kit (for Combination Valve) 43 Q2039A 1/4-20 Hex Nut, Left Hand Thread (2)
22 M1343A Natural Kit (for Combination Valve)

23

Top Right Angle, Open Rack Stand
Top Left Angle, Open Rack Stand
Left Rack Support, Open Rack Stand
Right Rack Support, Open Rack Stand
Bottom Shelf w/Hdwr, Open Rack Stand

Burners / Valve / Door Chain / Legs

33

32

17

19

18

20

10

9

21

30

22

ININ

Safety Valve

OUTOUT

7

8

31

24

24

6

35

ININ

3

4

5

Item Part # Description

33 R3179P Combination Valve, CE (LP)
34 R1116A Manifold
35 S3228A Flange Bearing (4)
36 S3231X Door Chain Assy (Complete)
37 S3226A Door Chain Rod (Short)

39

1

Door Chain Assy

12

13

15

Legs & Open Rack Stand

11

36

37

38

40

41

2

14

42

43

N/S M1114X Solonoid Valve N/S N5815A 1/4 Tubing x 9"
N/S M1115X Coil (For Solonoid Valve) N/S N1019X Steam Injection Nozzle
N/S N3039A 1/8 Brass Coupling N/S M1175X Steam Timer, 115V
N/S N3040A 1/8 Brass Elbow N/S M1231A Steam Timer, 208/240V (Export)
N/S N5831A 1/8x4" Brass Nipple N/S M1176X Steam Potentiometer
N/S N3041A 1/8NPT-1/4 Compression Fitting N/S M1049X Momentary Switch (Steam)
N/S N5814A 1/8x2 3/8 Nipple

Page 4 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial #,Voltage/Phase & type of Gas. U6003A 8/07

Steam Option (Not Shown)
