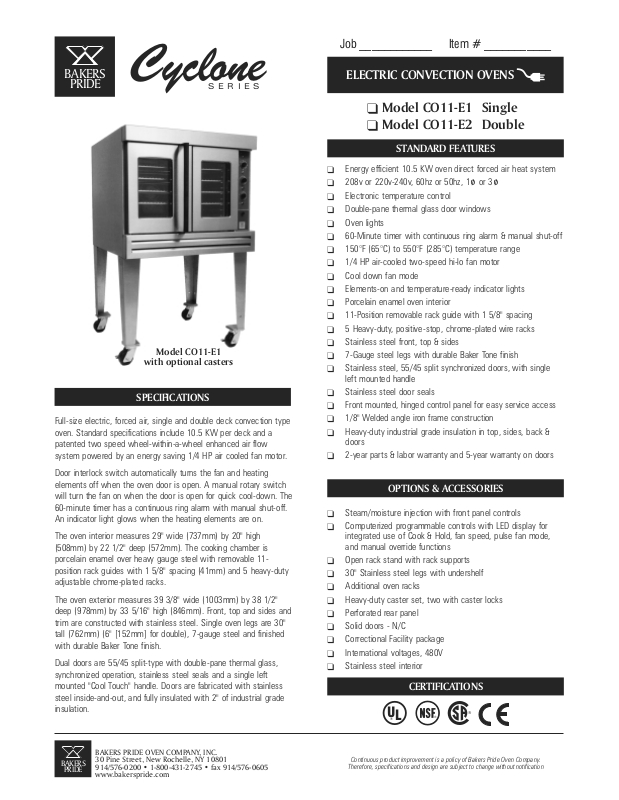

Bakers Pride CO11-E2 User Manual

Job ____________ Item # ___________

BAKERS

PRIDE

Cyclone

SERIES

Model CO11-E1

with optional casters

SPECIFICATIONS

Full-size electric, forced air, single and double deck convection type
oven. Standard specifications include 10.5 KW per deck and a
patented two speed wheel-within-a-wheel enhanced air flow
system powered by an energy saving 1/4 HP air cooled fan motor.

ELECTRIC CONVECTION OVENS

q Model CO11-E1 Single
q Model CO11-E2 Double

STANDARD FEATURES

q

Energy efficient 10.5 KW oven direct forced air heat system
208v or 220v-240v, 60hz or 50hz, 1 or 3

q

Electronic temperature control

q

Double-pane thermal glass door windows

q

Oven lights

q

60-Minute timer with continuous ring alarm & manual shut-off

q

150°F (65°C) to 550°F (285°C) temperature range

q

1/4 HP air-cooled two-speed hi-lo fan motor

q

Cool down fan mode

q

Elements-on and temperature-ready indicator lights

q

Porcelain enamel oven interior

q

11-Position removable rack guide with 1 5/8" spacing

q

5 Heavy-duty, positive-stop, chrome-plated wire racks

q

Stainless steel front, top & sides

q

7-Gauge steel legs with durable Baker Tone finish

q

Stainless steel, 55/45 split synchronized doors, with single

q

left mounted handle
Stainless steel door seals

q

Front mounted, hinged control panel for easy service access

q

1/8" Welded angle iron frame construction

q

Heavy-duty industrial grade insulation in top, sides, back &

q

doors
2-year parts & labor warranty and 5-year warranty on doors

q

ØØ

Door interlock switch automatically turns the fan and heating
elements off when the oven door is open. A manual rotary switch
will turn the fan on when the door is open for quick cool-down. The
60-minute timer has a continuous ring alarm with manual shut-off.
An indicator light glows when the heating elements are on.

The oven interior measures 29" wide (737mm) by 20" high
(508mm) by 22 1/2" deep (572mm). The cooking chamber is
porcelain enamel over heavy gauge steel with removable 11­position rack guides with 1 5/8" spacing (41mm) and 5 heavy-duty
adjustable chrome-plated racks.

The oven exterior measures 39 3/8" wide (1003mm) by 38 1/2"
deep (978mm) by 33 5/16" high (846mm). Front, top and sides and
trim are constructed with stainless steel. Single oven legs are 30"
tall (762mm) (6" [152mm] for double), 7-gauge steel and finished
with durable Baker Tone finish.

Dual doors are 55/45 split-type with double-pane thermal glass,
synchronized operation, stainless steel seals and a single left
mounted "Cool Touch" handle. Doors are fabricated with stainless
steel inside-and-out, and fully insulated with 2" of industrial grade
insulation.

BAKERS PRIDE OVEN COMPANY, INC.

BAKERS

PRIDE

30 Pine Street, New Rochelle, NY 10801
914/576-0200 • 1-800-431-2745 • fax [phone]
www.bakerspride.com

OPTIONS & ACCESSORIES

q

Steam/moisture injection with front panel controls
Computerized programmable controls with LED display for

q

integrated use of Cook & Hold, fan speed, pulse fan mode,
and manual override functions

q

Open rack stand with rack supports
30" Stainless steel legs with undershelf

q

Additional oven racks

q

Heavy-duty caster set, two with caster locks

q

Perforated rear panel

q

Solid doors - N/C

q

Correctional Facility package

q

International voltages, 480V

q

Stainless steel interior

q

CERTIFICATIONS

U

L

®

Continuous product improvement is a policy of Bakers Pride Oven Company.

Therefore, specifications and design are subject to change without notification

®

®

14 13/32"
(366 mm)

39 1/2"

(1003mm)

29" (737mm)

22"
(559 mm)

TOP VIEW

Doors open to 150°

6 9/32"
(160mm)

33 5/16"

(846mm)

30"

(762mm)

BAKERS PRIDE

FRONT VIEW

150

°F

°C

80

200

550

100

100

280

120120

250250

260

500

140

240240

300

300

160

450

220

180

180

200

350

400

BAKERS
PRIDE

2 5/8"

(67mm)

63 5/16"

(1608mm)

SIDE VIEW
Single Unit

ALL DIMENSIONS NOMINAL

38 3/8"

(975mm)

20"

(508mm)

72 5/8"

(1845mm)

(52mm)

1

6"

SIDE VIEW

Double Unit

SHIPPING INFORMATION

Shipping Weight Carton Size Carton Dimensions

Kilos

Model

CO11-E1
CO11-E2 Double

Lbs.

640

Shipped in two cartons as per above specifications

POWER SUPPLY

KW

Model

CO11-E1

10.5

10.5

10.5

10.5

Each oven requires separate electrical connections

BAKERS PRIDE OVEN COMPANY, INC.

BAKERS

PRIDE

30 Pine Street, New Rochelle, NY 10801
914/576-0200 • 1-800-431-2745 • fax [phone]
www.bakerspride.com

VoltagemmPhase

220-240

220-240

Cubic Feet

Cubic Meters

47.8 45

3

208

3

1

208

1

Inches

Line 1 Line 2

31.8

30.2

52

49.5

Width Depth Height

Inches Inches

mm mm

44 1/2 41 3/4291 1.26 1143 1130 1048

Amps

31.8

30.2

49.5

Line 3

27.8

26.2

—

52

—

Fan—50HZ Fan—60HZ

RPM-highRPM-low

1425

825

1425

825

1425

825

1425

825

RPM-low

1140

1140

1140

1140

RPM-high

1,725

1,725

1,725

1,725

Continuous product improvement is a policy of Bakers Pride Oven Company.

Therefore, specifications and design are subject to change without notification

MINIMUM CLEARANCES

Vent Hood Direct Venting

Inches Inches

Right

Left

Rear

Suitable for installation on combustible floors when installed on
factory supplied legs or casters

1

1

3

mm mm

NA

25

NA

25

NA

76

NA

NA

NA

TS: 03/04
