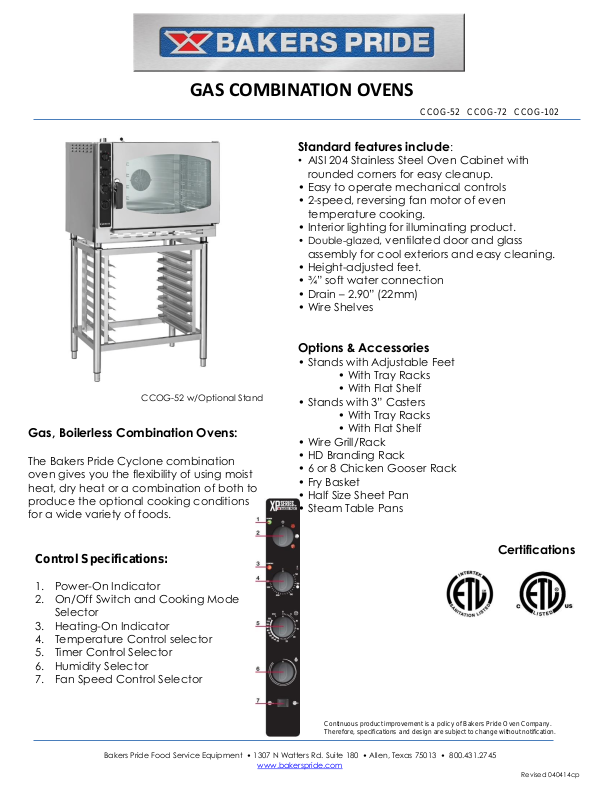

Bakers Pride CCOG-102 User Manual

GAS COMBINATION OVENS

CCOG-52 w/Optional Stand

Gas, Boilerless Combination Ovens:

The Bakers Pride Cyclone combination

oven gives you the flexibility of using moist
heat, dry heat or a combination of both to
produce the optional cooking conditions
for a wide variety of foods.

Control Specifications:

1. Power-On Indicator

2. On/Off Switch and Cooking Mode
Selector

3. Heating-On Indicator

4. Temperature Control selector

5. Timer Control Selector

6. Humidity Selector

7. Fan Speed Control Selector

CCOG-52 CCOG-72 CCOG-102

Standard features include:

• AISI 204 Stainless Steel Oven Cabinet with
rounded corners for easy cleanup.

• Easy to operate mechanical controls

• 2-speed, reversing fan motor of even

temperature cooking.

• Interior lighting for illuminating product.

• Double-glazed, ventilated door and glass

assembly for cool exteriors and easy cleaning.

• Height-adjusted feet.

• ¾” soft water connection

• Drain – 2.90” (22mm)

• Wire Shelves

Options & Accessories

• Stands with Adjustable Feet

• With Tray Racks

• With Flat Shelf

• Stands with 3” Casters

• With Tray Racks

• With Flat Shelf

• Wire Grill/Rack

• HD Branding Rack

• 6 or 8 Chicken Gooser Rack

• Fry Basket

• Half Size Sheet Pan

• Steam Table Pans

Certifications

Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification.

Bakers Pride Food Service Equipment • 1307 N Watters Rd. Suite 180 • Allen, Texas 75013 • 800.431.2745

www.bakerspride.com

Revised 040414cp

CCOG-52

GAS COMBINATION OVENS

CCOG-52 CCOG-72 CCOG-102

CCOG-72

• Water Requirements

• Pressure 35-87PSI

• Hardness (CaCO3) = less than 7.5 GPG (Grains per Gallon)

• TDS (Total Dissolved Solids) – Less than 100.0 mg/l

(milligrams per liter)

• Free Chlorine – less than .05 mg/l

• Chlorides = less than 20 mg/l

• Chloramines = less than 0.5 mg/l

• Total Alkalinity = less than 20 mg/l

• Total Silica = less than 10 mg/l

• PH Level = 7.0 to 8.0

• (Not maintaining water quality to factory requirements voids

warranty)

CCOG-102

TECHNICAL SPECIFICATIONS

UNIT WEIGHT UNIT DIMENSIONS POWER

Model Lbs Kilos Width Depth Height Btu/hr

In mm In mm In mm

CCOG-52 242.5 110 34.25 870 30.94 786 33.80 859

CCOG-72 326.3 148 34.25 870 30.94 786 41.07 1043

CCOG-102 352.7 160 34.25 870 30.94 786 48.76 1239

• Pan sizes

• CCOG-52 5 each 23.62” x 15.75” (600mm x 400mm)
Distance between pans 2.90” (74mm)

• CCOG-72 7 each 23.62” x 15.75” (600mm x 400mm)
Distance between pans 2.90” (74mm)

• CCOG-102 10 each 23.62” x 15.75” (600mm x 400mm)
Distance between pans 2.90” (74mm)

ELECTRICAL SIDE REAR PAN

(Propane)

32,400

(28,400)

54,500

(50,500)

64,800

(60,700)

120v 60hz

1 Phase

120v 60hz

1 Phase

120v 60hz

1 Phase

CLEARANCE

CAPACITY

0” 3” 5 3

0” 3” 7 3

0” 3” 10 5

WIRE

SHELVES

Continuous product improvement is a policy of Bakers Pride Oven Company. Therefore, specifications and

Bakers Pride Food Service Equipment • 1307 N Watters Rd. Suite 180 • Allen, Texas 75013 • 800.431.2745

design are subject to change without notification.

www.bakerspride.com

Revised 050714cp
