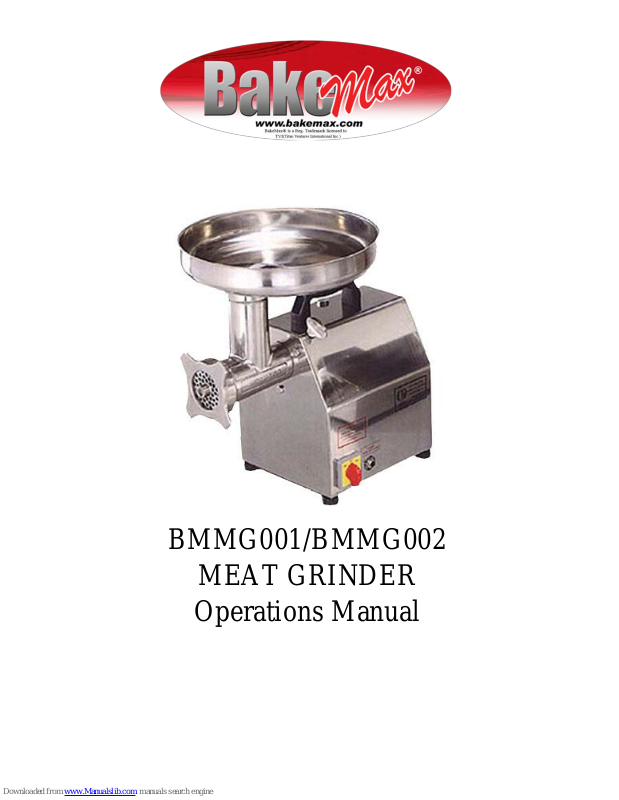

BMMG001/BMMG002
MEAT GRINDER
Operations Manual
Page 2
Page 3
BMMG001/BMMG002
Model
Productivity
Blade Speed
Motor
Voltage
Dimensions
Weight
BMMG001
120(kg./hour)
170(RPM)
3/4 HP
□ 110/60/1
□ 220/50/1
□ 220/60/1
W*D*H
250*410*410mm
30(kg.)
BMMG002
240(kg./hour)
170(RPM)
1.5 HP
□ 110/60/1
□ 220/50/1
□ 220/60/1
W*D*H
5O0*250*500mm
50(kg)
MEAT GRINDER
OVERVIEW
Our Meat Grinders are intended for heavy-duty work in commercial food processing applications. Their exceptional
reliability and attractive, compact designs make them ideal for any open kitchen and supermarket.
FEATURES
• Strict compliance with hygiene standard
• Listed by ETL sanitation, conforms to NSF standard No.8
• Reliable under the most demanding conditions
• Energy-efficient motor and precision gear drive
• FORWARD & REVERSE switch
• Circuit breaker protect motor without overloading
• Compact size, no sharp corners or seams
• Attractive design suitable for any open kitchen and supermarket
• Design for easy maintenance & Conforms to all safety standards
• Powerful, energy-efficient motor
• Easy-to-remove attachments and grinder head
• Stainless Steel surface.
SPECIFICATIONS

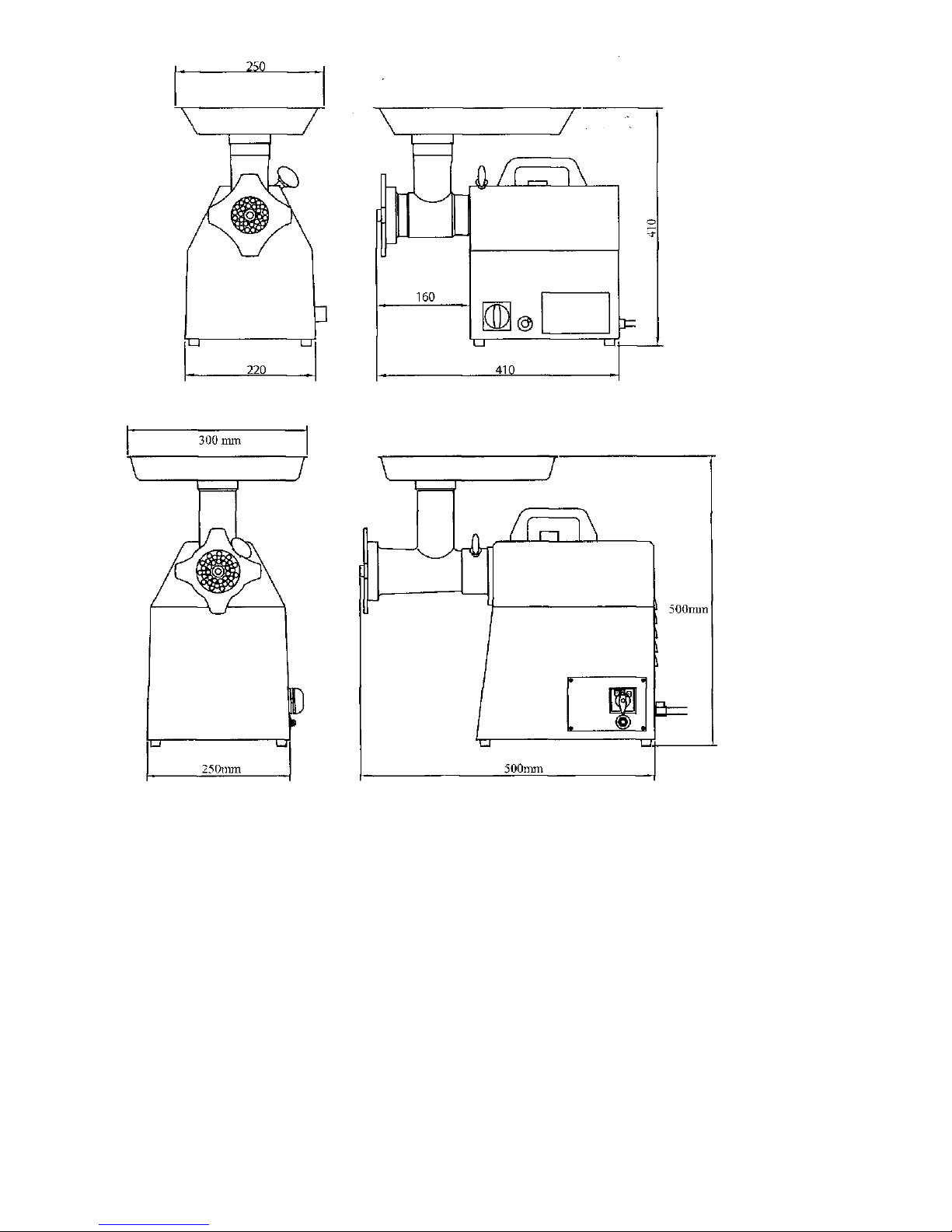

Page 4
BMMG001
BMMG002
Page 5
OPERATION
IMPORTANT:
Before connecting your unit to your power supply, be sure your machi ne's electrical specifications,
printed on the unit's nameplate, match those of your local power.
1. For first-time use, remove the grinder head and wash parts thoroughly. Reassemble according to the diagram included in
these instructions.
2. Before grinding, tighten the thumbscrew counter-clockwise until secure. Do not use a tool or over-tighten.
3. Prepare meat for grinding by removes all skin and bones. Then cut the meat into appropriately sized pieces for grinding.
4. Feed meat into the grinding chamber with the special meat pusher that was included with your machine. Never use
finger, hands, or any other objects.
5. After use, disconnect the unit form the pcwer supply and disassemble the head. Wash thoroughly to prevent
contamination.
NOTE:
During grinding, meat should be discharged form the grinder smoothly. If the discharge is smooth, or if
it is in the form of a paste, the following causes and remedies should be considerds:
POSSIBLE CAUSE
1. Thumb screw too tight.
2. Discharge Plate is blocked
3. Blade edges have dulled.
4. Overloading and motor stop
REMEDY
=> Loosen and hand-tighten only until sung. Don't over-tighten.
=> Switch reverse in second
=> Sharpen or replace.
=> Switch off and reset again
