Page 1
BMHG001-004
Hot Dog Roller
Instruction Manual
BakeMax BMHG Series Hot Dog
Roller Grill – Operations Manual
Questions? Contact Us:
Toll Free: 1-800-565-2253
Email: [email protected]
www.BakeMax.com
Warranty Registration
www.BakeMax.com/Warranty-Registration
Page 2
Page 3
The BakeMax® Hot Dog Rollers have the advantages of smart,
reliable construction, are easily-operated and fast heating. The
rollers are sprayed with non-stick coating.
A. Specifications:
Model
Voltage
Output (W)
Temperatu
re
Rollers Size
(V)
Heating
Motor
F˚/ Celcius
(mm)
BMHG00
1
115V
1030
20
50-300
5
580x255x190
23”x10”x7.5”
BMHG00
2
115V
1440
20
50-300
7
580x330x190
23”x13”x7.5”
BMHG00
3
115V
1860
20
50-300
9
580x405x190
23”x16”x7.5”
BMHG00
4
115V
2250
20
50-300
11
580x480x190
23”x19”x7.5”
B. Transportation and storage:
When being transported, be careful not to shake or drop the
machine; do not place outdoors or in the direct sunlight for
extended periods of time. If the machine is outside or near a winder
be sure to avoid rainfall: store it in ventilated place free of erosive
gases; Do not put up-side-down.
C. Installation and conditions:
1. The voltage and electrical specifications should be the
same as the indicated on the nameplate of the machine.
2. Use a suitable switch, fuse and a protected mode near the
broiler. Machine must be properly grounded.
3. All the connections and installations should be done by
qualified electricians.
D. Operation:
1. Add some vegetable oil to the two ends of the roller to
make them move well.
2. Connect the power and the light will turn on which means
power is being supplied to the machine. Turn the switch
‘Kl’ to start the motor, the rollers will move. Place hot dogs
on the roller (please ensure you are using commercial
round hot dogs. non-commercial ‘square’ hot dogs will not
properly rotate), you may lay them on all the rollers or just
the front rollers depending on how many hot dogs you
desire. Turn the temperature controller and set the
temperature to the desired temperature. The temperature
of the rollers begins to rise. When it reaches the correct
temperature it will the automatically turn off. Once the
rollers have cooled to an unacceptable temperature the
Page 4
rollers will begin to heat again automatically. By repeating
this, the temperature will be kept constant and the food
will be well heated and preserved. Suggestion: It is better
to set the temperature to 1-2 when you roast hot dogs.
E. Cleaning and protection:
1. Turn off power and unplug when cleaning to avoid injury.
2. Do not use any metallic brushes to clean the rollers as they have
a non-stick coating. Doing so will damage the coating. Only use
soft cloth and mild soap to clean.
3. Clean the rollers with soft cloth after using every day to keep them
neat and clean. Don't wash directly with water.

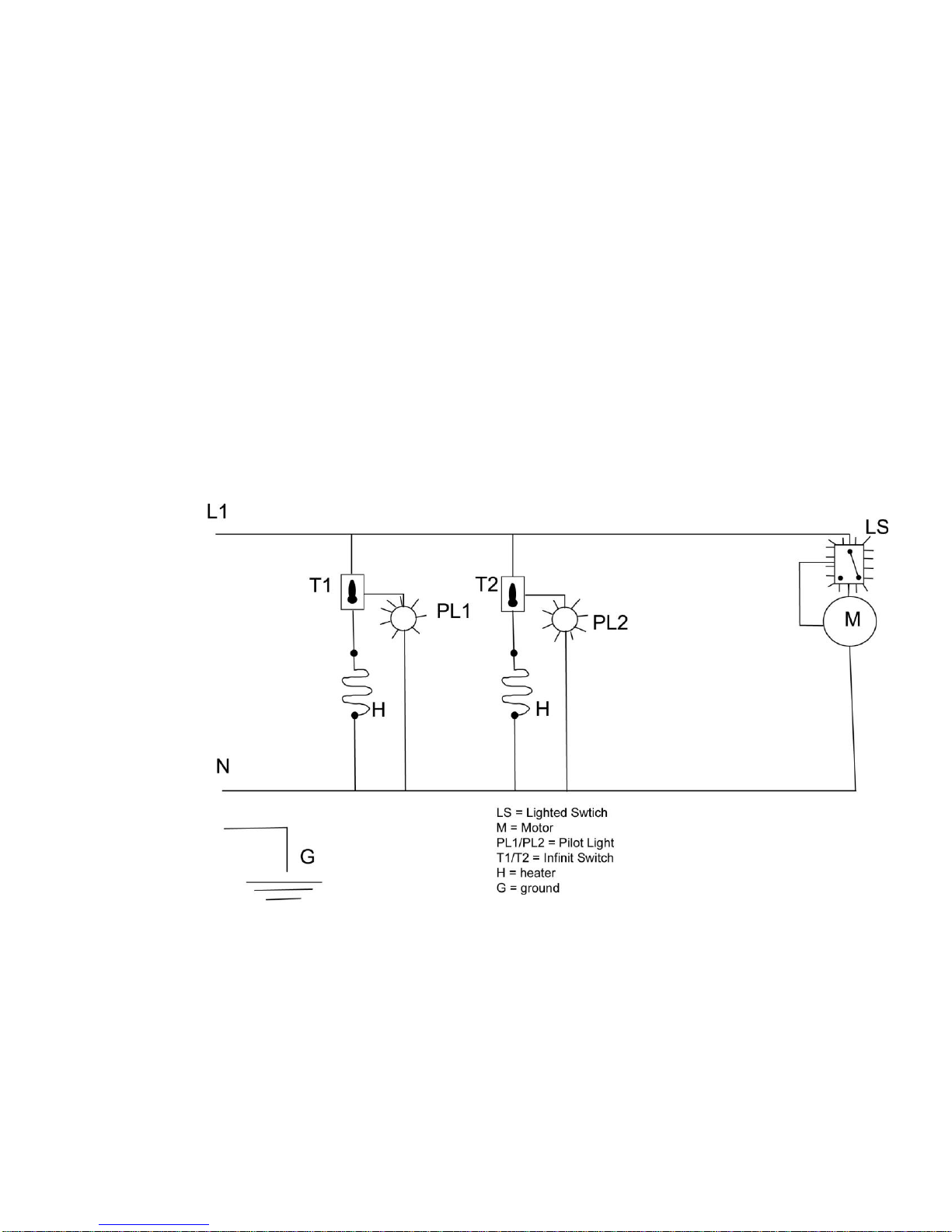

F. Electrical:
