BakeMax BMCHB Titan Series
Heated Full Service Display
Case Operations Manual
Questions? OEM Parts, Contact Us:
Toll Free: 1-800-565-2253
Email: [email protected]
www.BakeMax.com
Warranty Registration
www.BakeMax.com/Warranty-Registration
Page 2
Warning & Safety
PLEASE READ AND FOLLOW INSTRUCTIONS BELOW TO PREVENT
INJURY OR DAMAGE TO THE PRODUCT
BakeMax® (a registered trademark of Titan Ventures International Inc or TVI) is
not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone
over the age of 18, of sound mind, and not under the influence of any drugs or
alcohol, who has been trained in the correct operation of this machine, and is
wearing authorized, proper safety clothing. This machine is intended for
commercial use only. Any modification or miss use to the machine voids any
warranty and may cause harm to individuals using the machine or in the area of
the machine while in operation.
• When using the machine, please ensure that you have read all of the instructions within
this manual.
• Be aware of your surroundings when using this machine, ensure there are no children
or any other persons who are near the machine before operating.
• Do not put hand near moving parts.
• Remove all obstacles, which may interfere with machine functions.
• Keep work area clean and clear of clutter.
• Do not sit or stand on machine.
• Do not wear loose clothing or jewellery when operating machine as it may get caught in
moving parts and cause injury.
• Stop using the machine and have it checked by an authorized service personal if it is not
working properly.
• Disconnect from power source before performing and maintenance or cleaning on the
machine.
• When the machine is not in use, please clean and store properly,
• Do not place any electrical parts or plug / cord in water or liquid.
• If the supply cord is damaged it must be replaced by an authorized service agent in order
to avoid any electrical hazards.
• Keep power cord away from heat.
• Always ensure to follow local laws when operating your machine.
Page 3
Cleaning
• This unit has been coated for shipping purposes, please clean before use.
• Do not use any liquid pressurised cleaning equipment on this machine.
• Disconnect power supply before cleaning.
• Only use food grade non abrasive cleaning agents.
• Follow any additional cleaning / maintenance listed below.
Features
With its beautiful curved glass design and internal lights, this stylish warmer will keep your prepared
dishes at food safe temperatures. Available in both 30” & 42” wide, the BakeMax BMCHB Series
Countertop Full Service Heated Display Case is perfect for buffets, cafeterias, hotels, delis and more.
Features:
• Stainless steel construction for extra durability
• Curved front glass for a stylish look
• Tempered glass sides & doors for a 360˚ product view
• Adjustable temperature control with a range of 30-90°C (86-194°F) to maintain food safe
temperatures.
• Powerful 1850 watt power source with a ventilated heating system
• No water needed or reservoir to maintain
• Non-adjustable chrome plated shelve to display a second level of food
• Sliding back doors for easy food access
• BMCHB30 includes 4 half size GN pans and can hold 2 full size GN pans
• BMCHB42 includes 6 half size GN pans and can hold 3 full size GN pans
• 1 Year Limited Warranty
Technical Specifications:
BMCHB30 Technical Specifications:
•Exterior Dimensions (WDH) 30” x 30.5” x 24”
•Net Weight 113 lb
•220v / 8 Amps / 1800 W / 60Hz / 1Ph
•Nema 6-20P Plug
BMCHB42 Technical Specifications:
•Exterior Dimensions (WDH) 42” x 30.5” x 24”
•Net Weight 161 lb
•220v / 8 Amps / 1800 W / 60Hz / 1Ph
•Nema 6-20P Plug
** Due to continuous product improvement, specifications are subject to change without notice.

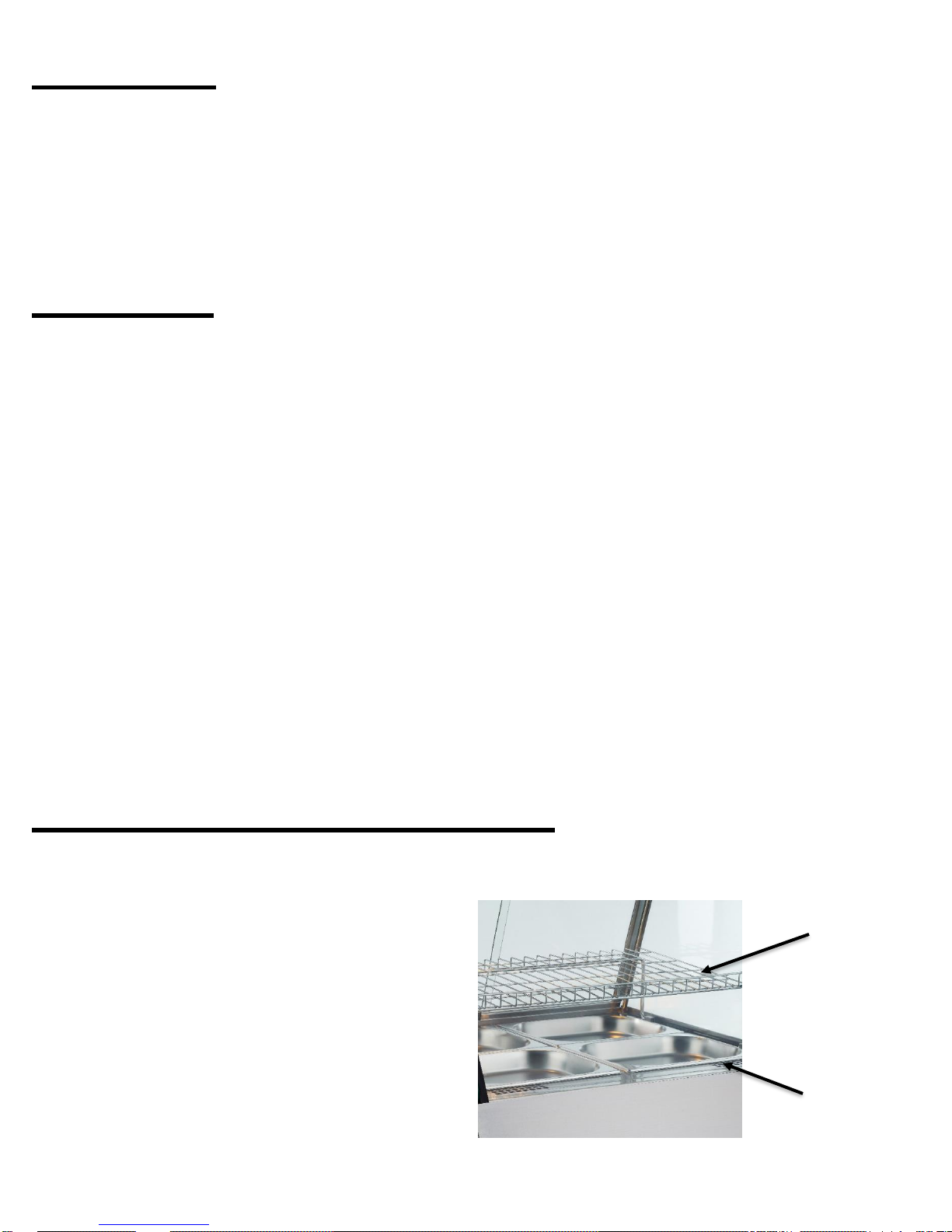

Holds Half & Full
Size GN Pans
Chrome Plated
Shelf
Page 4
To Start:
1. Ensure unit is placed on a flat and stable surface.
2. Clean unit before plugging in and starting operation.
3. Do not change the plug on this unit as it will prevent the unit from working correctly and void all
warranties.
4. Set the temperature as required for respective foods. You may adjust the desired temperature in
the range between 30℃-90℃.
5. Allow the unit to reach desired temperature before placing cooked food inside.
6. Always use safety gloves or tongs when placing or removing food, as some of the warmer’s parts
become very hot.
7. Open rear side door to place or remove food.
8. Disconnect the warmer from the power outlet when the it is not in use.
9. Caution: Do not put water under the pans, this is a dry heat unit.
Operation
General Maintenance & Cleaning
1. Daily maintenance should be carried out with all power to the unit in the off position, and the
electrical cord unplugged. Cleaning should be carried out by means of food grade cleaning
solutions via a soft or damp cloth. Do not utilize any type of pressurized water equipment.
2. Do not use any acidic agents and make sure that no water enters the device.
3. After the cleaning procedure, you should use a soft and dry cloth to dry and polish the surface.
4. Make sure the device has been cleaned properly before storing it in a dry place.
5. Regular inspection on the outside and internal cabinet along with the power cord should be
observed and carried out on a regular basis to isolate and or observe any unforeseen failure or
safety concern.
Page 5

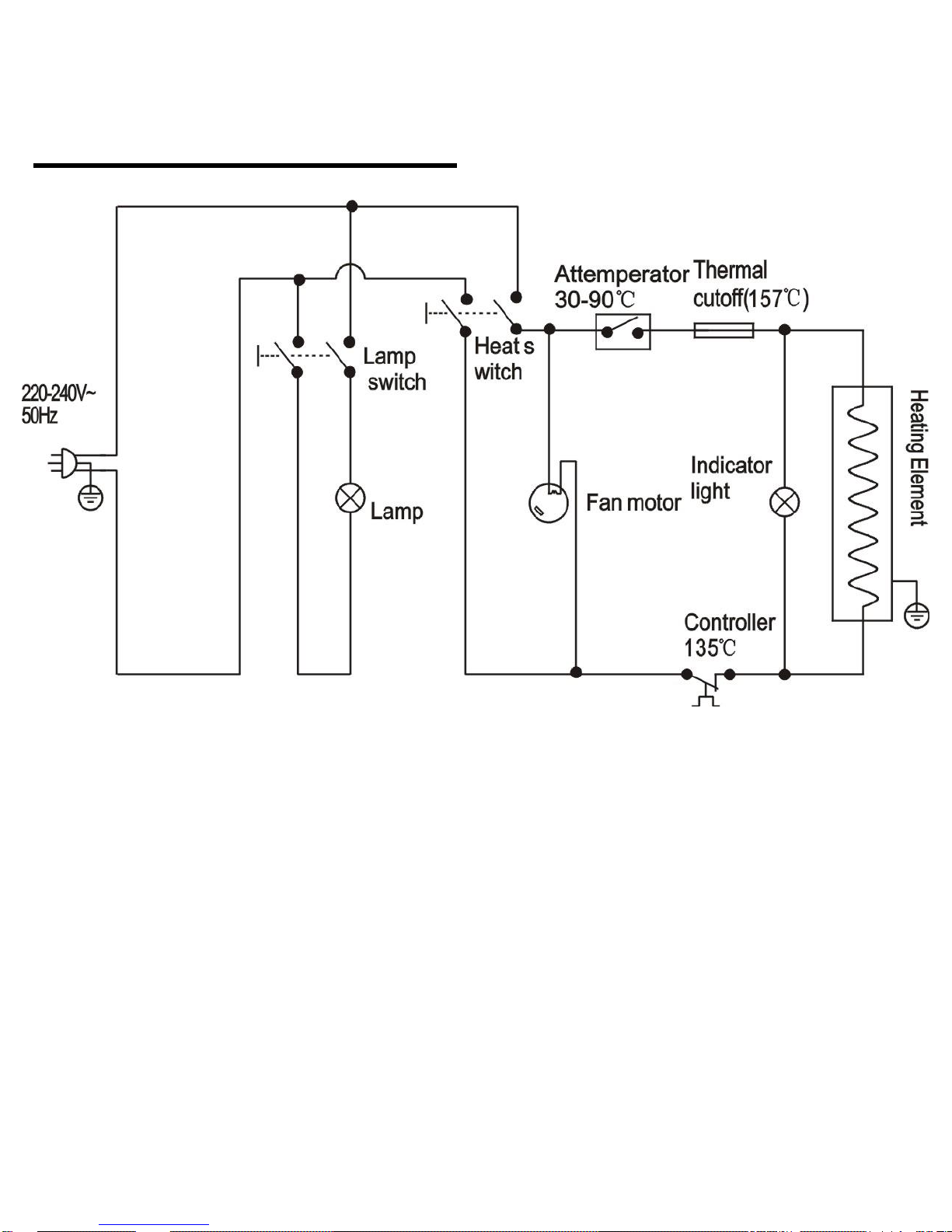

Electrical Schematic
