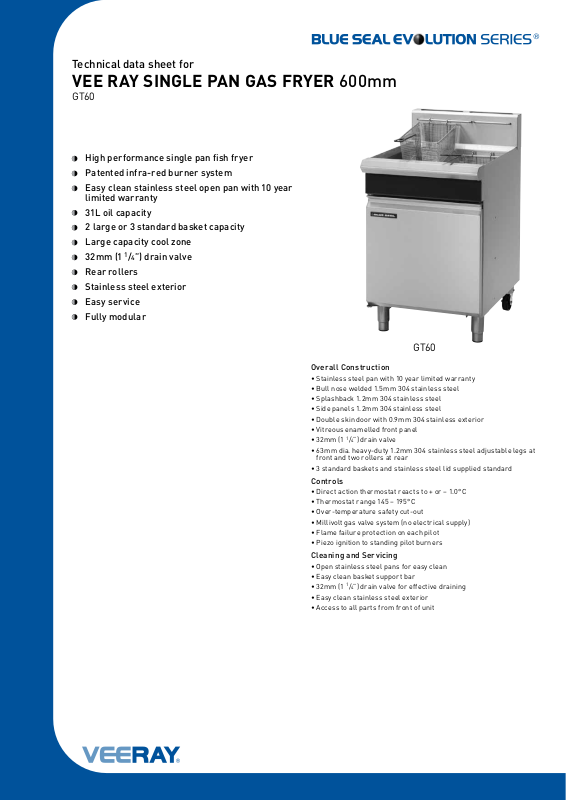

Technical data sheet for

VEE RAY SINGLE PAN GAS FRYER 600mm

GT60

High performance single pan fish fryer
Patented infra-red burner system
Easy clean stainless steel open pan with 10 year

limited warranty

31L oil capacity
2 large or 3 standard basket capacity
Large capacity cool zone
32mm (1 1/4”) drain valve
Rear rollers
Stainless steel exterior
Easy service
Fully modular

GT60

Overall Construction

• Stainless steel pan with 10 year limited warranty

• Bull nose welded 1.5mm 304 stainless steel

• Splashback 1.2mm 304 stainless steel

• Side panels 1.2mm 304 stainless steel

• Double skin door with 0.9mm 304 stainless exterior

• Vitreous enamelled front panel

• 32mm (1

• 63mm dia. heavy-duty 1.2mm 304 stainless steel adjustable legs at
front and two rollers at rear

• 3 standard baskets and stainless steel lid supplied standard

Controls

• Direct action thermostat reacts to + or – 1.0°C

• Thermostat range 145 – 195°C

• Over-temperature safet y cut-out

• Millivolt gas valve system (no electrical supply)

• Flame failure protection on each pilot

• Piezo ignition to standing pilot burners

Cleaning and Servicing

• Open stainless steel pans for easy clean

• Easy clean basket support bar

• 32mm (1

• Easy clean stainless steel exterior

• Access to all parts from front of unit

1

/4”) drain valve

1

/4”) drain valve for effective draining

Technical data sheet for

VEE RAY SINGLE PAN GAS FRYER 600mm

Specifications

Production r ate

31kg/hr

Pan Size

Width 515mm
Length 380mm
Oil fr ying depth 95mm
Oil capacity 31L (46.5lbs shortening)

Baskets

3 chrome plated wire baskets
140mm W x 335mm D x 145mm H
Optional 2 chrome plated large wire baskets
210mm W x 335mm D x 145mm H
Stainless steel perforated basket support plate

Burners

2 x 45MJ/hr infra-red burners

Gas Power

90MJ/hr, 25kW

Gas connection

3

/4 (BSP) male

R
Optional rear connection
(refer specication drawing)

Dimensions

Width 600mm
Depth 812mm
Height 915mm
Incl. splashback 1085mm

Nett weight

95kg

Packing data

0.70m3, 143kg
Width 870mm
Depth 645mm
Height 1255mm

Gas types

Available in Natural gas and LP gas, please specify
when ordering
Units supplied complete with gas type
conversion kits
Other gas types on request

Options

Adjustable feet at rear
Filtamax Filtration System
Fish plates
Extra standard baskets
Large baskets
Side splash guards
Joining caps
Castors

GT60

Cert 6882
