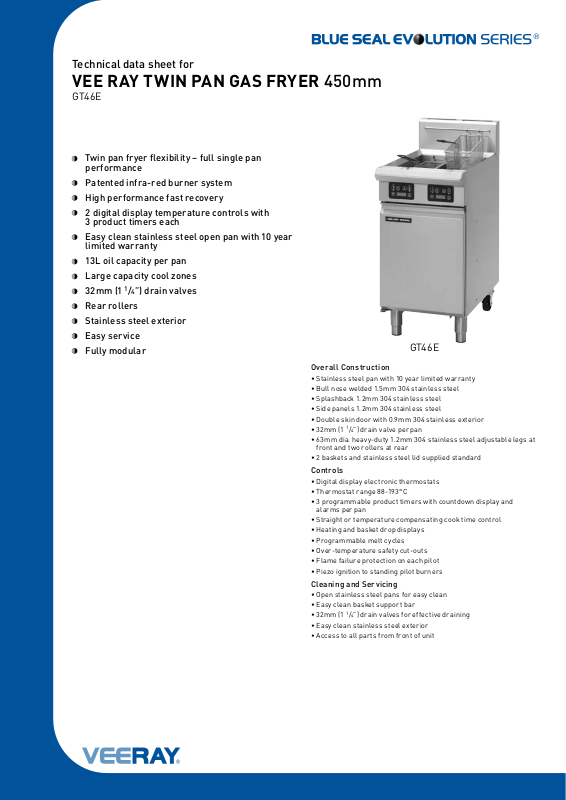

Technical data sheet for
VEE RAY TWIN PAN GAS FRYER 450mm
GT46E
Twin pan fryer flexibility – full single pan
performance
Patented infra-red burner system
High performance fast recovery
2 digital display temperature controls with
3 product timers each
Easy clean stainless steel open pan with 10 year
limited warranty
13L oil capacity per pan
Large capacity cool zones
32mm (1 1/4”) drain valves
Rear rollers
Stainless steel exterior
Easy service
Fully modular
GT46E
Overall Construction
• Stainless steel pan with 10 year limited warranty
• Bull nose welded 1.5mm 304 stainless steel
• Splashback 1.2mm 304 stainless steel
• Side panels 1.2mm 304 stainless steel
• Double skin door with 0.9mm 304 stainless exterior
• 32mm (1
• 63mm dia. heavy-duty 1.2mm 304 stainless steel adjustable legs at
front and two rollers at rear
• 2 baskets and stainless steel lid supplied standard
Controls
• Digital display electronic thermostats
• Thermostat range 88-193°C
• 3 programmable product timers with countdown display and
alarms per pan
• Straight or temperature compensating cook time control
• Heating and basket drop displays
• Programmable melt c ycles
• Over-temperature safet y cut-outs
• Flame failure protection on each pilot
• Piezo ignition to standing pilot burners
Cleaning and Servicing
• Open stainless steel pans for easy clean
• Easy clean basket support bar
• 32mm (1
• Easy clean stainless steel exterior
• Access to all parts from front of unit
1
/4”) drain valve per pan
1
/4”) drain valves for effective draining
Technical data sheet for
VEE RAY TWIN PAN GAS FRYER 450mm
Specifications
Production r ate
31kg/hr
Pan Size
Oil capacity 13L (24lbs shor tening) per pan
Width 175mm
Length 380mm
Oil fr ying depth 95mm
Baskets
2 chrome plated wire baskets
140mm W x 335mm D x 145mm H
Stainless steel perforated basket support plates
Burners
1 x 45MJ/hr infra-red burner per pan
Gas Power
90MJ/hr, 25kW total
Gas connection
3
/4 (BSP) male
R
Optional rear connection
(refer specication drawing)
Electrical Connection
230-240 Vac, 1P+N+E, 50/60Hz, 0.5A
3 pin 10A plug cordset tted
Dimensions
Width 450mm
Depth 812mm
Height 915mm
Incl. splashback 1085mm
Nett weight
88kg
Packing data
0.54m3, 129kg
Width 870mm
Depth 495mm
Height 1255mm
Gas types
Available in Natural gas and LP gas, please specify
when ordering
Units supplied complete with gas type
conversion kits
Other gas types on request
Options
Adjustable feet at rear
Filtamax Filtration System
Fish plates
Extra baskets
Side splash guards
Joining caps
Castors
GT46E
Cert 6882
Moffat / 7.09 / 1140
