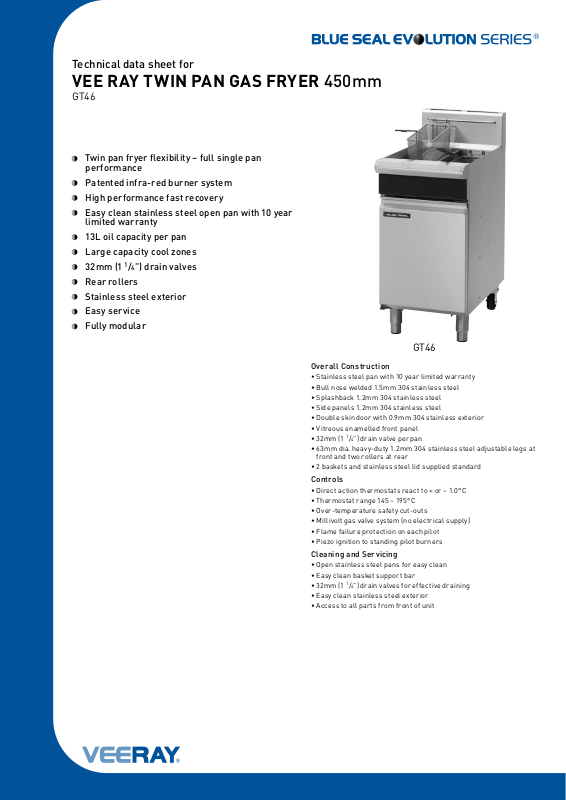

Technical data sheet for

VEE RAY TWIN PAN GAS FRYER 450mm

GT46

Twin pan fryer flexibility – full single pan

performance

Patented infra-red burner system
High performance fast recovery
Easy clean stainless steel open pan with 10 year

limited warranty

13L oil capacity per pan
Large capacity cool zones
32mm (1 1/4”) drain valves
Rear rollers
Stainless steel exterior
Easy service
Fully modular

GT46

Overall Construction

• Stainless steel pan with 10 year limited warranty

• Bull nose welded 1.5mm 304 stainless steel

• Splashback 1.2mm 304 stainless steel

• Side panels 1.2mm 304 stainless steel

• Double skin door with 0.9mm 304 stainless exterior

• Vitreous enamelled front panel

• 32mm (1

• 63mm dia. heavy-duty 1.2mm 304 stainless steel adjustable legs at
front and two rollers at rear

• 2 baskets and stainless steel lid supplied standard

Controls

• Direct action thermostats react to + or – 1.0°C

• Thermostat range 145 – 195°C

• Over-temperature safet y cut-outs

• Millivolt gas valve system (no electrical supply)

• Flame failure protection on each pilot

• Piezo ignition to standing pilot burners

Cleaning and Servicing

• Open stainless steel pans for easy clean

• Easy clean basket support bar

• 32mm (1

• Easy clean stainless steel exterior

• Access to all parts from front of unit

1

/4”) drain valve per pan

1

/4”) drain valves for effective draining

Technical data sheet for

VEE RAY TWIN PAN GAS FRYER 450mm

Specifications

Production r ate

31kg/hr

Pan Size

Oil capacity 13L (24lbs shor tening) per pan
Width 175mm
Length 380mm
Oil fr ying depth 95mm

Baskets

2 chrome plated wire baskets
140mm W x 335mm D x 145mm H
Stainless steel perforated basket support plates

Burners

1 x 45MJ/hr infra-red burner per pan

Gas Power

90MJ/hr, 25kW total

Gas connection

3

/4 (BSP) male

R
Optional rear connection
(refer specication drawing)

Dimensions

Width 450mm
Depth 812mm
Height 915mm
Incl. splashback 1085mm

Nett weight

88kg

Packing data

0.54m3, 129kg
Width 870mm
Depth 495mm
Height 1255mm

Gas types

Available in Natural gas and LP gas, please specify
when ordering
Units supplied complete with gas type
conversion kits
Other gas types on request

Options

Adjustable feet at rear
Filtamax Filtration System
Fish plates
Extra baskets
Side splash guards
Joining caps
Castors

GT46

Cert 6882
