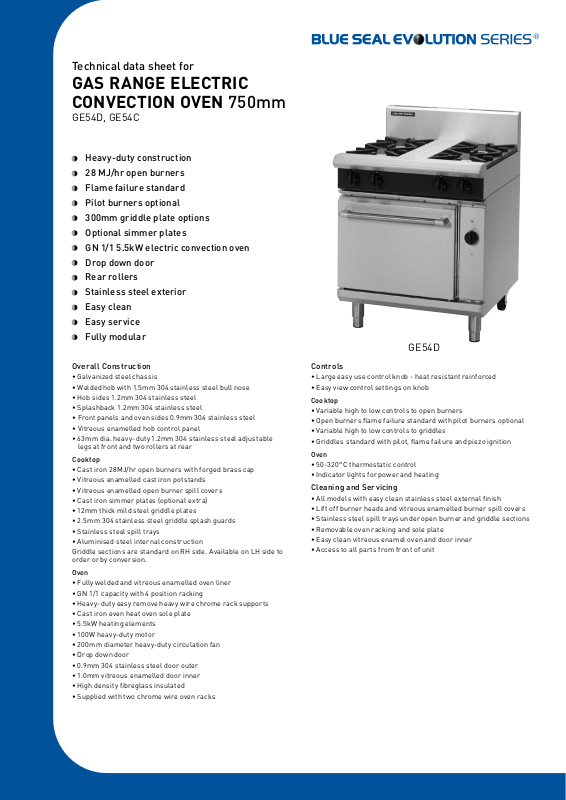

Bakbar GE54D User Manual

Technical data sheet for

GAS RANGE ELECTRIC
CONVECTION OVEN 750mm

GE54D, GE54C

Heavy-duty construction
28 MJ/hr open burners
Flame failure standard
Pilot burners optional
300mm griddle plate options
Optional simmer plates
GN 1/1 5.5kW electric convection oven
Drop down door
Rear rollers
Stainless steel exterior
Easy clean
Easy service
Fully modular

GE54D

Overall Construction

• Galvanized steel chassis

• Welded hob with 1.5mm 304 stainless steel bull nose

• Hob sides 1.2mm 30 4 stainless steel

• Splashback 1.2mm 304 stainless steel

• Front panels and oven sides 0.9mm 304 stainless steel

• Vitreous enamelled hob control panel

• 63mm dia. heavy-duty 1.2mm 304 stainless steel adjustable
legs at front and two rollers at rear

Cooktop

• Cast iron 28MJ/hr open burners with forged brass cap

• Vitreous enamelled cast iron potstands

• Vitreous enamelled open burner spill covers

• Cast iron simmer plates (optional extra)

• 12mm thick mild steel griddle plates

• 2.5mm 304 stainless steel griddle splash guards

• Stainless steel spill trays

• Aluminised steel internal construction

Griddle sections are standard on RH side. Available on LH side to
order or by conversion.

Oven

• Fully welded and vitreous enamelled oven liner

• GN 1/1 capacity with 4 position racking

• Heav y-duty easy remove heavy wire chrome rack suppor ts

• Cast iron even heat oven sole plate

• 5.5kW heating elements

• 100W heavy-dut y motor

• 200mm diameter heav y-duty circulation fan

• Drop down door

• 0.9mm 304 stainless steel door outer

• 1.0mm vitreous enamelled door inner

• High density breglass insulated

• Supplied with two chrome wire oven racks

Controls

• Large easy use control knob - heat resistant reinforced

• Easy view control settings on knob

Cooktop

• Variable high to low controls to open burners

• Open burners ame failure standard with pilot burners optional

• Variable high to low controls to griddles

• Griddles standard with pilot, ame failure and piezo ignition

Oven

• 50-320°C thermostatic control

• Indicator lights for power and heating

Cleaning and Servicing

• All models with easy clean stainless steel external nish

• Lift off burner heads and vitreous enamelled burner spill covers

• Stainless steel spill trays under open burner and griddle sections

• Removable oven racking and sole plate

• Easy clean vitreous enamel oven and door inner

• Access to all parts from front of unit

Technical data sheet for

GAS RANGE ELECTRIC
CONVECTION OVEN 750mm

Specifications

Burners

Open Burners 28MJ/hr dual ame ring with
simmer r ate
Griddle Burners 20MJ/hr per 300mm section

Oven Elements

3.75kW bottom heat element

1.75kW top heat element

Gas power

GE54D 112 MJ/hr, 31.1kW
GE54C 76 MJ/hr, 21.1kW

Oven Fan Motor

100W

Electrical requirements

5.6kW

1 phase connection:

230-240Vac, 50/60hz, 1P+N+E, 23.3A

3 phase connection:

400-415Vac, 50/60hz, 3P+N+E
L1 7.8A
L2 7.8A
L3 7.7A

Griddle Plate

300mm Griddle cooking sur face
292mm x 475mm, 1387cm2

Oven Dimensions

Width 500mm
Depth 590mm
Height 385mm
Rack size 495mm x 540mm
Rack positions 4

Gas connection

3

/4 (BSP) male

R
Optional underside connection, please specify
when ordering
All units supplied with Natural and LP gas
regulator

Dimensions

Width 750mm
Depth 812mm
Height 915mm
Incl. splashback 1085mm

Nett weight

193kg

Packing data

0.87m3, 251kg
Width 795mm
Depth 870mm
Height 1255mm

Gas types

Available in Natural gas and LP gas, please specify
when ordering
Units supplied complete with gas type
conversion kits
Other gas types on request

Options

Adjustable feet at rear
Simmer plates (replaces Potstand)
Ribbed griddle plates
Joining caps
Castors

GE54

GE54D GE54C

Cert 6913

Moffat / 7.09 / 1140
